Ultra Short Throw Lens – Installation Guide

Table of Content

Important Notice ................................................................................................................................ 2

Packing Check List ............................................................................................................................ 2

Projection Lens Overview ................................................................................................................. 3

Installing the Projection Lens ........................................................................................................... 4

Projection Distance and Size ............................................................................................................ 9

Projection Lens Specifications ....................................................................................................... 10

Projection Lens Dimensions ........................................................................................................... 10

About the VIVITEK Support ............................................................................................................ 11

Ultra Short Throw Lens – Installation Guide

Important Notice

Before using the Ultra Short Lens, make sure to read below important notice.

 Be sure to turn the power off and disconnect the power cable from the wall outlet before replacing the Lens. Improper

operation may cause to electrical shock or injury to eyes by intense light from the projector.

 Please remove the lens cap before installing the lens to the projector, the projection light may heat the lens cap and

melt it, this may raise safety issue or damage the projector.

 Make sure the projective film on the Lens is removed before turning on the projector; the protective film may be melt

during projection then resulting in damage or deformation.

 Do not place any object near the projection light path, the intense light from the projection lens may result in fire or burn

injures.

 Use a clean, soft and dry cloth or Lens cleaning wipes to wipe away dirt or dust adhered on the lens.

 Do not use the cloth containing oil, dust or water for cleaning. Once dust and dirt adhered on the lens surface, please

clean the glass with lens cleaning wipe.

 Keep all the original packing material even you finish the installation, the packing material may be used for avoiding

damage during transportation.

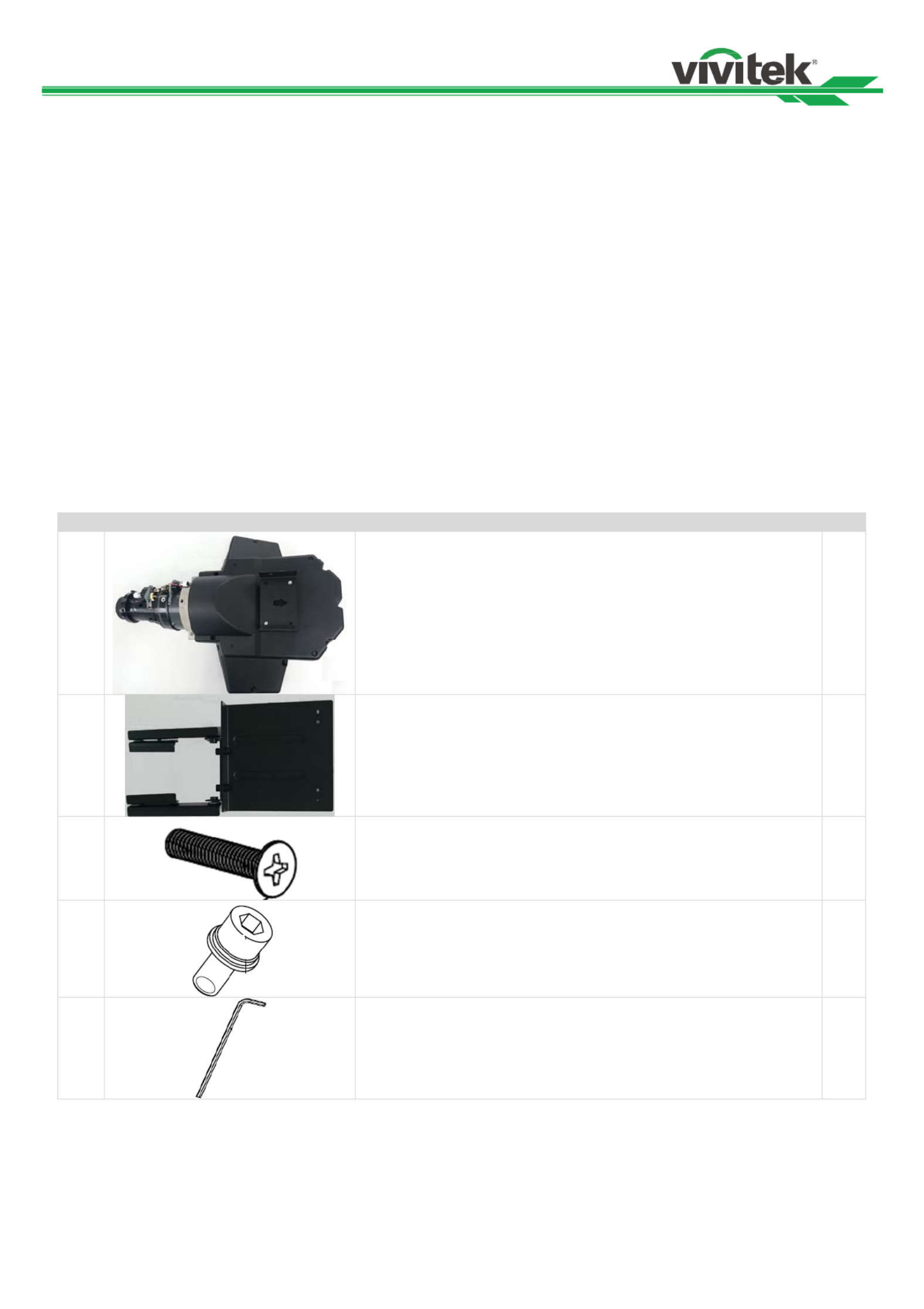

Packing Check List

Item Part Description Qty.

Ultra short throw with adaptor bracket

Bracket assembly

This bracket assembly is composed by one base bracket and four

arms, it’s is a part of support kit for joining Ultra Short Throw Lens

and the projector. Use flat screw to fix the bracket assembly on

the bottom of the projector and joint the arm with projection lens

by hex socket cap screw.

Flat screw 4*0.7*20mm:

The screws are used for fixing bracket assembly to the bottom of

the projector

Hex socket cap screw, 6*1*14 mm

Hex socket cap screws are used for jointing the arm of bracket

assembly and the projection lens.

Wrench

The wrench is used to drive hex socket cap screw
