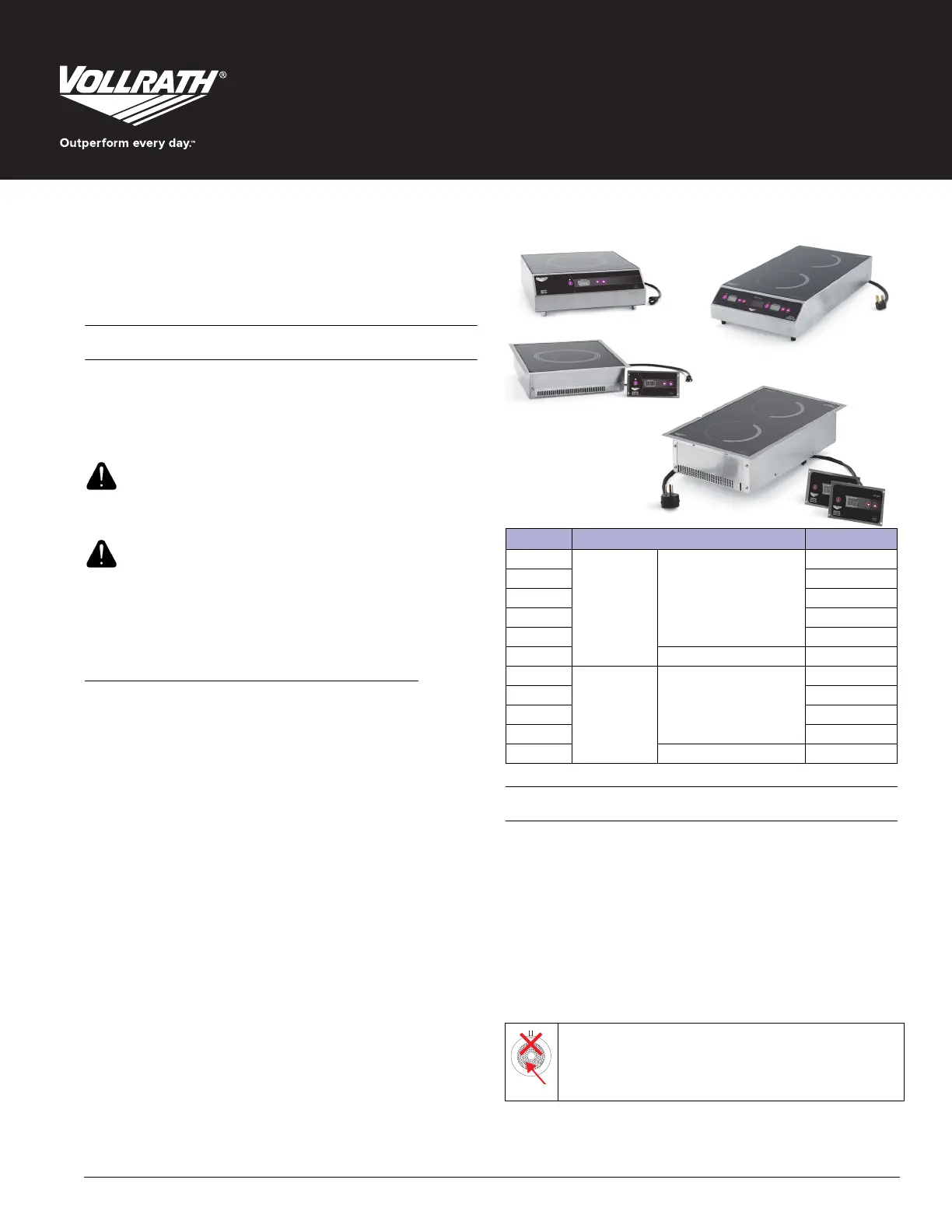

Operator’s Manual

Ultra Series Countertop and Drop-In Induction Ranges

2018 The Vollrath Company L.L.C. Part No. 351662-1 ml 8/24/18

fry pan.

Thank you for purchasing this Vollrath equipment. Before operating the

equipment, read and familiarize yourself with the following operating

and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. Save the original box and packaging. Use this packaging

to ship the equipment if repairs are needed.

SAFETY PRECAUTIONS

To ensure safe operation, read the following statements and understand

their meaning. This manual contains safety precautions which are

explained below. Please read carefully.

Warning is used to indicate the presence of a hazard that will or can

cause severe personal injury or death.

Caution is used to indicate the presence of a hazard that will or can

cause minor or major personal injury if the caution is ignored.

NOTICE: Notice is used to note information that is important but not

hazard-related.

To reduce risk of injury or damage to the equipment:

• Plug only into grounded electrical outlets that match the voltage on

the rating label.

• This equipment requires a dedicated circuit.

• Do not use extension cords, power strips or surge protectors with

this equipment.

• Unplug this equipment from the wall outlet when not in use.

• Use this equipment only in a flat, level position.

• To protect against electrical shock do not immerse the cord or plug

in water. Keep the cord away from heated surface. Do not let the

cord hang over the edge of table or counter.

• As a precaution, persons using a pacemaker should stand back 12"

(30 cm) from an operating unit. Studies have shown that the

induction element will not disrupt a pacemaker.

• Keep all credit cards, driver licenses and other items with a magnetic

strip away from an operating unit. The unit’s magnetic field will

damage the information on these strips.

• The heating surface is made of a strong, non-porous material.

However, should it crack or break, stop using and immediately

unplug the unit. Cleaning solutions and spills could penetrate the

broken cook-top and create a risk of electrical shock.

• Do not operate this equipment with a damaged cord or plug or if it is

not functioning properly.

• Do not operate unattended. Closely supervise units operating in

public areas and/or around children.

• Do not place any objects inside the air intake or exhaust panels.

• Do not attach any accessory objects to this equipment.

FUNCTION AND PURPOSE

This equipment is intended for use in commercial food service

operations only. It is not intended for household, industrial or

laboratory use. It is intended to be used with induction-ready cookware.

Induction Ready Cookware

• Flat base measuring 4¹⁄₂" (11.4 cm) to 10¼" (26 cm) wide

• Ferrous stainless steel

• Iron

• Cast iron

Unsuitable Cookware

• Cookware with a base less than 4¹⁄₂" (11.4 cm)

• Pottery, glass, aluminum, bronze or copper cookware

• Cookware with any type of footed base

WARNING

CAUTION

Item No. Description

Plug

69504

Countertop

Single Hob

NEMA 6-20P

6950480 NEMA 6-20P

6950402 Schuko

6950403 UK

6950405 AU

69507 Dual Hob, Front-to-Back NEMA 6-50P

69505

Drop-in

Single Hob

NEMA 6-20P

6950502 Schuko

6950503 UK

6950505 AU

69508 Dual Hob, Front-to-Back NEMA 6-50P

NOTICE: Equipment Damage Hazard

Not intended for use with aluminum pans with a metal disc on

the bottom. Under high heat, the metal disc will separate from

the pan. These pans may damage your unit and void your

warranty.

2 Ultra Series Countertop and Drop-In Induction Ranges Operator’s Manual

FCC STATEMENT

This equipment has been tested and found to comply with Part 18 of

FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

To assure continued compliance, any changes or modifications not

expressly approved by the party Responsible for compliance could void

the user’s authority to operate this equipment.

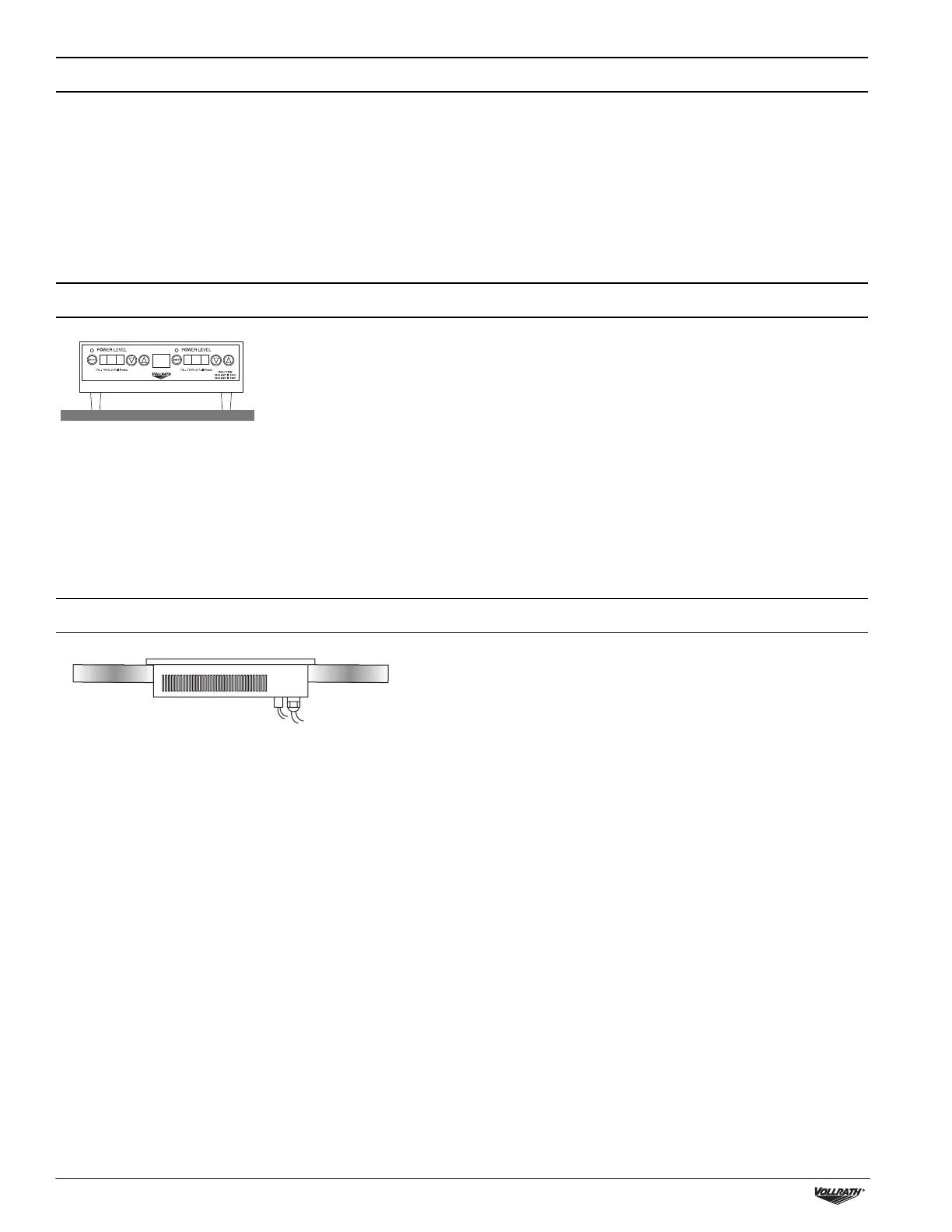

COUNTERTOP RANGE INSTALLATION

Clearance and Environment Requirements

NOTICE: This unit is not designed to be enclosed or built into any

area. Sufficient airflow must be allowed around the unit.

Blocking the airflow could cause the unit to overheat.

• Rear of the range to any surrounding surface: 4" (10 cm)

• Bottom of the range to any surrounding surface: 1" (2.5 cm)

• Indoor use only.

• Do not place the equipment on or near heat-producing equipment.

Installation

1. Place the induction range/warmer on a flat stable surface.

2. Plug the power cord into a grounded electrical outlets that match the

voltage on the rating label.

NOTICE: This equipment requires a dedicated circuit.

NOTICE: Using a voltage other than the nameplate rated voltage

will cause damage to the unit. Incorrect voltage,

modification to the power cord or electrical components

can damage unit and will void the warranty.

DROP-IN RANGE INSTALLATION

NOTICE: Refer to the drop-in specification sheet for cutout

dimensions, air flow and venting requirements, minimum

clearance distances and environment requirements.

NOTICE: Countertop materials require specific preparation. Refer to

the countertop manufacturer for instructions regarding

proper installation of equipment into the material.

NOTICE: Exposed wood or particle board edges must be sealed with

an appropriate waterproofing material. Seal the edge

between the glass and the countertop with silicone or

similar material. Failure to do so may result in damage to

the countertop.

Clearance and Environment Requirements

1. Download the specification sheet for your drop-in from

Vollrath.com. You will need to refer to this document for

dimensions, clearance, venting and power requirements.

2. Verify the proper electrical outlet is available at the installation site.

NOTICE: This equipment requires a dedicated circuit.

NOTICE: Do NOT modify the cord or plug on the drop-in. Modifying

any component may damage the drop-in or cause injury,

and will void the warranty. See the specification sheet on

Vollrath.com for electrical specifications.

3. Know the countertop manufacturer's requirements for preparing and

installing equipment into the countertop prior to starting installation.

Prepare the Countertop and Cabinet

1. Cut required openings in the countertop and cabinet.

2. Clean debris from the cut out area(s).

3. Reinforce the countertop support as needed per the countertop

manufacturer guidelines and the weight of the equipment.

Mount the Drop-in

1. Choose a flat, level countertop for the mounting surface.

2. Measure the area for the cutout. See the specification sheet.

Mount the Control Box

1. Measure the area for the control box cutout.

2. Apply sealant to the space between the control box and the

mounting surface to prevent moisture penetration.

3. Secure the control box to the mounting surface.
