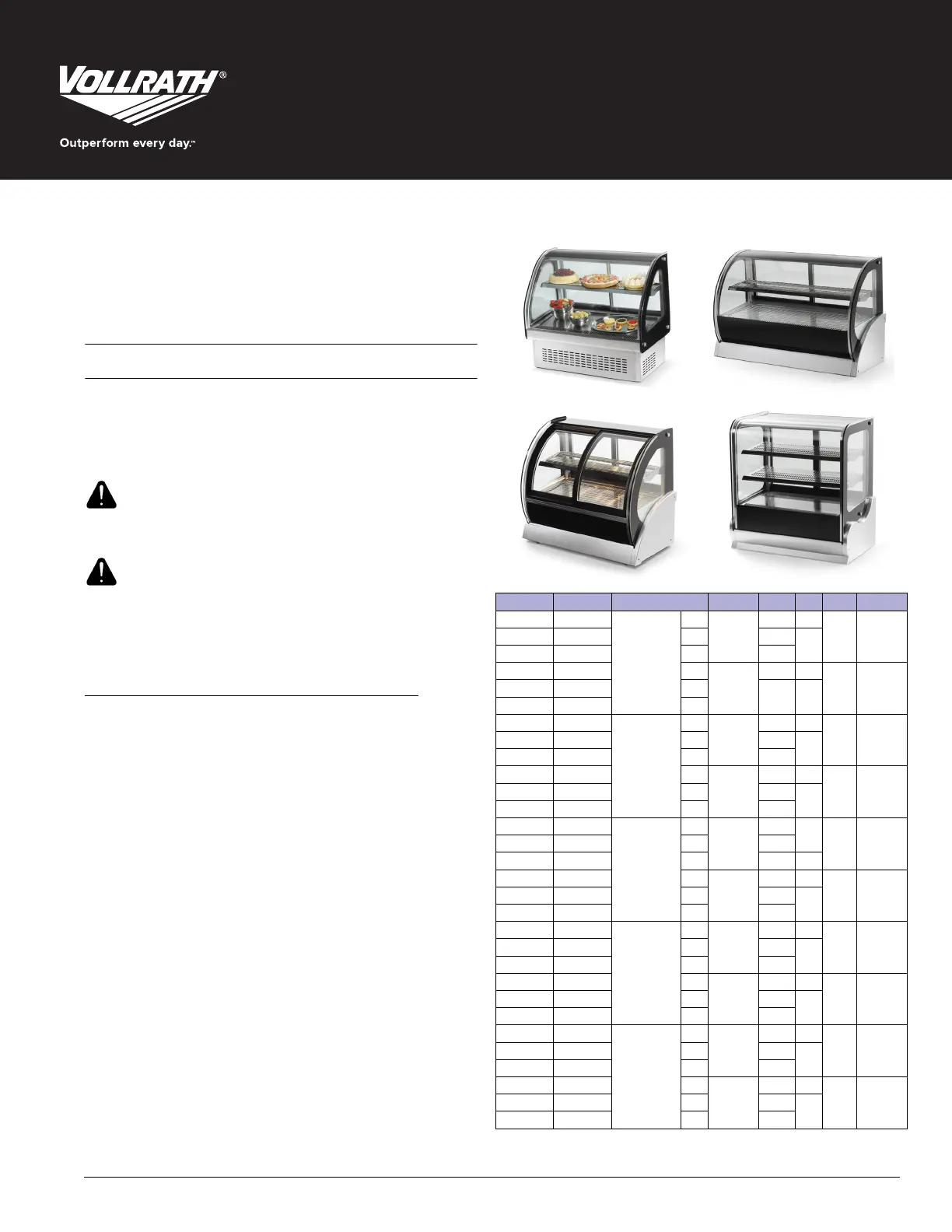

Operator’s Manual
Refrigerated Display Cases
©
2016 The Vollrath Company L.L.C. Part No. 2350087-1 ml 6/27/16
Please register your product at Vollrath.com
Thank you for purchasing this Vollrath equipment. Before operating the
equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. Save the original box and packaging. Use this packaging
to ship the equipment if repairs are needed.
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are
explained below. Please read carefully.
Warning is used to indicate the presence of a hazard that will or can
cause severe personal injury or death.
Caution is used to indicate the presence of a hazard that will or can
cause minor or major personal injury if the caution is ignored.
NOTICE: Notice is used to note information that is important but not
hazard-related.
To reduce risk of injury or damage to the equipment:
• Use only grounded electrical outlets matching the nameplate rated
voltage.
• Have a qualified person install the equipment in accordance with
local codes and ordinances.
• Use equipment in a flat, level position.
• Do not use an extension cord with this equipment. Do not plug this
equipment into a power strip or multi-outlet power cord.
• Unplug equipment and turn off before cleaning or moving.
• Do not spray controls or outside of equipment with liquids or
cleaning agents.
• Do not clean the equipment with steel wool.
• Keep equipment and power cord away from open flames, electric
burners or excessive heat.
• Do not operate unattended.
• Do not operate equipment in public areas and/or around children.
• Do not operate if equipment has been damaged or is malfunctioning
in any way.
WARNING
CAUTION
Item No. Model Description Voltage Amps HP Hz Plug
40842 RDE7136
Drop-In
36"
120
3.4 ¹⁄₅
60
NEMA
5-15P
40843 RDE7148 48" 4.2
¹⁄₄
40844 RDE7160 60" 4.4
4084205 RDE1136 36"
220-240
2.2 ³⁄₈
50/60
UK/
Schuko/
China*
4084305 RDE1148 48"
2.8 ¹⁄₂
4084405 RDE1160 60"
40852 RDE8136
Countertop
Curved
36"
120
3.6 ¹⁄₅
60
NEMA
5-15P
40853 RDE8148 48" 4.6
¹⁄₄
40854 RDE8160 60" 4.9
4085205 RDE1236 36"
220-240
2.6 ³⁄₈
50/60
UK/
Schuko/
China*
4085305 RDE1248 48" 3.1
¹⁄₂
4085405 RDE1260 60" 3.3
40862 RDE8236
Countertop
Cubed
36"
120
3.9
¹⁄₄
60
NEMA
5-15P
40863 RDE8248 48" 5.0
40864 RDE8260 60" 6.0 ¹⁄₃
4086205 RDE1336 36"
220-240
2.8 ³⁄₈
50/60
UK/
Schuko/
China*
4086305 RDE1348 48" 3.3
¹⁄₂
4086405 RDE1360 60" 3.7
40880 RDE8336
Self-Serve
Countertop
Curved
36"
120
4.2 ¹⁄₄
60
NEMA
5-15P
40881 RDE8348 48" 7.4
¹⁄₃
40882 RDE8360 60" 8.1
4088005 RDE1436 36"
220-240
3.4 ¹⁄₄
50/60
UK/
Schuko/
China*
4088105 RDE1448 48" 5.2
¹⁄₃
4088205 RDE1460 60" 5.4
40886 RDE8436
Self Serve
Countertop
Cubed
36"
120
4.3 ¹⁄₄
60
NEMA
5-15P
40887 RDE8448 48" 7.6
¹⁄₃
40889 RDE8460 60" 8.2
4088605 RDE1536 36"
220-240
3.9 ³⁄₈
50/60
UK/
Schuko/
China*
4088705 RDE1548 48" 4.8
¹⁄₃
4088905 RDE1560 60" 5.0
*Display Case has IEC inlet. Ships with three electrical cords, one each with UK,
Schuko or China plug.
Curved Case
Cubed Case
Self-Serve Curved Case
Drop-in Case
2 Refrigerated Display Cases Operator’s Manual
FUNCTION AND PURPOSE
This equipment is designed for illuminated display of food products at
temperatures between 32°F (0°C) and 68°F (20°C). This equipment is
intended and designed to keep chilled food at proper serving
temperatures while it is displayed for sale. Food must be prepared and
placed in display cabinets at proper serving temperatures. Display
cases not intended or designed to cool or chill food. They are not
intended for overnight storage of perishable food. They are not
intended for household, industrial or laboratory use.
UNPACK THE EQUIPMENT
If the unit has been transported in a non-vertical position allow at least
one hour before operating.
1. Remove all packing material and tape, as well as any protective
plastic from the equipment.
2. Remove bolts that secure the equipment to the pallet.
3. Remove any glue residue left over from the plastic or tape.
4. Clean the equipment before use. See Cleaning procedure in this
document.
COUNTERTOP MODEL INSTALLATION
Clearance Requirements
• Countertop cases require a minimum of 4” (10.2 cm) between the
equipment and any surrounding walls. Surrounding walls must be
made of non-combustible materials.
Installation
1. Place the equipment on a flat stable surface.
2. Plug the equipment into a properly grounded electrical supply
matching the nameplate rating. Damage to the equipment can occur
if incorrect power is supplied to equipment.
NOTICE: Using a voltage other than the nameplate rated voltage
will cause damage to the unit. Incorrect voltage,
modification to the power cord or electrical components
can damage unit and will void the warranty.
3. After the installation is complete the thin breather wires on the top of
the side glass panels may be trimmed and crimped closed.
DROP-IN MODEL INSTALLATION
Clearance, Cutout and Ventilation
• Drop-in cases require a minimum of 4” (10.2 cm) of non-
combustible countertop to support the unit and a minimum of 6”
(15.2 cm) clearance on all sides of the drop-in for proper air
circulation.
• Drop-in case requires a minimum of 80 square inches for fresh air
intake and a minimum of 80 square inches for exhaust. Customer
supplied louvers must be installed in the surrounding cabinet to
ensure adequate ventilation. One intake and one discharge louver are
required. Preferred louver location is the short ends of the cabinet.
Installation
1. Choose a flat, level countertop for the mounting surface.
2. Measure the area for the cutout. See above drawing.
3. Seal the base of the unit to the countertop with food-grade silicone
seal.
4. Plug the equipment into a properly grounded electrical supply
matching the nameplate rating. Damage to the equipment can occur
if incorrect power is supplied to equipment.
NOTICE: Using a voltage other than the nameplate rated voltage
will cause damage to the unit. Incorrect voltage,
modification to the power cord or electrical components
can damage unit and will void the warranty.
5. After the installation is complete the thin breather wires on the top of
the side glass panels may be trimmed and crimped closed.

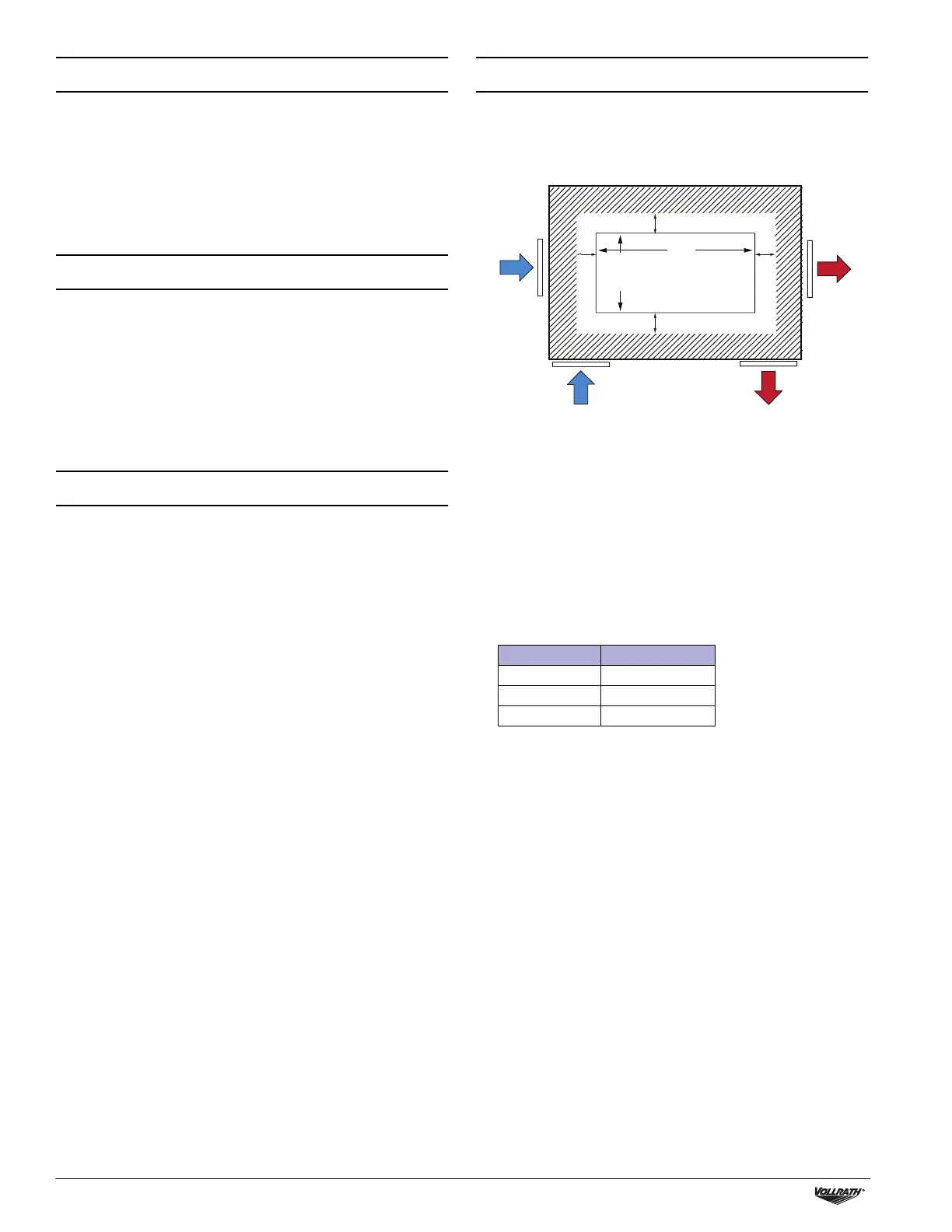

Display Cabinet A
36" 34" (86.3 cm)
48" 45" (114.3 cm)
60" 58" (147.3 cm)
19
(48.2)
6" (15.2)
6" (15.2)
6" (15.2)
A
6" (15.2)
Alternate
Alternate
Preferred
Preferred
Customer Side
4"
(10.2)
4"
(10.2)
4"
(10.2)
4"
(10.2)
