WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014
2.5” Low Voltage - Electronic Non-IC Remodel
IMPORTANT: NEVER attempt any work without shutting o the electricity.
• Read all instructions before installing.
• For installation by a qualied electrician.
• System is intended for installation in accordance with National Electric Code, and local regulations.
Consult with local inspector to assure compliance.
• To reduce the risk of re, electrical shock and injuries to persons, turn o power at
main switch before installing or modifying the system.
• Retain instructions for future maintenance reference.
Housing is non-insulation contact, remodeling type, and 50 watts maximum.
Trim and housing combination will determine maximum trim wattage.
Housing requires a trim from the HR-800 series, and lamp to be complete
(ordered separately). If dimming, will generally work with
standard electronic low voltage dimmers.
1. Use the template (supplied) to make a 3” cut out hole
2. Pull ceiling wire through the hole.
1. Junction box is suitable for chain wiring of multiple
xtures and is supplied with a spring latch door, and
two trade size knockouts for BX or Romex® connectors.
2. Remove junction box door and connect xture wires to
building wires: Green ground wire to bare copper or green
building wire, white xture wire to white neutral wire,
black xture wire to (hot) black wire.
3. Secure with wire nuts (supplied).
4. Replace junction box door.

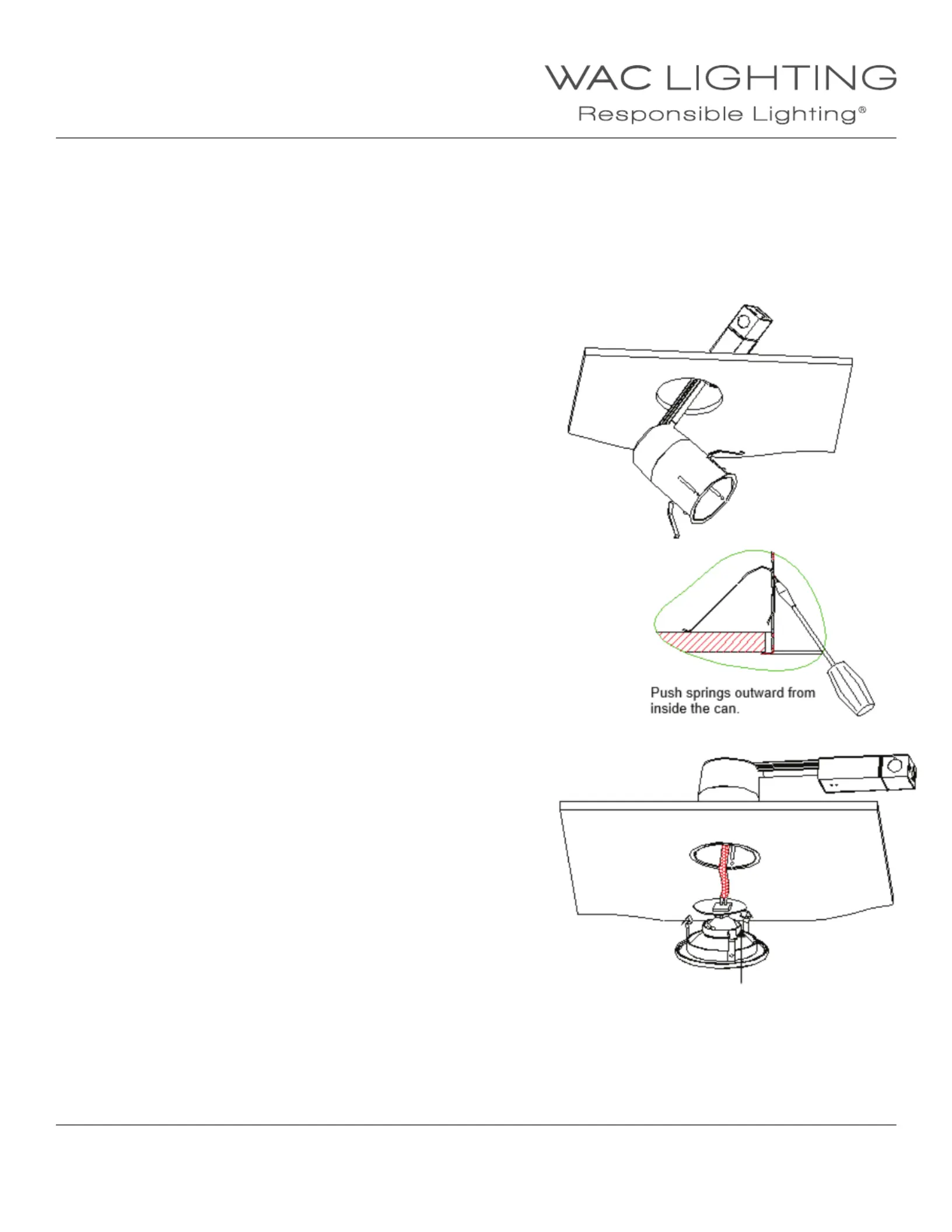

1. Pivot the J box up through the hole, followed by the can.
2. Hold the rim snug to the ceiling surface.
3. From inside the housing push and pivot the housing clips
so they make contact with the top of the ceiling
Note: 3/4 inch maximum ceiling thickness.
1. Socket wire is sucient in length to be attached to the pins
of the lamp before it is inserted.
2. Push the trim assembly up until the trim ring is ush to the ceiling.
