1. Ensure refrigerator is empty of all loose items and unplugged from

power source.

2. Store power cord next to motor to prevent damage. Check for water in

drain pan and remove any water with a cloth or sponge if necessary.

3. Lay the refrigerator on its back.

WARNING

Your refrigerator is heavy–you may need assistance.

4. Remove the hinge cover with a soft plastic lever.

5. Remove the LH cap with a soft plastic lever.

6. Unscrew 3 x 8mm top hinge screws and remove RH top hinge.

Do not discard screws.

DESCRIPTION QTY

Top hinge cap RH 2

Top hinge cover LH 2

Top hinge LH 1

Centre hinge LH 1

Bottom hinge LH 1

Base support RH 1

Door stopper LH 2

NOTE: Keep kit parts separate from other parts as you

disassemble them to avoid mix-ups.

TOOLS YOU WILL NEED (not supplied)

Phillips head screwdriver

8mm (5

/16") hex head socket

WARNING

Westinghouse takes no responsibility for incorrectly assembled doors

leading to injury or malfunction.

CAUTION

Refrigerator must stand for 30 minutes prior to connecting to power supply

to ensure system functions correctly.

IMPORTANT

All hinge screws require tightening to a torque setting of 5-10Nm

1 LH top hinge cap

2 RH top hinge and hinge cover

3 Centre hinge cap and screws

4 RH centre hinge and screws

5 Adjustable foot

6 Base support

7 RH bottom hinge assembly

frIDgE DEScrIpTION

KIT cONTENTS

Top view of right hand hinge cabinet

Bottom view of right hand hinge cabinet

INSTrUcTIONS

drain pan

motor Rear view of

refrigerator

7. Remove freezer door by opening 45 and gently slide off hinge. º

Set door aside to prevent damage.

8. Unscrew 2 x 8mm centre hinge screws. Do not discard screws.

9. Remove RH centre hinge by lifting the door slightly and sliding hinge

out of the door.

10. Remove food door by opening 45º and gently slide off hinge.

Set door aside to prevent damage.

11. Remove both the nylon bearing and the nylon bearing cap from the top

of door and swap positions. Repeat with freezer door. Remove RH door

stopper and replace LH door stopper.

45°

INSTALLATION MANUAL

rEfrIgErATOr DOOr rEVErSAL KIT

Models: WTB2000WA, WTB2000pA, WTB2300WA, WTB2300pA, WTB2500WA,

WTB2500pA, WTB2800WA, WTB2800pA, WTB3100WA, WTB3100pA,

WTB3400WA, WTB3400pA, STB2300WA, STB2800WA, STB3100WA

door stopper LH

door stopper RH

19. Replace the food door by holding at 45 and gently slide onto the º

bottom hinge and closing the door.

20. Replace LH centre hinge by lifting the door slightly and sliding hinge

into the door and placing the door down again.

21. Insert 2 x 8mm screws from existing centre hinge into the LH centre

hinge, tighten the screws until the bracket is secured.

22. Replace the freezer door by holding at 45 º and gently slide onto the

centre hinge and closing the door.

23. Slide the LH top hinge (kit contents) into the door, loosely screw the 3

x 8mm screws from the existing top hinge in the cabinet.

24. Ensure that the edges of the doors are parallel with the sides of the

cabinet.

45°45°

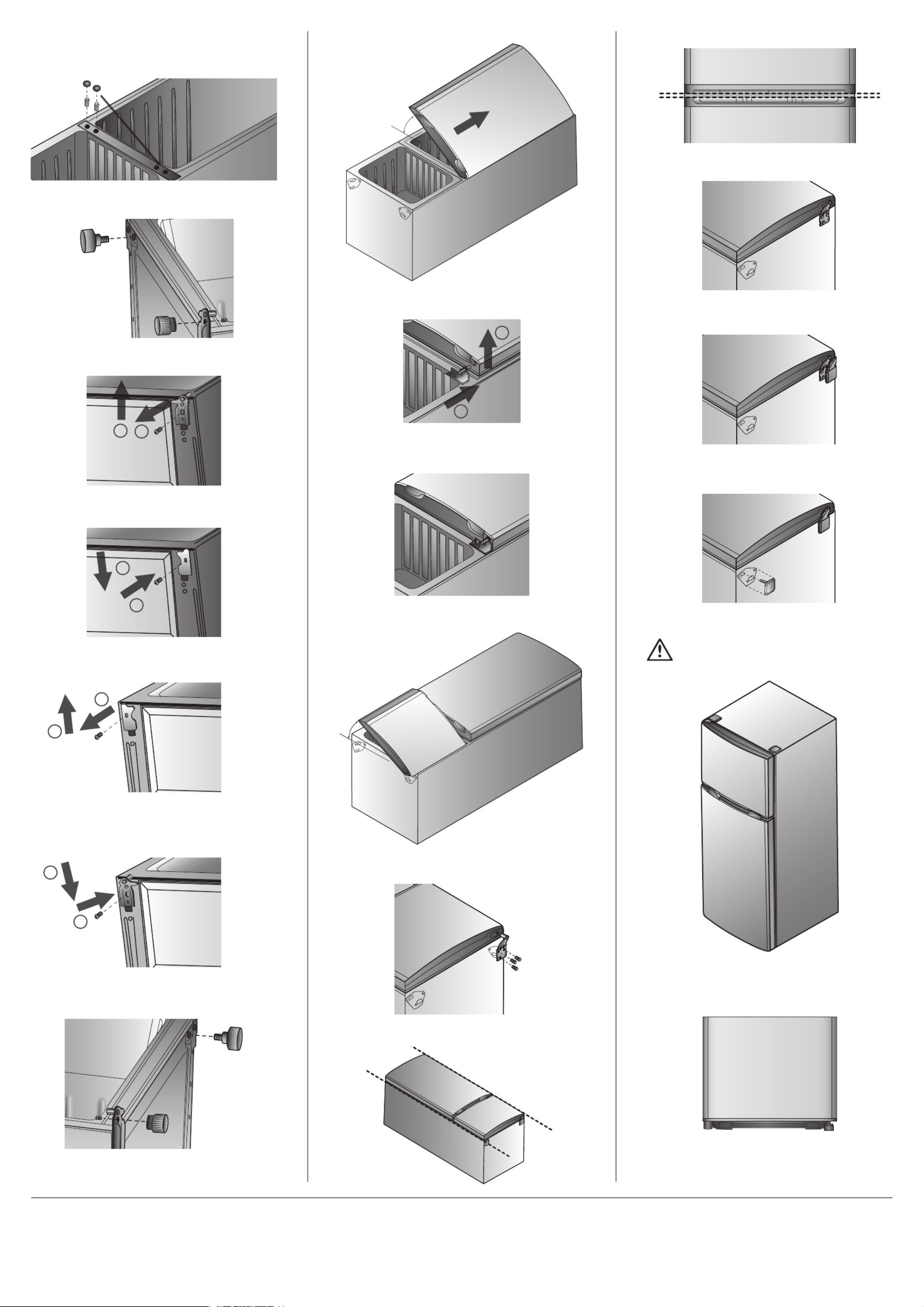

12. Remove the centre hinge caps with plastic lever and unscrew 2 x 8mm

screws replace both screws and caps in the centre hinge holes on the

opposite side.

13. Unscrew the hinge foot using phillips head screwdriver and unscrew

foot on opposite side. Do not discard.

14. Unscrew the bottom hinge screw shown, pull the hinge away from

cabinet then up to remove.

15. Place the base support RH (kit contents) onto the cabinet, placing it

down then towards cabinet to install. Replace the screw.

16. Unscrew the base support LH screw shown, pull the support away

from cabinet then up to remove.

17. Place the bottom hinge LH (kit contents) onto the cabinet, placing it

down then towards cabinet to install. Replace the screw.

18. Replace the hinge foot onto the LH bottom hinge and tighten with

screw.Screw the other foot into the corresponding hole.

25. Ensure that the food door and the freezer door have a parallel gap.

26. Fully tighten the LH top hinge to the cabinet until the hinge is secure.

27. Clip the LH hinge cover (kit contents) over LH top hinge.

28. Insert the RH top hinge hole cap (kit contents) in the cabinet as

shown.

29. Stand the refrigerator upright.

WARNING

Your refrigerator is heavy–you may need assistance.

30. Level the cabinet by adjusting the foot. NOTE: the adjustable foot is on

the opposite side to the hinge.

45°









Print code: WMANDOORREV Jul 07_

Part number: 2432829 00

AUSTRALIA

phone: 1300 363 640

fax: 1800 350 067

email: customercare@electrolux.com.au

web: www.westinghouse.com.au

www.simpson.com.au

NEW ZEALAND

phone: 09 573 2384

fax: 0800 363 600

email: customercare@electrolux.co.nz

web: www.westinghouse.co.nz

www.simpson.co.nz
