Side 1/2
www.wetsounds.com
2975 Louise Street
Rosenberg, Texas 77471 USA
877-938-7757
WS-TB-MIC
Owner’s Manual
Talk Back Microphone w/ Adjustable Mic Gain
WS-TB-MIC
© 2023 Wet Sounds, Inc. All Rights Reserved. WET SOUNDS and associated logos where
applicable are registered trademarks of Wet Sounds Corporation in the United States and/or
other countries. All other trademarks are the property of their respective owners.
W S - TB - M I C
MIC
30
86 85
87a
87
Remote turn on wire from source unit
MUTE WIRE
RELAY DIAGRAM
Remote turn on
to external amps
Negative (-) mute
trigger from WS-TB-MIC
Switched accessory
12V source (use fuse)
Not used
Congratulations!

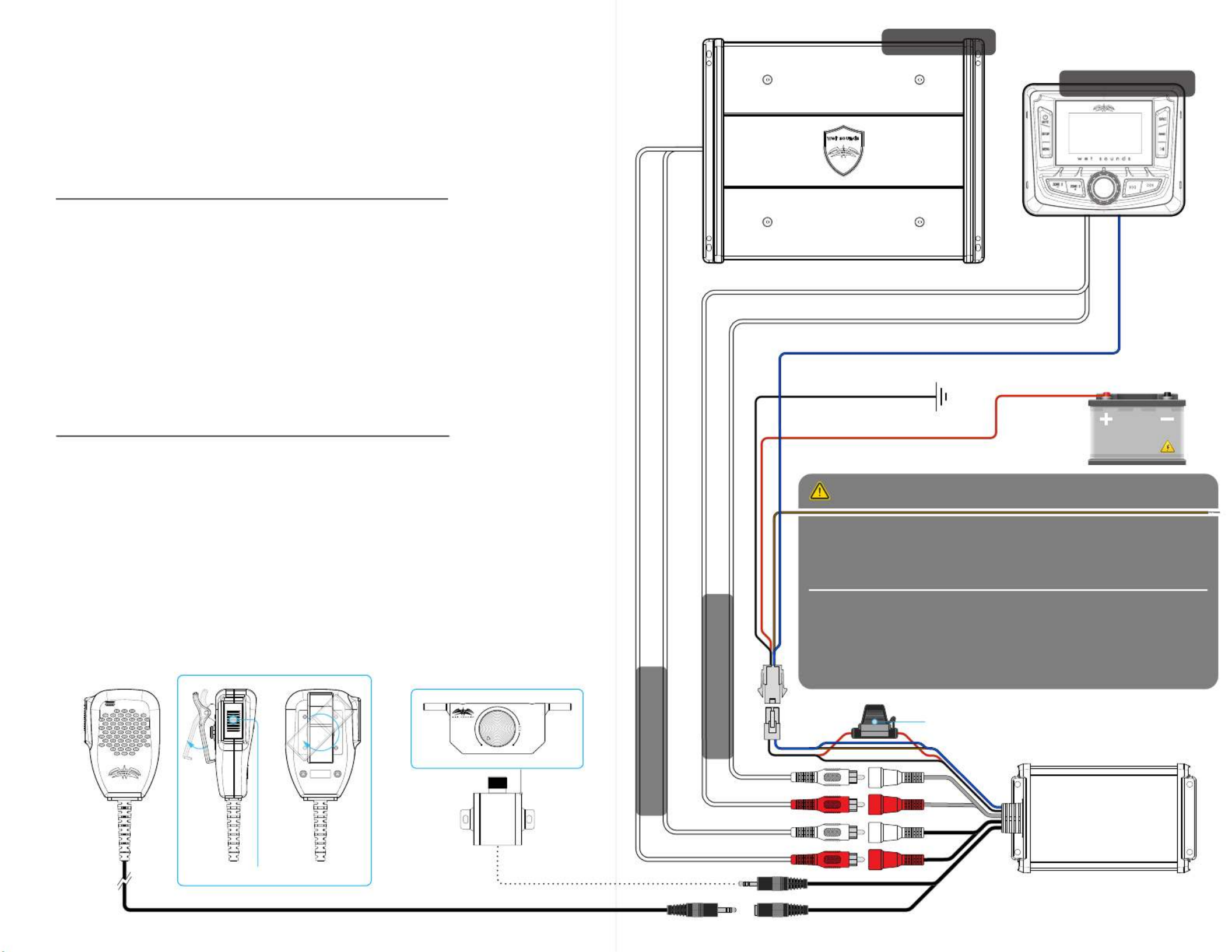

WIRING DIAGRAM
Hardware Included:
• WS-TB-MIC Box
• PTT Microphone
• Mic Volume Controller
• 4 Pin Connector
• (2) 3.5mm Female to Male Extension Cables
• (4) Phillips Stainless Steel WS-TB-MIC Box Mounting Screws
• (2) Phillips Stainless Steel Mic Vol. Controller Mounting Screws
The WS-TB-MIC talk back microphone allows the driver to
communicate with the riders or other vehicles in the area. By pushing
the button on the microphone, the system will automatically mute the
music playing from the connected channels and allow you to use them
as a PA system. Once the button is released, the interrupted channels
will resume playing at their previous volume.
Thank you for purchasing the Wet Sounds
WS-TB-MIC.
MIC PTT
PUSH T O TA LK ROT AT AB L E
360°
Mic Le vel C o nt ro l
4 Pi n Co nn ec t or
Ground ( -)
Tur n On ( 12 V +I n) t o So ur c e Un it
Ba tt e ry (1 2V+)
Mic In
PTT M i c Mic Vol u me C on t ro ll e r
PWR
MI C
V O L .
MI N MA X
Regarding Brown Mute Wire
If you’d like to interrupt other speakers in a multi-amplifier system when using
the mic, you will most likely need to use the brown mute wire from the WS-TB-MIC.
The brown mute wire coming from the WS-TB-MIC is a 500mA ground output
that can be used for the following applications:
• Connected directly to a source unit with a negative mute input.
Note: Not all source units support this function.
• Wired to a relay to interrupt the remote turn on wire to an external amp.
This will turn these amps off when the mic is engaged and allow the amps
to turn back on after the mic is disengaged.
Refer to back of manual for relay diagram.
Min i A TC 2 A F us e
A m p l i f i e r
S o u r c e U n i t
In put RC A f r om So ur ce Un it
Out put R CA t o Am pl i f ie r
