Side 1/3

5019 318 33221

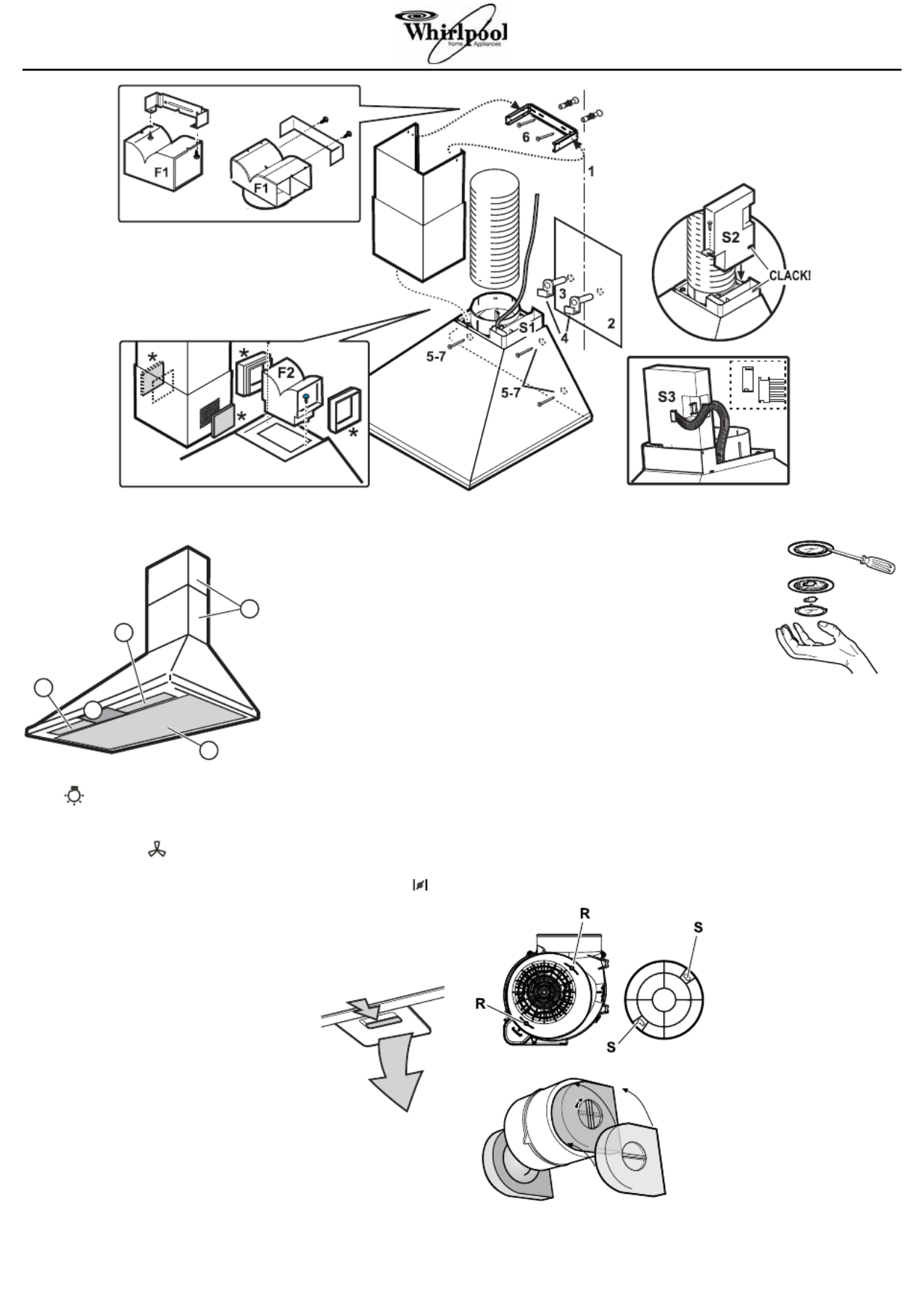

EXTRACTOR OR FILTERING HOOD INSTALLATION

The minimum distance between the pan supports on the cooking appliance and the lowest part of the cooker

hood must not be less than 50 cm for electric cookers or 65 cm for gas or combination cookers. If the installation

instructions for the gas cooker

specify a greater distance, this must be

taken into account.

Contact a qualified

technician for installation.

Do not connect the hood to the electrical power supply until installation is completed.

Warning! Check whether the exhaust duct and clamps are provided. If not, they must be purchased separately.

Extremely heavy product; hood handling and installation must be carried out by two or more persons.

1. Mark a line on the wall, from the cooktop right up to the ceiling, corresponding to the centre-line of the hood.

2. Bearing in mind the minimum heights over the cooktop specified above, mark the height of the hood on the wall with a

pencil. Apply the drilling template to the wall over this mark.

3. Using the template supplied, mark the holes, drill them and insert the rawlplugs, then fit the 2 hooks (if provided) or partly

screw in 2 screws in the top holes.

4. Hang the hood and adjust the position using the adjustment screws on the hooks (if provided).

Note:

The hood MUST be secured with a further 2 screws, to be

inserted in the top holes and (if provided) with 2 screws

in the bottom holes.

5. Only for some models: mark the bottom holes (and top), remove the hood, drill, insert the rawlplugs (partly screw 2

screws into the top holes).

6. Fix the flue support to the wall

as close as possible to the ceiling. For filter

hoods, at this stage, also secure the deflec

tor F1

with 2 screws if the flue is provided with top grilles (for flues with bottom grilles, see installation step “7”).

7. Hang the hood on the wall again and fix in place with the screws. For filter versions (flues with bottom grilles), the deflector

F2 must be fixed in place of the connector

collar (model with fixtur

e with 2 screws) or on the connector collar (model with

2 rear couplings and 1 front fixing screw).

Extractor Version: fumes are extracted and expelled to the outside through an exhaust duct fixed to the collar at the top of

the hood.

Caution!

If the hood is equipped with a ca

rbon filter, this must be removed.

Exhaust air must not be conveyed

through a flue used for remova

l of fumes produced by gas combustion appliances or other

combustible materials, but must have an independent outlet. All national regulations governing extraction of fumes must be

observed.

Filter Hood: Air is filtered through a carbon filter and recycled into the surrounding environment.

Caution! If the hood is not equipped with a carbon filter, one must be ordered and fitted prior to use.

Installing the electronic control box

• If your hood has an electronic control box, S2 snap-fit it into its housing S1 and fix it in place with one screw.

• On models with electronic control panels, fit the card S3 in the socket alongside the control box S2.

Telescopic flue installation

• Connect the hood to the mains supply and fix the telescopic flue to the flue bracket with two screws. Slide the bottom

section down into its seat on the top of the hood. Fit the side grilles if provided.

5019 318 33221

1. Control panel.

Light :

move the switch to the right tton to switch or press the bu

on.

Extraction speed :

move the switch to the right or press the next button to

increase extraction speed (or open the electric shutter) .

2. Grease filters.

3. Lamp covers

(or halogen lamps, depending on the model).

4. Telescopic flue.

Grease filters:

Metal grease filters have an unlimited

life and should be washed once a month

either by hand or in a dishwasher at a

low temperature and with a short cycle.

Washing in a dishwasher can cause

grease filters to turn white, but this in

no way affects efficiency.

a. Press the handle to release the filter

b. Remove the filter.

Wash the filter and leave it to dry, proceeding in reverse

order to refit it.

Bulb/s:

Remove the filters and remove the

burnt-out bulb.

Refit the filters.

Halogen lamps:

Use a small screwdriver or other suitable

tool to prise off the cover. Snap-fit the

cover back on.

Use only max 40 W - E14 bulbs or

max 20 W halogen bulbs (depending on the model),

taking care not to touch them with your hands.

Fitting or replacing the carbon filter (filter hoods only).

Change the carbon filter every six months.

1. Remove the grease filters.

2. Fit the filter/s over the motor

according to the model:

• Align the pins R on the cowl with the slots S, then

turn the filter clockwise until it locks in place or

• turn the central handle clockwise.

3. Reverse the above procedure to remove the carbon

filter.

4. Refit the grease filters.

* Only present on some models

Produkt Specifikationer

Mærke:	Whirlpool
Kategori:	Emhætte
Model:	AKR 648
Type:	Vægmonteret
Bredde:	598 mm
Dybde:	500 mm
Højde:	1100 mm
Vægt:	12000 g
Produktfarve:	Hvid
Kontroltype:	Dreje
Antal hastigheder:	3
Motoreffekt:	140 W
Støjniveau:	55 dB
Effektkrav:	220 - 230V, 50Hz, 16A
Pæreeffekt:	40 W
Antal lyskilder:	2 pære(r )
Maksimal ekstraktionseffekt:	352 m³/t
Fedtfilter type:	Metal
Ekstraktionstype:	Ledet
Antal motorer:	1
Antal filtre:	2 stk
