Back Plate

Mounting Screw (B)

Green Grounding

Screw (E)

Wire Connector (F)

181013

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

W0156 / W0303

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Lock Nut

(D)

Headless Screw (C)

Ball Nut (G)

1. Thread two headless screws through the mounting plate, then secure

them with four lock nuts (two on each side of the mounting plate). Adjust

the length of the headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally, in order

to ensure that the fixture will be level.

Attach the

mounting plate

to the outlet box by using two mounting screws.

3. Pull out the source wires from the outlet box. Make wire connections using

wire connectors as follows:

---Connect the hot wire (usually black insulation) from the fixture to the black

wire from the power source.

---Connect the neutral wire (usually white insulation) from the fixture to the

white wire from the power source.

---Attach the fixture grounding wire (usually bare wire) to the mounting plate with the green grounding screw, then connect

it to the house grounding wire with a wire connector. If your outlet box does not have a house grounding wire, then wrap

the fixture grounding wire around the green grounding screw.

Carefully tuck the wires back into the outlet box.

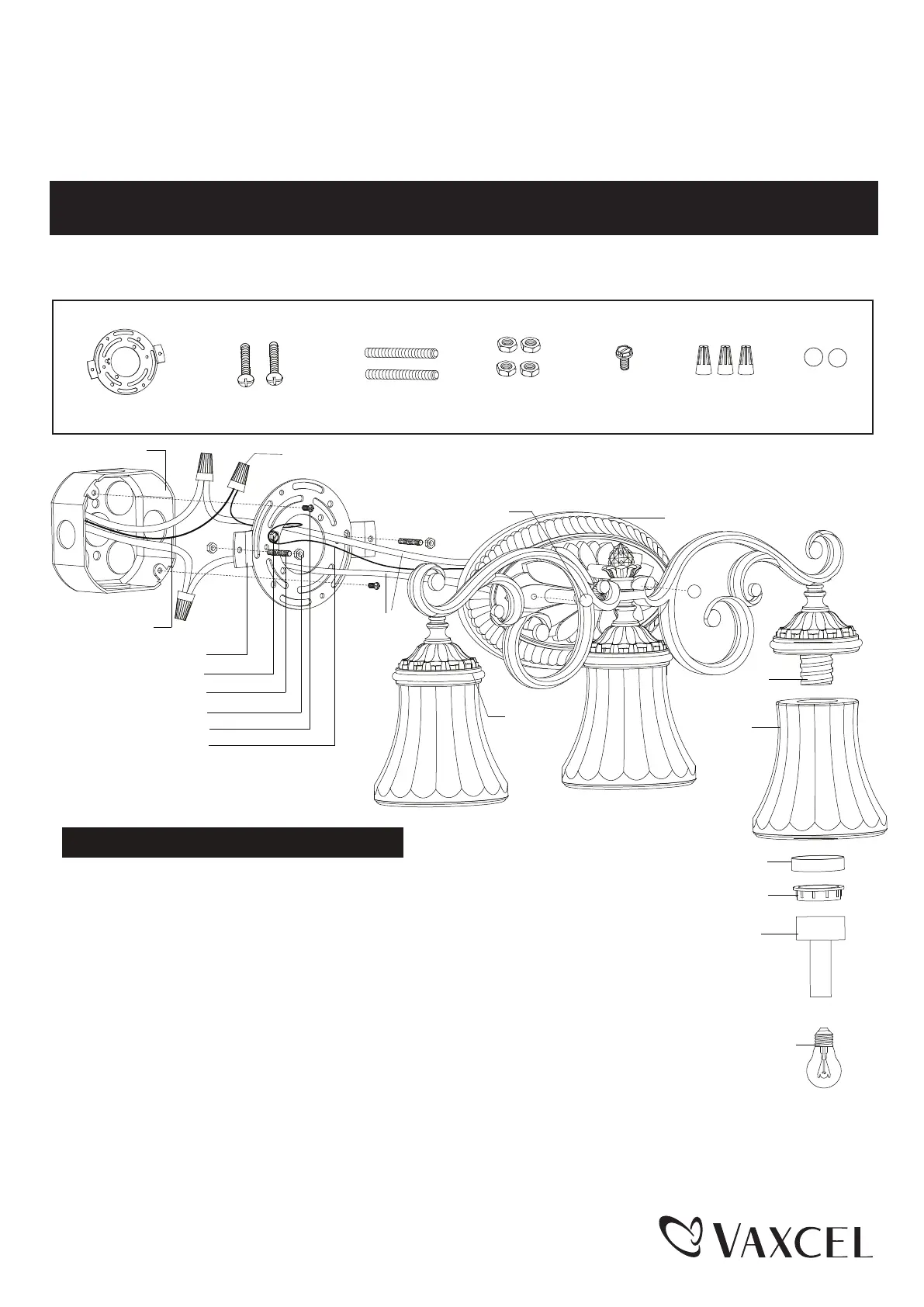

Glass bracket

Socket Ring

Socket Fixer

Bulb Type A Max.100W

(not included)

Socket

Glass Shade

Assembly Instructions:

Turn off the power at fuse or circuit box.

Ball Nut (G)

Spacer

Outlet Box

Wire Connector (F)

Green Grounding Screw (E)

Headless Screw (C)

Mounting Plate (A)

Mounting Screw (B)

Lock Nut

(D)

Fixture Grounding Wire

House Grounding Wire

Fixture Wire

Mounting Plate (A)

Produkt Specifikationer

Mærke:	Vaxcel
Kategori:	Lys
Model:	W0156
