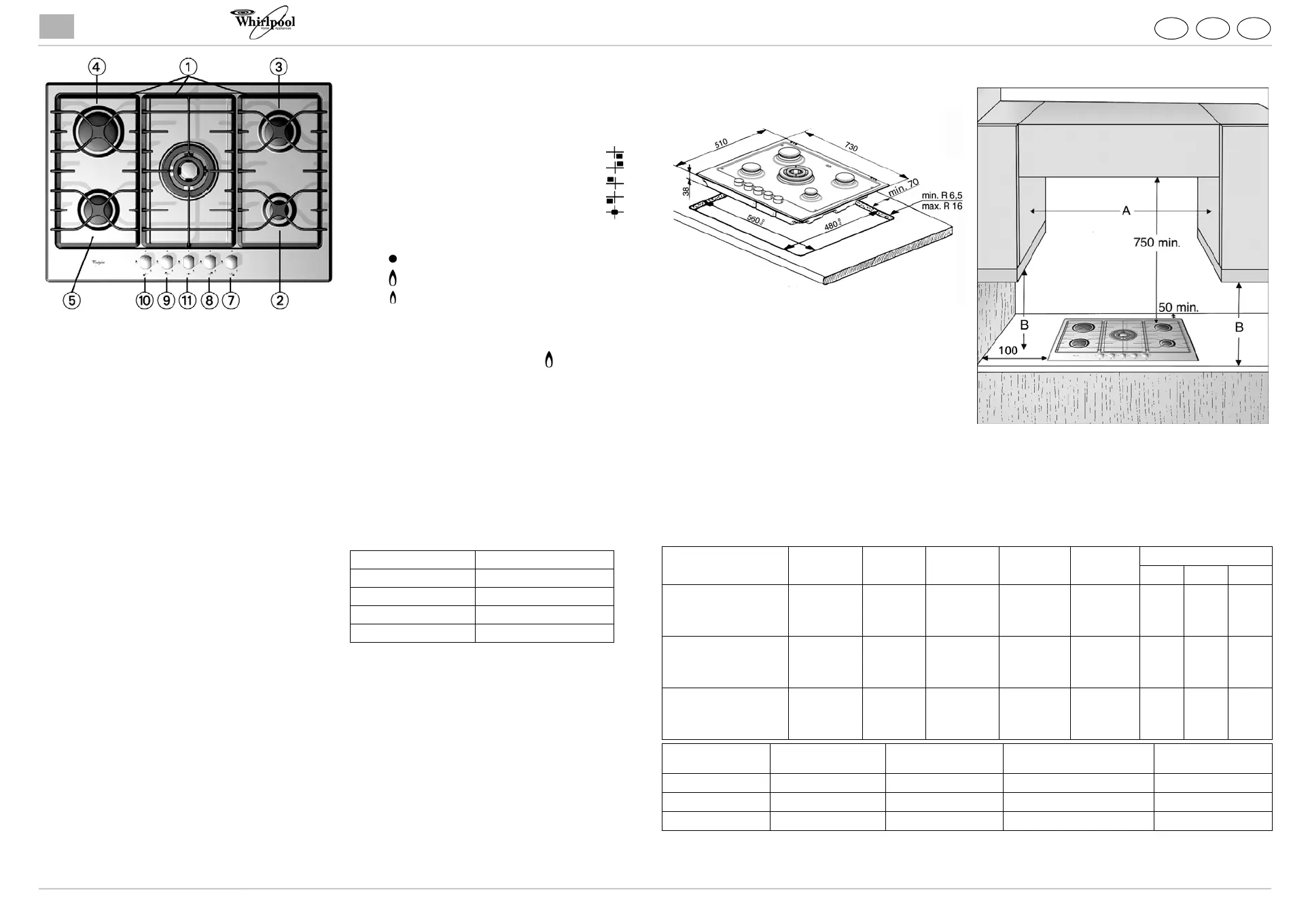

AKT 797 PRODUCT DESCRIPTION SHEET

5019 319 62002

To get full satisfaction from the hob, please read these instructions carefully and keep them for future consultation.

IE ITGB

LIGHTING THE BURNERS

• To ignite one of the burners, turn the relative knob anti-clockwise to the maximum flame setting .

• Press the knob against the control panel to ignite the burner.

• After the burner has ignited, keep the knob pressed for about 5 seconds to allow the thermocouple to warm up.

This burner safety device shuts off the gas supply to the burner if the flame goes out accidentally (because of sudden

draught, an interruption in the gas delivery, boiling over of liquids, etc.).

• The device must not be pressed for more than 15 sec. If, after that time has elapsed, the burner does not

remain lit, wait at least one minute before trying to light it again.

- The burner might go out when the knob is released. This means that the thermocouple has not warmed up enough.

In this case, repeat the operations described above.

PRATICAL ADVICE FOR USING THE BURNERS

For better burner performance, please stick to the following

rules:

- Use pots and pans that fit the burners (see table on the

right).

- Only use flat-bottomed pots and pans.

- Use the correct amount of water for cooking foods and

keep the pot covered.

- In the case of pans with convex bottoms (WOK), use

the support grille provided, which should be positioned

only on the 4 ring burner.

1. Removable panstand grids

2. Auxiliary burner

3. Semi-rapid burner

4. Rapid burner

5. Semi-rapid burner

6. 4 ring burner

7. Auxiliary burner control knob

8. Semi-rapid burner control knob

9. Rapid burner control knob

10. Semi-rapid burner control knob

11. 4 ring burner control knob

SYMBOLS

Tap closed

Maximum flame

Minimum flame

Burner Pot Ø

4 ring from 24 to 26 cm

Rapid from 24 to 26 cm

semi-rapid from 16 to 22 cm

auxiliary from 8 to 14 cm

DIMENSIONS AND DISTANCES TO BE MAINTAINED (mm)

NOTE: If the distance “A” between the wall cabinets is between 600 mm and 730 mm,

the height “B” must be a minimum of 520 mm. If the distance “A” between the

wall cabinets is greater than the width of the cooktop, the height “B” must be

a minimum of 400 mm.

In case of installation of a hood above the cooktop, please refer to the hood

instructions for the correct distance.

INJECTOR TABLE CATEGORY II2H3+

ELECTRIC SUPPLY: 230 V - 50 Hz

Type of gas used Type of burner Ø injector Rated thermal

flow rate kW

Rated

consumption

Reduced heat

capacity kW

Gas pressure (mbar)

min. rat. max.

NATURAL GAS

(Methane) G20

4 ring

Rapid

Semi-rapid

Auxiliary

139

128

3.50

3.00

1.65

1.00

333 l/h

286 l/h

157 l/h

95 l/h

1.50

0.60

0.35

0.30

17 20 25

LIQUID

PETROLEUM GAS

(Butane) G30

4 ring

Rapid

Semi-rapid

Auxiliary

3.50

3.00

1.65

1.00

254 g/h

218 g/h

120 g/h

73 g/h

1.50

0.60

0.35

0.30

20 28-30 35

LIQUID

PETROLEUM GAS

(Propane) G31

4 ring

Rapid

Semi-rapid

Auxiliary

3.50

3.00

1.65

1.00

250 g/h

214 g/h

118 g/h

71 g/h

1.50

0.60

0.35

0.30

25 37 45

Ty p e o f g a s

used

Configuration

model

Rated thermal

flow rate kW

Total rated

consumption

Air necessary (m

) for the

combustion of 1 m

of gas

G20 20 mbar 5 burners 10.8 1028 l/h 9.52

G30 28-30 mbar 5 burners 10.8 785 g/h 30.94

G31 37 mbar 5 burners 10.8 771 g/h 23.80

Produkt Specifikationer

Mærke:	Whirlpool
Kategori:	Komfur
Model:	AKT 797
Vekselstrømsindgangsspænding:	230 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	730 mm
Dybde:	510 mm
Højde:	45 mm
Produktfarve:	Rustfrit stål
Strøm:	3700 W
Placering af apparat:	Indbygget
Komfurtype:	Gaskomfur
Antal kogeplader / madlavningsområde:	5
Elektronisk tænding:	Ja
