AKZ 612
PRODUCT DESCRIPTION SHEET
DE AT BE SE NO DK FI GB
5019 310 56003

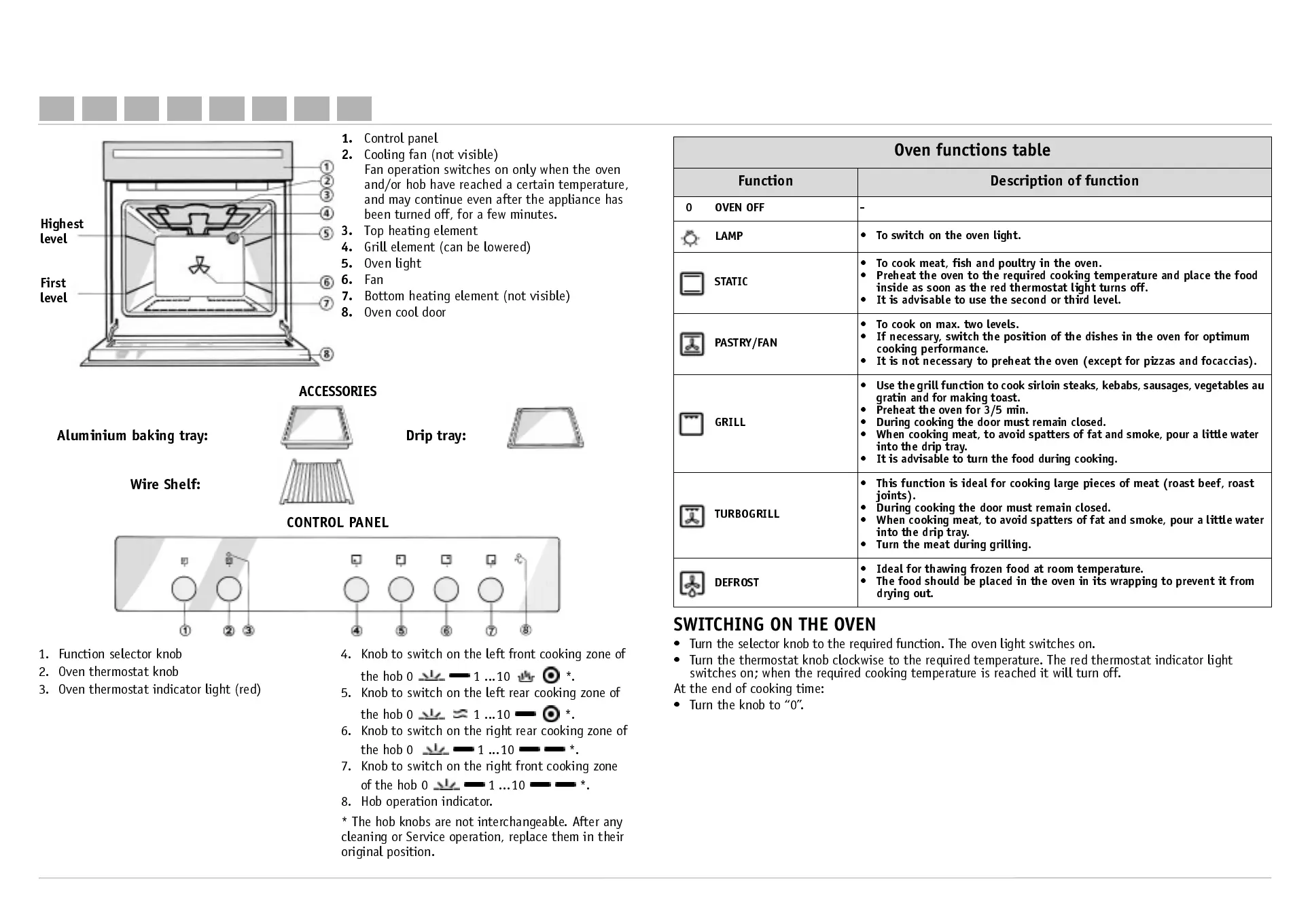

1.
Control panel
2.
Cooling fan (not visible)
Fan operation switches on only when the oven
and/or hob have reached a certain temperature,
and may continue even after the appliance has
been turned off, for a few minutes.
3.
Top heating element
4.
Grill element (can be lowered)
5.
Oven light
6.
Fan
7.
Bottom heating element (not visible)
8.
Oven cool door
ACCESSORIES
CONTROL P ANEL
1. Function selector knob
2. Oven thermostat knob
3. Oven thermostat indicator li gh t (red)
4. Knob to switch on the left front cooking zone of
the hob 0 1 ...10 *.
5. Knob to switch on the left rear cooking zone of
the hob 0 1 ...10 *.
6. Knob to switch on the right rear cooking zon e of
the hob 0 1 ...10 *.
7. Knob to switch on the right front cooking zone
of the hob 0 1 ...10 *.
8. Ho b operatio n indi cator.
* The hob knobs are not interchangeable. After any
cleaning or Service operation, replace them in their
original position.
First
Highest
level
level
Aluminium baking tray:
Wire Shelf:
Drip tray:
SWITCHING ON THE OVEN
T urn the selector knob to the required fun ction. The oven ligh t switches on.
Turn the thermostat knob clockwise to the required temperature. The red thermostat indicator light
switches on; when the required cooking temperature is reached it will turn off.
At the end of cooking time:
Turn the knob to 0.
Oven functions table
Function Description of function
0 OVEN OFF
LAMP
To switch on the oven light.
STATIC
To cook meat, fish and poultry in the oven.
Preheat the oven to the required cooking temperature and place the food
inside as soon as the red thermostat light turns off.
It is advisable to use the second or third level.
PASTRY/FAN
To cook on max. two levels.
If necessary, switch the position of the dishes in the oven for optimum
cooking performance.
It is not necessary to preheat the oven (except for pizzas and focaccias).
GRILL
Use the grill function to cook sirloin steaks, kebabs, sausages, vegetables au
gratin and for making toast.
Preheat the oven for 3/5 min.
During cooking the door must remain closed.
When cooking meat, to av oid spatters of f at and smoke, pour a little water
into the drip tray.
It is advisable to turn the food during cooking.
TURBOGRILL
This function is ideal for cooking large pieces of meat (roast beef, roast
joints).
During cooking the door must remain closed.
When cooking meat, to avoid spatters of fat and smoke, pour a little water
into the drip tray.
Turn the meat during grilling.
DEFROST
Ideal for thawing frozen food at room temperature.
The food should be placed in the oven in its wrapping to prevent it from
drying out.
