Quick guide

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT

In order to receive a more complete assistance, please

Before using the appliance carefully read the Safety

Instruction.

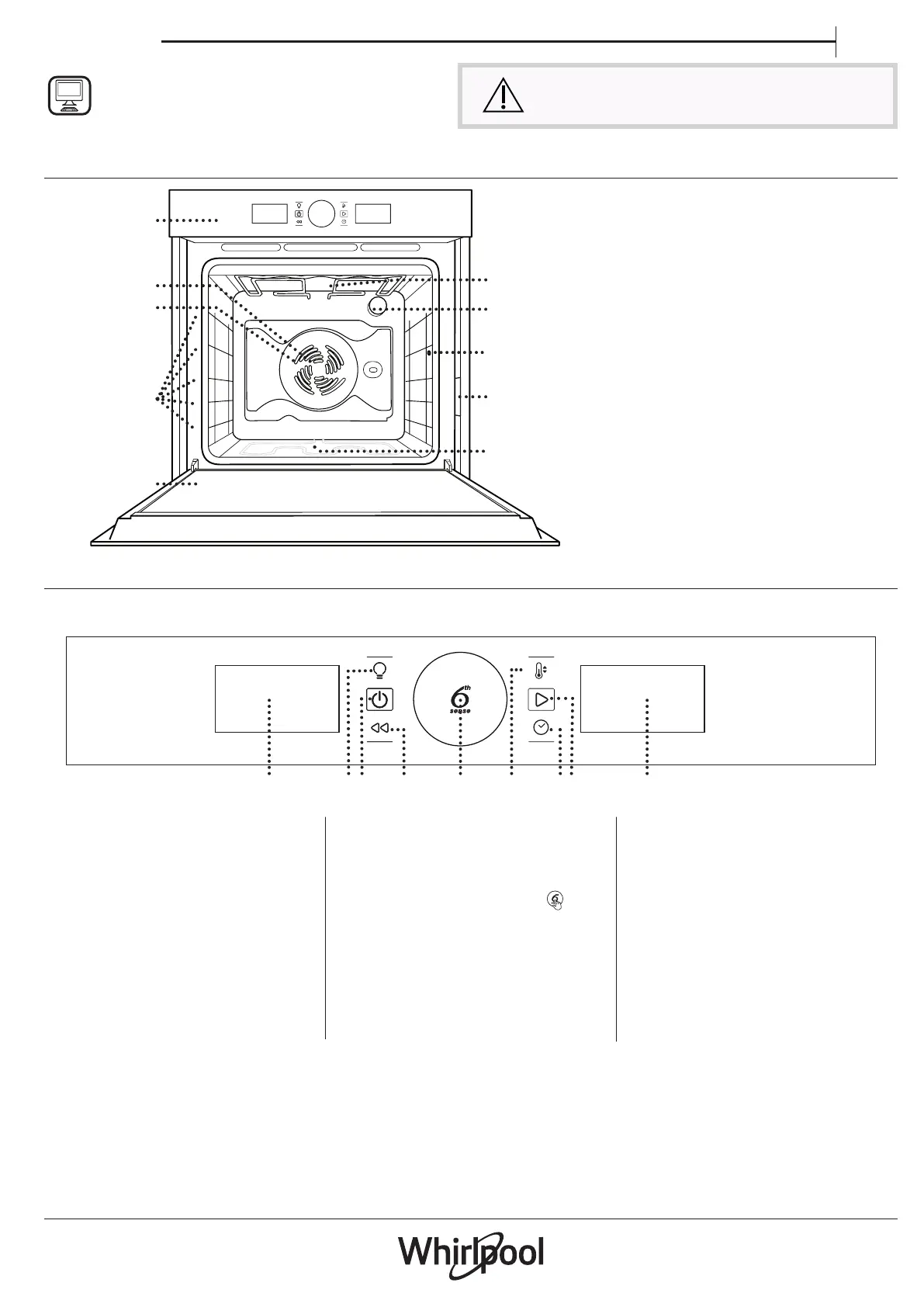

PRODUCT DESCRIPTION

CONTROL PANEL

1. Control panel

2. Fan

3. Circular heating element

(not visible)

4. Shelf guides

(the level is indicated on the front

of the oven)

5. Door

6. Upper heating element/grill

7. Lamp

8. Meat probe insert point

(if present)

9. Identification plate

(do not remove)

10. Lower heating element

(not visible)

1. LEFT-HAND DISPLAY

2. LIGHT

For switching the lamp on/off.

3. ON/OFF

For switching the oven on and off

and for stopping an active function

at any time.

4. BACK

For returning to the previous menu

when configuring settings.

5. ROTARY KNOB / 6TH SENSE

BUTTON

Turn this to navigate through the

functions and adjust all of the

cooking parameters. Press

to select, set, access or conﬁrm

functions or parameters and

eventually start the cooking

program.

6. TEMPERATURE

For setting the temperature.

7. TIME

For setting or changing the time

and adjusting the cooking time.

8. START

For starting functions and

confirming settings.

9. RIGHT-HAND DISPLAY

1 2 5 6 93 4 7 8

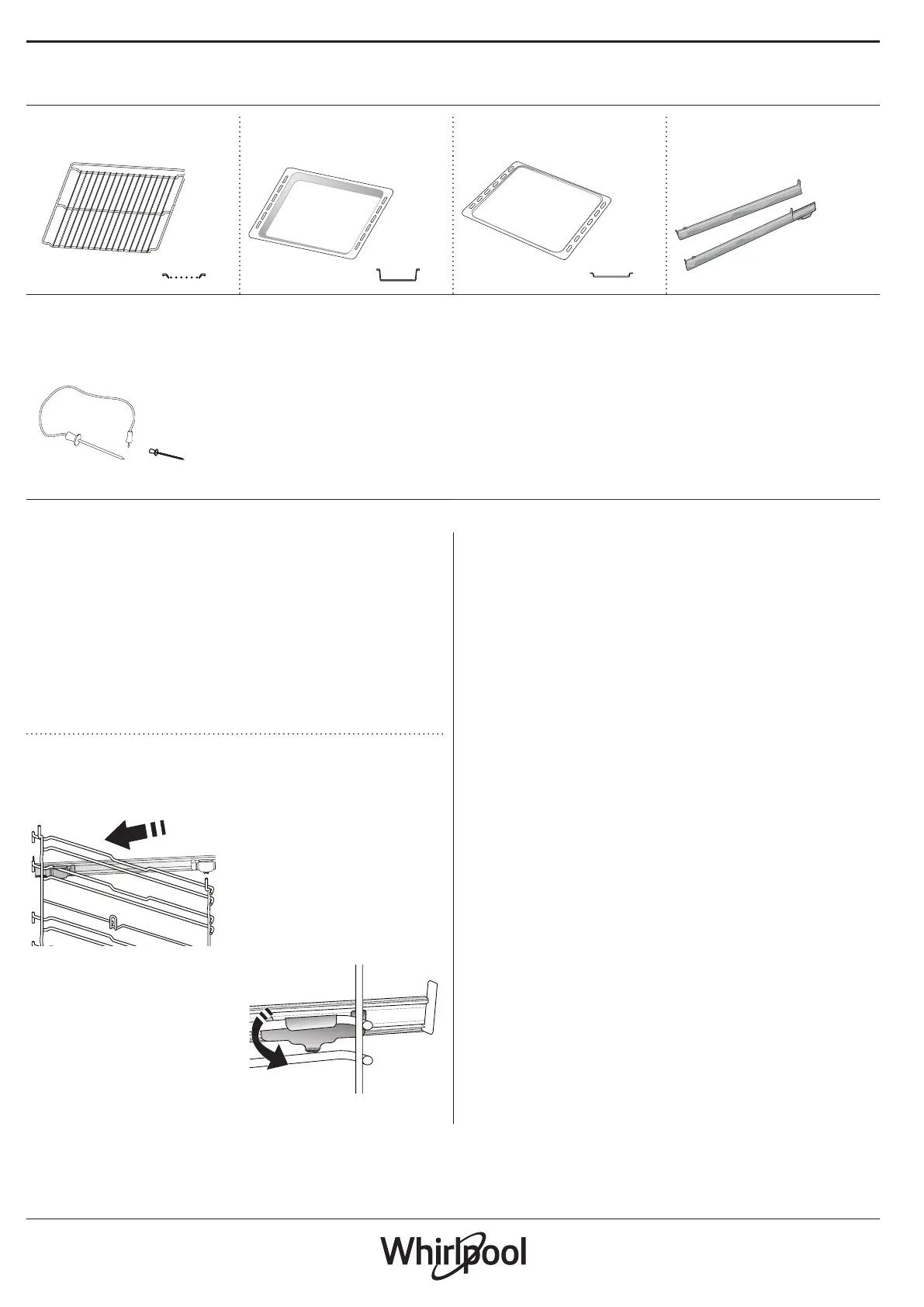

ACCESSORIES

WIRE SHELF DRIP TRAY BAKING TRAY

SLIDING RUNNERS *

(ONLY IN SOME MODELS)

MEAT PROBE

(ONLY IN SOME MODELS)

The number of accessories may vary depending on which

model is purchased.

Other accessories can be purchased separately from the

After-sales Service.

INSERTING THE WIRE SHELF AND OTHER

ACCESSORIES

Insert the wire shelf horizontally by sliding it across

the shelf guides, making sure that the side with the

raised edge is facing upwards.

Other accessories, such as the drip tray and the

baking tray, are inserted horizontally in the same way

as the wire shelf.

FITTING THE SLIDING RUNNERS

(IF PRESENT)

Remove the shelf guides from the oven and remove

the protective plastic from the sliding runners.

Fasten the upper clip of the

runner to the shelf guide

and slide it along as far as it

will go. Lower the other clip

into position.

To secure the guide, press

the lower portion of the

clip firmly against the shelf

guide. Make sure that the

runners can move freely.

Repeat these steps on the

other shelf guide on the

same level.

Please note: The sliding runners can be tted on any level.

REMOVING AND REFITTING THE SHELF GUIDES

. To remove the shelf guides, lift the guides up and

then gently pull the lower part out of its seating: The

shelf guides can now be removed.

. To refit the shelf guides, first fit them back into

their upper seating. Keeping them held up, slide them

into the cooking compartment, then lower them into

position in the lower seating.
