Whirlpool AKZM 8480 IX Manual

Whirlpool Ovne AKZM 8480 IX

Læs gratis den danske manual til Whirlpool AKZM 8480 IX (156 sider) i kategorien Ovne. Denne vejledning er vurderet som hjælpsom af 4 personer og har en gennemsnitlig bedømmelse på 5.0 stjerner ud af 2.5 anmeldelser. Har du et spørgsmål om Whirlpool AKZM 8480 IX, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/156

PRODUCT DESCRIPTION

CONTROL PANEL

1. Control panel

2. Fan

3. Circular heating element

(not visible)

4. Shelf guides

(the level is indicated on the front

of the oven)

5. Door

6. Upper heating element/grill

7. Lamp

8. Meat probe insert point

(if present)

9. Identification plate

(do not remove)

10.Lower heating element

(not visible)

1. LEFT-HAND DISPLAY

2. LIGHT

For switching the lamp on/off.

3. ON/OFF

For switching the oven on and off

and for stopping an active function

at any time.

4. BACK

For returning to the previous menu

when configuring settings.

5. ROTARY KNOB / 6TH SENSE

BUTTON

Turn this to navigate through the

functions and adjust all of the

cooking parameters. Press

to select, set, access or conﬁrm

functions or parameters and

eventually start the cooking

program.

6. TEMPERATURE

For setting the temperature.

7. T I ME

For setting or changing the time

and adjusting the cooking time.

8. START

For starting functions and

confirming settings.

9. RIGHT-HAND DISPLAY

1 2 5 6 934 78

Owner's Manual

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT

In order to receive a more complete assistance, please

Before using the appliance carefully read the Safety

Instruction.

PLEASE SCAN THE QR CODE ON

YOUR APPLIANCE IN ORDER TO

REACH MORE INFORMATION

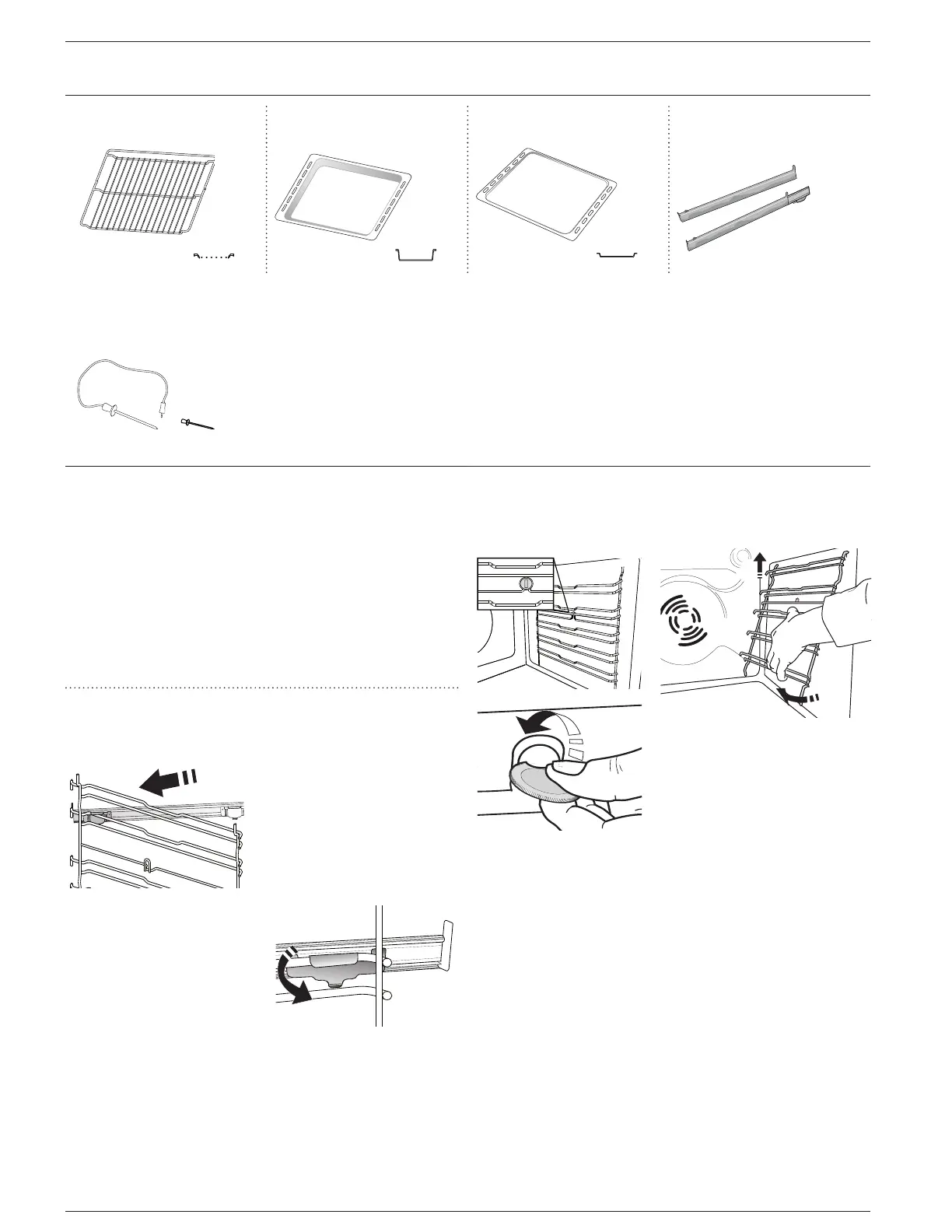

ACCESSORIES

WIRE SHELF DRIP TRAY BAKING TRAY

SLIDING RUNNERS *

(ONLY IN SOME MODELS)

MEAT PROBE

(ONLY IN SOME MODELS)

The number of accessories may vary depending on which

model is purchased.

Other accessories can be purchased separately from the

After-sales Service.

INSERTING THE WIRE SHELF AND OTHER

ACCESSORIES

Insert the wire shelf horizontally by sliding it across

the shelf guides, making sure that the side with the

raised edge is facing upwards.

Other accessories, such as the drip tray and the

baking tray, are inserted horizontally in the same way

as the wire shelf.

FITTING THE SLIDING RUNNERS

(IF PRESENT)

Remove the shelf guides from the oven and remove

the protective plastic from the sliding runners.

Fasten the upper clip of the

runner to the shelf guide

and slide it along as far as it

will go. Lower the other clip

into position.

To secure the guide, press

the lower portion of the

clip firmly against the shelf

guide. Make sure that the

runners can move freely.

Repeat these steps on the

other shelf guide on the

same level.

Please note: The sliding runners can be tted on any level.

EN 8

REMOVING AND REFITTING THE SHELF GUIDES

4FFQJDUVSFT'JHUPSFNPWFMBUFSBMTVQQPSUT

BOEJGQSFTFOUDBWJUZOVUTUIBUSFUBJOUIFTBNF

To refit the shelf guides, first fit them back into their

upper seating. Keeping them held up, slide them into

the cooking compartment, then lower them into

position in the lower seating.

Produkt Specifikationer

Mærke:	Whirlpool
Kategori:	Ovne
Model:	AKZM 8480 IX
Vekselstrømsindgangsspænding:	220-240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	595 mm
Dybde:	564 mm
Højde:	595 mm
Vægt:	40000 g
Produktfarve:	Rustfrit stål
Kontroltype:	Berøring
Lampe type:	Halogen
Indbygget skærm:	Ja
Strøm:	16 A
Pakkevægt:	42000 g
Pakkedybde:	650 mm
Pakkebredde:	630 mm
Pakkehøjde:	690 mm
Placering af apparat:	Indbygget
Indvendig belysning:	Ja
Dørhængsel:	Ned
Installationsrum bredde:	560 mm
Installationsrum dybde:	550 mm
Installationsrum højde:	583 mm
Tilsluttet belastning:	3650 W
Genopvarmningsfunktion:	Ja
Grill:	2450 W
Konvektion madlavning:	Ja
Kontrolposition:	Top forside
Timer type:	Digital
Rengøringstype:	Pyrolyse
Antal gitre:	1
Ovn - størrelse:	Medium
Ovntype:	Elektrisk ovn
Samlet indvendig ovn kapacitet:	73 L
Strøm for samtlige ovne:	3650 W
Antal ovne:	1
Ovn nettokapacitet:	73 L
Ovn termostatinterval:	50 - 250 °C
Konventionel madlavning:	Ja
Autosluk timer tilbereder mad sikkert:	Ja
Antal lamper:	1 Lampe( r)
Energiforbrug (konventionel):	0.91 kWh
Energiforbrug (tvungen konvektion):	0.7 kWh
Automatiske programmer, antal:	15
Aftagelig dørglas:	Ja
