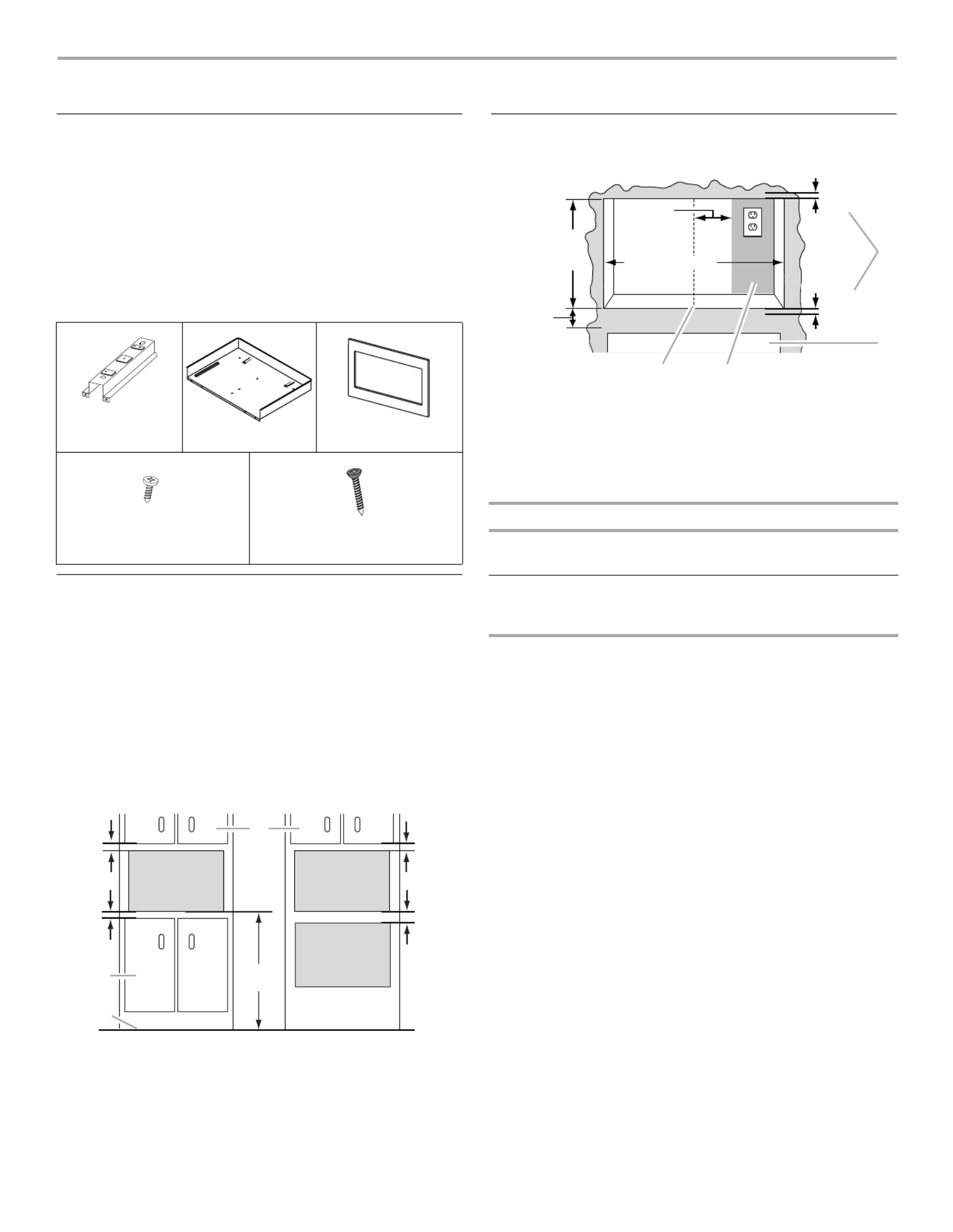

Side 1/12
MICROWAVE OVEN BUILT-IN TRIM KIT
INSTALLATION INSTRUCTIONS
Built-In Trim Kit Models MK2167, MK2160
UL listed for use over any electric or gas built-in oven, up to 30" (76.2 cm) wide
INSTRUCTIONS D’INSTALLATION
GARNITURE ENCASTRÉE POUR FOUR À MICRO-ONDES
Garniture encastrée pour modèles MK2167, MK2160
Homologation UL pour utilisation au-dessus de tous les fours encastrés électriques ou gaz, jusqu’à 30" (76,2 cm) de largeur
MICROWAVE OVEN SAFETY
Table of Contents / Table des matières
MICROWAVE OVEN SAFETY ...................................................1
INSTALLATION INSTRUCTIONS..............................................2
Tools and Parts .......................................................................2
Location Requirements...........................................................2
Required Cutout Dimensions..................................................2
Trim Kit Frame Dimensions.....................................................3
Electrical Requirements ..........................................................3
Prepare Microwave Oven........................................................3
Prepare Cutout/Cabinet Opening ...........................................4
Install the Microwave Oven.....................................................5
Install Trim Kit Frame ..............................................................6
SÉCURITÉ DU FOUR À MICRO-ONDES...........................................7
INSTRUCTIONS D’INSTALLATION....................................................7
Outillage et pièces.............................................................................7
Exigences d'emplacement................................................................7
Dimensions nécessaires de l'ouverture d'encastrement..................8
Dimensions du cadre de la trousse de garniture..............................8
Spécifications électriques .................................................................9
Préparation du four à micro-ondes...................................................9
Préparation de l'ouverture d'encastrement ....................................10
Installation du four à micro-ondes ..................................................11
Installation du cadre de la trousse de garniture .............................12
W10532204A
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
2
INSTALLATION INSTRUCTIONS
Tools and Parts
Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools
listed here.
Parts Supplied (not shown to scale
Location Requirements
The microwave oven may be installed over a built-in oven. If
installing over a built-in oven, make sure there is a minimum of 3"
(7.6 cm) between the top of the lower oven cutout and the
microwave oven cutout floor.
The microwave oven may also be installed in a cabinet by itself
(without a built-in oven below). For best usability, we recommend
a minimum distance of 36" (91.4 cm) from the floor to the cutout
floor.
Make sure the surrounding cabinetry has clearance to open and
close freely. Allow a clearance of at least 1⁹⁄₁₆" (4.0 cm) below the
cutout floor (3" [7.6 cm] for installation above a built-in oven), and
a clearance of at least 2" (5.1 cm) above the cutout opening.
Required Cutout Dimensions
NOTES:
■Depth requirements depend upon receptacle and its location
within or outside of recommended region. See illustration and
chart above.
■Height dimension is critical: 17" (43.2 cm) minimum, 17¹⁄₈"
(43.5 cm) maximum.
■Width measurement has ±1/16" (2 mm) tolerance.
■3" (7.6 cm) minimum dimension is from lower oven cutout
ceiling to microwave oven cutout floor.
■Trim kit frame extends 1¹⁄₁₆" (2.7 cm) above and below the
cutout opening.
■Measuring tape
■Pencil
■Phillips screwdriver
■Drill
■7/64" drill bit
Rails (2) Bottom duct Trim kit frame
Short screws (14)
(11 + 3 extra)
Long wood screws (6 - painted)
(4 + 2 extra)
A. Upper cabinet
B. Microwave oven cutout
C. Lower oven cutout
D. Lower cabinets
E. Floor
3"
(7.6 cm)
BB
D
36"
(91.4 cm)
C
2"
(5.1 cm)
2"
(5.1 cm)
1 "⁹⁄₁₆
(4.0 cm)
A
E
A. Trim kit frame overhang
B. Cutout for lower oven
C. Recommended region for receptacle
location (no less than 6" [15.2 cm] to
the right of cutout centerline)
D. Cutout centerline
Receptacle Location Minimum Depth
Within recommended
region
18" (45.7 cm) with flush receptacle;
21" (53.2 cm) with non-flush receptacle
Outside recommended
region
19¹⁄₂" (49.5 cm) with flush receptacle;
22¹⁄₂" (57.2 cm) with non-flush
receptacle
3"
(7.6 cm)
6"
(15.2 cm)
A
1 "¹⁄₁₆
(2.7 cm)
1 "¹⁄₁₆
(2.7 cm)
B
CD
23¹⁄₈" (58.7 cm)17 " (43.5 cm)¹⁄₈
max.
17" (43.2 cm)
min.
For minimum depth requirements, see chart.
