INSTRUCTION SHEET FOR BUILT-IN REFRIGERATOR

HANDLE ACCESSORY

BEFORE YOU BEGIN: The handle and handle mounting hardware must be installed before installing the custom panel. A qualified

cabinetmaker must perform the installation.

IMPORTANT:

■This kit is designed to be used only with wood panels.

■To avoid damage, lift the door and drawer panel(s) by the

edges.

TOOLS NEEDED:

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

PARTS SUPPLIED:

*Numbers may vary depending on refrigerator model and handle

type.

Install the Refrigerator Handle(s)

IMPORTANT: For model specific hole location and the spacing

requirements for mounting the handles onto the panels, see

Figure 1 and the following Refrigerator Door table.

1. Measure from the bottom of the custom panel and mark your

first hole location as shown in Figure 1 and the Refrigerator

Door table.

Figure 1 - Refrigerator Door

W10248266A

■Cordless drill

■⁵⁄₁₆" Socket driver

■³⁄₃₂" Allen wrench

■Drill bits

■Flat-blade screwdriver

■Tape measure

■Pencil

■Handle - freezer drawer

■Handle - refrigerator

door*

■Studs - handle

mounting*

■Screws - #10-24 x 1"

hex washer head*

Refrigerator Door

Handle Type A B

Bottom Mount

Classic

Euro-Style

11 ³⁄₁₆"

(28.42 cm)

30"

(76.20 cm)

Euro-Style 10 ³⁄₄"

(27.31 cm)

30 ³⁄₄"

(78.11 cm)

Pro 10 ³⁄₄"

(27.31 cm)

30 ³⁄₄"

(78.11 cm)

French Door

Bottom Mount

Classic

Euro-Style

11 ³⁄₁₆"

(28.42 cm)

30"

(76.20 cm)

Euro-Style 10 ³⁄₄"

(27.31 cm)

30 ³⁄₄"

(78.11 cm)

Pro 10 ³⁄₄"

(27.31 cm)

30 ³⁄₄"

(78.11 cm)

Side by Side

Classic

Euro-Style

See Figure 2

Side by Side Euro

Euro-Style 19 ³¹⁄₃₂"

(50.72 cm)

43 ¹⁄₈"

(109.54 cm)

Pro 19 ³¹⁄₃₂"

(50.72 cm)

43 ¹⁄₈"

(109.54 cm)

Handle

Mounting

Studs

Refrigerator

Compartment

Handle

Custom Refrigerator

Compartment Panel

Setscrews

#10-24 x 1" Screws

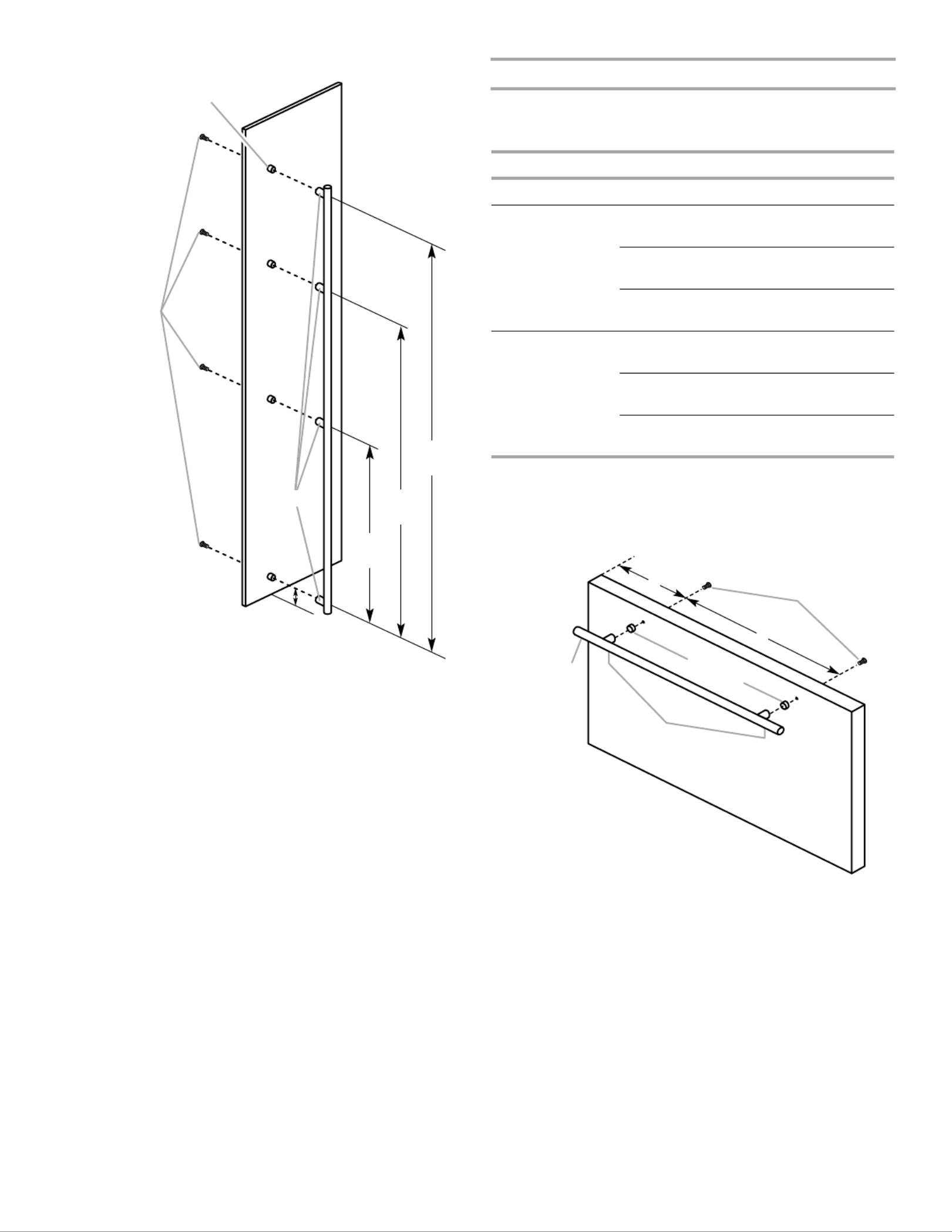

Figure 2 - Side by Side Classic Euro-Style

NOTE: Measurements from the side edge of the door will

depend on specific application.

2. Drill a ³⁄₁₆" (4.76 mm) hole at that location, then measure up

from the bottom hole to determine the location of the second

hole. Countersink both holes on the inside of the panel, ¹⁄₄"

(6.35 mm) deep and ⁵⁄₈" (1.58 cm) diameter for screw head

clearance.

3. Install two mounting studs to the custom panel using the

screws provided. Make sure the head of the screw is flush

with the panel.

4. Install handle to handle mounting studs and tighten the

setscrews. Some adjustments of the handle mounting studs

may be required to allow the handle to fit over both mounting

studs.

NOTE: For products with one refrigerator door, the setscrew

should face the hinge side of the door. For products with two

refrigerator doors, the setscrews should face the center of the

product.

5. If you have two refrigerator doors or a side-by-side freezer

door, repeat steps 1 through 4 to install the other handle.

Install the Freezer Drawer Handle

IMPORTANT: For model specific hole location and the spacing

requirements for mounting the handles onto the panels, see

Figure 3 and the following Freezer Drawer table.

1. Measure from the side of the custom panel and mark your

first hole location as shown in Figure 3 and the Freezer

Drawer table.

Figure 3 - Freezer Drawer

NOTE: Measurements from the top edge of the door will

depend on specific application.

2. Drill a ³⁄₁₆" (4.76 mm) hole at that location, then measure from

that hole over to the second hole. Countersink both holes on

the inside of the panel, ¹⁄₄" (6.35 mm) deep and ⁵⁄₈" (1.58 cm)

diameter for screw head clearance.

3. Install two mounting studs to the custom panel using the

screws provided. Make sure the head of the screw is flush

with the panel.

4. Install handle to handle mounting studs and tighten the

setscrews. Some adjustments of the handle mounting studs

may be required to allow the handle to fit over both mounting

studs.

NOTE: The freezer handle setscrews should face down.

#10-24 x 1" Screws

60 "¹⁄₂

(153.7 cm)

26 "¹⁄₂

(67.3 cm)

Handle mounting stud

46 "¹⁄₂

(118.1 cm)

6 "⁷⁄₈

(17.5 cm)

Setscrews

Freezer Drawer

Handle Type A B

Bottom Mount

Classic

Euro-Style

5 ¹⁄₄"

(13.34 cm)

24 ³⁄₄"

(62.87 cm)

Euro-Style 5 ²⁷⁄₃₂"

(14.84 cm)

23 ⁹⁄₁₆"

(59.85 cm)

Pro 5 ²⁷⁄₃₂"

(14.84 cm)

23 ⁹⁄₁₆"

(59.85 cm)

French Door

Bottom Mount

Classic

Euro-Style

8 ²⁷⁄₃₂"

(22.46 cm)

23 ⁹⁄₁₆"

(59.85 cm)

Euro-Style 5 ¹⁄₄"

(13.34 cm)

30 ³⁄₄"

(78.11 cm)

Pro 5 ¹⁄₄"

(13.34 cm)

30 ³⁄₄"

(78.11 cm)

Handle

Mounting Studs

Freezer

Compartment

Handle

Custom Freezer

Compartment Panel

#10-24 x 1" Screws

Setscrews
