1. Control panel

Refrigerator Compartment

2. Refrigerator compartment light (LED system)

3. Fan

4. Shelves / Shelf area

5. Multi-flow cold air system

6. Bottle rack*

7. Cooler compartment (best for meat and fish) *

8. Rating plate with commercial name

9. Fruits and vegetables crisper

10. Crisper divider*

11. Doors reversibility kit

12. Egg tray

13. Bottle holder

14. Water tank

15. Door trays

16. Door seals

Freezer Compartment

16. Door seals

17. Upper zone with flap (freezing zone or storing

frozen food)

18. Twist Ice Maker

19. Shelves

20. Storage baskets for frozen food items

21. Freezer door trays for frozen products with a

short storage time (

storage compartment)

Anti-bacterial protection:

- Antibacterial filter* in the fan (3)

- Antibacterial additives* in the material of Crisper

(9)

- Door seals are made of material able to inhibit

bacterial growth (15)

* Available on selected models

HOW TO CHANGE DOOR SWING

- see enclosed instructions (Model Version_1)

Specifications, technical data and images may

vary from model

Read the Instructions for Use carefully before

using the appliance.

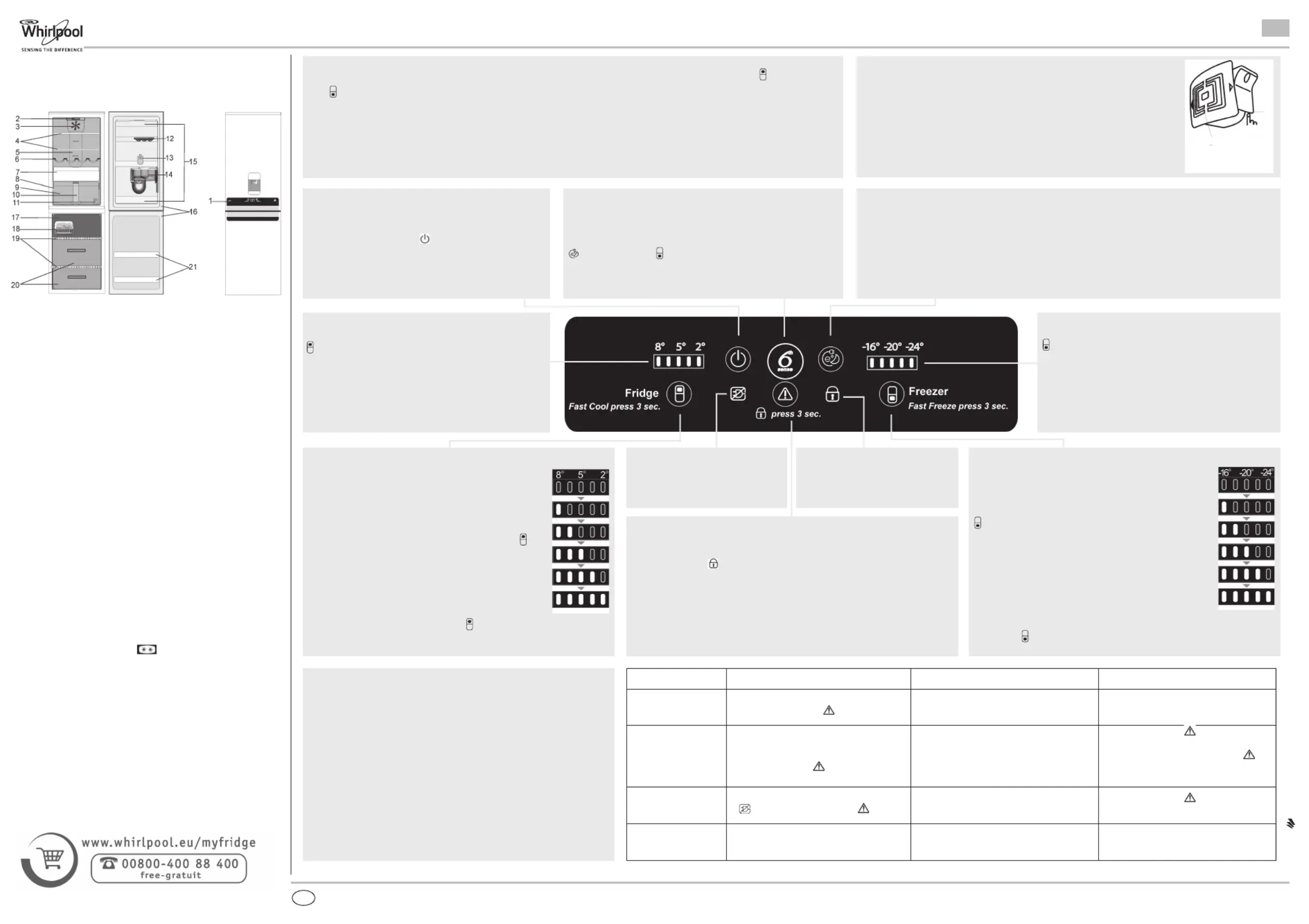

QUICK START GUIDE

5019 320 00121

ALARMS TABLE Signal Cause Cure

Door open alarm

The acoustical alarm is activated and the

alarm icon

blinks

The door has remained open for more

than 2 minutes

Close the door

Temperature alarm

The acoustical alarm is activated, 5

Freezer Temperature LEDs blinks and

thered light

remains on

The inside temperature is not

adequate

Press the button ; the acoustical

alarm stops, 5 Freezer Temparature

LEDs blinks and the red light

remains on until a temperature < -10°C

is reached.

Long black-out alarm

The acoustical alarm is activated, the light

remains on and the light blinks.

Prolonged power failure, able to cause the

inside temperature to increase to 0°C

Press the button

; the acoustical

alarm stops.

Malfunction

3 central LEDs in the Fridge Temperature

LEDs blinks on the display

Product malfunction Contact the After-sales Service

SMART DISPLAY

This optional function can be used to save energy. To activate the Smart Display, press

Fridge °C

and Freezer °C buttons at the same time for 3 seconds until an audible signal sounds. To deactivate

this function repeat the same procedure. Remember that this function does not disconnect the

appliance from the power supply, but only reduce the power consumed by external display (see the

Instructions for Use).

FAN

The Fan improves temperature distribution inside the

refrigerator compartment, allowing better preservation of

stored food. By default, the fan is switched on. The fan

automatically stops working when the fridge door is open (see

the Instructions for Use)

6th SENSE FRESH CONTROL

This function automatically works to ensure the

optimal conditions to preserve the stored food. To

activate the 6th SENSE FRESH CONTROL, press

Eco Night and Freezer °C buttons at the same

time for 3 seconds until an audible signal sounds. To

deactivate this function repeat the same procedure.

ON/STAND-BY

To put the product in Stand-by, press and hold

for 3 seconds. All the icons turn off except

On/Standby indicator . Press again to

reactivate the appliance. (see the Instructions

for Use)

ECO NIGHT FUNCTION (NIGHT TIME RATE)

Press to activate/deactivate the Eco Night function. The Eco Night function

enables appliance energy consumption to be concentrated in the reduced rate

hours, generally at night (see the Instructions for Use)

FRIDGE TEMPERATURE LEDs

To adjust the Fridge Temperature, press the

Fridge °C button. The Fridge Temperature

can be adjusted between +2°C and + 8°C, as

shown by the Fridge Temperature LEDs.

FRIDGE TEMPERATURE / FAST COOL button

Using Fast Cool function it is possible to

increase the cooling in the refrigerator

compartment. The use of this function

is recommended when placing a very

high quantity of food in the refrigerator

compartment. Press & hold for 3 sec. the

Fridge °C button to activate Fast Cool function.

When activated, the Fast Cool indication will be

displayed by the Fridge Temperature LEDs as

shown in the beside sequence. The function is

automatically disabled after 6 hours, or can be

manually disabled by pressing Fridge °C button.

HOW TO START THE APPLIANCE

After plugging the appliance to the mains, it starts the

operation automatically. After starting the appliance, wait

at least 4-6 hours before placing food into the appliance.

When the appliance is connected to the power supply, the

display lights up and all the icons appear on the display for

approximately 1 second. The default (factory) values of the

freezer and refrigerator compartments settings light-up.

BLACK OUT ALARM

Long Black-out Alarm

indicator. (see the Instructions

for Use)

STOP button / ALARM icon Press in case of alarm (see the

below Alarms Table). To lock/unlock the keys of the Control

Panel, press the Stop Alarm button for 3 seconds: the Key

Lock Indicator will be displayed for a short time and an

acoustical signal will be played.

FREEZER TEMPERATURE LEDs

To adjust the Freezer Temperature, press the

Freezer °C button. The Freezer

Temperature can be adjusted between -16°C

and -24°C, as shown by the Freezer

Temperature LEDs.

FREEZER TEMPERATURE / FAST FREEZE button

The use of this function is recommended when

placing a very high quantity of food to be frozen

in the freezer compartment. 24 hours before

freezing fresh food, press & hold for 3 sec. the

Freezer button to activate the Fast Freeze

function. When activated, the Fast Freeze

indication will be displayed by the Freezer

Temperature LEDs as shown in beside

sequence. After 24 hours place the food to be

frozen in the upper basket of freezer

compartment. The function is automatically

disabled after 48 hours, or can be manually disabled by

pressing

Freezer °C button.

KEY LOCK indicator

(see the Instructions for Use)

a - ON/OFF button

b - cover of Fan

ON - OFF
