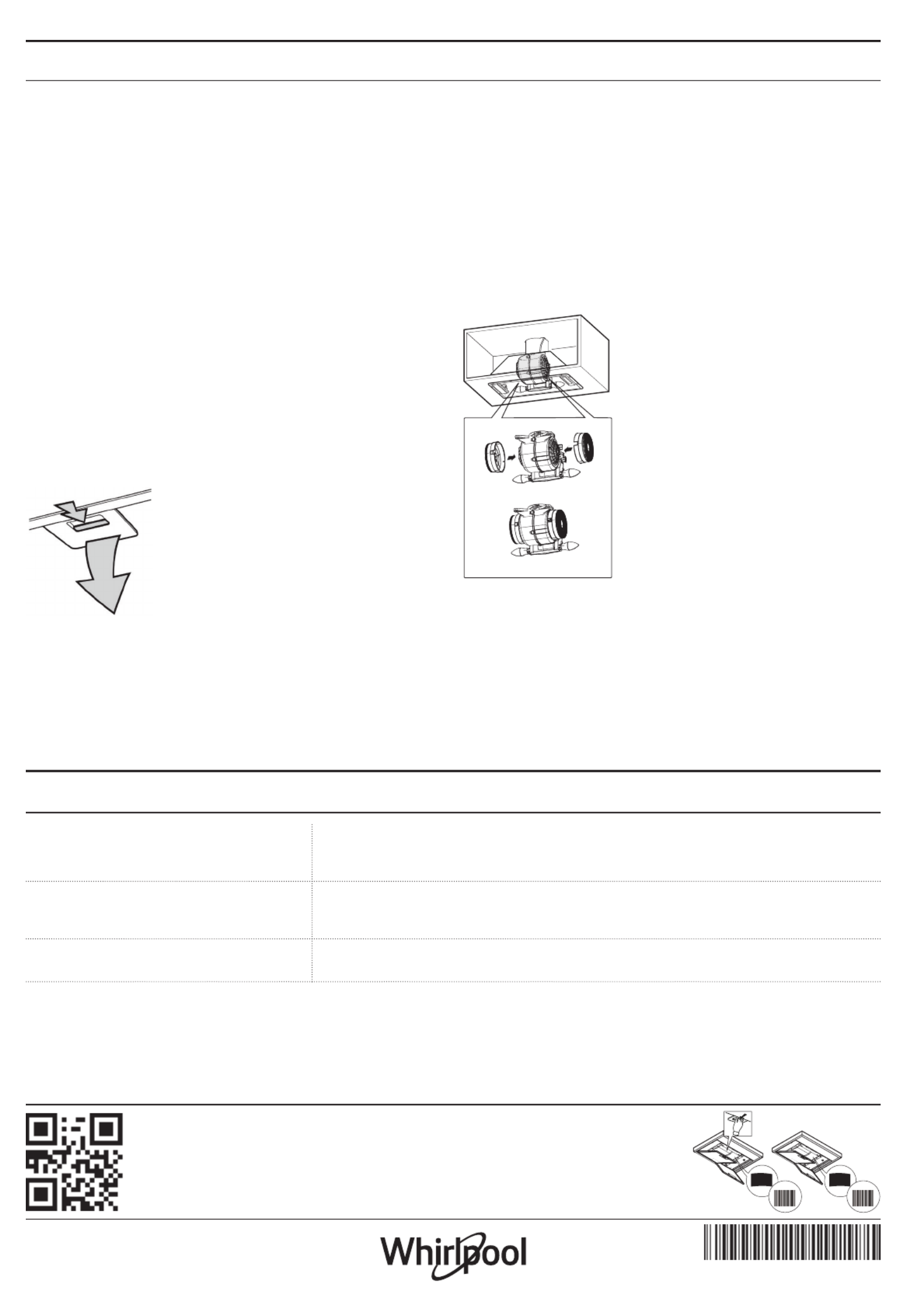

Side 1/2

Quick guide

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT

In order to receive a more complete assistance, please

Before using the appliance carefully read the Safety

Instruction.

PRODUCT DESCRIPTION

FIRST TIME USE

AIR VENT (FOR THE SUCTION VERSIONS)

Connect the hood and discharge holes on the walls with a diameter

equivalent to the air outlet (connection ange).

Using the tubes and discharge holes on walls with smaller dimensions

will cause a diminution of the suction performance and a drastic

increase in noise.

Any responsibility in the matter is therefore declined.

!Use a duct of the minimum indispensible length.

!Use a duct with as few elbows as possible (maximum elbow angle: 90°).

!Avoid drastic changes in the duct cross-section.

!The company declines any responsibility whenever these regulations

are not respected.

FILTERING OR DUCTING?

!Your cooker hood is ready to be used in suction version.

To use the hood in ltering version the special ACCESSORY KIT must be

installed.

Check if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon ltering

system may be installed on the hood. Information about the conversion of

the hood from suction version to ltering version is present in the Manual

“Safety Instructions & Installation”.

DUCTING VERSION

In this case the fumes are conveyed outside of the building by means

of a special pipe connected with the connection ring located on top of

the hood.

Attention! The exhausting pipe is not supplied and must be purchased

apart. Diameter of the exhausting pipe must be equal to that of the

connection ring.

Attention! If the hood is supplied with active charcoal lter, then it

must be removed.

FILTER VERSION

The aspirated air will be degreased and deodorised before being fed

back into the room.

In order to use the hood in this version, you have to install a system of

additional ltering based on activated charcoal.

CONTROL PANEL

The hood is tted with a control panel with aspiration speed selection

control and a light switch to control cooking area lights.

a. ON/OFF lighting

b. OFF motors

c. - d. - e. Minimum suction power (c.), medium (d.), maximum (e.). 































TECHNICAL DATA

Height (cm) Width (cm) Depht (cm) Ø of exaust tube (cm)

17.2 49.3 - 69.3 25.7 12.5

* Available only on certain models

CLEANING AND MAINTENANCE

CLEANING

• Do not use steam-cleaning equipment.

• Disconnect the appliance from the mains.

Important: do not use corrosive or abrasive detergents. If any such

products unintentionally come into contact with the appliance, clean

the appliance immediately with a damp cloth. Do not use alcohol.

• Clean the surfaces with a damp cloth. If it is very dirty, add a few

drops of washing-up detergent to the water. Finish o with a dry

cloth.

Important: do not use abrasive sponges or metallic scrapers or

scourers. Over time, these can ruin the enamel surfaces.

• Use detergents specically designed for cleaning the appliance

and follow the manufacturer's instructions.

Important: clean the lters at least once a month to remove oil and

grease residue.

MAINTENANCE OF THE GREASE FILTERS

This must be cleaned once a month using non aggressive detergents,

either by hand or in the dishwasher, which must be set to a low

temperature and a short cycle.

When washed in a dishwasher, the grease lter may discolour slightly,

but this does not aect its ltering capacity.

Pull out the handle to remove the lter.

Once the lter has been washed and left to dry, proceed in reverse

order to ret the lter.

MAINTENANCE OF THE CHARCOAL FILTER

(FOR FILTRATION MODELS ONLY)

This lter retains the unpleasant odours produced during cooking.

Saturation of the carbon lter occurs after a relatively long use,

however this depends on the type of cooking and how regularly

the grease lter is cleaned. Regardless, it is necessary to replace the

cartridge every 4 months. It CANNOT be washed or recycled.

Fitting or replacing the carbon lter

1. Disconnect the hood from the mains.

2. Remove the grease lters.

3. Fit 2 carchoal lters (one each side of the conveyour), snap into

place.

4. Reinstall the grease lter in place.

Proceed in reverse order to remove.



REPLACING THE LAMPS

Disconnect the appliance from the electricity.

Prior to touching the light bulbs ensure they are cooled down.

Remove the grease lters to access the lamp area.

Replace the damaged lamp.

Use E14 3W max LED lamps only. For more details, check enclosed

leaet “ILCOS D” (alfanumeric position “1d”).

Note: For replacement LED, please contact the Technical After-sales Service

Centre.

TROUBLESHOOTING

Problem Solutions

The appliance does not work. • Check the mains voltage and whether the appliance is connected to the power supply;

• Check that a speed has been selected;

• Switch the appliance o and on again to see if the fault persists.

The hood is not extracting air suciently. • Check that the air extraction speed is set to the desired level;

• Check that the lters are clean;

• Check the air vents for any obstructions.

The hood has turned o during normal

functioning.

• Check that the power has not been disconnected;

• Check that the omnipolar disconnection device has not tripped.

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs . whirlpool . eu

• Using QR Code

• Alternatively, contact our After-sales Service (See phone number in the warranty

booklet). When contacting our After-sales Service, please state the codes provided on

your product's identication plate.

XXXXX XXXXXXXX X

Mode l

xxxxxxxxxxxx

XXXXX XXXXXXXX X

Mode l

xxxxxxxxxxxx

400011261686

* Available only on certain models

Produkt Specifikationer

Mærke:	Whirlpool
Kategori:	Emhætte
Model:	WCT 64 FLS X
Type:	Indbygget
Vekselstrømsindgangsspænding:	220 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	534 mm
Dybde:	299 mm
Højde:	177 mm
Vægt:	4800 g
Produktfarve:	Rustfrit stål
Antal hastigheder:	3
Motoreffekt:	120 W
Ledningslængde:	1.5 m
Årligt energiforbrug:	60.2 kWh
Husmateriale:	Metal
Tilsluttet belastning:	126 W
Lampetype:	LED
Støjniveau:	64 dB
Vaskbart filter:	Ja
Energieffektivitetsklasse:	C
Pæreeffekt:	6 W
Antal lyskilder:	1 pære(r )
Maksimal ekstraktionseffekt:	332 m³/t
Udsugningsforbindelse, diameter:	120 mm
Fedtfilter type:	Aluminium
Ekstraktionstype:	Aftræk/Recirkulerende
Antal motorer:	1
Støjniveau (lav hastighed):	55 dB
Støjniveau (høj hastighed):	64 dB
Væske - dynamisk effektivitetsklasse:	E
Lys - effektivitetsklasse:	D
Fedt - filtrering effektivitetsklasse:	D
Boost funktion:	Ingen
Maksimal recirkulerende effekt:	170 m³/t
Placering af udsugning:	Top
Anti-lugtfilter:	Ja
