Electric Dryer

PRODUCT MODEL NUMBERS

W10562358A

05/2015

WED4800B, WED4810B, WED4850B, WED4870B, WED5000D,

WED4810E, WED4815E, WED4915E, WED4975E, WED4616F,

WED4916F

29"

(737 mm)

433/8"

(1102 mm)

1/2"

(13 mm)

29"

(737 mm)

11/2"

(38 mm)

433/8"

(1102 mm)

Dryer Dimensions

NOTE: Leveling legs should be 1/2" (13 mm) (to match height

of 3.6 cu. ft. capacity washer) or 1½" (38 mm) (to match height

of 3.8 cu. ft. capacity washer).

223/4"

(578 mm)

273/4"

(705 mm)

Wide opening side-swing door Wide opening hamper door

*Most installations require a minimum 5½" (140 mm) clearance

behind the dryer for the exhaust vent with elbow. See “Venting

Requirements.”

Minimum Required Spacing

A B C

18"*

(457 mm)

(25 mm)

29"

(737 mm)

(25 mm)

1"*

(25 mm)

14" max.*

(356 mm)

27¾"

(705 mm)

48 in.

(310 cm )

3"*

(76 mm)

3"*

(76 mm)

24 in.

(155 cm )

2 *

A. Recessed area

B. Side view - closet or conned area

C. Closet door with vents

Minimum spacing for recessed area or closet

installation

The dimensions shown following are for the minimum spacing

allowed.

■Additional spacing should be considered for ease of

installation and servicing.

■

Additional clearances might be required for wall, door, and

oor moldings.

■Additional spacing of 1" (25 mm) on all sides of the dryer

is recommended to reduce noise transfer.

■

For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings

are acceptable.

■Companion appliance spacing should also be considered.

*Additional spacing recommended

273/4"

(705 mm)

133

/4"

(349 mm)

Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation

our products, we reserve the right to change materials and specications without notice. Instructions packed with product. Specications subject to change without notice.

To supply the required 3 or 4 wire, single phase, 120/240 volt, 60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt electrical

supply, if specied on the serial/rating plate) on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit

breaker is recommended. Connect to an individual branch circuit.

ELECTRICAL REQUIREMENTS

VENTING REQUIREMENTS

Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm)

diameter vent is required. Rigid or exible metal exhaust vent

must be used. Do not use plastic or metal foil vet. Exhaust hood

must be at least 12" (305 mm) from the ground or any object that

may be in the path of the exhaust.

The Vent System Chart provides venting requirements that will

help achieve best drying performance.

Determine vent path:

■

Select route that will provide straightest and most direct

path outdoors.

■Plan installation to use fewest number of elbows and turns.

■When using elbows or making turns, allow as much room

as possible.

■Bend vent gradually to avoid kinking.

■Use as few 90° turns as possible.

Determine vent length and elbows needed for best

drying performance:

■

Use following Vent System Chart to determine type of vent

material and hood combinations acceptable to use.

NOTE: Do not use vent runs longer than those specied

in Vent System Chart. Exhaust systems longer than those

specied will:

■Shorten life of dryer.

■Reduce performance, resulting in longer drying times

and increased energy usage.

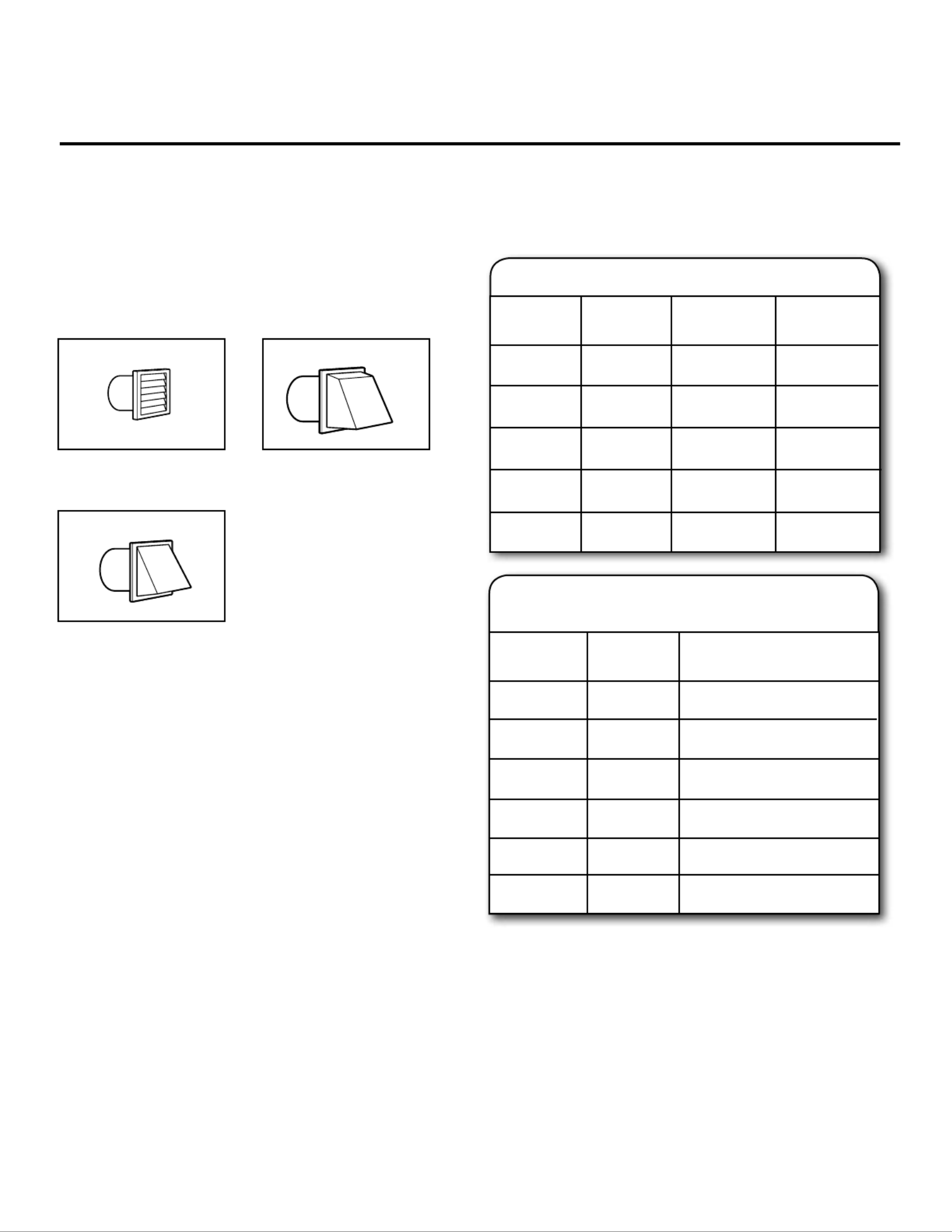

Louvered Hood

Angled Hood

Box Hood

Exhaust hoods:

Recommended Styles:

Acceptable Style:

Vent System Chart

Number of

90° turns

or elbows

Type

of vent

Box/louvered

hoods

Angled

hoods

0 Rigid metal

Rigid metal

64 ft. (20 m)

54 ft. (16.5 m)

44 ft. (13.4 m)

35 ft. (10.7 m)

27 ft. (8.2 m)

58 ft. (17.7 m)

48 ft. (14.6 m)

38 ft. (11.6 m)

29 ft. (8.8 m)

21 ft. (6.4 m)

Vent System Chart

(Long Vent Models Only)

Number of

90° turns

or elbows

Type

of vent

Box/louvered, or

Angled hoods

0 Rigid metal 120 ft. (36.6 m)

110 ft. (33.5 m)

100 ft. (30.5 m)

90 ft. (27.4 m)

80 ft. (24.4 m)

Rigid metal

5 70 ft. (21.3 m)Rigid metal
