PRODUCT MODEL NUMBERS

WVW73UC0LS WVW73UC6LS WVW53UC0LS WVW53UC6LS

30" (76.2 cm) and 36" (91.4 cm) Wall-Mount Canopy Range Hood

PRODUCT DIMENSIONS

* For non-vented (recirculating) installations

** For vented installations.

VENTING REQUIREMENTS

■Vent system must terminate to the outdoors except for non-vented

(recirculating) installations.

■Do not terminate the vent system in an attic or other enclosed area.

■Do not use 4" (10.2 cm) laundry-type wall cap.

■Use metal vent only. Rigid metal vent is recommended. Plastic or

metal foil vent is not recommended.

■The length of vent system and number of elbows should be kept to a

minimum to provide efficient performance.

For the Most Efficient and Quiet Operation:

■Use no more than three 90° elbows.

■Make sure there is a minimum of 24" (61 cm) of straight vent between

the elbows if more than 1 elbow is used.

■Do not install 2 elbows together.

■Use clamps to seal all joints in the vent system.

■The vent system must have a damper. If the roof or wall cap has a

damper, do not use the damper supplied with the range hood.

■Use caulking to seal exterior wall or roof opening around the cap.

■The size of the vent should be uniform.

IMPORTANT:

Minimum distance “X”: 24" (61 cm) from electric cooking surface

Minimum distance “X”: 27" (68.6 cm) from gas cooking surface

Suggested maximum distance “X”: 36" (91.4 cm)

The chimneys can be adjusted for different ceiling heights. See the

following chart.

Vented Installations

Min. ceiling height Max. ceiling height

Electric cooking surface 7' 5" (2.26 m) 9' 2" (2.79 m)

Gas cooking surface 7' 8" (2.34 m) 9' 2" (2.79 m)

Non-Vented (Recirculating) Installations

Min. ceiling height Max. ceiling height

Electric cooking surface 7' 5" (2.26 m) 9' 6" (2.9 m)

Gas cooking surface 7' 8" (2.34 m) 9' 6" (2.9 m)

NOTE: The range hood chimneys are adjustable and designed to

meet varying ceiling or soffit heights depending on the distance “X”

between the bottom of the range hood and the cooking surface. For

higher ceilings, a Stainless Steel Chimney Extension Kit is available

from your dealer or an authorized parts distributor. The chimney

extension replaces the upper chimney shipped with the range hood.

ELECTRICAL REQUIREMENTS

A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required

CABINET DIMENSIONS

Because Whirlpool Corporation includes a continues commitment to improve our

products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Side

cabinet Side

cabinet

Centerline

Cooking surface

30" (76 cm) or

36" (91.2 cm)

1413/ " (37.7 cm)

133/ "

(34 cm)

“X”

bottom of

canopy

to cooking

surface

15" (38.1 cm)

83/16

(20.8 cm)

71/4"

(18.3 cm)

*287/8"(73.3 cm) min.

421/16

"(107.5 cm) max.

**285/8"(72.7 cm) min.

38"(97.7 cm) max.

14"

(35.6 cm)

177/8"

(45.4 cm) 2

11/ " (3.9 cm)

101/4"

(26 cm)

30" (76 cm)

36" (91.2 cm)

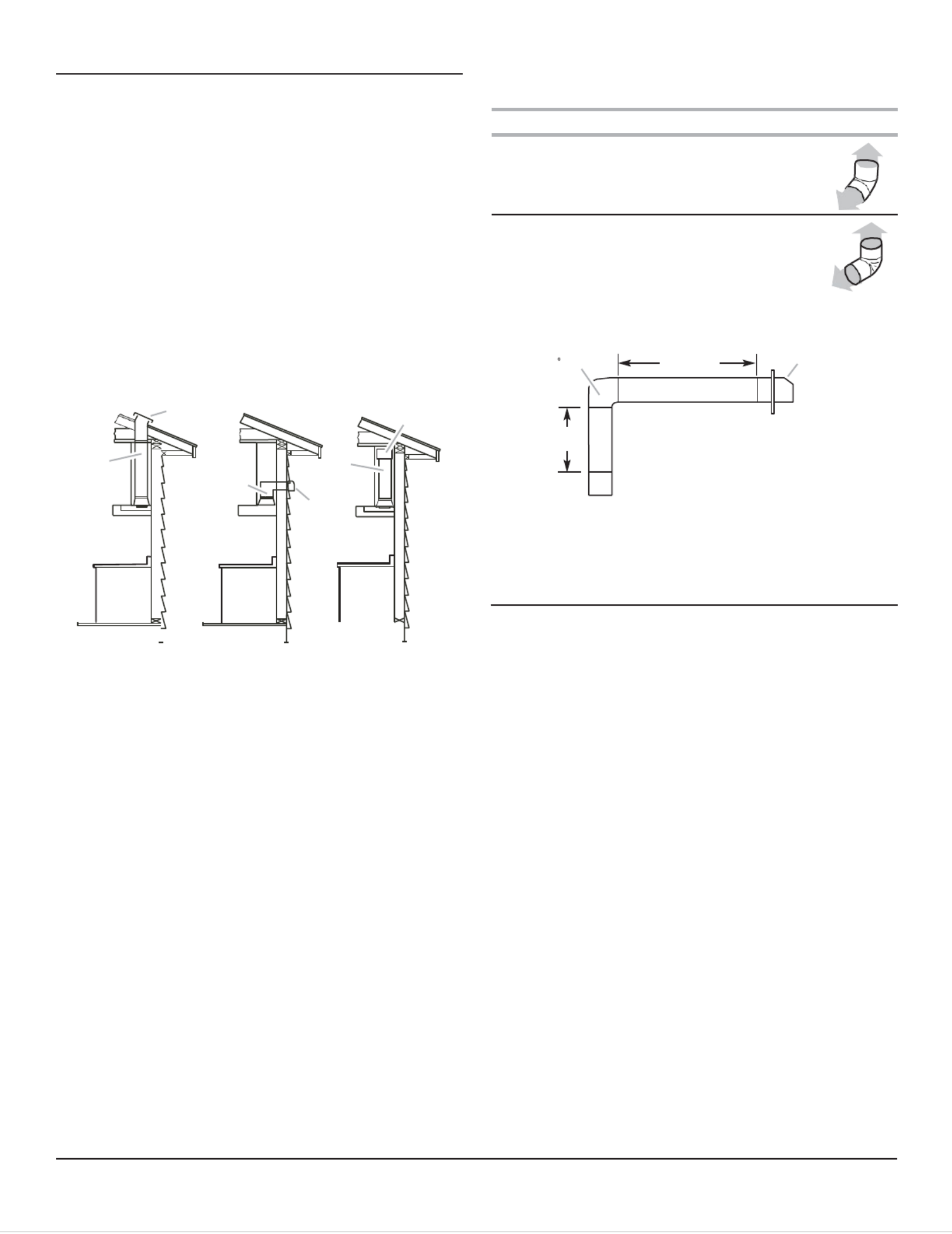

Page 2 of 4

Roof

Venting

Wall Venting Non-Vented

(Recirculating

)

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet

(meters) for each vent piece used in the system.

Vent Piece 6" (15.2 cm) Round

45° elbow 2.5 ft (0.8 m)

90° elbow 5 ft (1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example Vent System

The following example falls within the maximum recommended vent

length of 35 ft (10.7 m).

1 - 90° Elbow = 5 ft (1.5 m)

1 - Wall cap = 0 ft (0 m)

8 ft (2.4 m) straight = 8 ft (2.4 m)

Length of system = 13 ft (3.9 m)

90 elbow 6 ft (1.8 m)

2 ft

(0.6 m)

Wall cap

VENTING METHODS

Because Whirlpool Corporation includes a continues commitment to improve our

products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

This canopy hood is factory set for venting through the roof or wall.

A 6" (15.2 cm) round vent system is needed for installation (not included).

The hood exhaust opening is 6" (15.2 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back

pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or wall. To vent

through a wall, a 90° elbow is needed.

Rear Discharge

A 90° elbow may be installed immediately above the hood.

For Non-Vented (Recirculating) Installations

If it is not possible to vent cooking fumes and vapors to the outside,

the hood can be used in the non-vented (recirculating) version, fitting a

charcoal filter and the deflector. Fumes and vapors are recycled through

the top grille.

A. Roof cap

B. 6" (15.2 cm)

round vent

A. Roof cap

B. 6" (15.2 cm)

round vent

A. Roof cap

B. 6" (15.2 cm)

round vent
