SPECIFICATIONS
Power supply DC: 5 VDC +/- 10%
Max. power consumption: 0.5W
Self-healing fuse: Yes
IP rating: IP 20
Dimensions (W x H x D): 21 x 23 x 98 [mm]
Weight: 50 g
Antenna: Built-in
Humidity: 0 – 90% non-condensing
Frequency range: 2402 – 2480 MHz (ISM band)
Max. RF output power: 10 mW
Supported protocols: DMX-512A
Supported RF protocols: CRMX, CRMX
2
, W-DMX, G3, G4,
G4S, G5
LEGAL
CRMX is a trademark of LumenRadio AB, W-DMX is a trade-
mark of Wireless Solution Sweden AB.
Wireless Solution Sweden AB is a fully-owned subsidiary of
LumenRadio AB.
DMX-512A refers to ANSI national standard developed and
maintained by ESTA, Entertainment Services and Technology
Association.
This product makes use of US patents 9,208,680; EU patents
EP 2415317, EP 2803248, China patents CN 102369774,
CN 104041189B and others.
Version of this quick start guide: Version 1 (2023-11-01)
MANUFACTURER
LumenRadio AB LumenRadio
Johan Willins gata 6 Alfred-Herrhausen-Allee 3-5
416 64 Gothenburg DE-65760 Eschborn
Sweden Germany
Scan for additional
information
www.wirelessdmx.com
by LumenRadio

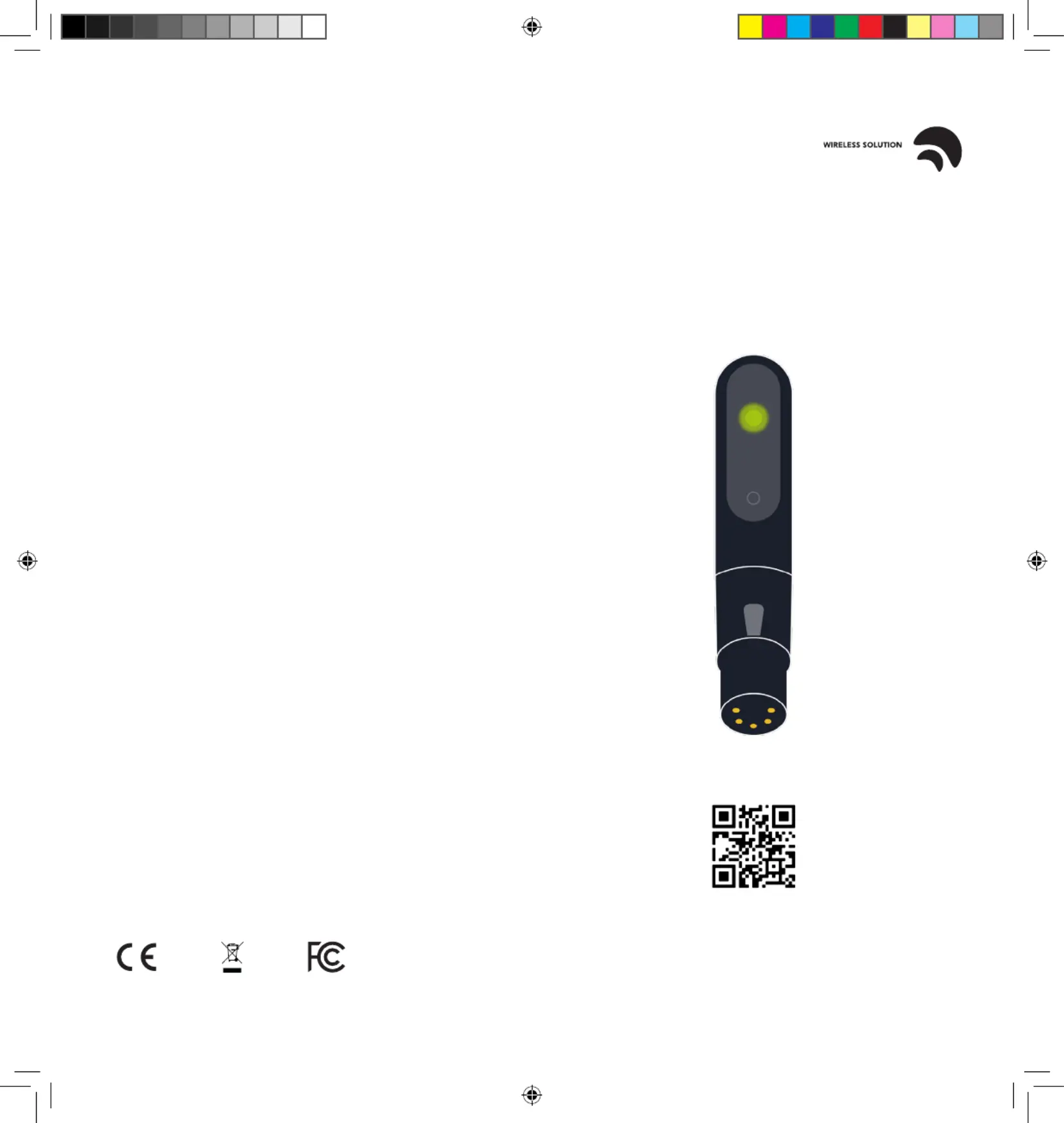

W-DMX STICK
FCC: XRSMLE201
IC: 8879A-MLE201
Stick_QST_2023_november.indd 1
Stick_QST_2023_november.indd 1
Stick_QST_2023_november.indd 1
Stick_QST_2023_november.indd 1Stick_QST_2023_november.indd 1 2023-11-01 09:43
2023-11-01 09:43
2023-11-01 09:43
2023-11-01 09:432023-11-01 09:43
GENERAL
All personnel must acquaint themselves with the instructions in
this leaet before using this product. This product must not be
used if damaged. For additional documentation for W-DMX
Stick and instructional videos, scan the QR code on this leaet,
or visit www.wirelessdmx.com.
APPLICATION AREA
W-DMX Orb is a wireless lighting control device and is de-
signed to be used indoors only. It is intended to be used by
professional users.
BOX CONTENT
• 1 pc. W-DMX Stick unit
• 1 pc. USB-A to USB-C cable for power
• 1 pc. Quick start instruction (this leaet)

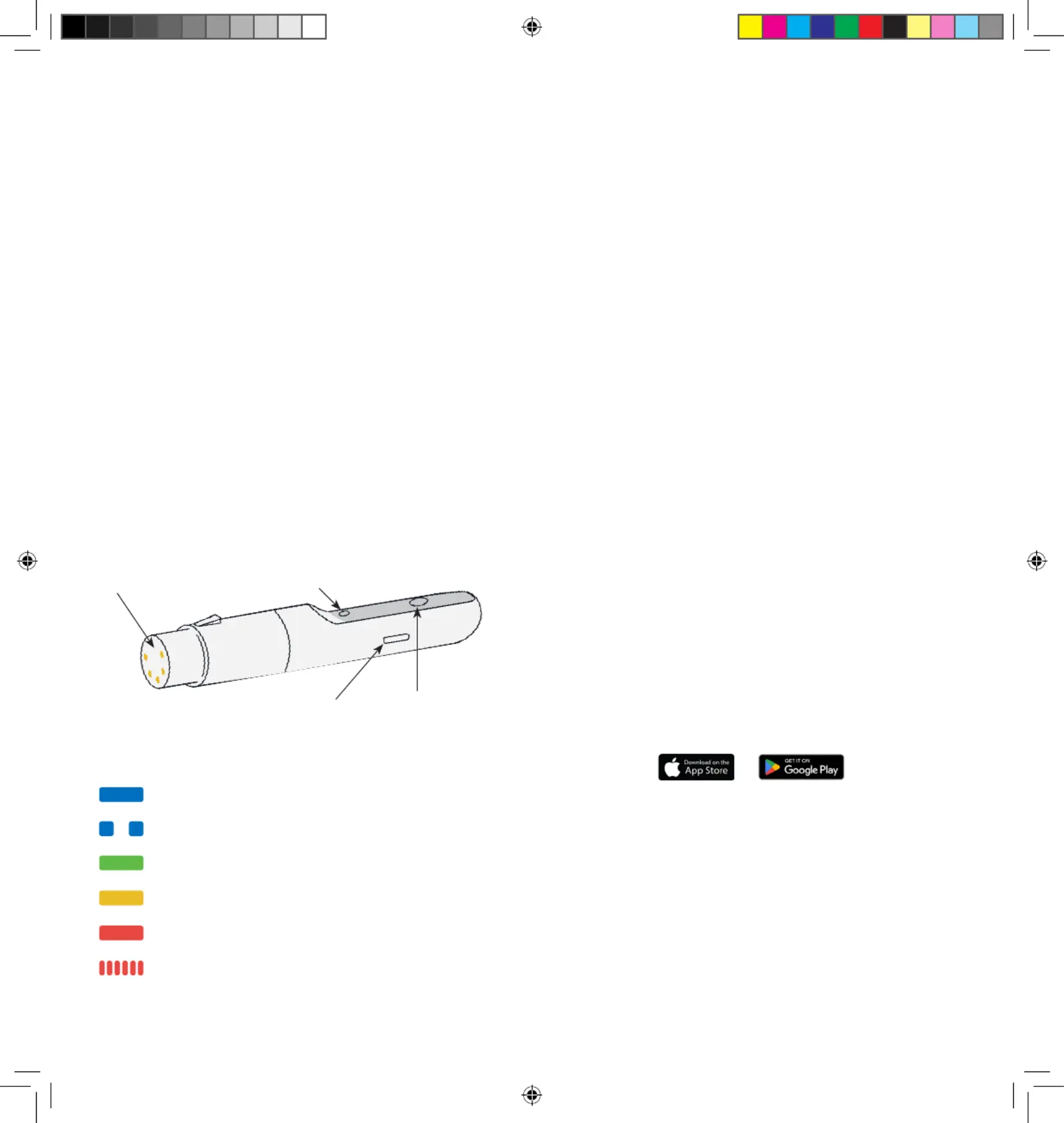

YOUR W-DMX ORB UNIT
Data out Link switch
5V input Status LED
STATUS LED
Power on, unlinked
Update mode
> 70% signal (Solid = DMX, 1 blink per sec. = no DMX)
30–70% signal (Solid = DMX, 1 blink per sec. = no DMX)
< 30% signal (Solid = DMX, 1 blink per sec. = no DMX)
Linked, but TX not found
LINK AND UNLINK
Before your W-DMX Stick can receive it needs to be linked to a
TX. After it is linked to a TX it will stay linked until you unlink it.
To link:
1. Make sure the Stick is powered on, within range to your
TX, and unlinked (see unlink instructions if needed).
2. Link using the TX’s linking mechanism.
3. Wait approx. 10 seconds while the TX is performing the
linking procedure.
4. Now the Stick (and any other unlinked RXes within range
from the TX) will be linked to that TX.
To unlink:
1. Press and hold the link switch on the Stick you want to
unlink for more than 3 seconds.
2. Check the Status LED to verify that the unit is unlinked.
For further instructions on how to link and unlink, see your
transmitter’s user manual.
FIRMWARE UPDATE
Firmware can be updated using the CRMX Toolbox
2
app from
LumenRadio. The app is available for both iOS and Android
and can be downloaded from App Store or Google Play.
1. Press and hold the link switch for more than 10 seconds,
until the unit indicates that it is in update mode.
2. Within 60 seconds, connect to the device using the app.
3. After connecting, select the “Update” option in the app.
Note: The device will automatically leave update mode after
60 seconds if no connection has been made.
WARRANTY AND SUPPORT
All warranty claims or support topics for this product shall be
directed to the local distributor/reseller. To nd your local
distributor, visit www.wirelessdmx.com
Warranty is deemed void if:
(1) The product is modied, repaired or otherwise altered
unless it has been directed by LumenRadio AB; or
(2) The serial number on the product (the QR code) has been
compromised.
Stick_QST_2023_november.indd 2
Stick_QST_2023_november.indd 2
Stick_QST_2023_november.indd 2
Stick_QST_2023_november.indd 2Stick_QST_2023_november.indd 2 2023-11-01 09:43
2023-11-01 09:43
2023-11-01 09:43
2023-11-01 09:432023-11-01 09:43
