R E S T A U R A N T R A N G E S

Item # C.S.I. Section 11420

P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602

a division of ITW Food Equipment Group LLC

F45339 (06/16)

CHALLENGER XL GAS RESTAURANT RANGE

4 OPEN BURNERS / 24" GRIDDLE

48" WIDE GAS RANGE

SPECIFICATIONS

48" wide gas restaurant range, Wolf Challenger XL Model

No. C48S-4B24GN. Fully MIG welded aluminized steel frame

for added durability. Stainless steel front, sides, backriser,

highshelf and 6" adjustable legs. Extra deep crumb tray with

welded corners. Four 30,000 BTU/hr. open top burners with

lift-off burner heads. Energy saving ashtube open burner

ignition system (one pilot for every two burners) shrouded for

reliability. Heavy duty cast grates, easy lift-off 12" x 121⁄2" in

the front and 12" x 14

1⁄2" in the back to better accommodate

stock pots or large pans. Grates have a built in aeration bowl

for greater efciency. 24" manual griddle, 3⁄4" thick with 4" wide

front grease trough. Burner knobs are cool to the touch, high

temperature material. One oven: 35,000 BTU/hr. standard

bakers depth ovens with porcelain oven bottom and door panel,

measures 27"d x 263⁄8"w x 14"h. Oven thermostat adjusts from

250°F to 500°F with a low setting. Oven is supplied with two

racks, two rack guide sets, and four rack positions. Oven door

is heavy duty with an integrated door hinge/spring mechanism

requiring no adjustment. 1" rear gas connections with rear

manifold and pressure regulator. Total input 195,000 BTU/hr.

Exterior Dimensions:

34"d x 48"w x 58"h on 6" adjustable legs

C48S-4B24GN 1 Standard Oven / Natural Gas

C48S-4B24GP 1 Standard Oven / Propane

C48C-4B24GN 1 Convection Oven / Natural Gas

C48C-4B24GP 1 Convection Oven / Propane

STANDARD FEATURES

■Fully MIG welded frame

■Stainless steel front, sides, backriser, lift-off high shelf

■6" stainless steel adjustable legs

■Four open top burners, each burner is 30,000 BTU/hr.

with lift-off burner heads

■Shrouded ash tube pilot system (one pilot per

two burners)

■Heavy duty cast grates, easy lift-off 12" x 12

1⁄2" in front

and 12" x 141⁄2" in the rear

■24" manual griddle, 3

⁄4" thick, 4" wide front grease trough

■Extra deep pull out crumb tray with welded corners

■35,000 BTU/hr. baker’s depth standard oven cavity.

Full size sheet pans t side-to-side or front-to-back.

■Oven thermostat adjusts from 250°F to 500°F

■Heavy duty cool touch oven door handle

■Two oven racks and four rack positions

■35,000 BTU/hr. convection oven in place of standard oven

24"d x 263⁄8"w x 137⁄8

"h (115v - 1 phase blower motor

4 amp, 6' cord and plug), includes three oven racks. Full

size sheet pans only t side-to-side in convection oven.

Convection oven motor requires eld attachment.

■1" rear gas connection and pressure regulator

■One year limited parts and labor warranty

ACCESSORIES (Packaged & Sold Separately)

Extra oven rack with rack guides

Casters (set of four)

Flanged feet (set of four)

10" stainless steel stub back

Reinforced high shelf for mounting salamander broiler

OPTIONS (Factory Installed)

Thermostatically controlled griddle (snap action)

Flame Safety device with manual spark ignition for all open

top burners, thermostatic griddles and oven pilots

Hot tops

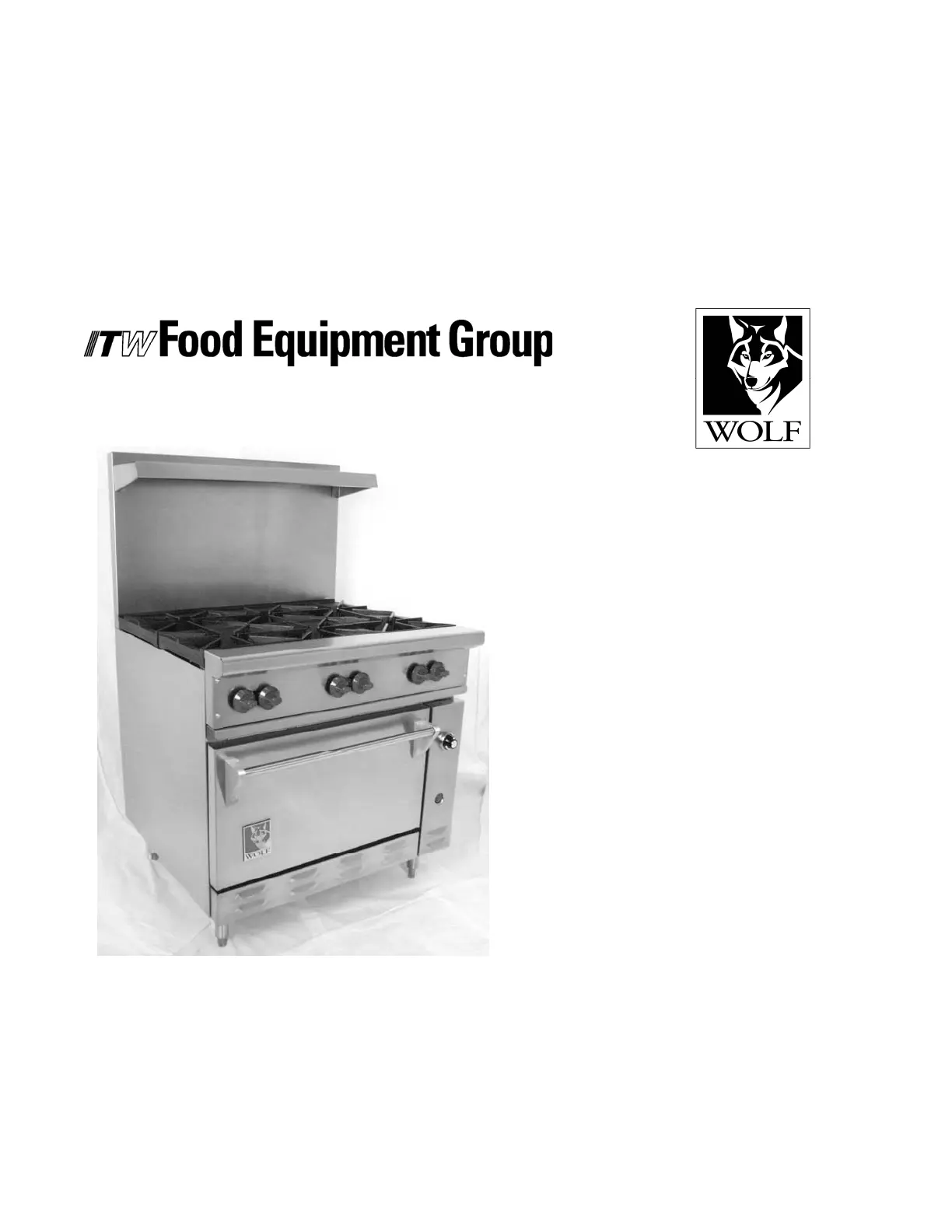

Model C48S-4B24GN

(shown with optional casters)

R E S T A U R A N T R A N G E S

P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602

a division of ITW Food Equipment Group LLC

F45339 (06/16)

NOTE: In line with its policy to continually improve its products, Wolf reserves the right to change materials and specications without notice.

CHALLENGER XL GAS RESTAURANT RANGE

4 OPEN BURNERS / 24" GRIDDLE

48" WIDE GAS RANGE

TOP

CONFIGURATION

MODEL

NUMBER DESCRIPTION

TOTAL INPUT

BTU / HR

SHIPPING WEIGHT

LBS / KG

C48S-4B24GN 1 Standard Oven / 4 Burners / 24" Griddle / Natural Gas 720 / 327195,000

C48S-4B24GP 1 Standard Oven / 4 Burners / 24" Griddle / Propane 720 / 327195,000

C48C-4B24GN 1 Convection Oven / 4 Burners / 24" Griddle / Natural Gas 780 / 355195,000

C48C-4B24GP 1 Convection Oven / 4 Burners / 24" Griddle / Propane 780 / 355195,000

This appliance is manufactured for commercial use only and is not intended for home use.

INSTALLATION INSTRUCTIONS

5. Clearances Rear Sides

Combustible 6" 10"

Standard Oven Non-combustible 0" 0"

Convection Oven Non-combustible Min. 4" 0"

6. For proper combustion, install equipment on adjustable

legs or casters provided with unit.

NOTE: In line with its policy to continually improve its product,

Vulcan reserves the right to change materials and specications

without notice.

Specify type of gas when ordering.

Specify altitude when above 2,000 feet.

1. A pressure regulator sized for this unit is included. Natural

gas 5.0" W.C., propane gas 10.0" W.C.

2. Gas line connecting to range must be 1" or larger. If exible

connectors are used, the inside diameter must be 1" or larger.

3. An adequate ventilation system is required for commercial

cooking equipment. Information may be obtained by writing

to the National Fire Protection Association, 1 Batterymarch

Park, Quincy, MA 02269, www.NFPA.org. When writing, refer

to NFPA No. 96.

4. These units are manufactured for installation in accordance

with ANSZ223.1A (latest edition), National Fuel Gas Code.

Copies may be obtained from The American Gas Association,

400 N Capitol St. NW, Washington, DC 20001, www.AGA.org.
