Original instructions EN
Originalbetriebsanleitung D
Notice originale F
Istruzioni originali I
Manual original ES
Oorspronkelijke gebruiksaanwijzing NL
Tłumaczenie oryginalnych instrukcji PL
Eredeti használati utasítás HU
RO
CZ
SK

1 2
3
4
56
9
10
13
11
12
7
8

A B1 B2
2
1
B3 C D
9
15
EF

Cordless rotary hammer EN
76

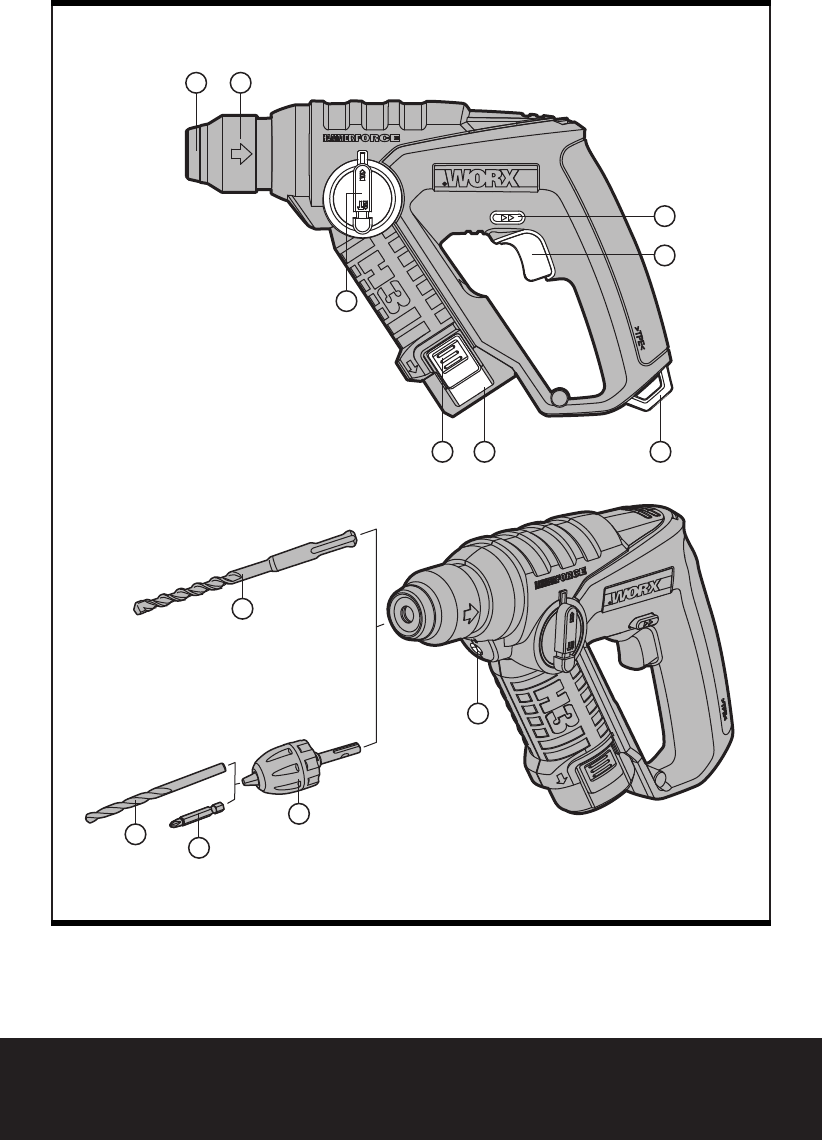

1. DUST PROTECTION CAP
2. TOOL HOLDER LOCKING SLEEVE
3. FORWARD AND REVERSE ROTATION CONTROL
4. ON/OFF SWITCH
5. CARABINER CLIP HOOK
6. BATTERY PACK
7. BATTERY PACK RELEASE BUTTON
8. FUNCTION MODE SELECTION SWITCH
9. LED LIGHT
10. SCREWDRIVER BITS *
11. SDS DRILL BITS *
12. HSS DRILL BIT *
13. KEYLESS CHUCK WITH SDS ADAPTOR*
* Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WX382 WX382.1 WX382.2 WX382.3 WX382.4 (3- designation of machinery,
representative of Hammer drill)
WX382 WX382.1 WX382.2 WX382.3 WX382.4
Voltage 12V
No load speed 0-900/min
Impact rate 0-4800bpm
Impact energy 1.0J
Battery type Li-Ion Powershare (WA3503)
Charger time 3hr 30min 3hr
Battery capacity 1.3Ah Li-Ion
Battery pack quantity 1 2 1
Max. drilling
capacity
Steel 8mm
Wood 10mm
Masonry 10mm
Machine weight (without battery) 1.15kg

Cordless rotary hammer EN
1110

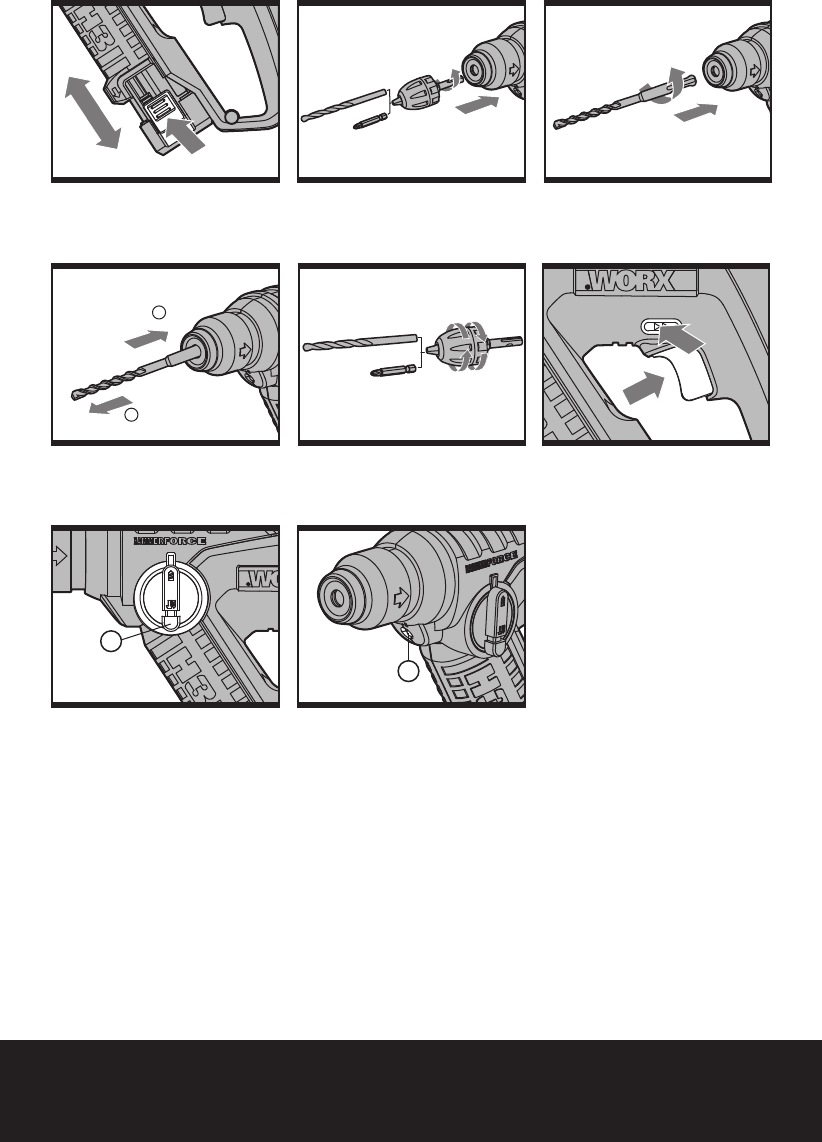

— REMOVING (See Fig. B3)
Retract back the bit holder locking sleeve (2)
and pull out the bit.
WARNING: Your new WORX Rotary
Hammer Drill generates powerful
forces to get your job done quickly and
effectively. These forces may cause
inferior quality SDS bits to break and jam
in the chuck, We therefore recommend
that only high quality SDS bits be used
with this tool.
2. INSERTING A TOOL INTO CHUCK (13)
(See Fig. C)
To open the chuck jaws rotate the front section
of the chuck while holding the rear section.
Insert the drill bit between the chuck jaws
and rotate the front section in the opposite
direction while holding the rear section.
Ensure that the drill bit is in the center of
the chuck jaws. Finally, firmly rotate the two
separate chuck sections in opposite directions.
Your drill bit is now locked in the chuck.
3. ON/OFF SWITCH (See Fig. D)
Depress the On/Off switch (4) to start and
release it to stop your tool.
— ON/OFF SWITCH WITH VARIABLE
SPEED CONTROL
Depress the On/Off switch to start and release
it to stop your tool. This tool has a variable
speed switch (4) that delivers higher speeds
with increased trigger pressure - speed is
controlled by varying the pressure applied to
the switch.
4. SWITCH LOCK (See Fig. D)
The switch trigger can be locked in the OFF
position. This helps to reduce the possibility of
accidental starting when not in use. To lock the
switch trigger, place the direction of rotation
control in the center position.
5. FORWARD AND REVERSE ROTATION
CONTROL (See Fig. D)
With the hammer pointing away from you, push
the forward/reverse-lever “ “ to the left for
forward rotation. Push the forward/reverse-lever “
“ to the right for reverse rotation.
WARNING: Never change the
direction of rotation while the tool
is rotating, wait until it has stopped.

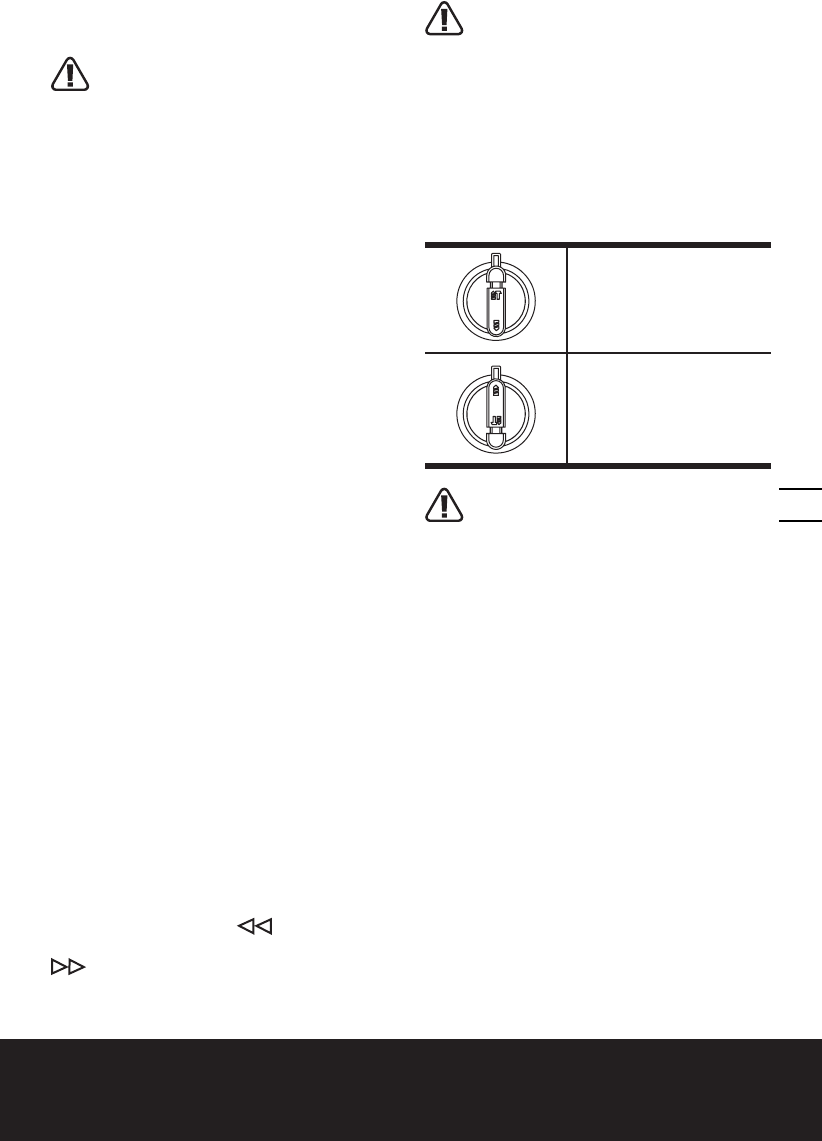

6. FUNCTION MODE SELECTION
(See Fig. E)
The operation of the gearbox for each
application is set with the function mode
selection switch (8). To change between
functions, depress the unlocking button
(15) and rotate the selector to the desired
operating mode.
For simultaneous
drilling and impacting
of concrete or masonry,
choose the Hammer
drilling position.
For screw driving,
drilling into steel, wood
and plastics choose the
Rotary drilling position.
WARNING: The operating mode
selector switch may be actuated
only at a standstill.
7. LED LIGHT (See Fig. F)
To turn on the light simply press the on/off
switch. When you release the on/off switch,
the light will be off.
LED lighting increases visibility-great for
dark or enclosed area. LED is also a battery
capacity indicator. It will flash when power
gets low.
8. TEMPERATURE DEPENDENT
OVERLOAD PROTECTION
When using as intended for, the power tool
cannot be subject to overload. When the
load is too high or the allowable battery
temperature of 75°C is exceeded, the
electronic control switches off the power
tool until the temperature is in the optimum
temperature range again.
9. PROTECTION AGAINST DEEP
DISCHARGING
The Li-Ion battery is protected against deep

Cordless rotary hammer EN
1312
discharging by the “Discharging Protection
System”. When the battery is empty, the
machine is switched off by means of a
protective circuit: The inserted tool no longer
rotates.
WORKING HINTS FOR YOUR
TOOL
If your power tool becomes over heated, set
the speed to maximum and run no load for 2-3
minutes to cool the motor. SDS-plus tungsten
carbide drill bits should always be used for
concrete and masonry.
When drilling in metal, only use HSS drill bits
in good condition. Where possible use a pilot
hole before drilling a large diameter hole.
PROBLEM SOLUTION
REASONS FOR DIFFERENT BATTERY
PACK WORKING TIMES
Charging time problems, having not used a
battery pack for a prolonged time will reduce
the battery pack working time. This can be
corrected after several charge and discharge
operations by charging & working with your
drill. Heavy working conditions such as large
screws into hard wood will use up the battery
pack energy faster than lighter working
conditions. Do not re-charge your battery pack
below 0oC and above 30oC as this will affect
performance.
MAINTENANCE
Remove the battery pack from the tool
before carrying out any adjustment,
servicing or maintenance.
Your power tool requires no additional
lubrication or maintenance ,except for the
cleaning & lubrication of the SDS bits and
adaptors before inserting into the chuck.
There are no user serviceable parts in your
power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean
with a dry cloth. Always store your power tool
in a dry place. Keep the motor ventilation slots
clean. Keep all working controls free of dust.
Occasionally you may see sparks through the
ventilation slots. This is normal and will not
damage your power tool.
ENVIRONMENTAL
PROTECTION
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or retailer for
recycling advice.
DISPOSAL OF AN
EXHAUSTED BATTERY
PACK
Li
To preserve natural resources, please
recycle or dispose of the battery pack
properly. This battery pack contains
Li-Ion batteries. Consult your local waste
authority for information regarding available
recycling and/or disposal options. Discharge
your battery pack by operating your tool, then
remove the battery pack from the tool housing
and cover the battery pack connections with
heavy-duty adhesive tape to prevent short
circuit and energy discharge. Do not attempt
to open or remove any of the components.
