NS-BP101/

NS-BP111

Speaker Package

Package Enceintes

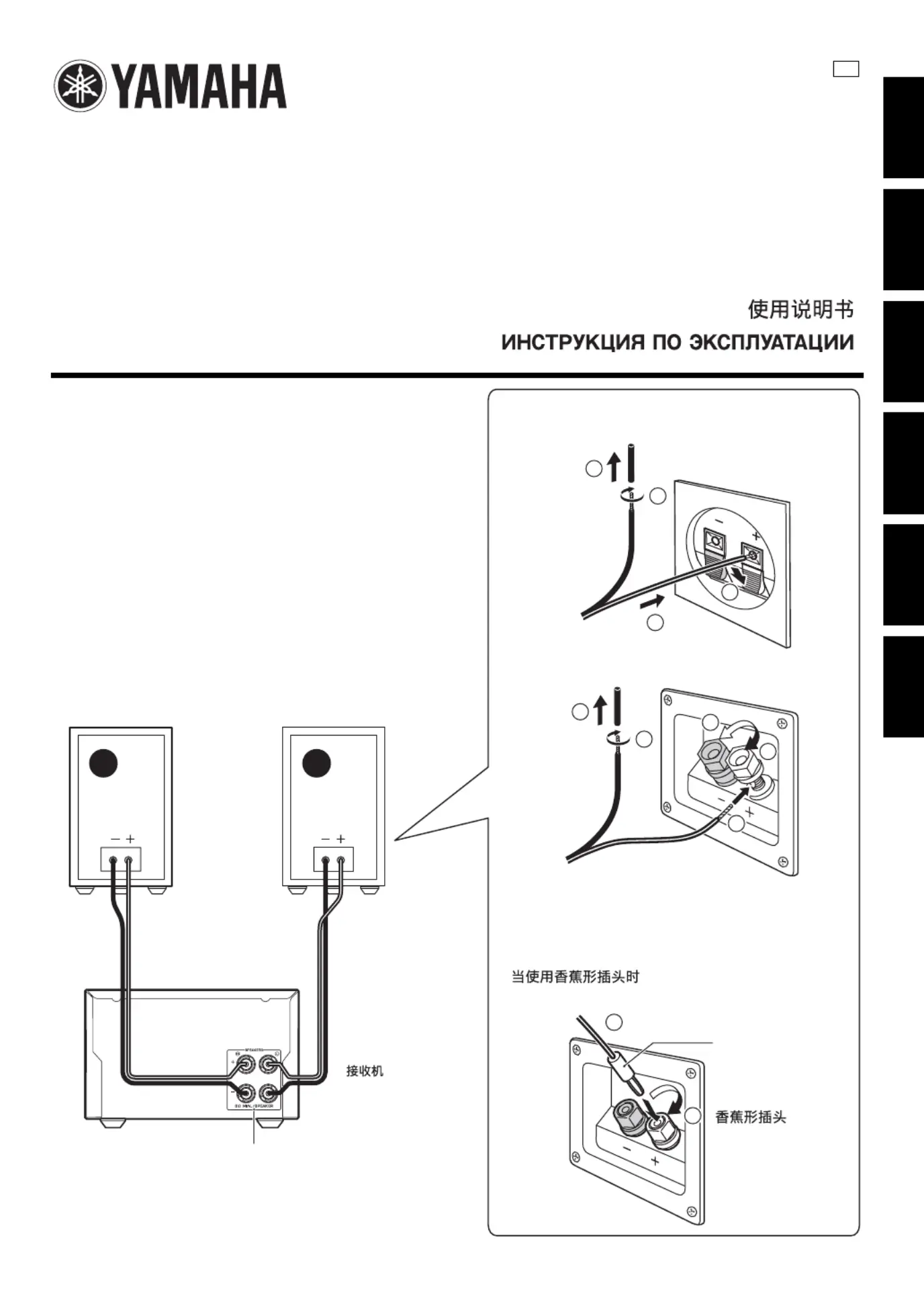

CONNECTION

CONNEXION

ANSCHLUSS

CONEXIÓN

连接

连接连接

ПОДКЛЮЧЕНИЕ

NS-BP101

When using a banana plug

Lorsqu’une fiche banane est utilise´ e

Bei Verwendung von Bananensteckern

Cuando utilice una clavija tipo banana

Использование вилки штекерного типа

Banana plug

Fische Banane

Bananenstecker

Clavija tipo banana

Вилка штекерного

типа

Speaker (R)

Enceinte (Droite)

Lautsprecher (R)

Altavoz (D)

扬声器

扬声器扬声器 (R)

Колонка (R)

Speaker (L)

Enceinte (Gauche)

Lautsprecher (L)

Altavoz (I)

扬声器

扬声器扬声器 (L)

Колонка (L)

Receiver

Re´ cepteur

Receiver

Receptor

Ресивер

Speaker output terminal

Borne de sortie d’enceinte

Lautsprecherausgangsklemme

Terminal de salida para altavoz

扬声器输出端

扬声器输出端扬声器输出端

Выходной терминал колонок

NS-BP111

OWNER’S MANUAL

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

MANUAL DE INSTRUCCIONES

2 En

EnglishFranc¸ ais

• Install the speakers in a cool, dry, clean, stable and horizontal

place.

• To avoid electric shock, fire, injury, damage to the speakers, and

discoloration of the cabinet, install away from windows, heat

sources, sources of excessive vibration, dust, moisture, cold, rain,

water, falling objects, noise sources (transformers, motors, etc.)

and direct sunlight.

• Do not insert a hand or object into the port or pick up the speaker

by holding the port, as it may cause personal injury or damage to

the speaker.

• Any time you note distortion, reduce the volume control on your

receiver to a lower setting. Never allow your receiver to be driven

into “clipping”. Otherwise the speakers may be damaged.

• When using a receiver with a rated output power higher than the

nominal input power of the speakers, care should be taken never

to exceed the speakers’ maximum input.

• Do not attempt to clean the speakers with chemical solvents as

this might damage the finish. Use a clean, dry cloth.

• Do not attempt to modify or fix the speakers. Contact qualified

Yamaha service personnel when any service is needed. The cabi-

net should never be opened for any reasons.

•Secure placement or installation is the owner’s respon-

sibility. Yamaha shall not be liable for any accident

caused by improper placement or installation of speak-

ers.

Check that the following items are included.

Speaker cable (2 m) x 2 / Grille x 2

To attach the grille, line up the three

holes on the inner surface of the grille

with the three corresponding pegs on the

speaker and push gently.

When the grille is removed, be sure not to touch the

speaker units with your hands or to exert excessive force

with tools.

BEFORE MAKING CONNECTIONS, MAKE SURE THAT

THE RECEIVER IS SWITCHED OFF.

When this unit is connected to the receiver, refer also to the owner’s

manual supplied with the receiver.

See page 1 for the connection method.

• Place the speakers on a sturdy, vibration-free surface. You may

not be able to obtain good bass quality when the speakers are

placed directly on the floor. Put a block, etc. under the speakers.

• Better stereo images will be obtained when the speakers are

slightly angled in towards the listening position.

Placing this unit too close to a CRT TV set might happen

impair picture color or create a buzzing noise. Should

this happen, move the speaker away from the TV set.

Type ..............................................2-way bass-reflex speaker system

Non-magnetic shielding Type

Driver..................................................... 11 cm (4 1/2”) cone woofer

2.5 cm (1”) balanced dome tweeter

Impedance.................................................................................... 6Ω

Frequency Response ................................. 60 Hz to 38 kHz (-10 dB)

70 kHz (-30 dB)

Nominal Input Power ................................................................30 W

Maximum Input Power ..............................................................90 W

Sensitivity .................................................................84 dB/2.83 V/m

Crossover Frequency ................................................................8 kHz

Dimensions (W x H x D)

<NS-BP101> .................................................. 123 x 200 x 298 mm

(4-7/8” x 7-7/8” x 11-3/4”)

<NS-BP111> .................................................. 123 x 200 x 299 mm

(4-7/8” x 7-7/8” x 11-3/4”)

Weight

<NS-BP101> .......................................................... 2.1 kg (4.7 lbs.)

<NS-BP111> .......................................................... 2.3 kg (5.1 lbs.)

* Specifications are subject to change without notice due to

product improvements.

* Care should be taken not to exceed the input power values noted

above.

PRECAUTIONS

ACCESSORIES

ATTACHING THE GRILLE

Note

CONNECTION TO YOUR RECEIVER

PLACING THE SPEAKERS

Note

SPECIFICATIONS
