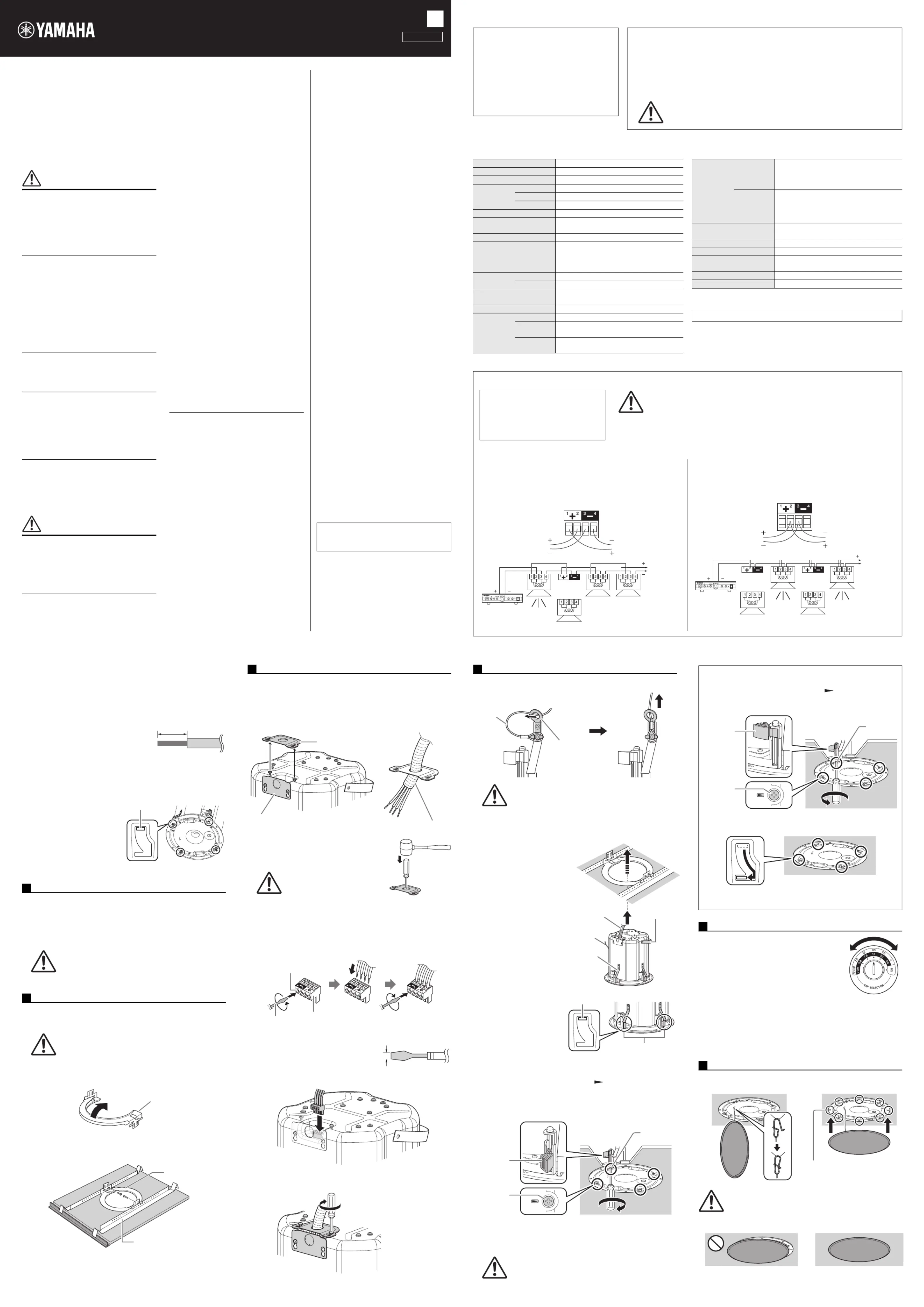

PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
This product is a speaker system designed for background music and public address
applications in places such as stores, restaurants and other commercial spaces. Do not
use for any purposes other than the one intended. Those who are unfamiliar with handling
or those who can not handle according to this manual such as children, should be
supervised by responsible persons to ensure safety.
Always consult a professional installer if the product installation requires construction work.
Always follow the basic precautions listed
below to avoid the possibility of serious
injury or even death from electrical shock,
short-circuiting, damages, fire or other
hazards. These precautions include, but
are not limited to, the following:
If you notice any abnormality
• If any of the following problems occur,
immediately turn off the power of the amplifier.
- Unusual smells or smoke are emitted.
- Some object, or water has been dropped
- There is a sudden loss of sound during use
- Cracks or other visible damage appear on
Then have the product inspected or repaired
by qualified Yamaha service personnel.
• This product contains no user-serviceable
parts. Do not attempt to disassemble the
internal parts or modify them in any way.
Water warning/Fire warning
• Do not expose the product to rain, use it near
water or in damp or wet conditions, or place on
it any containers (such as vases, bottles or
glasses) containing liquids which might spill
• Do not place any burning items or open flames
near the product, since they may cause a fire.
• When turning on the AC power in your audio
system, always turn on the power amplifier
LAST, to avoid hearing loss and speaker
damage. When turning the power off, the
power amplifier should be turned off FIRST for
Always follow the basic precautions listed
below to avoid the possibility of physical
injury to you or others. These precautions
include, but are not limited to, the
• Do not place the product in an unstable
position or a location with excessive vibration,
where it might accidentally fall down and cause
• Keep this product out of reach of children, to
keep them from putting their fingers into
openings on the product and accidentally being
injured. This product is not suitable for use in
locations where children are likely to be present.
• Do not place the product in a location where it
may come into contact with corrosive gases or
salt air. Doing so may result in malfunction.
• Do not place the product in a location where it
may be exposed to smoke or oil vapors, or
where any of its parts might deteriorate and
• Before moving the product, remove all
• Do not use the speaker’s carrying band for
suspended installation. Doing so can result in
• Always consult a professional installer if the
product installation requires construction work,
and make sure to observe the following
- Choose mounting hardware and an
installation location that can support the
- Avoid locations that are exposed to constant
- Use the required tools to install the product.
- Inspect the product periodically.
• Use only speaker cables for connecting
speakers to the speaker jacks. Use of other
types of cables may result in fire.
• Do not insert your fingers or hands in any gaps
or openings on the product (release levers,
bass reflex ports, clamps).
• Do not rest your weight on the product or place
• When using a low-impedance connection,
make sure that the output power of the
amplifier is lower than the power capacity of
this product. When using a high-impedance
connection, be sure that the total rating of the
transformer taps of the speakers does not
exceed the output power of the amplifier. If the
output power is higher than the power
capacity, malfunction or fire may occur.
• Do not input excessively loud signals that may
result in clipping in the amplifier or cause the
- Feedback, when using a microphone
- Continuous and extremely loud sound from a
- Continuous and excessively loud distorted
- Noise caused by plugging/unplugging the
cable while the amplifier is turned on
Even if the output power of the amplifier is
lower than the power capacity of this product
(program), damage to the product,
malfunction or fire may occur.
Unpack the contents and confirm that all the
following items are included.
• Owner’s Manual (this manual)
* Speaker cable is not included.
Accessories (sold separately)
Installation Support Bracket Kit (AB-C8S)
• Screws (S-TITE M4, 8 mm) × 2
* This manual covers the installation method using the AB-C8S Reinforcing Bracket Kit.
Always use AB-C8S for Installing the speaker.
*2 Calculated based on power rating and sensitivity, exclusive of power compression.
The contents of this manual apply to the latest specifications as of the
publishing date. To obtain the latest manual, access the Yamaha website then
download the manual file.
The dimensions are shown in “Dimensions” on the back side of the manual.
Type Subwoofer, Band-pass
Component 8" (20 cm) cone
Connector Euroblock (4-pin) × 1
(input: +/-, loop-thru: +/-)
Min. wire size AWG24 (0.2 sq)
Max. wire size AWG12 (3.5 sq)
100 V 7.5 W, 15 W, 30 W, 60 W
70 V 3.8 W, 7.5 W, 15 W, 30 W, 60 W
Overload protection Full-range power limiting, to protect network
Grille Material Metal grille: Powder coated perforated steel
Finish VXC8SB: black paint
(approximate value: Munsell N3.0)
(approximate value: Munsell N9.3)
Net Weight (including grille) 8.7 kg
Conduit tube Ø15.4 mm–Ø21.3 mm
Packaging Single-unit (1 pc.)
Material and weight of the Installation Support Bracket Kit (AB-C8S): steel, 1.0 kg
Wiring and installation shall be in
accordance with the National Electrical
Code, NFPA70 for United States,
Canadian Electrical Code, CSA C22.1 for
Canada and the local authority having
Using Loop-Through Terminals
For this method, cables are connected from terminals 1 and 4 to the
subsequent speaker. Cables with a thickness of at least AWG24 (0.2 sq)
and up to AWG12 (3.5 sq) can be used. If the Euroblock plug is
disconnected from a speaker, all subsequent speakers will not work. This
can be useful to identify which speaker has a problem.
Paralleling Input Terminals
For this method, cables are connected to terminals 2 and 3 of each
speaker. Connect two cables to one terminal. Cables with a thickness up
to AWG 17 can be used. Since the cables are connected via Euroblock
plugs, subsequent speakers can work properly.
• When connecting with low impedance, take note of the total impedance.
• When connecting speakers with high impedance, be sure that the total rated input capac-
ity of the speakers does not exceed the output power of the amplifier.
When using a high-impedance speaker connection, make sure the audio signal is passed through an
60 Hz or above high-pass filter before being input to the speakers.
Before installing the speaker onto the ceiling, ensure that the strength of the
ceiling rail is sufficient.
Pre-installation (Preparation of the Cable)
• For cables attached to the Euroblock
plug, strip the insulation as shown in the
1. Put the supplied cutout template to the ceiling and draw a circle by
Make sure to use the cutout template so that hole is the correct
If you use a circular cutter, set the diameter using the cutout template.
2. Cut the hole by tracing the circle.
1. Insert the two tile rails through the cut hole and place them on the ceiling
surface within your reach. Adjust their length and be sure that each of
the tile rails are oriented as shown below.
2. Insert the folded O-ring through the cut hole and open it within the
3. Secure the O-ring and tile rails with the supplied two screws through
either slot of both O-ring brackets.
1. Pull the wiring from the power amplifier through the cut hole of the
2. Loosen the screws of one of the two terminal covers according to the
wiring direction and remove the terminal cover.
Pass the cable through the terminal cover.
In this manual, the illustrations show the top terminal cover removed.
The terminal covers do not have a hole
through which the speaker cable passes.
Open a hole in the terminal cover (as shown)
3. Remove the Euroblock plug from the speaker. After loosening the
terminal screws of the Euroblock plug with a flat-blade screwdriver,
insert the cable into each terminal and tighten the screws. For the
connection, refer to section “Connecting the Cable.” Make sure that
cables cannot be pulled out.
Use a flat-blade screwdriver with a
4. Plug the connected Euroblock plug into the socket in the speaker.
5. Tighten the screw and then attach the terminal cover.
When installing the speakers, turn off the power amplifier.
Do not plate core wires by soldering if
the cable uses stranded wire. Doing so
will cause the wire to break.
Make sure that the release
lever of the baffle front is in the
position as shown in the figure.
Cut Out a Hole in the Ceiling
Wear goggles to prevent chips or powder entering your eyes
Install the Tile Rails and O-ring
Always use AB-C8S for Installing the speaker.
Connect the Wiring to the Connector
Use an appropriate tool for open-
ing the hole. Otherwise, injury
may result if you attempt to open
the hole with your bare hands.
1. Attach the safety wire to the safety wire ring, and connect the wire to an
independent support point, such as a joist.
3. While slightly lifting up the speaker, turn the screwdriver clockwise to
tighten the attachment screw.
The attachment screws are indicated by marks.
The first turn of the attachment screw opens the clamp. Further turns
move the clamp down the channel to pull the speaker up into the ceiling.
When the clamp is difficult to open, turning the screwdriver halfway
counterclockwise once will make it easier to open the clamp.
Select the line voltage/impedance (100V, 70V,
8Ω) and power tap for a 100V, 70V line distributed
system, by rotating the tap selector switch on the
front side of the speaker with a flat-blade
screwdriver. When using the speaker with a high-
impedance connection, select the position where
wattage is indicated by the line (100V, 70V). Do
not select the “ × ” setting when connecting to a
100V line. When using it with low impedance
connection, select the 8Ω position.
Attach the string to the speaker as shown in the figure, and then fit the grille
to the magnets (8 places) on the baffle front.
Fix the Speaker onto the Ceiling
Always take measures to prevent the speaker from falling
If the safety wire is too short, prepare another wire appropri-
ate for the speaker weight and installation conditions. If the
wire is too long, should the speaker fall, the wire may break
as a result of too much strain.
Do not over-tighten the attachment screws. Otherwise, the attachment
screws and clamps will break.
Do not turn any screws other than the attachment screws.
Otherwise, the speaker may fall or malfunction.
2. Push the speaker slowly up into
the ceiling, taking care not to trap
the speaker cable, carrying band
Make sure the release lever
is in the position of the figure.
If it is set to the position of the
figure, when all the Anti-Drop
tabs cross over the O-ring,
Removing from the Ceiling
Loosen the attachment screws by turning them counterclockwise.
The attachment screws are indicated by mark.
Loosen the screw and the clamp goes up, and as it reaches the top,
the clamp closes as shown in figure below.
While slightly lifting up the speaker, secure it by moving the release lever
of the baffle front to the direction of the arrow as shown in the figure.
3. Remove the safety wire from the speaker that is detached from the
Set the Line Voltage/Impedance and Power
• Make sure the amplifier is switched off before
operating the tap selector switch.
• If the setting is incorrect, it may cause malfunc-
tion of the speaker and amplifier.
The grille may fall down if it is attached inadequately. Attach it
Incorrectly attached Correctly attached
To avoid the possibility of malfunction/damage to
the product or damage to other property, follow
Handling and maintenance
• Do not expose the product to excessive dust or
vibration, or extreme cold or heat, in order to
prevent the possibility of panel disfiguration,
unstable operation, or damage to the internal
• When using a high-impedance speaker
connection, make sure the audio signal is
passed through an 60 Hz or above high-pass
filter before being input to the speakers.
• Do not touch the speaker driver unit, since it
• Be sure to observe the amplifier’s rated load
impedance, particularly when connecting
speakers in parallel at low impedance.
Connecting an impedance load outside the
amplifier's rated range can damage the
• Do not place vinyl, plastic or rubber objects on
the product, since this might cause alteration
or discoloration of the panel.
• When cleaning the product, use a dry and soft
cloth. Do not use paint thinners, solvents,
cleaning fluids, or chemical-impregnated
wiping cloths, since this might cause alteration
This speaker system has an internal protection
circuit that shuts off the speaker unit when an
excessive input signal is applied. If the
speaker unit emits no sound, reduce the
volume level of the amplifier immediately. (The
sound will return automatically in several
• Do not place the speaker face down with the
grille attached, as deformation of the grille may
• When placing the speaker face down, always
place it on a flat surface.
• Air blowing out of the bass reflex ports is
normal, and often occurs when the speaker is
handling program material with heavy bass
• The illustrations as shown in this manual are for
instructional purposes only.
• The company names and product names in
this manual are the trademarks or registered
trademarks of their respective companies.
• This product contains recyclable components.
When disposing of this product, please contact
the appropriate local authorities.
Yamaha cannot be held responsible for
damage caused by improper use or
modifications to the product.
