Side 1/4

YS-TECH-SABUMPER1-00-1v1 • June 22/2021

Important Safety Considerations!

• Experienced professionals should only carry out rigging.

• Use mounting and rigging hardware that has been rated to meet or exceed the weight being hung.

• Inspect mounting and rigging hardware regularly. Immediately replace any worn or damaged components.

SABUMPER1 Users Guide

V1 (Feb-2019)

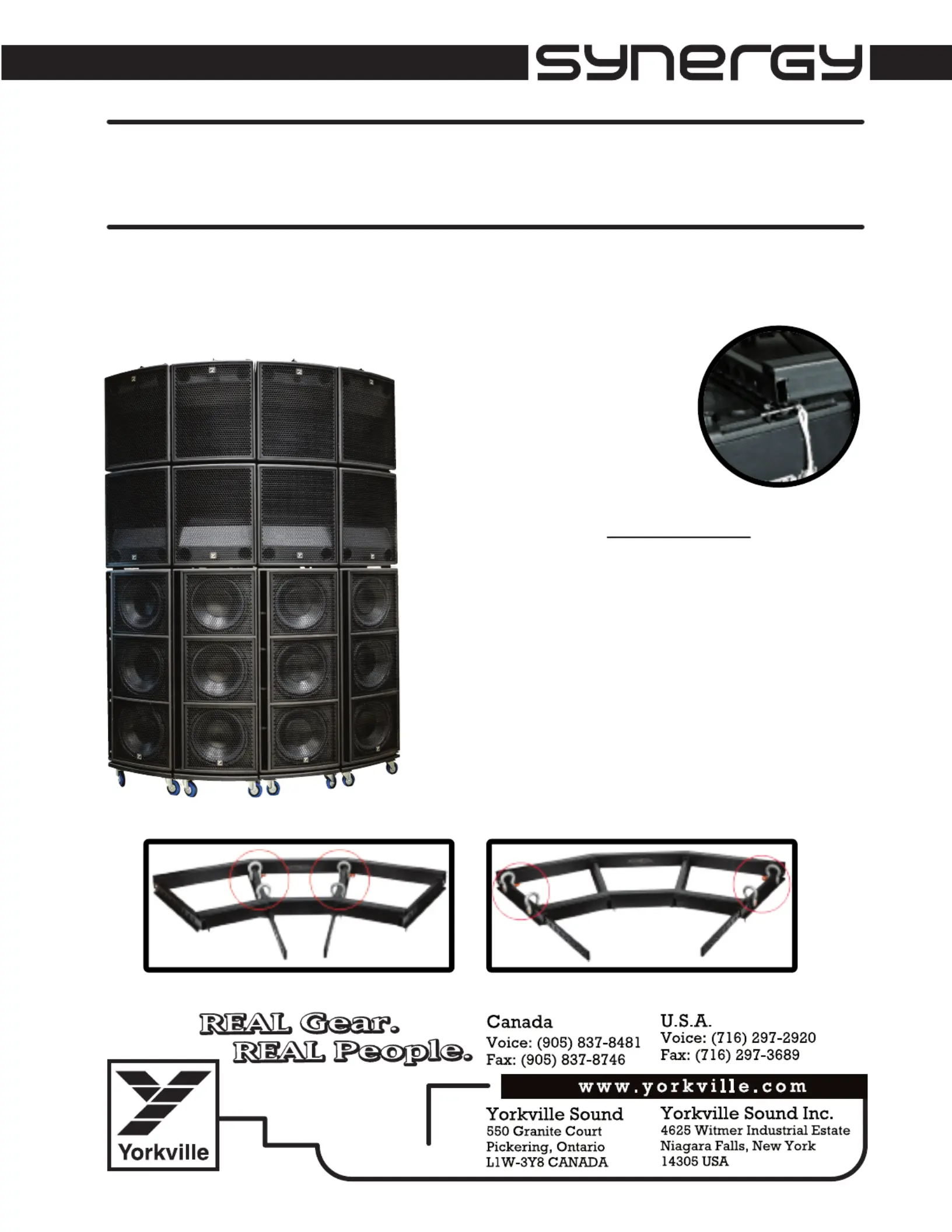

The SABUMPER1 has been designed to hang arrays of SA153 and SA315S Synergy Series Loudspeakers.

Up to 4 columns wide and 3 cabinets deep for a maximum number of 12 cabinets (figure 1) can be safely

hung at a safety rating of 7:1.

SA153 and SA315S cabinets can be

flown right side up or upside down by

simply engaging the LOCKBAR

provided with each cabinet into the

RAILS on the underside of the

SABUMPER1 and securing the RAILS

in place with the provided quick pin.

Remember, when flying SA153 cabinets

above and below each other, they should be mirrored for

optimum performance – THIS IS CRITICAL

The SABUMPER1 has 4 main hanging rails providing a

multitude of hanging options for motor hoists. The minimum

number of pick-up points will depend on the number of columns

flying and the array tilt required - a minimum of 2 pick up points

are suggested. These two pick up points can be on either the

two inner hanging rails (Figure 2) or the two outer hanging rails

(Figure 3) regardless of where the columns of cabinets are

hanging below on the bumper.

Two extension tilt bars are provided if an array tilt is required;

the pick-up points can be moved forward or rearward of the

main fly bumper. The two extension bars can be located on

either of the two inner or outer main hanging rails. Simply slide

the extension bars into the main hanging rails and secure in

place with a 5/8-inch shackle. (Shackles are not included)

Figure 2 Figure 3

Figure 1

S A B U M P E R 1

Important Safety Considerations!

• Experienced professionals should only carry out rigging.

• Use mounting and rigging hardware that has been rated to meet or exceed the weight being hung.

• Inspect mounting and rigging hardware regularly. Immediately replace any worn or damaged components.

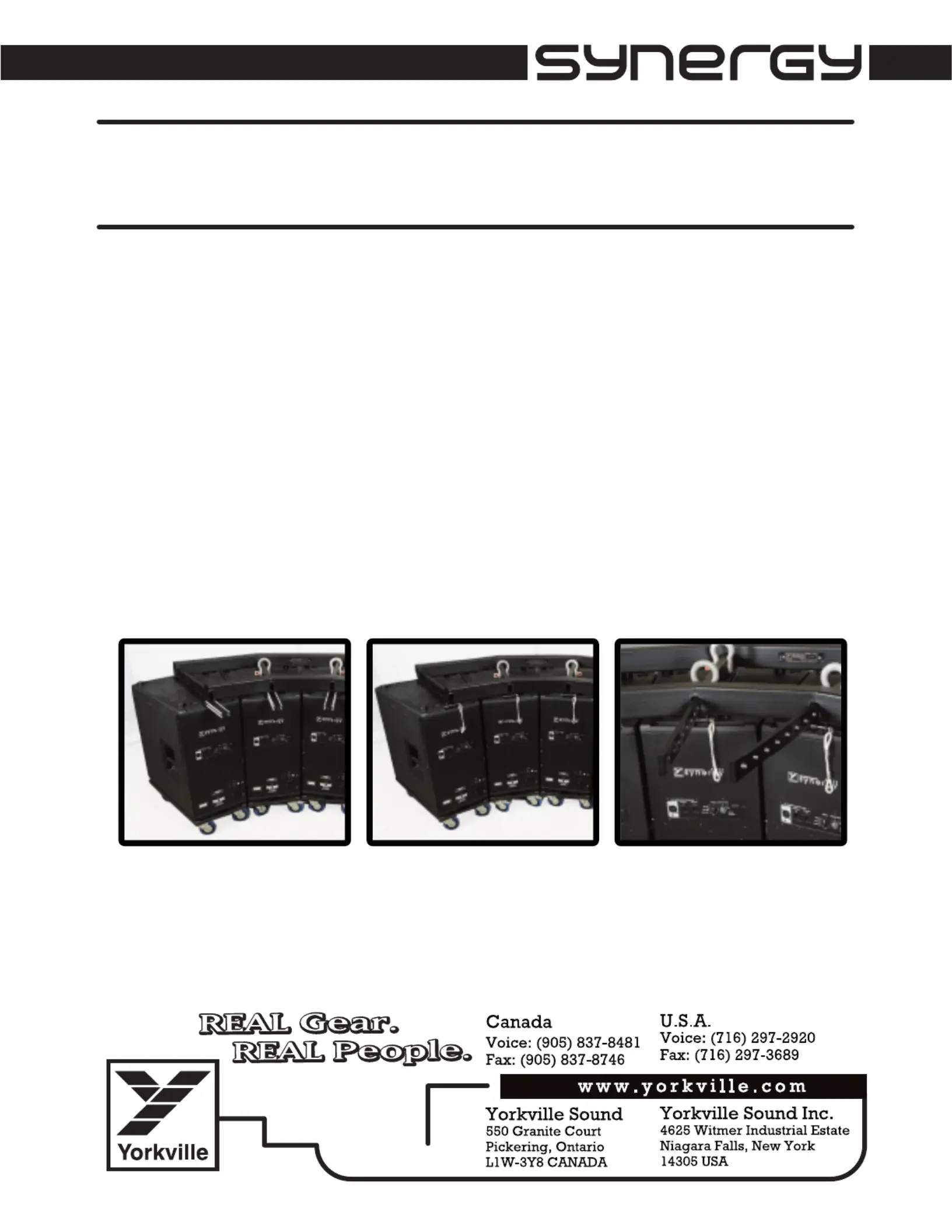

Hanging an Array

1. Attach the main pick-up points from the motor hoist to the SABUMPER1 and raise the bumper off the

ground enough to roll the first row of cabinets underneath it.

2. Cluster the first row of cabinets tightly together directly below the bumper. Slowly lower the bumper

down on top of the cabinets while lining up the RAILS on the underside of the bumper and the RAILS

on the top of each cabinet.

3. Remove the quick pins and LOCKBARS from between each dolly and cabinet and insert the LOCK-

BAR into the RAILS on the underside of the bumper and the top of each cabinet.

REMEMBER TO REPLACE EACH QUICK PIN TO SECURE THE LOCKBARS IN PLACE.

FAILURE TO DO SO COULD RESULT IN THE LOCKBARS SLIDING OUT DURING USE.

4. Once all the LOCKBARS and quick pins are secure raise the bumper up and roll the dollies out of the way.

5. Roll the next row of cabinets into place and repeat the process of lowering the cabinets down onto

each other removing the LOCKBARS and quick pins from the dollies and securing them into the

RAILS between the top and bottom of the cabinets.

To dismantle the array simply reverse the process by lowering the bottom row of cabinet down onto the dollies,

remove the LOCKBAR and quick pins from between the cabinets and secure them into the dollies.

S A B U M P E R 1
