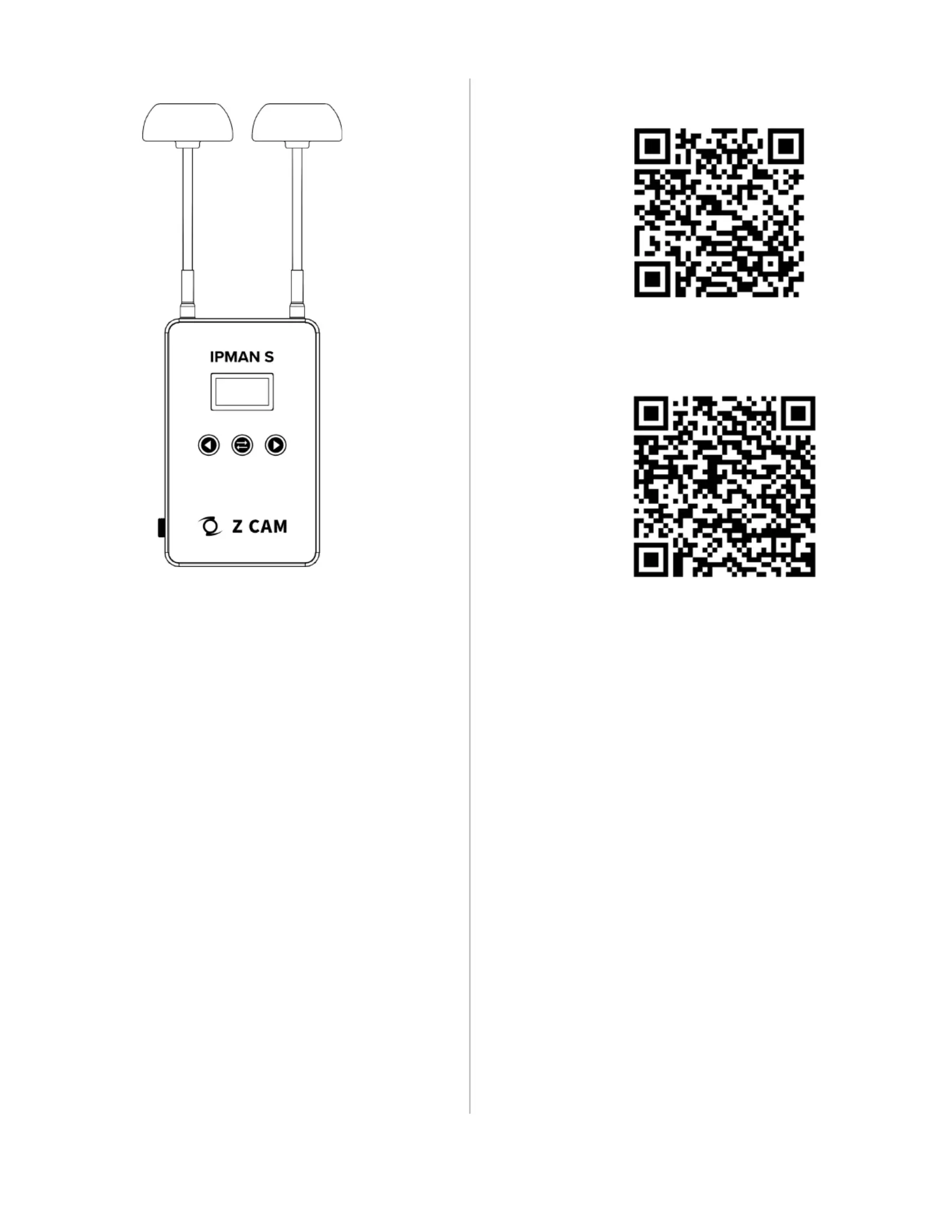

Z CAM IPMAN S Wireless Video Streaming Device - Quick User Guide

What is in the box?

●Z CAM IPMAN S main unit x 1.

●Wi-Fi antenna x 2.

How to power up Z CAM IPMAN S?

●Mount NP-F battery on to the rear socket of the main unit.

●Press and hold the release button next to the socket to unmount the battery.

●For external power supply, connect the DC plug to the power socket (6.2~18V) on the side.

How to switch on Z CAM IPMAN S?

●Ensure that power is connected.

●Push power switch upward to ON position to switch on.

●Push power switch downward to OFF position to switch oﬀ.

How to feed video signal to the HDMI input of Z CAM IPMAN S?

●Connect HDMI output of camera or other equipment to HDMI IN of the main unit.

How to get video signal from the HDMI output of Z CAM IPMAN S?

●Connect HDMI input of monitor or other equipment to HDMI OUT of the main unit.

How to install WiFi antenna?

●Align the bottom of the antenna and the antenna port on top of the main unit.

●Screw in the antenna clockwise until it is ﬁxed in position.

●Both antennas need to be installed.

How to switch the operating mode of Z CAM IPMAN S?

●Mode selector on the side of the main unit set to Rx, status display will change to RX.

●Mode selector on the side of the main unit set to M, status display will change to TX-P.

●Mode selector on the side of the main unit set to Tx, status display will change to TX.

How to use wireless video monitoring feature?

●Camera HDMI output signal must be 1080p60 or below (1080i is not supported).

●Connect camera HDMI output to HDMI IN of main unit, set to TX mode.

●Set another main unit to RX mode, connect HDMI OUT to monitor input.

●Press and hold the function button in the middle for two second until pairing icon shows up.

●Release the function button and wait for auto pairing.

●Channel number on both units should be the same once pairing is successful.

●Once there is a camera HDMI signal output it will be streamed to the RX connected monitor.

●Repeat above procedure to add RX main unit up to a maximum of four.

How to use mobile devices for video monitoring?

●Download and install “Z CAM Monitor” app on iOS devices. (use Z Camera app on Android devices)

●Camera HDMI output signal must be 1080p60 or below (1080i not supported).

●Connect camera HDMI output to HDMI IN of main unit, set to TX mode.

●Note the SSID on the top left corner of main unit display.

●Open “Z CAM Monitor” app, click the bottom right wireless hotspot icon , enter SSID and tap the arrow sign to connect.

●Once there is a camera HDMI signal output it will be streamed to the “Z CAM Monitor” app.

●Repeat above procedure to add mobile devices up to a maximum of four.

How to connect to a wireless router? （）* This feature is not yet supported on Android.

●Select M mode on the main unit.

●Connect iOS device to main unit using USB-C to Lightning cable.

●Turn on the main unit and iOS device, open the Z CAM Monitor app.

●Tap the bottom right wireless network icon . Available wireless networks will be shown.

●Select the wireless network, enter password and connect.and tap the arrow sign to

●Connected WiFi SSID and IP address will be shown on the main unit display.

Please visit www.z-cam.com for latest product information and user guide.

Disclaimer: All product features and technical speciﬁcations stated are subjected to the sole interpretation and explanation of Shenzhen ImagineVision Technology Limited.
