Presrv Dual Zone Panel Ready Wine Cooler
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation
2PRW24C02BPG Use, Care, and Installation Guide
3
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Contents
Page
Safety Information 4-11 ............................................................................
Types of Safety Warnings 4 ...................................................................
General Safety ..................................................................................5-7
Save These Instructions 8 ......................................................................
Disposal of Old Appliance................................................................... 8
Before Using Your Appliance 9 ...............................................................
Installation of Your Appliance ........................................................... 9-10
Attention 10 .............................................................................................
Electrical Connection 11 .........................................................................
Introduction 12 .......................................................................................
List of Materials 13 ..................................................................................
Product Specications ..................................................................... 14-17
Product Summary 14 ..............................................................................
Internal Storage 14 ..................................................................................
Parts Identification 15 .............................................................................
Dimensions 16-17 ......................................................................................
Installation Instructions 18-23 ....................................................................
Installation Clearance Requirements 18 ..................................................
Installing the Overlay Panel 19 ................................................................
Installing the Handle .......................................................................... 20
Reversing the Door Swing of Your Appliance 21 .......................................
Installing the Wooden Shelves 22 ...........................................................
Removing the Wooden Shelves 22 ..........................................................
Carbon Filter ..................................................................................... 23
Operating Your Appliance 24-26 ...............................................................
Using the Control Panel 24 .....................................................................
Internal Light ..................................................................................... 25
Door Open Alarm ............................................................................... 25
Sabbath Mode ................................................................................... 25
Demonstration Mode ......................................................................... 26
Temperature Alarm ............................................................................ 26
Defrosting .......................................................................................... 26
Care and Maintenance .................................................................... 27-28
Normal Sounds .................................................................................. 27
Cleaning the Unit .............................................................................. 27
Power Failure ..................................................................................... 28
Moving Your Wine Cooler ................................................................... 28
Energy Saving Tips ............................................................................ 28
Troubleshooting............................................................................... 29-30
Notes ................................................................................................31-32
Limited Warranty 33 ...............................................................................
Product Registration 34 ...........................................................................
4PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe
bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words
“DANGER WARNING CAUTION” “ ” or “ ”
DANGER
WARNING
CAUTION
Danger means that failure to heed this safety
statement may result in severe injury or death.
Warning means that failure to heed this safety
statement may result in extensive product damage,
serious personal injury, or death.
Caution means that failure to heed this safety
statement may result in minor or moderate
personal injury, property or equipment damage.
5
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
When using an electrical appliance, basic precautions should
always be followed to reduce the risk of fire, electric shock, and
injury to persons.
DANGER
For your safety, read all instructions carefully before operating the appliance.
To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before
servicing.
WARNING
Flammable refrigerant used! When handling, moving and use of
the refrigerator, make sure to avoid either damaging the
refrigerant tubing, or increasing the risk of a leak.
CAUTION
►Use this appliance only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury.
►This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
►Young children should be supervised to ensure that they never play with the appliance.
►To protect against the risk of electric shock, NEVER IMMERSE the unit, cord, or plug in water or
spray any other liquid.
►Unplug the appliance from the plug socket when not in use, when moving from one location to
another and before cleaning.
General Safety
6PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
►To disconnect the appliance, grip the plug and pull it from the wall outlet. Never pull by the cord.
►Never operate the appliance in the presence of explosive and/or flammable fumes.
►Never place the appliance or any of its parts near an open flame, cooking or other heating
appliance.
►Never operate the appliance with a damaged cord or plug, if the product malfunctions, or if it is
dropped or damaged in any manner.
►The use of attachments not recommended by the manufacturer may be hazardous.
►Never operate if the housing is removed or damaged.
►A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of
the plug. Contact a qualified electrician to replace loose or worn outlet.
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
►Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
►This appliance is CFC and HFC free and contains small quantities of Isobutane (R600a), an
environmentally friendly coolant.
►You must ensure that the cooling circuit is undamaged when installing the appliance. However, if it
becomes damaged, avoid proximity to open fires and heat sources of all kinds. The room in which
the appliance is located should be ventilated properly and according to state and local codes.
►Never use an appliance with a damaged circuit.
►Ensure that the ventilation openings to and from a built-in appliance are never blocked or covered.
►No liability will be accepted for any damage caused by misuse of the appliance, or as a result of
repairs carried out by unqualified person. In this case neither the warranty nor any other liability
claims will apply.
7
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Never operate any other electrical appliance inside this
appliance.
WARNING
►Never attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
►Replace all access panels before operating.
►Use two or more people to move and install the appliance. Failure to do so can result in back or
other injury.
►Never clean appliance parts with flammable liquids. These fumes can create a fire hazard or
explosion. Never store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
►Never connect or disconnect the electric plug with wet hands.
►It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned o by a switch or pull chain.
To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before
servicing.
WARNING
8PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Save These Instructions
If you are experiencing problems, check the Troubleshooting Guide at the back of this manual. It lists
causes of minor operating problems that you can correct yourself.
Disposal of Old Appliance
Dispose of your appliance packaging properly. Refrigeration equipment must be properly disposed
of in a way which protects the environment. This applies to your old appliance and to your new unit
once it has reached the end of its service life.
Please ensure that old, worn appliances are rendered unusable
before disposal by removing the plug, cutting the power cable,
and removing or destroying any snap fastenings or bolts. You will
thus prevent children from locking themselves in the appliance
during play (risk of suocation) or endangering their lives in any
other way.
WARNING
►The appliance must not be disposed with normal household waste collection.
►The coolant circuit, particularly the heat exchange at the back/bottom of the unit, must not be
damaged.
►The symbol on the product or its packaging indicates that this product is not to be handled
as normal household waste but is to be taken to a recycling collection point for electrical and
electronic goods. By correctly disposing of this product you are contributing to the protection of
the environment. Improper disposal endangers health and the environment. Further information
about the recycling of the product may be obtained from your town hall or local waste collection
department.
9
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Before Using Your Appliance
►Remove all exterior and interior packing.
►Before connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system caused by handling
during transportation.
►Clean the interior surface with warm water using a soft cloth.
►The door on this appliance can be opened from either the left or the right side. The unit is delivered
with the door opening on the left side. Should you wish to open the door from the right, follow the
instructions, “Reversing the Door Swing of your Appliance,” listed below.
Installation of Your Appliance
Do not store or install the appliance outdoors.
WARNING
►The appliances are designed for either built-in, or free-standing installation.
►Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level
your appliance, adjust the 4 legs until level.
►Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may aect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
►Never place the unit in damp areas.
►Plug the appliance into an exclusive, easily accessible electrical socket.
►Any questions concerning power and/or electrical connection should be directed towards a
qualified electrician or an authorized products service center.
►The air vent at the front of the appliance must never be covered or blocked in any way.
10 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
►The appliance must be installed to all electrical connections in accordance with state and local
codes.
►Use two or more people to move and install the wine cooler. Failure to do so can result in back or
other injury.
►The cooler may experience decreased cooling eciency if air flow is restricted due to a fully
loaded cabinet.
►Install the wine cooler in a well-ventilated area where the ambient temperature is above 50ºF and
below 90ºF.
Attention
►Never overload the cabinet.
►Never open the door unless necessary.
►Never cover shelves with aluminum foil or any other shelf material which may prevent air
circulation.
►Should the appliance be left empty for long periods, it is suggested that the appliance be
unplugged, and, after careful cleaning, leave the door ajar to allow air to circulate inside the
cabinet in order to avoid possible condensation, mold or odors from forming.
11
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Electrical Connection
Check that the voltage marked on the product corresponds with your supply voltage.
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-pin plug which mates with standard three-pin wall outlets to minimize the
possibility of electrical shock.
Never under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard two-pin wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded three-pin wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or
dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading wiring circuits that could cause a fire hazard from overheating. Never unplug
the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Never use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Never use your appliance with an extension cord unless this cord has been checked and tested by a
qualified technician or service person. The extension cord must be a UL/CUL Listed, 3-wire grounding
extension cord that has a grounding plug and outlet and that the electrical rating of the cord is 115
volts and at least 10 amperes.
Improper use of the grounded plug can result in the risk of
electrical shock. If the power cord is damaged, have it replaced
by a qualified electrician or an authorized service center.
WARNING
12 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Introduction
Thank you for purchasing your Zephyr wine cooler. Zephyr is dedicated to developing products that
will enhance your lifestyle with superior quality and distinctive features. Please visit
www.zephyronline.com for more information on your product and other Zephyr products.
This manual contains important information regarding the proper installation, use, and maintenance
of your wine cooler. Following this manual will ensure that your product will work at its peak
performance and eciency.
For Your Records
Please write down the model number and serial number below for future reference. Both numbers are
located on the rating label on the back of your unit and are needed to obtain warranty service. You
may also want to staple your receipt to this manual as it is the proof of your purchase and may also
be needed for service under warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the retailer or dealer that sold you the
product.
►Read and follow this instruction manual carefully to help you install, use and maintain your wine
cooler.
►Read the troubleshooting section of this manual as it will help you diagnose and solve common
issues.
►Visit us on the web at http://www.zephyronline.com to download product guides, additional
troubleshooting resources and up-to-date information.
►If you need warranty service, our friendly customer service representatives are available on our
website at http://zephyronline.com/contact or by telephone at . 888-880-8368
13
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
List of Materials
Reversible door hinge bracket
Upper door axis
Lower door axis
Self-tapping screws (ST4*30)
Black decorative nails
Door handle screws (M4*40)
Flat washers ( 8*0.5, M4)Φ4.3*Φ
Screws (M4*12)
Quantity Part
14 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Product Specications
Product Summary
This appliance requires a standard 115/120 Volt AC~60Hz electrical ground outlet.
DESCRIPTION OF PRODUCT Presrv Dual Zone Panel Ready Wine Cooler
MODEL PRW24C02BPG
VOLTAGE/FREQUENCY AC 115/60Hz
AMPERAGE 1.5A
COLOR Black Cabinet with Black Panel Ready Door
STORAGE CAPACITY* (45) 750ml bottles
REFRIGERANT R600a
TEMPERATURE RANGE 40°F - 65°F
DIMENSIONS (HxWxD) 33-7/8’’ X 23-7/8’’ X 23-3/4’’
GROSS WEIGHT (lb) 139lb
OPTIONAL PRO HANDLE ACCESSORY PRHAN-C001
OPTIONAL CONTEMPORARY HANDLE
ACCESSORY, STAINLESS STEEL
PRHAN-C101
OPTIONAL CONTEMPORARY HANDLE
ACCESSORY, BRUSHED GOLD
PRHAN-C102
OPTIONAL CONTEMPORARY HANDLE
ACCESSORY, MATTE BLACK
PRHAN-C104
REPLACEMENT CARBON FILTER Z0F-C004
*Storage capacity is based on standard 12 oz. cans and 750 ml. Bordeaux-style wine bottles.
NOTE: Depth provided includes a 3/4” overlay panel.
Internal Storage
R
8 bottles x 2
(max. Ø 3-
3/8
”)
45 bottle capacity
8 bottles x 2
(max. Ø 3-
3/8
”)
6 bottles
(max. Ø 3-
3/8
”)
7 bottles
(max. Ø 3-
1/2”
)
15
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Product Specications
Parts Identication
Panel Ready Door
Carbon Filter
Leveling Legs
Front Vent
Roll-out Shelf
Control Panel
Internal Fan
Without Door
lower zoneupper zone
lower zoneupper zone
With Door
Sensor
16 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Product Specications
Dimensions
Top View
Side View
Max 135°
23-7/8”
33- ” - 34- ”7/8 7/8
21- ”7/8
23-3/4”
25-3/4”
24- ”3/4
46-5/8”
23-5/8”
29-7/8”
5/8” - 3/4”
(depth of overlay panel)
NOTE: Cabinet depth provided includes a 3/4” overlay panel.
NOTE: A screw is present on the top hinge of the unit, adding an additional 1/8” to the height of the
cooler. If installing cooler flush with cabinet fronts, additional clearance may be needed.
17
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Product Specications
Dimensions
23-1/2”
29-3/4” - 29-13/16 ”
2-5/8” - 5”
2-5/8” - 5”
Overlay Panel
1-1/8”
1-1/2”
2-3/16”
4-1/4”
7-5/16”
Panel Thickness: 5/8” - 3/4”
3/16”
Panel-ready Door
15”
19- ”1/4
(Optional Zephyr handle
screw holes)
15”
5-1/4”
NOTE: Compatible with framed overlay panels only.
18 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Installation Instructions
Installation Clearance Requirements

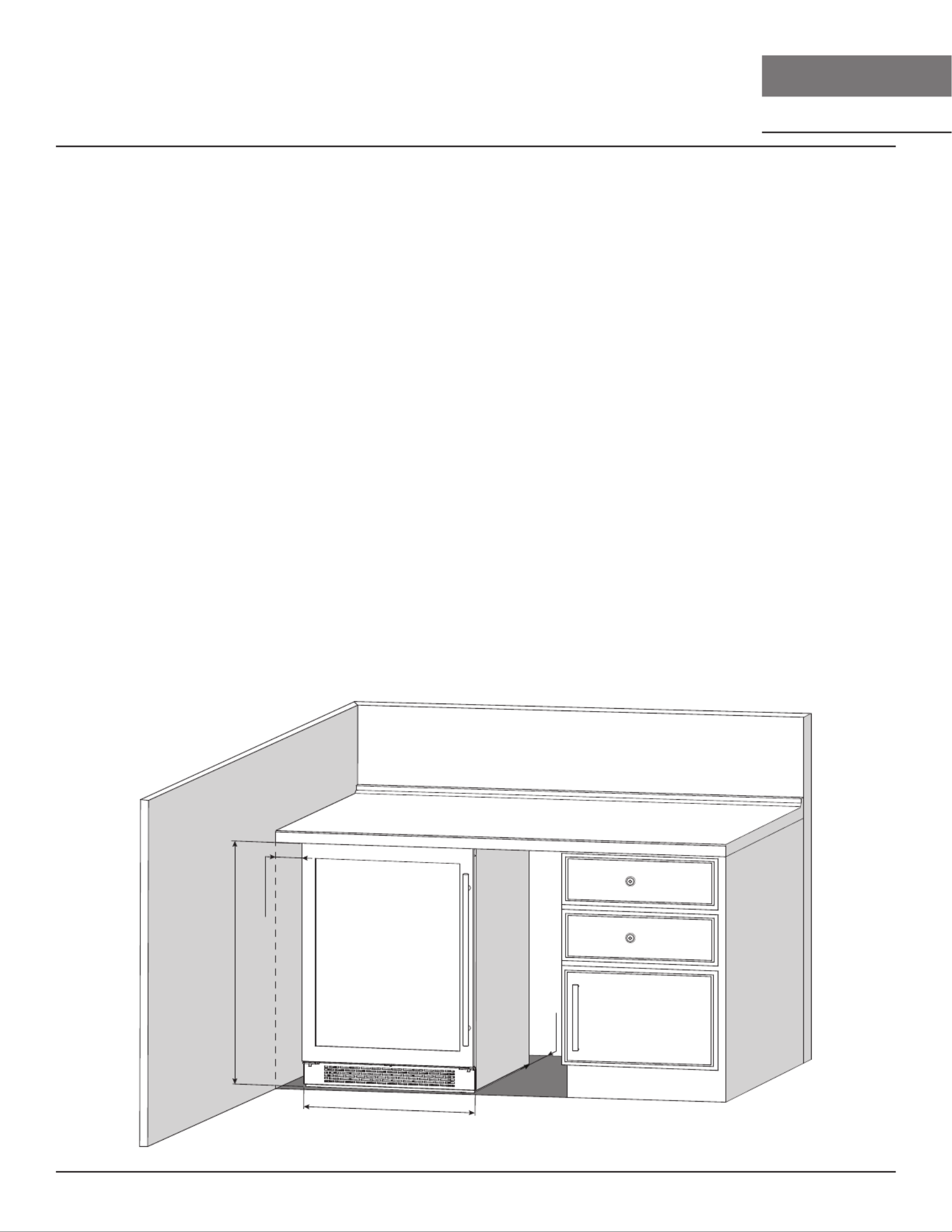

When installing the wine cooler under a counter, follow the recommended spacing dimensions shown.
►If the cooler is flush-mounted with the front of the cabinets, an additional 1/8” cabinet height
clearance will be required.
►For proper clearance of the electrical plug, allow at least 1” of clearance at the back as shown in
the diagram.
►An installation next to a wall will require a minimum 2-1/4” door clearance to accommodate the
Zephyr handle. If a custom handle is used, the dimensions will need to be measured accordingly
based on the handle dimensions.
►The cabinet should allow at least 24” for the width and 34” for the height to accommodate the
wine cooler.
►The power cable is located on the back right of the unit and has a length of 72” to accommodate
multiple outlet locations.
►Once you are ready to install the unit, you must adjust the feet to level the wine cooler.
►The installation should allow the unit to be pulled forward for servicing, if necessary.
2- ” Min.1/4
24” Min.
34” Min.
1” Min.
19
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Installing the Overlay Panel
To install the overlay panel onto the door, please follow the instructions below. Refer to the dimensions
page to ensure proper measurements prior to installation.
1. Open the door.
2. Temporarily remove the door gasket to see the 10 holes for the overlay panel. There are 2 holes on
the top and bottom sides of the door with either 3 or 5 holes on the left and right side depending
on where the handle is located. The handle side will have 5 holes.
3. Open the hardware package containing 10 self-tapping screws (ST4*30 size) for the overlay panel.
4. Clamp the overlay panel with the door firmly with bar clamps and screw the self-tapping screws
into the overlay panel. Perform this step per screw until the overlay panel is completely secured.
5. Reattach the door gasket and close the door.
NOTE: If handles will be installed, thread 2 pre-installed screws onto the overlay panel and refer to
Installing the Handle instructions. If they will not be installed, remove the screws from the door.
20 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Installation Instructions
Handle
Door Frame
Gasket
Flat Washer
Locked Washer
Screw
Zephyr Presrv Contemporary Handles
Zephyr Presrv Pro Handle
Part #: PRHAN-C101
Part #: PRHAN-C102
Part #: PRHAN-C104
Color: Stainless Steel
Color: Brushed Gold
Color: Matte Black
Part #: PRHAN-C001 Color: Stainless Steel
Installing the Handle
If optional contemporary or pro handles are desired, refer below for the part numbers.
1. Confirm if the overlay panel has already been installed onto the unit. If not, refer to Overlay Panel
Installation to mount the overlay panel onto the unit.
2. Push aside the door gasket. Under the gasket you will see two designated holes for handle
installation. Mark handle hole locations on the overlay panel.
3. Remove overlay panel from door. Using 3/16” drill bit, create holes for handle screws.
4. Re-install overlay panel on the door.
5. Install the handle tightly as shown with two 1-1/2” machine screws.
NOTE: If using a custom handle, install the handle in the position of your choosing with counter sunk
screw holes prior to installing the overlay panel to door.
21
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Reversing the Door Swing of Your Appliance
Should you desire to reverse the opening direction of the door, please follow the instructions below.
Safely reversing the door swing of your appliance should require at least two people.
1
2
3
4
5
1
2
3
4
5
6
7
89
10
1. Remove the 2 screws from the lower door axis
(1) and remove a top screw on top of the hinge
(4). Then remove the door (2) and remove the
axis plate (1) from the door.
2. Remove the 3 hinge screws from the top right
hinge (3) and remove the top right hinge.
3. Unscrew 2 screws and remove the door magnet
(5) and unscrew 2 screws and remove the
door stopper (6). Remove 2 screws from upper
door axis (7) mounted on top of the door and
remove it. Then, install the door magnet on the
opposite side of the door frame. Take out the
new upper door axis and door stopper from
the hardware package and install them with 2
screws. Rotate the door 180 degrees.
4. Remove the 3 black decorative covers (8)
from the top left of the cabinet. Install the
black decorative covers to the top right of
the cabinet and install the new top hinge (9)
from the hardware package that includes
the installation manual at the top left of the
cabinet with 3 screws.
5. Install the lower door axis (10) and install the
door once correctly aligned. Secure the door
with the top screw on top of the hinge (4).
22 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Installation Instructions
►To prevent damaging the door or door gasket, make sure the door is open at least 90-degrees
when pulling shelves out of the rail compartment.
►The door opens to a maximum of 135 degrees with a door stop on the bottom hinge preventing the
door from opening further. If the unit is flush-mounted with adjacent cabinetry, the door opens to
120 degrees.
►Use caution when opening the door so adjacent cabinetry will not be damaged.
Installing the Wooden Shelves
1. Open the door completely.
2. Line up the shelf notches with the rail posts on both the right and left sides.
3. Push the shelf down and then push it all the way inwards until the shelf fully rests inside of the unit
and you are able to close the door.
4. The shelf should glide smoothly back and forth. If it does not, you may need to remove it and start
over.
TIP: To prevent damaging the door gasket, make sure to open the door fully before pulling the shelves
out of their track.
Removing the Wooden Shelves
1. Open the door completely.
2. Remove all of the contents loaded on the shelf, if applicable.
3. Line up the shelf notches with the rail posts as indicated below. This will require you to hold on to
both rails as you move the shelf to line up the posts with the notches on both sides of the shelf.
4. Evenly lift the shelf up and then pull the shelf out.
Rail Posts
Notch
Rail
Rail
23
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Carbon Filter
A built-in carbon filter protects your wine by acting as a
natural barrier against harmful odors. The carbon filter
should be replaced every 3-6 months depending on the
unit’s exposure level to odor. If the unit is placed in a
kitchen, regular replacement every three months is ideal.
Remove the carbon filter by turning counterclockwise to
unlock from rear panel.
Carbon Filter Replacement Part #: Z0F-C004
24 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Operating Your Appliance
If the unit is unplugged, power lost, or turned o, you must wait 3 to 5 minutes before restarting the
unit. If you attempt to restart before this time delay, the appliance may not start and will not keep the
last set temperature.
Using the Control Panel
This wine cooler has a temperature range from 40ºF-65ºF.
up onper z e lower zone
R F
C
Power Button
Press and hold this button for three seconds to power your unit on or o. While the unit is on,
the R “Compressor Running” light may illuminate to indicate the internal compressor is active.
Increase Temperature
Press this button to increase the temperature by one (1) degree increments. 65ºF is the highest
available temperature on this unit.
Decrease Temperature
Press this button to decrease the temperature by one (1) degree increments. 40ºF is the lowest
available temperature on this unit.
Interior Light
Press this button to cycle through the dierent internal light settings. There are three light
settings: Cloud White, Deep Blue and Amber.
ºF/ºC Selector
Hold the Increase and Decrease Temperature buttons at the same time to switch the display
temperature.
NOTE: The wine cooler is equipped with a temperature memory function. If power is suddenly lost, the
previous set temperature will be saved, and the cooler will return to this setting once power is
restored.
25
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Operating Your Appliance
Internal Light
This refrigerator is equipped with side internal lights that can be set to Cloud White, Deep Blue or
Amber. Because the unit comes with a glass door, the inside will be seen whether the door is open or
closed.
You can choose to display each color of light in two dierent modes: Display mode and Automatic
Mode.*
Display Mode
The internal lights will stay constantly illuminated whether the door is open or closed. Display mode is
a custom/user-defined function, not a regular day-to-day function.
Automatic Mode
The internal lights will illuminate each time the door is opened and fade o once the door is closed.
This feature is triggered by a sensor located on the front vent, this sensor allows the refrigerator to
recognize when the door is open or closed.
*The default mode is Automatic Mode. To change between modes, press and hold the Interior Lights button for 3 seconds.
Door Open Alarm
After 3 minutes of the door being open an alarm will sound and the display will flash with 00.
Sabbath Mode
Sabbath mode disables system responses to user-initiated activities and all external functions,
including lighting, display and audible alarms. The unit will still maintain internal temperatures and
set points.
To enable or disable Sabbath mode, Press the Power Button and simultaneously press the Increase
Temperature Button twice. The interior light and control display will go dark until the user disables
Sabbath mode.
NOTE: Although the display will not be visible, the temperature settings will remain active and
preserve the internal temperature. Sabbath mode will remain active until it is disabled by the
user.
26 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Operating Your Appliance
Demonstration Mode
In this mode, the compressor and fans never turn on but all other functions remain enabled. When in
Demonstration Mode, the “R” indicator light will slowly blink indicating it is in Demonstration Mode.
To enable or disable Demonstration mode, hold Power Button and tap Decrease Temperature Button
twice.
Temperature Alarm
If the interior temperature is higher than 73ºF (23ºC), “HI” is shown on the temperature control panel
and the temperature alarm will sound continuously after one hour. This indicates that the inner
temperature is too high. If the inner temperature is lower than 32ºF (0ºC), “LO” is shown on the
temperature display panel and the temperature alarm will sound continuously after one hour. If one
of these situations occur, please reference the troubleshooting section for support.
Defrosting
The wine cooler is designed with an automatic defrost system. However, on colder settings, some frost
may build up. Additionally, the more humid the ambient conditions, the more frost may build up.
Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost
build-up.
If frost is preventing the door from closing properly, you may need to power the unit o until the frost
melts (possibly up to 24 hours). Use a soft absorbent towel to dry the unit.
Never attempt to remove frost with a sharp object.
WARNING
27
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Care and Maintenance
Normal Sounds
Your new wine cooler may make sounds that are not familiar to you. Most of the new sounds are
normal. Hard surfaces like the floor or walls can make the sounds seem louder than they actually are.
The following describes the kinds of sounds that might be new to you and what may be making them.
►Rattling noises may come from the flow of the refrigerant or the water line.
►Items stored on top of the wine cooler can also make noises.
►The high eciency compressor may make a pulsating or high-pitched sound.
►Water running from the evaporator to the water bin may make a splashing sound.
►As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your wine
cooler.
►You may hear air being forced over the condenser by the condenser fan.
Cleaning the Unit
Periodic cleaning and proper maintenance will ensure eciency, top performance, and long life.
Interior Cleaning
1. Disconnect power to the unit.
2. Open the door and remove the contents and shelves.
3. With a clean cloth, wipe down the interior of the unit.
4. Reinsert the shelves and wine.
5. Reconnect power to the unit.
Exterior Cleaning
The door and cabinet may be cleaned with a mild detergent and lukewarm water solution such as
two (2) tablespoons of baking soda to one (1) quart of water. Do not use solvent based or abrasive
cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent
water spotting. If the door panel is stainless steel, it can discolor when exposed to chlorine gas and
moisture. Clean stainless steel with a cloth dampened with a mild detergent and warm water solution.
Never use an abrasive or caustic cleaning agent.
28 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Care and Maintenance
Power Failure
Most power failures are corrected within a few hours and should not aect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be o for a
longer period of time, you need to take the proper steps to protect your contents.
Moving Your Wine Cooler
►Remove all items.
►Securely tape down all loose items (shelves) inside your appliance.
►Turn the adjustable leg all the way up (clockwise) to the base to avoid damage.
►Tape the door shut.
►Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
Energy Saving Tips
►The appliance should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
►Ensure that the unit is adequately ventilated. Never cover air vents.
►Only open the door for as long as necessary.
29
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Troubleshooting
Possible Problem Possible Cause Solutions
The appliance does not
operate.
Not plugged in. Ensure the appliance is plugged in
and the power outlet has power.
The appliance is turned o. Turn on the appliance.
The circuit breaker tripped or has a
blown fuse.
Replace the broken fuse or reset
the breaker.
Sabbath mode may be enabled.
See the Operating Your Appliance
section and verify if Sabbath
mode is disabled.
The appliance is not
cold enough.
Temperature control setting is too
high. Adjust the set temperature.
External environment may require a
higher setting.
Keep the appliance away from
sunshine or other heat sources.
The door is opened too frequently or
for long periods of time.
Close the door tightly and do not
open the door too frequently or
for a long period of time.
The door gasket is not sealed properly. Ensure the door gasket is not
loose.
Demonstration mode may be enabled.
See the Operating Your
Appliance section and verify if
Demonstration mode is disabled.
The cooler does not have sucient
ventilation.
Read and follow the “Installation
Clearance Requirements” in the
Installation Instructions section.
The cooler has restricted air flow due
to too much storage.
Open space in the cabinet to
allow air flow.
The appliance turns on
and o frequently.
The room temperature is hotter than
normal.
Run the refrigerator at the
appropriate ambient temperature.
The door gasket is not sealed properly. Ensure the door gasket is not
loose.
The door is opened too frequently or
for long periods of time.
Close the door tightly and do not
open the door too frequently or
for a long period of time.
The cooler does not have sucient
ventilation.
Read and follow the “Installation
Clearance Requirements” in the
Installation Instructions section.
The door is not closed completely Make sure the door is completely
closed.
The body of the
appliance is electrified. The unit is not properly grounded.
Contact your local electrician
to test your electrical grounding
system.
30 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L ZO N E
P R E S RV ™
Troubleshooting
Possible Problem Possible Cause Solutions
Frost is forming in the
appliance.
The environment is too humid. The unit uses an ‘auto-defrost’
system, under certain conditions,
manual defrosting may be
required. If frost builds up, you
can try running the refrigerator
on a warmer temperature setting,
minimizing the number of times
you open the door or unplugging
the unit to allow the frost to melt.
The ambient temperature is too low.
The door is being opened too
frequently.
The appliance makes
too much noise.
The rattling noise may come from
the flow of the refrigerant, which is
normal. As each cycle ends, you may
hear gurgling sounds caused by the
flow of refrigerant in the appliance.
It is normal that as each cooling
cycle ends, you may hearing
ratting or gurgling sounds caused
by the flow of refrigerant in the
appliance. The high eciency
compressor may make a pulsating
or high pitched sound.
Contraction and expansion of the
inside walls may cause popping and
cracking noises.
Some popping or cracking noises
are normal. They are caused by
expansion and contraction of the
inside walls due to temperature
changes.
The unit is not level or is touching
another appliance.
Check to make sure the cooler is
level and that it is non in contact
with another appliance or
furniture.
The door will not close
properly.
The appliance is not level. Make sure the appliance is on a
level surface.
The door gasket is not installed
correctly.
Make sure the door gasket is
properly installed.
The gasket is dirty. Clean the door gasket.
The shelves are out of position. Install the shelves correctly.
31
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Notes
32 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L Z O N E
P R E S R V ™
Notes
33
PRW24C02BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Limited Warranty
Five Year Limited Warranty for Compressor: For five
years from the date of your original purchase of the
Products, we will provide, free of charge, compressor
parts to replace those that failed due to manufactur-
ing defects subject to the exclusions and limitations
below. We may choose, in our sole discretion, to
repair or replace parts before we elect to replace the
Products.
Two Year Limited Warranty for Parts: For two years
from the date of your original purchase of the
Products, we will provide, free of charge, Products or
parts (including LED light bulbs, if applicable) to
replace those that failed due to manufacturing
defects subject to the exclusions and limitations
below. We may choose, in our sole discretion, to
repair or replace parts before we elect to replace
the Products.
One Year Limited Warranty for Labor: For one year
from the date of your original purchase of the Prod-
ucts, we will provide, free of charge, the labor cost
associated with repairing the Products or parts to
replace those that failed due to manufacturing
defects subject to the exclusions and limitations
below. After the first year from the date of your
original purchase, you are responsible for all labor
costs associated with this warranty.
To Obtain Service Under Limited Warranty: To qualify
for warranty service, you must: (a) notify us at the
address or telephone number stated below within 60
days of the discovery of the defect; (b) give the
model number and serial number; and (c) describe
the nature of any defect in the Product or part. At the
time of the request for warranty service, you must
present evidence of your proof of purchase and proof
of the original purchase date. If we determine that
the warranty exclusions listed above apply or if you fail
to provide the necessary documentation to obtain
service, you will be responsible for all shipping, travel,
labor and other costs related to the services. This
warranty is not extended or restarted upon warranty
repair or replacements.
Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser
(referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from
defects in materials or workmanship as follows:
Warranty Exclusions: This warranty covers only repair or
replacement, at our option, of defective Products or parts and
does not cover any other costs related to the Products including
but not limited to: (a) normal maintenance and service required for
the Products and consumable parts such as filters, light bulbs, fuses;
(b) any Products or parts which have been subject to freight
damage, misuse, negligence, accident, faulty installation or
installation contrary to recommended installation instructions,
improper maintenance or repair (other than by us); (c) commercial
or government use of the Products or use otherwise inconsistent with
its intended purpose; (d) natural wear of the finish of the Products or
wear caused by improper maintenance, use of corrosive and
abrasive cleaning products, pads, and oven cleaner products; (e)
chips, dents or cracks caused by abuse or misuse of the Products;
(f) service trips to your home to teach you how to use the Products;
(g) damage to the Products caused by accident, fire, floods, acts
of God; or (h) Custom installations or alterations that impact
serviceability of the Products. (I) Damage to personal property or
food spoilage from use of this product. If you are outside our service
area, additional charges may apply for shipping costs for warranty
repair at our designated service locations and for the travel cost to
have a service technician come to your home to repair, remove or
reinstall the Products. After the first year from the date of your
original purchase, you are also responsible for all labor costs
associated with this warranty. All Products must be installed by a
qualified professional installer to be eligible for warranty repairs or
service.
Limitations of Warranty: OUR OBLIGATION TO REPAIR OR
REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE
REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT
OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE
PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION
ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE
HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES
FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES
IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do
not allow limitations on the duration of an implied warranty or the
exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to you. To the
extent that applicable law prohibits the exclusion of implied
warranties, the duration of any applicable implied warranty is
limited to the same two-year and one-year periods described
above if permitted by applicable law. Any oral or written descrip-
tion of the Products is for the sole purpose of identifying the
Products and shall not be construed as an express warranty. Prior to
using, implementing or permitting use of the Products, you shall
determine the suitability of the Products for the intended use, and
you shall assume all risk and liability whatsoever in connection with
such determination. We reserve the right to use functionally
equivalent refurbished or reconditioned parts or Products as
warranty replacements or as part of warranty service. This warranty
is not transferable from the original purchaser and only applies to
the consumer residence where the Product was originally installed
located in the United States and Canada. This warranty is not
extended to resellers.
Please check our website for any additional Product information, www.zephyronline.com.
MAR20.0201
34 PRW24C02BPG Use, Care, and Installation Guide
W I N E C O O L E R
D U A L Z O N E
P R E S R V ™
Product Registration
Congratulations on the purchase of your
Zephyr product! Please take a moment to
register your new Zephyr product at
www.zephyronline.com/registration
Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368
Prompt registration helps in more ways
than one.
IT’S IMPORTANT
Ensures warranty coverage should you need
service.
Ownership verification for insurance purposes.
Notification of product changes or recalls.
WWW.ZEPHYRONLINE.COM
JUN20.0301
lower zone
eno
z reppu
PRW24C02BPG
Presrv refroidisseur à vin à panneau double zone
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation
2PRW24C02BPG Guide d’utilisation, d’entretien et d’installation
4PRW24C02BPG Guide d’utilisation, d’entretien et d’installation
R E F R O I D I S S E U R
D E V I N
D O U B L E ZO N E
P R E S R V ™
Consignes de sécurité
Votre sécurité et celle des gens qui vous entourent sont très importantes.
Ce manuel contient de nombreux messages de sécurité relatifs à votre appareil. Lisez tous les
messages et conformez-vous-y en tout temps.
Voici le symbole d’alerte à la sécurité. Ce symbole vous informe de possibles dangers qui pourraient
entraîner de graves lésions corporelles ou la mort. Tous les messages de sécurité suivent le symbole
d’alerte à la sécurité et comportent les mots « DANGER AVERTISSEMENT ATTENTION », « » ou « ».
DANGER
AVERTISSEMENT
ATTENTION
Le mot « danger » signifie que le fait de ne pas tenir
compte de l’énoncé de sécurité peut entraîner une
blessure grave ou la mort.
Le mot « avertissement » signifie que le fait de
ne pas tenir compte de l’énoncé de sécurité peut
entraîner des dommages importants au produit,
une lésion corporelle grave ou la mort.
Le mot « attention » signifie que le fait de ne pas
tenir compte de l’énoncé de sécurité peut entraîner
une lésion corporelle mineure ou modérée, ou
encore des dommages au produit ou à la propriété.
5
PRW24C02BPG Guide d’utilisation, d’entretien et d’installation
ZEPHYRONLINE.COM
Consignes de sécurité
Lors de l’utilisation d’un électroménager électrique, vous
devriez toujours prendre des précautions de base pour réduire
les risques d’incendie, de décharge électrique et de lésion
corporelle.
DANGER
Pour votre sécurité, lisez toutes les instructions avec soin avant de faire fonctionner l’appareil.
Pour réduire les risques d’incendie, de décharge électrique ou de
lésion corporelle, débranchez l’appareil ou coupez l’alimentation
électrique avant de procéder à son entretien.
AVERTISSEMENT
Cet appareil utilise un fluide réfrigérant inflammable! Pour
réduire les risques de fuite lors de sa manutention, de son
déplacement ou de son utilisation, assurez-vous d’éviter
d’endommager les tubes réfrigérants.
ATTENTION
►N’utilisez cet appareil que de la façon décrite dans le présent manuel. Toute autre utilisation non
recommandée peut causer un incendie, une décharge électrique ou une lésion corporelle.
►Cet appareil n’est pas conçu pour être utilisé par de jeunes enfants ou des personnes
handicapées, à moins qu’un adulte responsable les surveille de près pour veiller à ce qu’ils
l’utilisent en toute sécurité.
►Il est important que les jeunes enfants fassent l’objet d’une surveillance étroite pour veiller à ce
qu’ils ne jouent jamais avec l’appareil.
►Pour vous protéger contre les risques de décharge électrique, n’IMMERGEZ JAMAIS l’appareil, le
câble ou la prise électrique dans l’eau et ne les vaporisez pas avec des liquides.
Sécurité générale
7
PRW24C02BPG Guide d’utilisation, d’entretien et d’installation
ZEPHYRONLINE.COM
Consignes de sécurité
Pour votre sécurité, lisez toutes les instructions avec soin avant de faire fonctionner l’appareil.
N’utilisez jamais un électroménager électrique à l’intérieur de
l’appareil.
AVERTISSEMENT
►Ne tentez jamais de réparer ou de remplacer une pièce de l’appareil à moins qu’il soit
expressément recommandé de le faire dans le présent manuel. Tous les travaux d’entretien doivent
être eectués par un technicien qualifié.
►Remettez tous les panneaux d’accès en place avant de faire fonctionner l’appareil.
►Deux personnes ou plus sont requises pour déplacer et pour installer l’appareil. Le non-respect de
cette recommandation peut entraîner une blessure au dos ou d’autres lésions.
►Ne nettoyez jamais des pièces de l’appareil avec un liquide inflammable. Les vapeurs de ce type
de produit peuvent présenter un risque d’incendie ou d’explosion. N’utilisez et n’entreposez jamais
d’essence ou d’autres liquides ou vapeurs inflammables près de cet appareil ou de tout autre
appareil. Ces vapeurs peuvent présenter un risque d’incendie ou d’explosion.
►Ne branchez ou ne débranchez jamais la fiche électrique si vos mains sont mouillées.
►Il est recommandé d’utiliser un circuit dédié servant exclusivement à cet appareil. Utilisez des
prises qui ne peuvent pas être mises hors tension par un interrupteur à bascule ou à tirage.
Pour réduire les risques d’incendie, de décharge électrique ou de
lésion corporelle, débranchez l’appareil ou coupez l’alimentation
électrique avant de procéder à son entretien.
AVERTISSEMENT
►Assurez-vous que les orifices d’aération de l’appareil et les évents se trouvant à proximité de celui-
ci ne sont jamais couverts ou bloqués.
►Nous n’assumons aucune responsabilité pour tout dommage causé par une mauvaise utilisation
de l’appareil ou par des réparations eectuées par une personne non qualifiée. Si l’un ou
l’autre de ces cas se présente, la garantie ne s’appliquera pas et nous n’assumerons aucune
responsabilité.
9
PRW24C02BPG Guide d’utilisation, d’entretien et d’installation
ZEPHYRONLINE.COM
Consignes de sécurité
Pour votre sécurité, lisez toutes les instructions avec soin avant de faire fonctionner l’appareil.
Avant d’utiliser votre appareil
►Enlevez tout l’emballage intérieur et extérieur.
►Avant de brancher l’appareil à l’alimentation électrique, laissez-le en position verticale pendant
environ deux heures. Cela réduira la possibilité que le système de refroidissement fonctionne mal
en raison de sa manutention pendant le transport.
►Nettoyez la surface intérieure de l’appareil avec de l’eau chaude et un chion doux.
►La porte de l’appareil peut s’ouvrir du côté gauche ou droit. L’appareil est livré pour que la porte
s’ouvre du côté gauche. Si vous souhaitez que la porte s’ouvre du côté droit, suivez les instructions
« Inversion de l’ouverture de la porte de votre appareil » ci-dessous.
Installation de votre appareil
N’entreposez pas ou n’installez pas l’appareil à l’extérieur.
AVERTISSEMENT
►L’appareil est conçu pour être encastré ou autoportant.
►Installez votre appareil sur un plancher qui est assez solide pour supporter son poids lorsqu’il est
rempli au maximum de sa capacité. Mettez votre appareil de niveau en ajustant les quatre pattes.
►Placez l’appareil à un endroit où il est à l’abri de la lumière directe du soleil et de sources de
chaleur (cuisinière, chauerette, radiateur, etc.). La lumière directe du soleil peut altérer le
revêtement acrylique et les sources de chaleur peuvent augmenter la consommation d’électricité.
Les températures ambiantes extrêmement froides peuvent aussi nuire au bon fonctionnement de
l’appareil.
►N’installez jamais l’appareil dans un endroit humide.
►Branchez l’appareil dans une prise électrique dédiée et facile d’accès.
►Pour toute question concernant l’alimentation ou le raccordement électrique, adressez-vous à un
électricien qualifié ou à un centre de service autorisé.
Produkt Specifikationer
| Mærke: | Zephyr |
| Kategori: | Køleskab |
| Model: | PRW24C02BPG |
Har du brug for hjælp?
Hvis du har brug for hjælp til Zephyr PRW24C02BPG stil et spørgsmål nedenfor, og andre brugere vil svare dig
Køleskab Zephyr Manualer
8 Januar 2025
29 August 2024
28 August 2024
24 August 2024
20 August 2024
19 August 2024
18 August 2024
17 August 2024
17 August 2024
16 August 2024
Køleskab Manualer
- NewAir
- HomeCraft
- MBM
- Stoves
- Koenic
- Thetford
- Sam Cook
- Emerio
- Philco
- Mitsubishi
- Avanti
- VOX
- EAS Electric
- Husky
- Tuscany
Nyeste Køleskab Manualer
17 Juni 2025
17 Juni 2025
17 Juni 2025
17 Juni 2025
17 Juni 2025
17 Juni 2025
17 Juni 2025
17 Juni 2025
17 Juni 2025
17 Juni 2025
