Side 1/32

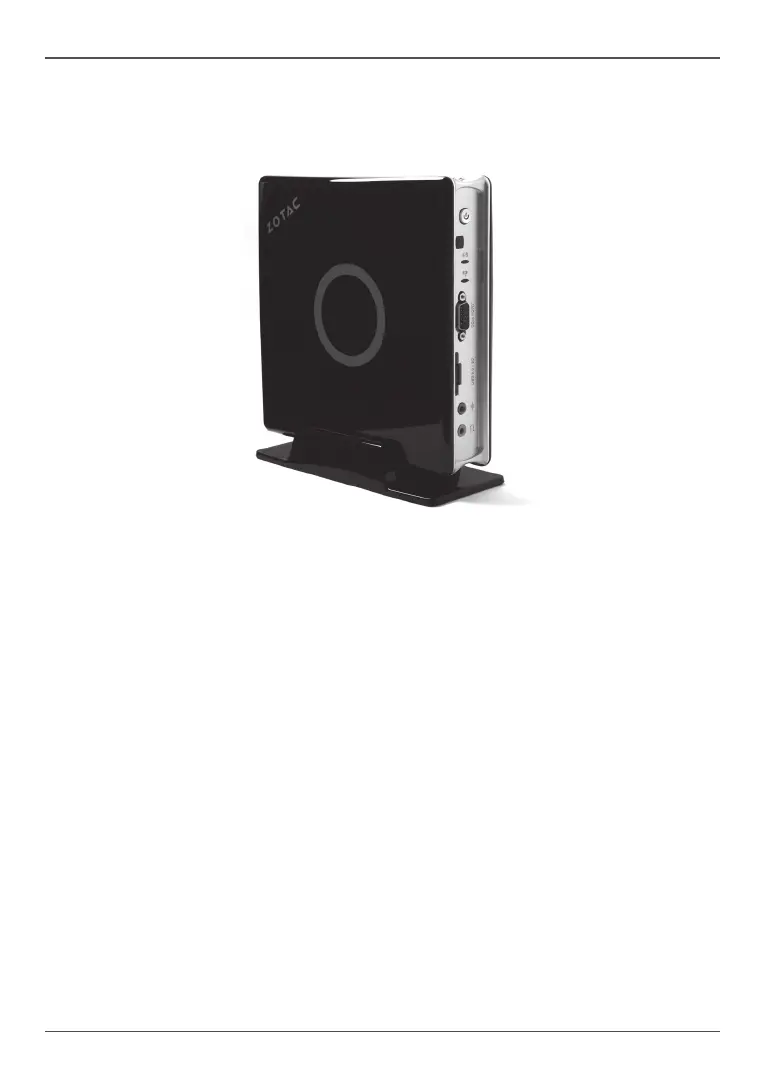

ZOTAC ZBOX

User’s Manual

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language in any form or by any means,except documenta-

tion kept by the purchaser for backup purposes, without the express written

permission of ZOTAC.

Products and corporate names mentioned in this manual may not be reg-

istered trademarks or copyrights of their respective companies, and are

used for identication purposes only. All trademarks are the property of their

respective owners.

Every effort has been made to ensure that the contents of this manual are cor-

rect and up to date. However, the manufacturer makes no guarantee regard-

ing the accuracy of its contents, and reserves the right to make changes

without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries

should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

ZOTAC ZBOX

Table of Contents

Product Specications -------------------------------------------------------------------------- 3

Safety information -------------------------------------------------------------------------------- 4

Setting up your system ----------------------------------------------------------------------- 4

Care during use -------------------------------------------------------------------------------- 4

Welcome --------------------------------------------------------------------------------------------- 5

Package contents ------------------------------------------------------------------------------ 5

Getting to know your ZOTAC ZBOX -------------------------------------------------------- 6

Front view ---------------------------------------------------------------------------------------- 6

Rear view----------------------------------------------------------------------------------------- 7

How to disable the ring LED indicator ----------------------------------------------------- 8

Installing Hardware inside ZOTAC ZBOX ------------------------------------------------- 9

Installing a memory module ----------------------------------------------------------------- 9

Removing the memory module ------------------------------------------------------------- 10

Installing a hard disk -------------------------------------------------------------------------- 11

Installing an mSATA SSD module---------------------------------------------------------- 13

Setting up your ZOTAC ZBOX ---------------------------------------------------------------- 14

Positioning your ZOTAC ZBOX --------------------------------------------------------------- 16

Installing the stand ----------------------------------------------------------------------------- 16

Installing your ZOTAC ZBOX to a monitor ----------------------------------------------- 16

Installing drivers and software --------------------------------------------------------------- 17

Installing an operating system -------------------------------------------------------------- 17

Installing system drivers ---------------------------------------------------------------------- 17

Using your ZOTAC ZBOX ----------------------------------------------------------------------- 18

Conguring wireless connection ----------------------------------------------------------- 18

Conguring wired connection --------------------------------------------------------------- 18

Using a static IP ---------------------------------------------------------------------------- 18

Using a dynamic IP (PPPoE connection) -------------------------------------------- 19

Conguring audio output via an HDMI /DP device ------------------------------------ 19

SATA RAID User Manual ------------------------------------------------------------------------ 20

Creating a RAID set under UEFI Mode (Default) -------------------------------------- 20

Deleting a RAID set under UEFI Mode --------------------------------------------------- 24

Legacy OS Mode ------------------------------------------------------------------------------ 26

Entering the RAID BIOS utility --------------------------------------------------------- 27

Creating a RAID set ----------------------------------------------------------------------- 27

Deleting a RAID set ----------------------------------------------------------------------- 28

Intel Rapid Storage Technology -------------------------------------------------------------- 29

Introduction ------------------------------------------------------------------------------------- 29

Setting Intel Rapid Storage ----------------------------------------------------------------- 29

Produkt Specifikationer

Mærke:	Zotac
Kategori:	Skrivebord
Model:	ZBOX RI531 PLUS
Bredde:	188 mm
Dybde:	188 mm
Højde:	51 mm
Brugervejledning:	Ja
Produktfarve:	Sort
Produkttype:	Mini PC
Pakkedybde:	245 mm
Pakkebredde:	337 mm
Pakkehøjde:	74 mm
Kompatible hukommelseskort:	SD, SDHC, SDXC
Wi-Fi:	Ja
Bluetooth:	Ja
Antal HDMI-porte:	1
DVI-port:	Ingen
Ethernet LAN-porte (RJ-45):	2
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	4
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Wi-Fi-standarder:	Wi-Fi 5 (802.11ac)
Processorkerner:	2
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Intern hukommelse:	4 GB
Bluetooth-version:	4.0
Bedste Wi-Fi standard:	Wi-Fi 5 (802.11ac)
Kabelteknologi:	10/100/1000Base-T(X)
DC-in-stik:	Ja
AC-adapter inkluderet:	Ja
Indbygget kortlæser:	Ja
Intel® Wireless Display (Intel® WiDi):	Ja
Understøttet placering:	Horisontal/vertikal
Processorfrekvens:	2.1 GHz
Processorserie:	Intel® Core™ i3
Processortråde:	4
Processor-cache:	3 MB
Processor cache type:	L3
Intern hukommelsestype:	DDR3L-SDRAM
Hukommelsesur hastighed:	1600 MHz
Maksimal intern hukommelse:	16 GB
Samlet lagringskapacitet:	64 GB
Lagermedie:	SSD
On-board grafikkort, model:	Intel® HD Graphics 5500
On-board grafikkort:	Ja
Indbygget grafikadapterfamilie:	Intel® HD Graphics
Mikrofonindgang:	Ja
S/PDIF-udgang:	Ja
Intel® Hyper Threading Teknologi (Intel® HT Technology):	Ja
Intel® Turbo Boost Teknologi:	Ingen
Hukommelsesstik:	2x SO-DIMM
Processorproducent:	Intel
Processormodel:	i3-5010U
HDMI-version:	1.4a
Antal DisplayPorts:	1
Mus inkluderet:	Ingen
Optisk drevtype:	Ingen
Enhanced Intel SpeedStep Teknologi:	Ja
Udfør deaktivering af bit:	Ja
Idle status:	Ja
CPU-konfiguration (maks.):	1
Intel® VT-x with Extended Page Tables (EPT):	Ja
Indlejret tilgængelige muligheder:	Ja
Intel® 64:	Ja
Intel® Virtualization Technology for Directed I/O (VT-d):	Ja
Intel® Virtualization Technology (VT-x):	Ja
Skærm inkluderet:	Ingen
HDD-grænseflade:	mSATA
Antal installerede processorer:	1
Bus type:	DMI2
Konfigurerbar TDP-down:	10 W
Konfigurerbar TDP-down frekvens:	0.6 GHz
Processorgeneration:	5th gen Intel® Core™ i3
Kabinettype:	Mini PC
Intel® Flex Memory Access:	Ja
Intel® Trusted Execution Teknologi:	Ingen
Intel® Enhanced Halt State:	Ja
Intel® TSX-NI:	Ingen
Intel® Stabil Billede Platformsprogram (SIPP):	Ingen
Intel® klar video teknologi:	Ja
Intel® Identity Protection Technology version:	1.00
Intel® Secure Key Technology version:	1.00
Intel® Smart Response Technology version:	1.00
Intel® Stable Billede Platform Program (SIPP) version:	0.00
Intel® TSX-NI-version:	0.00
Konfliktfri processor:	Ja
HDD-størrelse:	2.5 "
Processor sokkel:	BGA 1168
Processor litografi:	14 nm
Stepping:	F0
Thermal Design Power (TDP):	15 W
Maksimalt antal PCI Express-kanaler:	12
PCI Express slots version:	2.0
PCI Express-konfigurationer:	2x4, 4x1
Fejlkorrigerende kode understøttet af processor:	Ingen
Tjunction:	105 °C
Processor front side bus:	- MHz
Systembus-hastighed:	5 GT/s
Processor driftstilstande:	32-bit, 64-bit
Processor kodenavn:	Broadwell
FSB Paritet:	Ingen
Intel® InTru™ 3D Teknologi:	Ja
Intel® Clear Video HD Teknologi (Intel® CVT HD):	Ja
Intel® Insider™:	Ja
Intel® Sikker Nøgle:	Ja
Intel® My WiFi Teknologi (Intel® MWT):	Ingen
Intel® Anti-Theft Teknologi (Intel® AT):	Ingen
Intel® Smart Response Teknologi:	Ja
Intel® Identity Protection Teknologi (Intel® IPT):	Ja
Intel® Mindre Forretnings-fordele (Intel® SBA):	Ja
Intel® Quick Sync Video Teknologi:	Ja
Intel® AES Nye Instruktioner (Intel® AES-NI):	Ja
Intel® Demand Based Switching:	Ingen
Intel® OS Guard:	Ja
Termiske overvågningsteknologier:	Ja
Intel® Dual Display Capable Teknologi:	Ingen
Intel® FDI Teknologi:	Ja
Intel® Rapid Storage Teknologi:	Ingen
Intel® Fast Memory Access:	Ja
Intel® Clear Video Teknologi til MID (Intel® CVT for MID):	Ja
Processor-pakke størrelse:	40 x 24x 1.3 mm
Processor kode:	SR23Z
Grafisk og IMC litografi:	14 nm
Processor ARK ID:	84697
Hukommelseslayout (slots x størrelse):	- GB
Indbygget grafikadapter basefrekvens:	300 MHz
Indbygget grafikadapter dynamisk frekvens (maks.):	900 MHz
Indbygget grafikadapter-ID:	0x1616
Understøttede instruktionssæt:	AVX 2.0, SSE4.1, SSE4.2
Maksimalt indbygget grafikadapterhukommelse:	16 GB
Indbygget grafikadapter DirectX-version:	11.2
Understøtter RAID:	Ja
Hukommelseskanaler:	To-kanals
Volumen:	2 L
Antal installerede lagerdiske:	1
RAID-niveauer:	0, 1
Tastatur inkluderet:	Ingen
Intel® Virtualization Teknologi (Intel® VT):	VT-x, VT-d
Maksimal intern hukommelse understøttet af processor:	16 GB
Hukommelsestyper understøttet af processor:	DDR3L-SDRAM, LPDDR3-SDRAM
Hukommelsesurhastigheder understøttet af processor:	1333,1600 MHz
Hukommelsesbåndbredde understøttet af processor (maks.):	25.6 GB/sek.
Antal understøttede skærme (indbygget grafik):	3
Intel® Small Business Advantage (SBA) version:	1.00
Vandkølesystem:	Ingen
