Side 1/8

MN907

No. 285B Replaces 285A

LB7012

Instruction Manual For Baldor Grinder--Buffers

1MN907

SAFETY NOTICE:

WARNING statements describe conditions that may lead to personnel injury including potentially fatal injuries if the

machine is not properly used and warnings are not properly followed.

Caution statements describe conditions that may lead to equipment damage.

Electrical shock can cause serious or fatal injury. Only qualied personnel should install, maintain or troubleshoot

this equipment.

WARNING: Do not operate this grinder-buffer until you are sure that you are completely familiar with the safe operation

of the grinder-buffer, all accessories and safety equipment. Improper use can lead to severe injury. This

manual deﬁnes proper use of this equipment. Before using this equipment for any other use, please consult

Baldor. Contact Baldor if you do not understand any procedure or operation concerning this grinder-buffer or

this manual.

WARNING: Prevent electrical shock hazard and accidental machine operation. Always disconnect grinder-buffer from

the power source before servicing, changing accessories (such as wheels, tool rest, spark arrestor, etc.) or

before performing maintenance.

WARNING: Avoid accidental starting. Make sure switch is in “OFF” position before connecting to power source.

WARNING: Be sure the system is properly grounded before applying power. Do not apply power before you ensure that

grounds are connected. Electrical shock can cause serious or fatal injury. Follow the National Electrical Code

(NEC) and local codes for the safe installation of this equipment.

WARNING: Always use safety glasses with side shields (or full face shield) when operating grinder. Do not use ordinary

eyeglasses. Also use face or dust mask if cutting operation is dusty.

WARNING: Unsuitable accessories or attachments added to this machine can create hazards. Baldor accessories are

speciﬁcally designed to be used with this grinder-buffer. Use accessories or attachments only in the proper

intended manner. Accessories or attachments obtained from another source may cause hazards. Consult the

manufacturer before use.

WARNING: Keep guards in place and in working order. Guards are design to prevent injury. Never operate this equipment

if a guard is damaged, missing or improperly installed.

WARNING: Remove adjusting keys and wrenches from this product after use. Check to see that keys and adjusting

wrenches are removed from grinder-buffer before turning it on. Projectiles can cause severe injury to

yourself or others.

WARNING: Keep work area clean and well lighted. Clutter and poor lighting invites accidents.

WARNING: Don’t use in dangerous environment. Don’t use grinder-buffers in damp or wet locations, or expose them to

rain. Electrical shock can cause serious or fatal injury. Follow the National Electrical Code (NEC) and local

codes for the safe installation of this equipment.

WARNING: Do not wear loose clothing, neckties, rings, bracelets, or other jewelry to get caught in moving parts. Nonslip

footwear is recommended. Wear protective hair covering to contain long hair.

WARNING: Secure work. Use clamps to secure the work piece when practical. It’s safer than using your hand and it

keeps hands away from wheel.

WARNING: Check damaged parts. Before further use, a guard or other part that is damaged should be carefully checked

to assure that it will operate properly and perform its intended function. Check for alignment of moving parts,

binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation.

A guard or other part that is damaged should be properly repaired or replaced.

WARNING: When starting a grinder for the ﬁrst time, or after installing a replacement grinding wheel, it is most important

that the operator stand aside for at least one minute of rotation at full speed. This is the correct practice

since grinding wheels can disintegrate if they have received damage during shipping or handling.

WARNING: Use proper extension cord. Make sure your extension cord is in good condition. When using an extension

cord, be sure it is rated for the voltage and current rating of your product. An undersized cord will cause a

drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct wire size to use

depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. Thesmaller

theAWGgaugenumber, theheavier the cord.

WARNING: Dust created during grinding, bufﬁng, sawing, power sanding, drilling, and other activities may contain

chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

WARNING: Keep children and visitors away. Remove starter keys turn off master switches. Padlock equipment or work

area when not in use.

WARNING: Don’t over reach. Keep proper footing and balance at all times. A rotating wheel can catch an article of

clothing and cause personnel injury.

WARNING: Never leave grinder-buffer running unattended. Always turn power off after use.

Caution: Don’t force grinder-buffer. It will do the job better and safer at the feed rate for which it was designed.

Caution: Use right tool. Don’t force tool or attachment to do a job for which it was not designed.

Caution: Maintain grinder-buffer with care. Keep grinder-buffer clean for best and safest performance.

Always use guard and eyeshield. Operating the grinder-buffer without the guard and eyeshield or with damaged

guard and eyeshield must not be attempted because of the hazard this introduces.

A damaged grinding wheel can disintegrate in all directions. Do not overtighten wheel nut. An overtightened

wheel nut can stress the grinding wheel and cause it to disintegrate during operation. Wheel nut should be tightened

just enough to prevent grinding wheel from slipping on shaft when grinding. Use only anges furnished with this

grinder-buffer. The anges furnished with the grinder-buffer are designed to grip the grinding wheel and wire

brushwithout introducing excessive stresses.

2 MN907

SAFETY NOTICE Continued

Replace a cracked or chipped wheel immediately. A cracked wheel will disintegrate when operated, causing

a hazard to operator and nearby personnel. If a wheel has a chip or crack on any surface, do not use it. If wire

is coming out if the wire brush, do not use it. Maintain 1/8” or less clearance between tool rest and wheel. This

clearance is necessary in preventing the work piece from becoming wedged between the wheel and tool rest and

restricting nip areas in the machine.

Grind on grinding face (periphery) of wheels only. Grinding on side of wheel weakens the wheel and may cause

wheel breakage. Also, grinding on the side of wheel introduces an additional hazard due to absence of a tool rest.

Buff on face (periphery) of wire brush only.

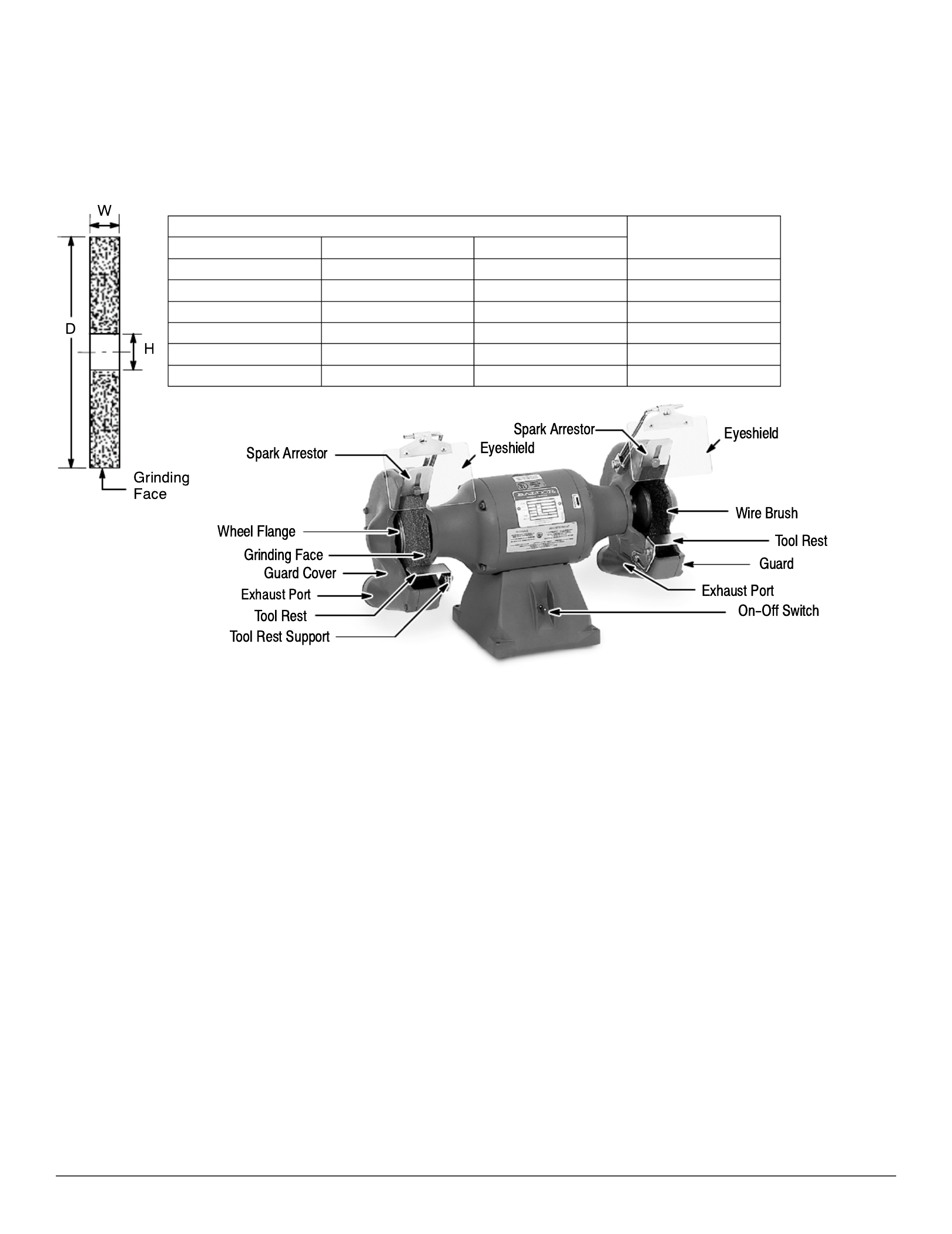

Use wheels rated at or over rated grinder RPM shown in the following table.

Wheel Size No Load RPM

(on Nameplate)

D Diameter (inches) W Width (inches) H Arbor Diameter (inches)

6” 3/4” 1/2” 1800

6” 3/4” 1/2” 3600

7” 1” 5/8” 1800

7” 1” 5/8” 3600

8” 1” 3/4” 1800

8” 1” 3/4” 3600

Installation When you receive your unit, there are several things you should do immediately.

1. Observe the condition of the shipping container and report any damage immediately to the commercial carrier

that delivered the product.

2. Verify that the part number you received is the same as the part number listed on your purchase order.

WARNING: When starting a grinder for the ﬁrst time, or after installing a replacement grinding wheel, it is most important

that the operator stand aside for at least one minute of rotation at full speed. This is the correct practice

since grinding wheels can disintegrate if they have received damage during shipping or handling.

3. Mount grinder-buffer on solid bench. The grinder-buffer must be securely bolted to a rigid mounting surface. If a

pedestal is used, rst bolt pedestal securely to oor and then bolt grinder-buffer to pedestal.

4. Check grinder-buffer nameplate to make certain the rating is correct for the power source, voltage and

frequency. See electrical and grounding instructions for electrical service connection.

5. Adjust spark arrestor for approximately 1/16” clearance between it and grinding wheel (or wire brush). Maintain

1/8” or less clearance between spark arrestor and wheel (or brush) as wheel wears.

6. Adjust angle of tool rest on support to desired position and tighten nut securely. Adjust tool rest support on

guard to attain approximately 1/16” clearance between tool rest and grinding wheel (or wire brush) and tighten

nut securely. Maintain 1/8” or less clearance between tool rest and wheel (or brush) as wheel wears.

7. Adjust eyeshield to position aligning center of eyeshield in line of sight to tool rest.

8. When starting a grinder-buffer for the rst time, or after installing a replacement grinding wheel (or wire brush),

it is most important that the operator stand aside for at least one minute of rotation at full speed. This is the

correct practice since grinding wheels can disintegrate and debris can be slung from a wire brush if they have

received damage during shipping or handling.

Electrical Instructions

Single phase grinder-buffers are rated dual voltage. Some single phase grinder-buffers are equipped with cord and

grounding type plug for 115 volts. To use with a different voltage, see instructions provided to make wiring changes.

All attachment plugs and any receptacles must be replaced with devices rated for the voltage for which the grinder-

buffer is reconnected. Table 1 indicates the minimum wire size. Be sure to comply with NEC and local wiring codes.

Three phase grinder-buffers are normally dual voltage and must be wired for the proper voltage and rotation

direction (connections are inside conduit box). Connect phase sequence so that the wheel moves down toward top

surface of tool rest as viewed from front of grinder-buffer. Wheel must rotate toward tool rest. Be sure all electrical

connections are secured and properly insulated. For your safety, be certain grinder-buffer is properly grounded.

Grinder Wheel

Produkt Specifikationer

Mærke:	ABB
Kategori:	Kværn
Model:	7B662
Type:	Tørmølle
Vekselstrømsindgangsspænding:	115 V
Vekselstrømsindgangsfrekvens:	60 Hz
Bredde:	266.7 mm
Dybde:	469.9 mm
Højde:	279.4 mm
Vægt:	13166 g
Produktfarve:	Blå
Pakkevægt:	13166 g
Tomgang (maks.):	3600 rpm
Kabellængde:	2.4 m
Gummifødder:	Ja
Strømstyrke:	3.1 A
Antal slibeskiver:	2
Slibeskive diameter:	152 mm
Slibehjul tykkelse:	19.05 mm
Slibeskive boring:	12.7 mm
Gnistbeskyttelse:	Ja
