Side 1/32
2

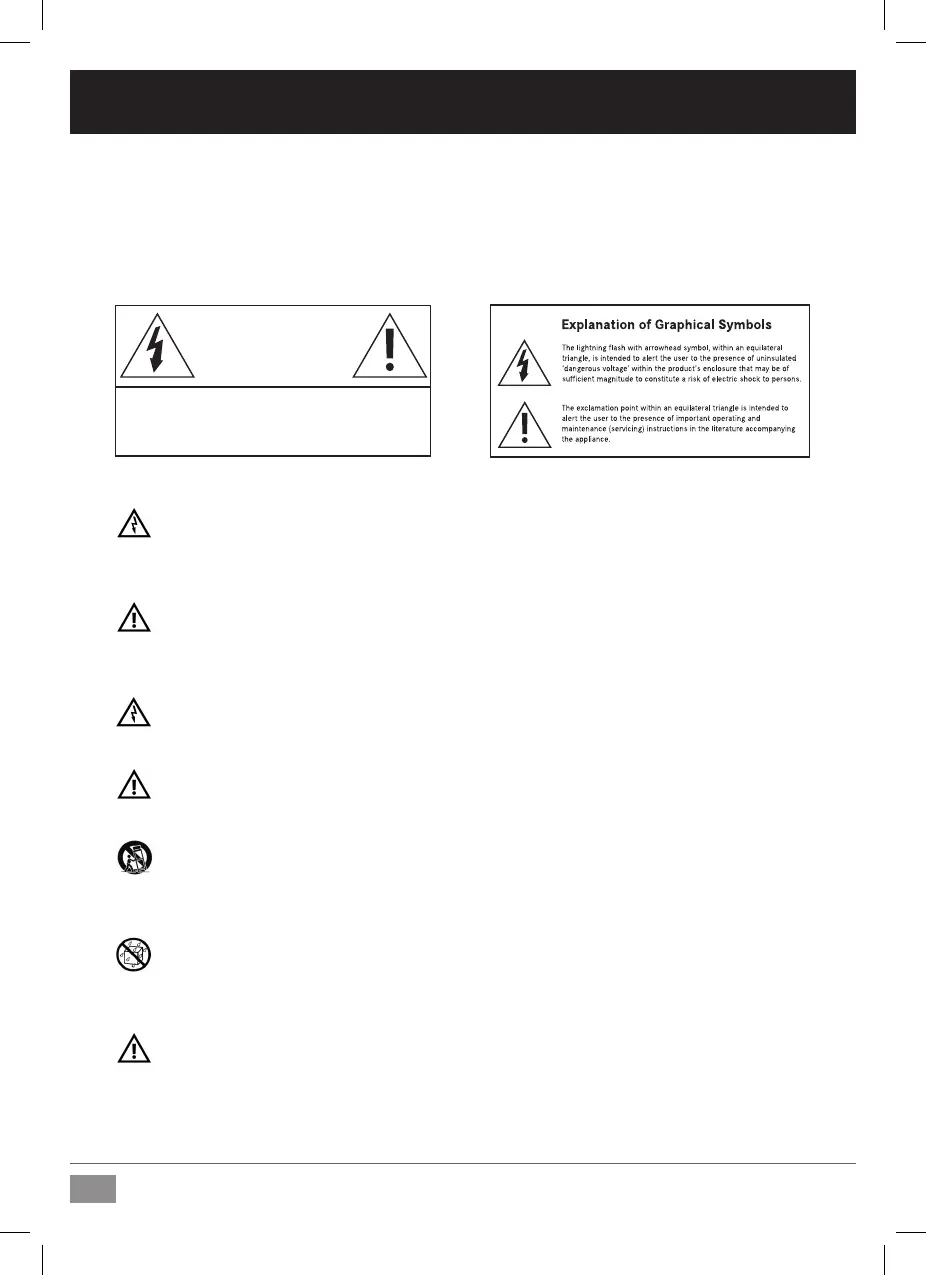

Please read the following safety instructions before setting up your system.
Keep the instructions for subsequent reference. Please heed the warnings and
follow the instructions.
Caution: To reduce the risk of electric shock, do not open the loudspeaker.
There are no user-serviceable parts inside. Refer servicing to qualified ser-
vice personnel.
This product, as well as all attached extension cords, must be terminated with an
earth ground three-conductor AC mains power cord like the one supplied with the
product. To prevent shock hazard, all three components must always be used.
Never replace any fuse with a value or type other than those specified. Never
bypass any fuse.
Always switch off your entire system before connecting or disconnecting any
cables, or when cleaning any components.
Do not place this unit on an unstable cart, stand or tripod, bracket or table. The
unit may fall, causing serious injury and/or serious damage. When cart is used,
use caution when moving the cart/apparatus combination.
Do not expose this product to rain or moisture, never wet the inside with any
liquid and never pour or spill liquids directly onto this unit. Please do not put any
objects filled with liquids (e.g. vases, etc.) onto the speaker.
Check if the specified voltage matches the voltage of the power supply you use.
If this is not the case do not connect the loudspeakers to a power source! Please
contact your local dealer or national distributor.
Caution
Risk of electrical shock
Do not open
Risque de shock electrique
Ne pas ouvrier
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE BACK COVER OR ANY OTHER PART.
NO USER-SERVICABLE PARTS INSIDE.
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
REFER SERVICING TO QUALIFIED PERSONNEL.
Safety Instructions
3
AX Manual / english
Protect the cord from being walked on or pinched.
Always use fully checked cables. Defective cables can harm your speakers. They
are a common source for any kind of noise, hum, crackling etc.
Always keep electrical equipment out of the reach of children.
Always unplug sensitive electronic equipment during lightning storms.
The monitor should be installed near the socket outlet and disconnection of the
device should be easily accessible.
To completely disconnect from AC mains, disconnect the power supply from the
AC receptacle. Never use flammable or combustible chemicals for cleaning audio
components.
Avoid touching the speaker membranes and do not block the woofer’s ventilation
ports.
Never expose this product to extremely high or low temperatures. Never operate
this product in an explosive atmosphere.
High SPL’s may damage your hearing! Please do not get close to the loudspeakers
when using them at high volumes.
Please note that the diaphragms build up a magnetic field. Do not ply with
magnetic items at close range to the diaphragms.
Assure free airflow behind the speakers to maintain sufficient cooling by keeping
a distance of at least 2 m.
No naked flame sources, such as lighted candles, should be placed on the
speaker.
Never use the device in a humid environment.
Safety Instructions
4
Table of contents
Safety Instructions .............................................2-3
1. Introduction .......................................................5
2. Quick Start ........................................................6
2.1 Important Information .......................................6
2.2 Quick Start ........................................................6
3. Connecting the Speaker ....................................7
3.1 Basic Connections .............................................7
3.2 The Stereo Link ..................................................8
4. Speaker Placement ............................................8-10
4.1 Vertical set up ...................................................8
4.2 Horizontal set up ...............................................8
4.3 Tweeter at height of ears ...................................9
4.4 The stereo triangle .............................................9
4.5 Surround placement ..........................................10
4.6 Stand/Wall mounting ........................................10
5. Speaker Adjustment .......................................... 11
5.1 Control panel ..................................................... 11
5.2 Tweeter Level ..................................................... 11
5.3 Room EQs ..........................................................11
6. Trouble Shooting ................................................12
6.1 No or distorted signal ........................................12
6.2 Parasitic noises .................................................12
7. Maintenance ......................................................13
8. Shipping / Packaging ........................................13
9. Environmental Information ................................13
10. EU Declaration of Conformity ............................14
11. Limited Warranty ...............................................15
11.1 Terms and Conditions ........................................15
11.2 How to claim ......................................................15
12. Technical Data ...................................................16
5
AX Manual / english
1. Introduction
Dear customer,
Thank you for choosing an ADAM Audio monitor of the AX-series.
ADAM loudspeakers are built for maximum quality reproduction and audio perfection.
With the AX-series you have selected a precise, high-resolution speaker system that
allows you to both evaluate and enjoy audio recordings. This monitor meets highest
expectations in sound quality and craftsmanship.
This manual is intended to provide you with information about your new ADAMs. It
contains important information regarding safety, setting up, handling, and
warranty. We suggest that you read these sections carefully to ensure easy set up and
prevent potential problems.
Our AX near- and midfield monitors are perfectly suited for a wide variety of stereo and
multi-channel professional applications including small control rooms, desktops, mobile
facilities and post-production edit bays as well as connection to your favorite mp3-
players and gaming consoles … in other words, in any situation where a combination of
no-compromise sound reproduction and a small footprint is required.
Each loudspeaker of the AX range consists of a two-way ported active system that uses
ADAM’s proprietary X-ART folded ribbon tweeter ensuring full compatibility with the
latest expanded high frequency resolution media formats along with a conventional
bass/midrange driver. For each section there is individual amplification with continuous
output provided.
If you have any questions about this or any other of our products, please don’t hesitate
to contact us – our support team will be happy to assist you in your matter.
For detailed information concerning ADAM’s technologies and products, complete
reviews, and a list of worldwide ADAM users and studios, please visit our website:
www.adam-audio.com
You are invited to share your experience with our products by joining us on Facebook
and also, if you don’t want to miss out on the latest info on ADAM Professional Audio,
come and follow us on Twitter!
We hope very much that you really enjoy your new loudspeakers, and wish you many
delightful hours with them.
The ADAM Audio Team
6
2.1 Important Information for set up
After having unpacked your loudspeaker, please allow the system to acclimate to the
temperature of the room for approximately an hour.
It is important to ensure the speakers sit firmly on a solid surface!
We recommend that you retain the original packaging, as it is the best way to
guarantee safe transportation should the need to do so arise.
Please note that the loudspeakers will take some break-in time to achieve optimum
sonic performance.
2.2 Quick Start
a) Before connecting the loudspeakers to your audio components and the power
source make sure that both the loudspeakers and your audio source are switched
off and set the level controls fully counterclockwise.
b) There are two options of connection:
Basic active speaker use. Connect your sound source or mixing console to the
speakers. Use either the RCA (unbalanced) or the XLR (balanced) connectors.
You will find the connector wiring printed on the speaker’s rear panel (for further
information, see 3.1).
Stereo Link. If you want to use the Stereo Link (controlling the overall volume by one
control), please see 3.2.
c) Check if the specified voltage matches the voltage of the power supply
you use. If this is not the case do not connect the loudspeakers to a
power source! Please contact your local dealer or national distributor.
If the voltages match, use the included power cables to connect the loudspeaker to
the AC sockets.
d) Switch on the main on/off switches on the front panel of the loudspeakers.
e) Make sure that the line out level (volume) of your stereo is either at a low level or all
the way off. Then, switch on your audio system.
f) Turn on your source of music and adjust the volume carefully.
2. Quick Start
7
AX Manual / english
3.1 Basic active speaker connection
For the basic active speaker connection,
please use mono XLR or RCA cables. In most
professional applications XLR will be the best
choice, while RCA is more common in HiFi
applications. Each one of the two loudspeakers
has to be connected to one channel of the
sound source.
3.2 The Stereo Link (A3X and A5X only)
If you wish to use the Stereo Link that allows adjustment of the volume of both
loudspeakers with a single master control, please proceed as follows:
a) First, connect Speaker 1 (that is supposed to control the overall volume) to your
preamplifier, sound source, etc. by using one stereo or two mono RCA leads. Please
note that the Stereo Link does not work with XLR.
When connecting your speakers via RCA please make sure the white (or black) RCA
plug which leads the left stereo channel is connected to the “Unbalanced In” and the
red RCA plug (that leads the right stereo channel) is connected to the “Stereo Link
Input” of the left speaker, if this is the master speaker you want to control the overall
volume with.
If the right speaker shall be the master please connect the red RCA plug (the right
stereo channel) to the “Unbalanced In” and the white (or black) RCA plug for the left
stereo channel to the “Stereo Link Input” of the right speaker.
b) Secondly, connect the “Stereo Link Output” of Speaker 1 to the “Unbalanced In” of
Speaker 2 by using the provided (or another) mono RCA cable.
Please note:
On the front side of the unit functioning as master, a corresponding white LED will
illuminate as soon as a mono RCA plug is connected to the Stereo Link output.
Unlike the common ‘master-slave-configuration’, any A3X or A5X that is connected accordingly
can function as either a master or a slave unit.
For an equal volume level of both speakers please make sure that the volume knob of speaker 2 is
snapped in the middle position.
3. Connecting the Speakers
2 x RCA
or
2 x XLR
Speaker 1 Speaker 2
LED
8
Please make sure that there are no obstacles in the way from the monitor to your ears.
You should be able to see the speakers completely.
4.1 Vertical set up
The AX-series have been designed for
a vertical set up (except the A77X). The
speakers must be positioned on a solid
surface or a stand. Please note that
vibrating parts of nearby objects can
mask the sound.
4.2 Horizontal set up
If you choose to use your speakers in horizontal position as indicated below, please
make sure that the set up is mirrored/symmetrical, i.e. that the tweeters both face
either the outwards or inwards. This is crucial for a precise stereo signal.
4. Speaker Placement
like
this:
or like
that:
9
AX Manual / english
A77X only:
The A77X has been designed for a horizontal set up. Please note that there are
two different versions, A and B (see label on the rear panel). The difference is
that the two woofers reproduce different frequency bands. While both of them
are responsible for the bass frequencies up to about 400Hz, only one of them
reproduces the midrange. This prevents interference between the two drivers. The
A speaker has the basswoofer located on the lefthand side, the B unit on the right.
In order to achieve the best stereo image it is vital to place both speakers the A/B
or the B/A way, meaning that both midrange woofers should either face the inner
side or both the outer side of the stereo setup.
4.3 Tweeter at the height of ears
The Tweeter should be positioned approximately at the height of your ears. In
case you need to position the speaker in a significant lower or higher position, the
monitor should be angled accordingly.
4.4 The Stereo Triangle
If the loudspeaker is going to be used for stereo ap-
plications, the optimum listening position should be
at the top of an imaginary equilateral triangle with the
two loudspeakers to be placed at the other two points
of this triangle. The loudspeakers should be aligned
with the listener’s position.
4. Speaker Placement
10
4.5 Surround Placement
Speaker positioning for multi-channel stereo purposes is ideally based on a circle
with speakers placed at 0° (Center), 30° (Front Right), 110° (Rear Right), 250°
(Rear Left), 330° (Front Left), with the listener being the circle’s center (Radius
between 0.7-2.0 m). This ITU recommended configuration may vary depending on
the purpose of the control room (music or film). However, it is recommended to
create a symmetrical listening position with the front side and surround speaker
pointing to the listener’s ear.
The distance to the surrounding walls should be at least 40 cm to avoid early
reflections, which can degrade the sound.
A3X/A5X only:
4.6 Stand/Wall Mounting
On the A3X and the A5X speakers you will find two M6 (6 mm) metric strew threads
for stand/wall mounting on the rear side. Further equipment for mounting is also
available. Please contact us for more information.
4. Speaker Placement
11
AX Manual / english
5.1 Controls
On the rear side you will find controls that allow de-
tailed fine-tuning of your loudspeakers to your particu-
lar room acoustics and personal listening preferences.
The following tips are intended to assist you at using
the controls in the best manner.
Please note that using the controls may have a great
impact on the overall sound characteristics of your
loudspeakers. We recommend using the controls with
utmost care and only after several audio tests with fa-
miliar recordings.
5.2 Tweeter Level
The ‘Tweeter Level’ works within the frequency
range of the tweeter raising or lowering up to ±4
dB. It alters this frequency range as a whole (see
fig.).
A5X/A7X/A77X/A8X only:
5.3 High / Low Shelf EQ (Room EQs)
The other two controls operate in a different man-
ner. The ‘High Shelf’ and the ‘Low Shelf’ are shelv-
ing filters, which progressively raise or lower up
to ±6 dB.
That means the shelving filters do not alter a whole
frequency band but alter in this band: from a cer-
tain point (5kHz respectively 300Hz in this case)
the frequencies are gradually being changed (see
fig.).
5. Speaker Adjustment
12
All ADAM products are designed and manufactured to the highest quality standards.
However, if any problems with your speaker occur, we recommend to proceed as fol-
lows:
6.1 Problem: The LED shows normal operation (green) but there is either no or only a
distorted audio signal.
If both (all) speakers are affected, the reason can probably be found within the
signal path. If only one speaker is affected, the problem will probably be within
this speaker.
a) Check the wiring.
Is the cable defective? Are all cables connected correctly?
b) Check the signal path.
Interchange the cables of both loudspeakers. Does the problem change with one
of the cables?
Connect the monitor as directly to the signal source as possible (please mind the
volume!). Is another part of the signal path (e.g. mixer, subwoofer) defective?
If the answer to all these questions is ‘no’, the problem is being caused by the
loudspeaker with the utmost probability.
If the answer to at least one of these questions is ‘yes’, there will probably be an-
other defective device within the signal path.
6.2 Problem: You hear parasitic noises (like humming, buzzing, soughing, cracking).
Please disconnect the signal cables.
If the noises disappear, check the signal path.
If the noises can still be heard, check for other electrical devices close to the
speakers (mobile phones, switching power supplies, etc.). If there is no interfering
device the speaker will probably cause the problem.
6. Troubleshooting
13
AX Manual / english
Please switch the loudspeaker off before cleaning!
Please note that the diaphragms build up a magnetic field. Do not ply with mag-
netic items at close range to the diaphragms.
Please make sure that no liquids get inside the cabinet. Do not spray any fluids on
the speaker. Do not use a wet cloth for cleaning.
Do not use flammable or acidic chemicals for cleaning.
Do not touch the membranes of the loudspeakers.
We recommend using a lint-free, damp cloth for cleaning.
The loudspeaker membranes may be dusted using a very soft brush.
8. Shipping / Packaging
In case you have to send your speakers to any other location, it is of vital importance
that you use the original packaging materials. Experience has shown that it is very dif-
ficult to avoid damage if you have to send them without these. ADAM Audio can not be
held responsible for damages due to improper packaging.
If a transport is necessary and the original shipping carton is not available, a new one
can be purchased from ADAM Audio.
9. Environmental Information
All ADAM products comply with international directives on the Restriction of Hazardous
Substances (RoHS) in electrical / electronical equipment and the disposal of Waste
Electrical / Electronic Equipment (WEEE).
For disposal, please consult your local authorities for further information.
7. Maintenance
14
We,
ADAM Audio GmbH
whose registered office is situated at
Ederstr. 16, 12059 Berlin, Germany
declare under our sole responsibility that the products:
A3X, A5X, A7X, A8X, A77X
comply with the EU Electro-Magnetic Compatibility (EMC) Directive 89/336/EEC, in
pursuance of which the following standards have been applied:
EN 61000-6-1 : 2001
EN 61000-6-3 : 2001
EN 55020 : 2002
EN 55013 : 2001
and comply with the EU General Product Safety 2001/95/EC, in pursuance of which
the following standard has been applied:
EN 60065 : 2002.
This declaration attests that the manufacturing process quality control and product
documentation accord with the need to assure continued compliance.
The attention of the user is drawn to any special measures regarding the use of this
equipment that may be detailed in the owner’s manual.
Signed:
Klaus Heinz
Director ADAM Audio
10. EU Declaration of Conformity
15
AX Manual / english
ADAM Audio GmbH provides a five year limited warranty for this product.
11.1 Terms and Conditions
This warranty is limited to the repair of the equipment or, if necessary, the
replacement of parts or the product and return shipping within the country of
purchase.
This warranty complements any national/regional law obligations of dealers or
national distributors and does not affect your statutory rights as a customer.
Neither other transportation, nor any other costs, nor any risk for removal,
transportation and installation of products is covered by this warranty.
Products whose serial number have been altered, deleted, removed or made
illegible are excluded from this warranty.
The warranty will not be applicable in cases other than defects in materials and/or
workmanship at the time of purchase and will not be applicable:
a) for damages caused by incorrect installation, connection or packing,
b) for damages caused by any use other than correct use described in the user
manual,
c) for damages caused by faulty or unsuitable ancillary equipment,
d) if repairs or modifications have been executed by an unauthorized person,
e) for damages caused by accidents, lightning, water, fire heat, public disturbances or
any other cause beyond the reasonable control of ADAM Audio.
11.2 How to claim repairs under warranty
Should service be required, please where the contact the ADAM Audio dealer
product has been purchased.
If the equipment is being used outside the country of purchase, the international
shipping costs have to be paid for by the owner of the product.
Service may be supplied by your ADAM Audio national distributor in the country of
residence. In this case, the service costs have to be paid for by the owner of the
product whereas the costs for parts to be repaired or replaced are free of charge.
Please visit our website to get the contact details of your local distributor.
To validate your warranty, you will need a copy of your original sales invoice with
the date of purchase.
11. Warranty
12. Technical Data/Technische Daten
1 = long term IEC 265-8-Wrms / 10 min
2 = nominal IEC 265-8 = Peak Power 5 µsec
A3X A5X A7X A77X A8X
Tweeter/Hochtöner X-ART X-ART X-ART X-ART X-ART
Velocity transfer ratio/Ge-
schwindigkeitstransformation 4:1 4:1 4:1 4:1 4:1
Equivalent diaphragm ø/Äquiva-
lenter Membran ø 56 mm / 2“ 56 mm / 2“ 56 mm / 2“ 56 mm / 2“ 56 mm / 2“
Woofer/Tieftöner 120 mm / 4.5“ 145 mm / 5.5“ 175 mm / 7“ 175 mm / 7“ (2x) 220 mm / 8.5“
Woofer material/Tieftöner
Material Carbon fiber Carbon/Rohacell/
Glass fiber
Carbon/Rohacell/
Glass fiber
Carbon/Rohacell/
Glass fiber
Carbon/Rohacell/
Glass fiber
Built-in amplifiers/Eingebaute
Verstärker 2; Type A/B 2; PWM (Woofer),
A/B (Tweeter)
2; PWM (Woofer),
A/B (Tweeter)
3; 2x PWM (Woo-
fer), A/B (Tweeter)
2; PWM (Woofer),
A/B (Tweeter)
Woofer channel/Tieftöner 1/2 25 W/40 W 50 W/75 W 100 W/150 W 2x 100 W/150 W 150 W/225 W
Tweeter channel/Hochtöner 1/2 25 W/40 W 50 W/75 W 50 W/75 W 50 W/75 W 50 W/75 W
Input Sensitivity/Lautstärke -∞ to +14 dB -∞ to +14 dB -∞ to +14 dB -∞ to +14 dB -∞ to +14 dB
Tweeter gain/Pegel Hochtöner ± 4 dB ± 4 dB ± 4 dB ± 4 dB ± 4 dB
High shelf EQ > 5 kHz no room EQ/keine
Raumanpassung ± 6 dB ± 6 dB ± 6 dB ± 6 dB
Low shelf EQ < 300 Hz no room EQ/keine
Raumanpassung ± 6 dB ± 6 dB ± 6 dB ± 6 dB
Frequency response/Frequen-
zgang 60 Hz - 50 kHz 50 Hz - 50 kHz 42 Hz - 50 kHz 38 Hz - 50 kHz 38 Hz - 50 kHz
THD 90dB/1m >100Hz ≤ 0,8% ≤ 0,6% ≤ 0,5% ≤ 0,5% ≤ 0,5%
SPL with sine wave 100 Hz to 3
kHz in 1m ≥ 98 dB ≥ 102 dB ≥ 106 dB ≥ 114 dB ≥ 112 dB
Max. peak acoustic output in
1m per pair ≥ 106 dB ≥ 110 dB ≥ 114 dB ≥ 122 dB ≥ 120 dB
Crossover frequency/Über-
gangsfrequenz 2.800 Hz 2.500 Hz 2.500 Hz 400/3000 Hz 2.300 Hz
Input/Eingänge XLR / RCA XLR / RCA XLR / RCA XLR / RCA XLR / RCA
Input impedance/Eingang-
simpedanz 10 kΩ 30 kΩ 30 kΩ 30 kΩ 30 kΩ
Weight/Gewicht 4.6 kg / 10.1 lb. 6.6 kg / 14.6 lb. 9.2 kg / 20.3 lb. 12.8 kg / 28.2 lb. 13 kg / 28.7 lb.
Magnetically shielded/magne-
tisch abgeschirmt no/nein no/nein no/nein no/nein no/nein
Height x Width x Depth/Höhe x
Breite x Tiefe
252x150x185 mm
10“ x 6“ x 7.5“
280x170x220 mm
11“ x 6.5“ x 8.5“
337x201x280 mm
13.5“ x 8“ x 11“
235x530x280 mm
9.3“ x 20.9“ x 11“
400 x 255 x 320
15.5“ x 10“ x 12.5“
Operating temperature/Betrieb-
stemperatur
0° C to 40° C (32° F
to 104° F)
0° C to 40° C (32°
F to 104° F)
0° C to 40° C (32°
F to 104° F)
0° C to 40° C (32°
F to 104° F)
0° C to 40° C (32°
F to 104° F)
Storage temperature/Lagertem-
peratur
-30° C to 70° C
(-22° F to 167° F)
-30° C to 70° C
(-22° F to 167° F)
-30° C to 70° C
(-22° F to 167° F)
-30° C to 70° C
(-22° F to 167° F)
-30° C to 70° C
(-22° F to 167° F)
Humidity/Luftfeuchtigkeit
Max. 90 % not
condensing/nicht
kondensierend
Max. 90 % not
condensing/nicht
kondensierend
Max. 90 % not
condensing/nicht
kondensierend
Max. 90 % not
condensing/nicht
kondensierend
Max. 90 % not
condensing/nicht
kondensierend
18
Bitte beachten Sie die folgenden Sicherheitshinweise, bevor Sie Ihre neuen
Lautsprecher in Betrieb nehmen. Bitte heben Sie diese Anleitung auf. Bitte
beachten Sie alle Warnungen und folgen Sie allen Anweisungen.
Achtung: Um die Gefahr eines Stromschlages zu vermeiden, öffnen Sie
die Monitore nicht. Es befinden sich keine wartungsbedürftigen Teile im
Gehäuseinnern. Bitte versuchen Sie auf keinen Fall, dieses Produkt selbst
zu reparieren und wenden Sie sich bei einem Problemfall an qualfiziertes
Servicepersonal.
Die Lautsprecher müssen mit einer dreipoligen, geerdeten Stromversorgung
betrieben werden. Alle drei Pole müssen stets verwendet werden. Dies gilt auch
für davor geschaltete Verlängerungen oder Verteiler.
Verwenden Sie ausschließlich die spezifizierten Sicherungstypen. Überbrücken Sie
niemals, auch nicht im Notfall, die Sicherung.
Überprüfen Sie, ob die gekennzeichnete Nennspannung mit der Nennspannung in
Ihrer Umgebung übereinstimmt. Sollte dies nicht der Fall sein, schließen Sie die
Lautsprecher in keinem Falle an eine Stromquelle an und kontaktieren Sie Ihren
Fachhändler.
Schalten Sie stets alle Geräte aus, bevor Sie eine Kabelverbindung entfernen oder
neu hinzufügen.
Verwenden Sie nur Wagen, Ständer, Stative, Einbauhilfen oder Tische, die vom
Hersteller empfohlen oder die mit dem Gerät geliefert werden. Bewegen Sie einen
Wagen, auf dem das Gerät steht, vorsichtig, um ein Herabstürzen zu verhindern.
Erklärung der graphischen Symbole
Das Blitzsymbol warnt vor der Gefahr eines
elektrischen Schlages.
Das Ausrufezeichen weist auf wichtige
Bedienungs- oder Pflegehinweise hin.
Achtung
Gefahr durch Stromschlag
Nicht öffnen
UM DIE GEFAHR EINES STROMSCHLAGES ZU VERRINGERN,
ENTFERNEN SIE WEDER DIE RÜCKWAND NOCH SONSTIGE TEILE.
DIE INNEREN BAUTEILE DÜRFEN NICHT VOM ANWENDER, SONDERN
NUR VON QUALIFIZIERTEM FACHPERSONAL GEWARTET WERDEN.
SETZEN SIE DAS GERÄT WEDER REGEN NOCH FEUCHTIGKEIT AUS.
Sicherheitshinweise
19
AX Bedienungsanleitung / deutsch
Vermeiden Sie, dass Flüssigkeiten jeglicher Art ins Gehäuseinnere gelangen.
Sprühen Sie weder Flüssigkeiten direkt auf das Gerät, noch nutzen Sie nasse
Reinigungslappen.
Bitte verwenden Sie keine brennbaren und ätzenden Chemikalien zur Reinigung
dieses Produkts (siehe 7.).
Vermeiden Sie jede Berührung mit den Membranen der Lautsprecher und
blockieren Sie nicht die Bassreflexöffnung.
Gewährleisten Sie eine rückwärtige Luftabfuhr für eine notwendige Kühlung der
Elektronik.
Zum Trennen des Gerätes vom Stromnetz schalten Sie den Netzschalter aus.
Anschließend ziehen Sie den Netzstecker aus der Steckdose. Der Netzschalter
und -stecker müssen leicht erreichbar sein.
Verwenden Sie stets geprüfte Kabel. Defekte Kabel sind häufig die Ursache für
Störgeräusche verschiedener Art.
Setzen Sie dieses Produkt nicht bei extremen Temperaturen ein, ebenso wenig in
feuer- oder explosionsgefährdeten Umgebungen.
Bitte beachten Sie, dass im Gehäuseinneren sich Magnete befinden, die ein
Magnetfeld aufbauen. Vermeiden Sie, mit magnetischen bzw. paramagnetischen
Gegenständen in unmittelbare Nähe der Lautsprecher zu hantieren.
Zu hohe Lautstärken können ihr Gehör schädigen! Vermeiden Sie direkte Nähe zu
Lautsprechern, die mit hohen Pegeln betrieben werden.
Sicherheitshinweise
20
Inhalt
Sicherheitshinweise ................................18-19
1. Einleitung ................................................21
2. Quick Start zur Inbetriebnahme ..............22
2.1 Allgemeine Hinweise ...............................22
2.2 Quick Start / Inbetriebnahme .................22
3. Anschluss der Lautsprecher ....................23
3.1 NormalerAnschluss .................................23
3.2 Stereo Link ..............................................23
4. Empfehlungen zur Aufstellung .................24-26
4.1 Vertikale Aufstellung ...............................25
4.2 Horizontale Aufstellung ...........................25
4.3 Hochtöner in Ohrenhöhe .........................25
4.4 Zweikanal-Stereo .....................................25
4.5 Mehrkanal-Stereo (Surround) ..................26
4.6 Ständer- oder Wandbefestigung ..............26
5. Lautsprechereinstellungen ......................27
5.1 Das Kontrollpanel ....................................27
5.2 Tweeter Level (Hochtonpegel) .................27
5.3 Raumanpassung (Shelving Filter) ............27
6. Fehlerbehebung ......................................28
6.1 Kein oder gestörtes Signal ......................28
6.2 Nebengeräusche .....................................28
7. Wartung und Pflege .................................29
8. Transport / Verpackung ..........................29
9. Umweltinformation ..................................29
10. Konformitätsbescheinigung .....................30
11. Garantie ..................................................31
11.1 Garantiebedingungen ..............................31
11.2 Inanspruchnahme ...................................31
12. Technischen Daten ..................................16
21
AX Bedienungsanleitung / deutsch
1. Einleitung
Sehr verehrte Kundin, sehr verehrter Kunde,
wir gratulieren Ihnen zu Ihrer Entscheidung für ein Produkt aus dem Hause ADAM
Professional Audio. Sie haben ein professionelles und hoch auflösendes Aktivsystem
erworben, das sowohl zur zuverlässigen Beurteilung von Tonaufnahmen als auch für
bestmögliche Wiedergabequalität entworfen und gefertigt worden ist.
Jeder Lautsprecher der AX-Serie besteht aus einem aktiven Zweiwege-Bassreflexsystem,
dass mit einem X-ART Hochtöner sowie einem Konuslautsprecher für den Tief-/
Mitteltonbereich arbeitet. Für beide Wege stehen jeweils eigene Verstärker zur
Verfügung.
Die herausragenden Eigenschaften des X-ART Hochtöners gewährleisten volle
Kompatibilität zu aktuellen Medien mit ihrer erweiterten Auflösung im Hochtonbereich,
wie etwa die DVD Audio oder die SACD. Gleichzeitig erlauben die Monitore der AX-Serie
eine kraftvolle und punktgenaue Basswiedergabe trotz kompakter Abmessungen.
Bitte lesen Sie diese Bedienungsanleitung vor der Inbetriebnahme und beachten
Sie die Sicherheitshinweise und Garantiebestimmungen. Die nachfolgenden Tipps und
Überlegungen sollen Ihnen dabei helfen, die Fähigkeiten ihrer Lautsprecher möglichst
gut zu nutzen. Die Positionierung im Raum sowie die Eigenschaften des Hörraums
selbst sind von größerer Bedeutung für das Gesamtergebnis als bisweilen vermutet.
Sollten Sie Fragen zu weiteren Einzelheiten haben oder Probleme auftauchen, zögern
Sie bitte nicht, uns zu kontaktieren. Wir helfen gerne!
Detaillierte Informationen zu den ADAM-Technologien und Produkten, ausführliche
Testberichte und Hintergrundberichte finden Sie auf unserer Website:
www.adam-audio.com
Wenn Sie Ihre Erfahrungen mit unseren Produkten mit anderen ADAM-Usern teilen wol-
len oder die aktuellsten Informationen suchen, besuchen Sie uns auf Facebook und
Twitter!
Wir wünschen Ihnen viele schöne Stunden mit Ihren neu erworbenen ADAM-
Lautsprechern!
Ihr ADAM Audio Team aus Berlin
22
2. Quick Start zur Inbetriebnahme
2.1 Allgemeine Hinweise zur Inbetriebnahme
Nach dem Auspacken und der Aufstellung des Lautsprechers sollte dieser ca. eine
Stunde unangeschlossen ‚ruhen’, um sich der jeweiligen Raumtemperatur anpassen
zu können.
Bitte beachten Sie, dass dieser Monitor, abhängig von Pegel und Nutzungsfrequenz,
einige Tage benötigt, um seine optimale Klangqualität zu erreichen.
Wir empfehlen, beim Auspacken der Teile Ihres neuen Lautsprechers darauf zu
achten, die Verpackung nicht zu beschädigen und aufzubewahren, um den Lautspre-
cher bei Bedarf sicher transportieren zu können (siehe 7.).
Die Lautsprecher müssen stets auf einer festen Unterlage stehen!
2.2 Quick Start / Inbetriebnahme
a) Vergewissern Sie sich vor Anschluss der Kabel, dass sowohl die Lautsprecher (Netz-
schalter) als auch die betreffenden Komponenten Ihrer Audio-Anlage ausgeschaltet
sind und stellen Sie die Lautstärke auf Minimum.
b) Es gibt zwei verschiedene Anschlussmöglichken:
Normale Aktivlautsprecherkonfiguration: Verwenden Sie entweder die Cinch- oder die
XLR-Anschlüsse. Eine entsprechende Beschaltung ist auf dem Gehäuse aufgedruckt
(3.1).
Stereo Link: Wenn Sie den Stereo Link (Kontrolle der Lautstärke beider Lautsprecher
mit einem Regler) verwenden wollen, lesen Sie bitte weiter bei 3.2.
c) Überprüfen Sie, ob die gekennzeichnete Nennspannung mit der Nennspannung in
Ihrer Umgebung übereinstimmt. Sollte dies nicht der Fall sein, schließen Sie die
Lautsprecher in keinem Falle an eine Stromquelle an und kontaktieren Sie Ihren
Fachhändler. Bei Übereinstimmung schließen Sie nun mittels der Netzkabel die Laut-
sprecher an zwei Steckdosen an.
d) Schalten Sie die vorderseitigen Netzschalter ein.
e) Vergewissern Sie sich, dass der Ausgangspegel Ihrer Audio-Anlage niedrig einge-
stellt ist. Schalten Sie Ihre Audio-Anlage und ihre Tonquelle ein und beginnen Sie die
Wiedergabe. Regeln Sie schließlich die Lautstärke vorsichtig auf den gewünschten
Wert.
Produkt Specifikationer
| Mærke: | Adam |
| Kategori: | overvåge |
| Model: | AX Series A77X |
Har du brug for hjælp?
Hvis du har brug for hjælp til Adam AX Series A77X stil et spørgsmål nedenfor, og andre brugere vil svare dig
overvåge Adam Manualer
24 December 2024
24 December 2024
24 December 2024
24 December 2024
24 December 2024
24 December 2024
24 December 2024
24 December 2024
24 December 2024
31 August 2024
overvåge Manualer
- Syscom
- Cocopar
- Mitsubishi
- Planar
- Eve Audio
- JBL
- Geovision
- Hanwha
- Wortmann AG
- Tripp Lite
- Peaq
- Mackie
- Festo
- Boss
- Ikegami
Nyeste overvåge Manualer
4 April 2025
5 Marts 2025
5 Marts 2025
27 Februar 2025
21 Februar 2025
18 Februar 2025
11 Februar 2025
11 Februar 2025
11 Februar 2025
11 Februar 2025
