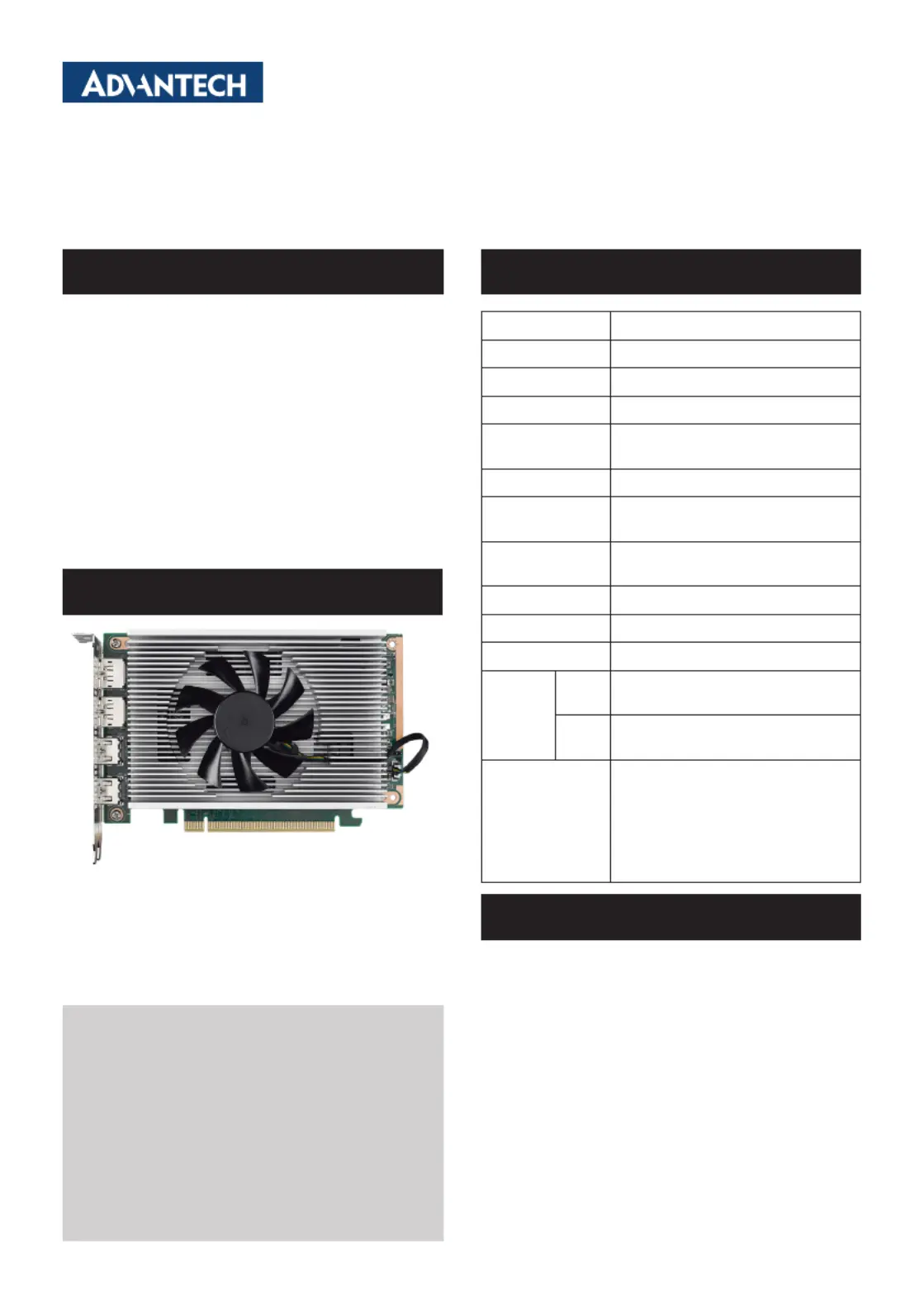

VEGA-P110 Startup Manual 1

Before you start installing your card, please make sure that

the following items have been shipped:

• 1 x VEGA-P110 GPU card with active fan and full-height

PCIe bracket installed

• 1 x Startup Manual

• 1 x China RoHS

Note: Regarding OpenVINO, you can go to:

https://www.intel.com/content/www/us/en/devel-

oper/tools/openvino-toolkit/overview.html

to download the latest version.

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

VEGA-P110

PCIe x16 Intel® Arc™ A370M

Embedded GPU Card

Product VEGA-P110-42A1

Form Factor PCI Express x16

GPU Intel® Arc™ A370M

Memory GDDR6 4GB

Dimensions

(W x H x D)

168 x 110 x 34.8 mm, Dual Slots

Signal Interface PCI Express Gen 4.0 x8

Temperature

0~60 °C (Depending on the GPU

and cooler solution)

Max. Power

Consumption

Up to 60 watts

Thermal Solution Single Active Fan

Power Connector 8-pin power input

Power Range DC 12V input

Dislay

I/O Ports

2 x DisplayPort 1.4a,

7680 x 4320 @ 60Hz, 8K

HDMI

2 x HDMI 2.0b,

4096 x 2160 @ 60Hz, 4K

Graphics Engine

DirectX 12, OpenGL 4.6, OpenCL

3.0

HW Encode: H.264/H.265 (HEVC)/

AV1

HW Decode: H.264/H.265 (HEVC)/

AV1/VP9

• Above 4G Decoding enabled

• Resizable (Re-Size) BAR support enabled

• Compatibility Support Module (CSM) or Legacy Mode

must be disabled and UEFI boot mode must be Enabled.

Notes: The procedure to enable the resizable BAR

maybedi󰀨erentforeachsystemmanufacturer.

Please check with your system manufacturer for

specicinstructionsasnecessary.

The Resizable BAR option may be described as

Re-Size BAR, Smart Access Memory, or Clever

Access Memory.

Visit the Intel website to get more information:

https://www.intel.com/content/www/us/en/sup-

port/articles/000091128/graphics.html

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for VEGA-P110.

Part No. 2046P11000

Printed in Taiwan

Edition 1

July 2023

Product Picture

Motherboard Requirements

2 VEGA-P110 Startup Manual

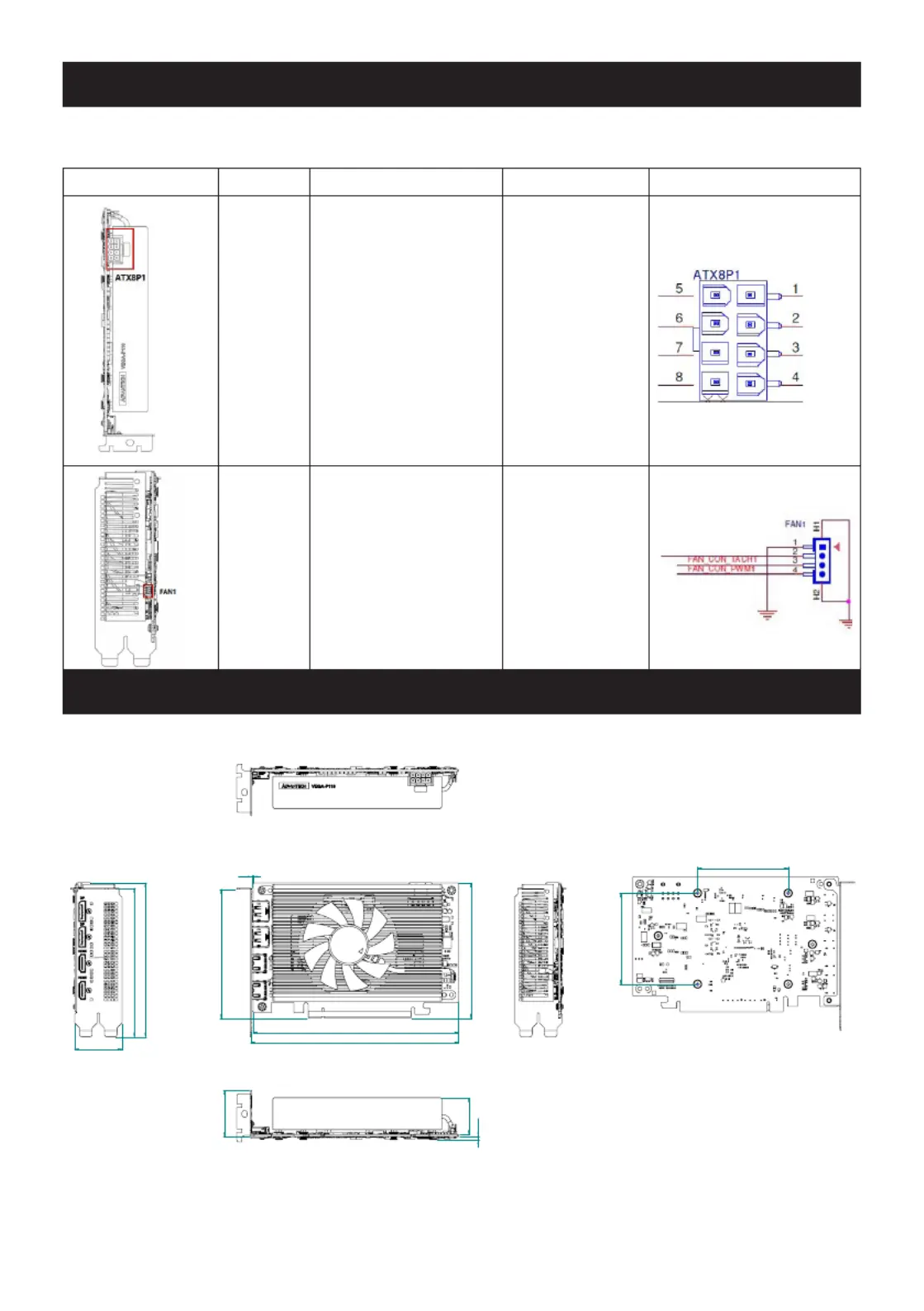

Connectors

Below are the connectors for VEGA-P110:

Connector Location Connector Description Pin Denitions Symbol

ATX8P1

PCIe Card Power from ATX

power supply (Optional)

PIN1 : +12VDC

PIN2 : +12VDC

PIN3 : +12VDC

PIN4 : GND

PIN5 : GND

PIN6 : GND

PIN7 : GND

PIN8 : GND

FAN1 4-Pin Fan Connector

PIN1 : GND

PIN2 : +12VDC

PIN3 : FAN TACH

PIN4 : FAN PWM

104.86

169.94(PCBA WITH PCIe Bracket)

1.04

168(PCBA)

110(PCBA )

2.60

37.47

38.74

120.92

125.31

Dimensions
