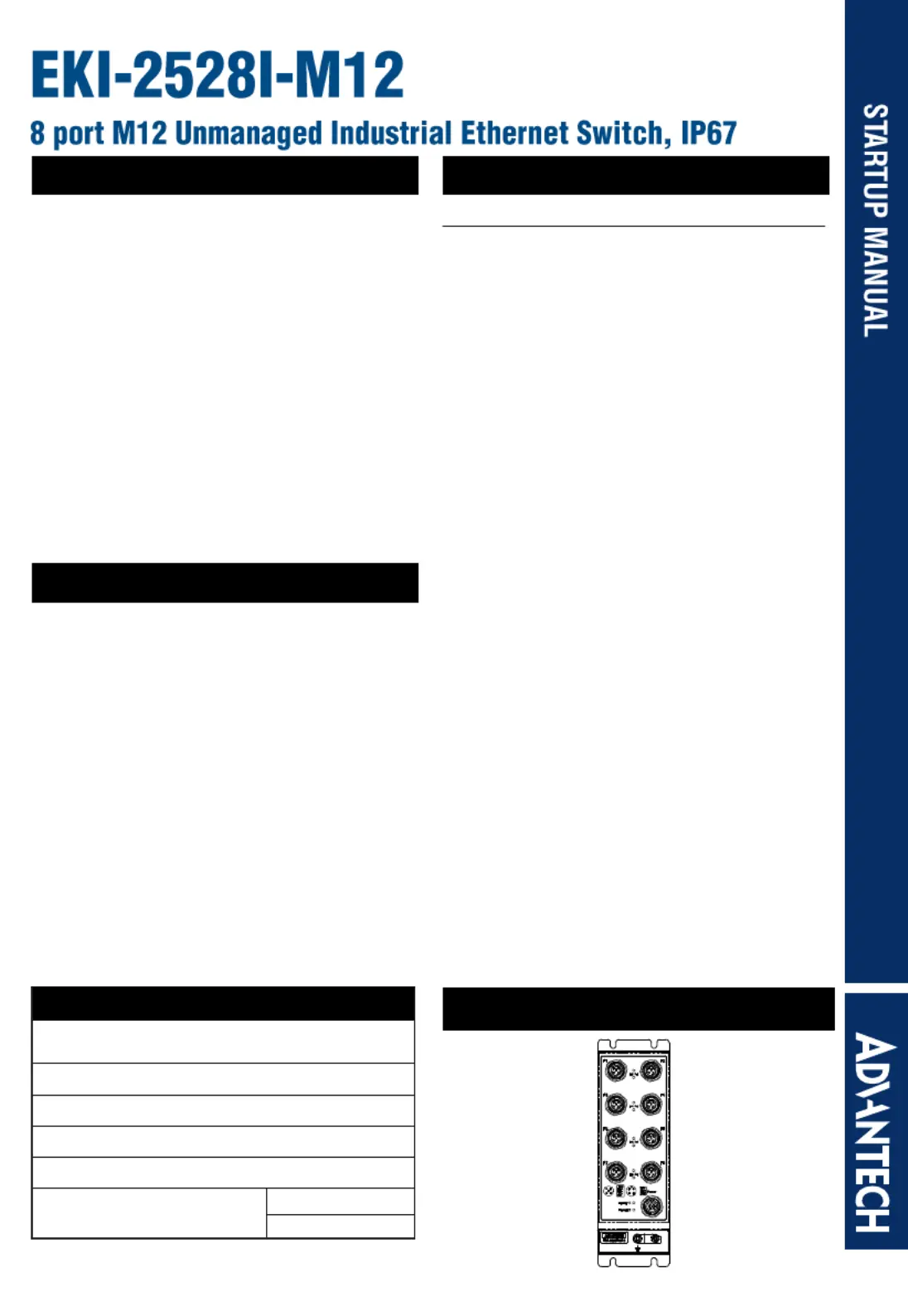

1 Startup Manual
Overview
The EKI-2528I-M12 unmanaged switches are
designed for application in harsh environments. First
of all, the switches provide 8 Fast Ethernet ports with
M12 D-coded connectors which can connect the
cables tightly against vibration and shock. Second,
broadcast storm protection. Third, when supporting
wide power input ranging from 12 to 48V with
Polarity Reverse Protection and Overload Current
Resettable Fuse, the EKI-2528I-M12 switches are
robust and economical solutions for your network.
Finally, as the switches are IP67-rated and is
compliant with IEC 61131-2:2017, they are suitable
for PLC application and their associated peripherals.
Packing List
Before installation, please make sure that you have
received the following:
1 x EKI-2528I- Ethernet Switch M12
1 x Bag of Screws for DIN-rail and Grounding
1 x DIN-rail Mounting Kit
1 x EKI-2528I- Startup manual M12
If anything is missing or damaged, contact your
distributor or sales representative immediately.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/products
For technical support and service:
http://www.advantech.com/support/
This startup manual is for EKI-2528I-M12
Part No: 2049252820
1st Edition
March 2019
Specications
General
Compatibility: IEEE 802.3, 802.3u, 802.3x
LAN: 10/100Base- TX
Ethernet RJ-45: Up to 100 m
Connectors:
8 x M12 with D-code
1 x 4-pin M12 A-code for Power Connection
Switch Architecture: Store and Forward
Power Requirement: 12~48V
DC
redundant dual
inputs
Power Consumption: 2 Watts.5
Dimensions (W x H x D): 62 x 194 x 25 mm
(2.44" x 7.63" x 1.00")
Enclosure: IP67
Operating Temperature:
-40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature:
-40 ~ 85°C (-40°F ~ 185°F)
Operating Humidity: 5 ~ 95% (non-condensing)
Storage Humidity: 5 ~ 95% (non-condensing)
Safety: UL 61010
EMI:
EN 61131-2
CE, CE-LVD, FCC Class A, RCM
EMS:
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock IEC 60068-2- 27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6: 5g @ -150Hz10
Warranty: 5 years
Overview

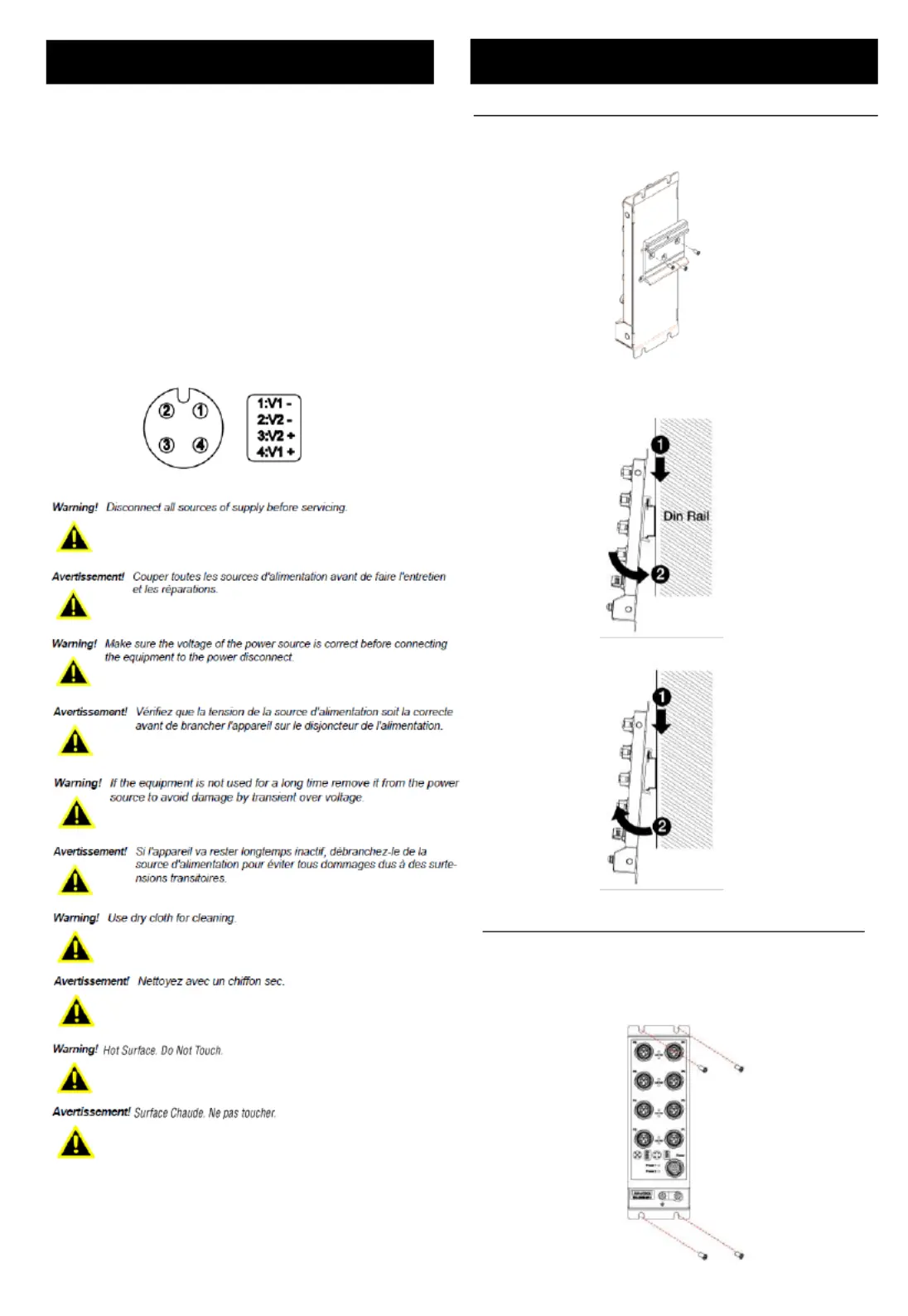

Power Connection
EKI-2528I-M12 switch supports 12 ~ 48 VDC power
input using 4-pin male M12 A-code connector.
STEP 1: Insert a corresponding power cord on the power
connector to connect EKI-2528I- M12.
STEP 2: Screw the nut on the power cord connector to
ensure a tight connection between power cord and
EKI-2528I- M12.
The switches must be powered by using UL61010 or
UL61010-2-201 listed power source, rated 12-48Vdc,
1.5 minimum and Tma 75 degree C.
Suggestion: Suitable for eld wiring. Female Connector, 4
wire, Plug straight M12, A-coded, Push-in connection,
tighten torque 1.5 Nm, UL 2238 Listed cable (UL CYJV
Listed)
Startup Manual 2
Mounting
DIN-rail Mounting
STEP 1: Install the DIN-Rail Mounting Ki t.
DIN-Rail Screw Size: M3x6L
STEP 2: Install the Switch.
STEP 3: Remove the Switch.
Wall Mounting
STEP 1: Prepare the 4 screw holes on the wall according to the
switch. Screw hole size: 5.0mm
STEP 2: Screw in the 4 screws through the screw holes on the
switch to the wall.
