EKI-2701HPI Startup Manual 1
The EKI-2701HPI is a one-port PoE injector designed to
deliver both data and electrical power to Ethernet-enabled
devices using a single Ethernet cable.
Capable of supplying up to 30 watts of power through its
Ethernet port, it can e󰀩ciently power IEEE 802.3af/at PoE
compliant devices such as wireless access points and IP
cameras, thereby eliminating the need for additional wiring.
Before installation, please make sure that you have re-
• 1 x EKI-2701HPI PoE Injector
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 8 screws (M3 x 5L)
• 1 x EKI-2701HPI Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
EKI-2701HPI
Industrial IEEE 802.3at Gigabit PoE Injector
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u, 802.3ab, 802.3af,
802.3at
• LAN: 10/100/1000Base-T(X)
• EthernetRJ-45:Up to 100 m
• Connectors:2 x 10/100/1000Base-T(X) (DATA IN p1-x1 +
PoE OUT X1)
• PowerInput:24~48V
DC
, redundant power
• PowerConsumption:33.6W @ 24V
DC
• Dimensions(WxHxD):30 x 140 x 95 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40 ~ 167°F)
• StorageTemperature:-40 ~ 85 °C (-40 ~ 185°F)
• OperatingHumidity:5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL508
• EMC:CE, FCC Class A
• Warranty:5 years
SpecicationsOverview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://www.advantech.com/support
This manual is for EKI-270IHPI.
Part No. 2002270101 Edition 1
August 2024
PackingList
Overview
2 EKI-2701HPI Startup Manual
minimum. Si vous avez besoin d’une aide
supplémentaire, veuillez contacter Advan
tech pour plus d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de
connecter l’équipement à une prise de
courant. La prise de courant doit avoir une
prise de terre.
Avertissement: N’ouvrez jamais l’équipement. Pour des
Raisons de sécurité, l’équipement ne doit
être ouvert que par une personne
qualiée.

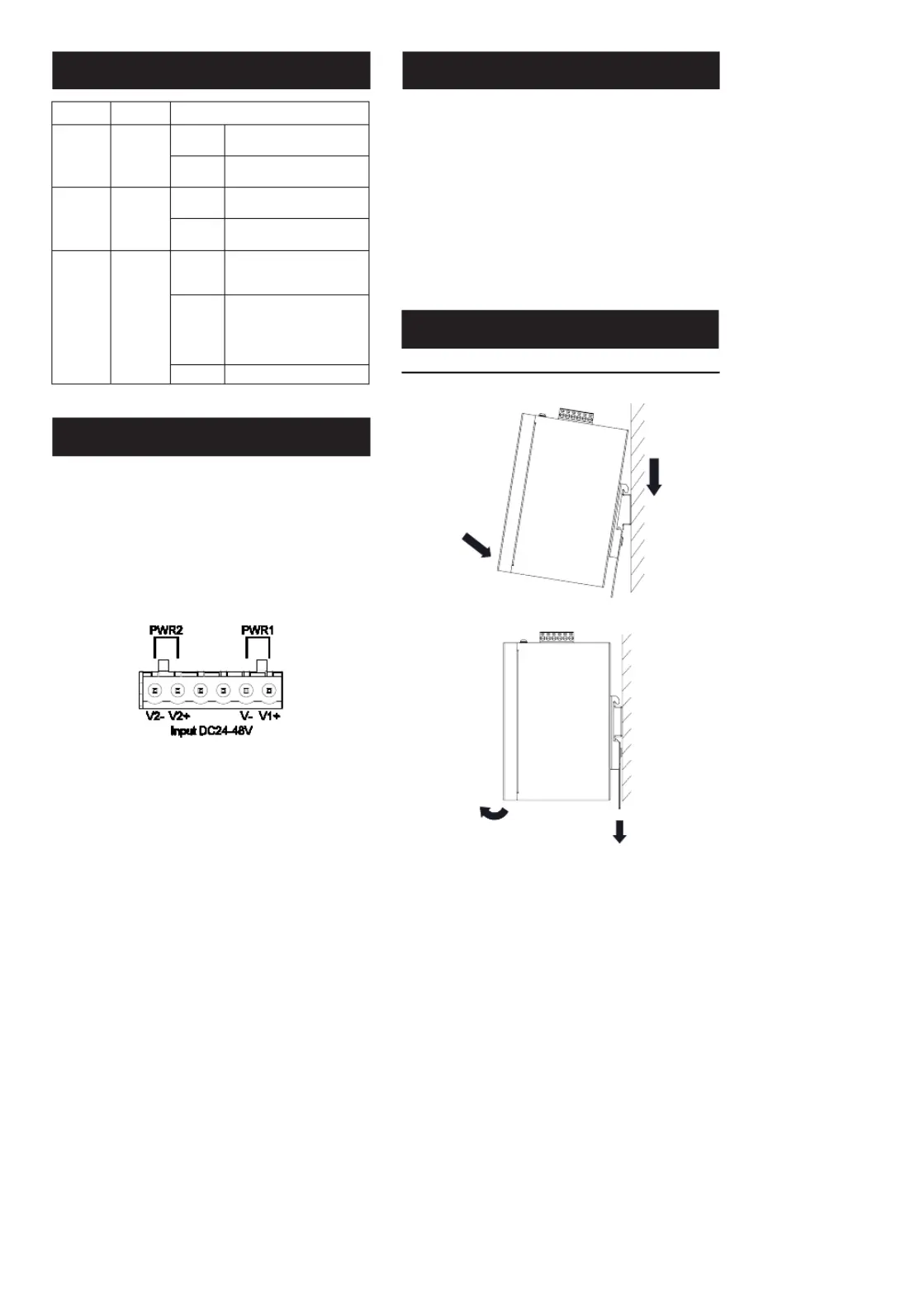

DIN-railMounting
1. Installing the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail Mounting Kit.
11
LED Color Description
P1 Green
On
P1 is being supplied to
power input.
O󰀨
P1 is not being supplied to
power input.
P2 Green
On
P2 is being supplied to
power input.
O󰀨
P2 is not being supplied to
power input.
PoE Green
On
PoE power is being
supplied to the Powered
Device (PD).
Blinking
POE in extreme conditions
(over-load or short or Over
temperature or voltage is
out of range)
No link
O󰀨 No PoE Output
The EKI-2701HPI injector supports dual +24~48 V
DC
power
inputs. For operation, connecting either power V1 or V2
to the switch is su󰀩cient. If both sets are connected, it
enhances redundancy. In the event of a power resource
failure in one set, it will automatically switch to the other set
of power resources.
1. Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector.
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: This product is intended to be supplied by an
UL certied power supply or DC source suitable
for use at minimum Tma 75 °C whose output
meets SELV or ES1 and is rated at 24-48 Vdc,
0.8A min., if you need further assistance, please
contact Advantech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. The power outlet socket should
have a grounded connection.
Warning: Never open the equipment. For safety reasons,
the equipment should be opened only by a quali-
ed skilled person.
Avertissement: Ce produit est destiné à être alimenté par
une alimentation certiée UL ou une
source de courant continu adaptée à une
utilisation à au moins Tma 75 °C dont la
sortie satisfait les conditions SELV ou
ES1 et est évaluée à 24-48Vdc, 0.8A

LEDDenition

PowerConnection

PowerConnection(Cont.)

Mounting
