EKI-2705 Startup Manual 1
Before installation, please make sure that the following
items have been shipped:
• 1 x EKI-2705G-1GPI/EKI-2705E-1GPI Ethernet Switch
• 2 x Wall mounting brackets with screws
• 1 x DIN-rail Mounting Bracket and Screws
• 1 EKI-2705G-1GPI/EKI-2705E-1GPI Startup Manual
* If any of these items are missing or damaged, contact your
For more detailed information, please refer to the full manual
which can be found on the Advan- tech’s website.
The EKI-2705G-1GPI/EKI-2705E-1GPI supports 24-48V
DC
re-
dundant power input and is secured with a double protection
mechanism: Power Polarity Reverse Protect and an Overload
Current Fuse. The EKI-2705G-1GPI/EKI-2705E-1GPI
supports up to 4 IEEE 802.3 af/ at PoE ports, and is more
convenient for users to power up their devices. Each port of
the EKI-2705G-1GPI/EKI-2705E-1GPI has two LED’s to show
the link status transmission speed. It also provides a relay
output for an event alarm. In the event of a power failure, the
built-in LED will activate the alarm to notify administrators.
Engineers can verify the hardware status by checking the
LED, and make troubleshooting quick and easy. The compact
EKI-2705G-1GPI/EKI-2705E-1GPI comes with IP30 rated
metal housing to help against ingress from dusty industrial
environments.
EKI-2705G-1GPI/EKI-2705E-1GPI
Industrial Ethernet Switch
Startup Manual
General
• Compatibility: IEEE 802.3, 802.3u, 802.3x, 802.3ab,
802.3z
• LAN:
- EKI-2705E-1GPI: 4 x 10/100Mbps PoE ports (RJ-45), 1
x 10/100/1000Mbps (RJ45)
- EKI-2705G-1GPI: 4 x 10/100/1000Mbps PoE ports (RJ-
45), 1 x 10/100/1000Mbps (RJ45)
• Ethernet RJ-45: Up to 100 m
• Connectors: 5 x RJ-45
• Switch Architecture: Store and Forward
• Power Input Rating:
- 48V
DC
, 1.92A
- 24V
DC
, 4.12A
• PoE Output (Port 1 ~ Port 4):
- 75°C, Total 60W, per port max. 30W
- 60°C, Total 90W, per port max. 30W
• Power Consumption: Max.2W
• Power Budget: 90W
• Dimensions (W x H x D): 30 x 140 x 95 mm
• Enclosure: IP30
• Operating Temperature:
-40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)
• Operating Humidity: 5 ~ 95% (non-condensing)
• Storage Humidity: 5 ~ 95% (non-condensing)
• Safety: UL 62368-1
• EMC: CE, FCC Class A
• Warranty: 5 years
• Altitude: Up to 3000m
Company Address
ADVANTECH CO., LTD.
（研華股份有限公司）
No.1, ALLEY 20, LANE 26, RUEIGUANG RD, NEIHU
DISTRICT, TAIPEI 114. TAIWAN
Introduction
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com/products/
For technical support and service:
http://www.advantech.com/support/
This manual is for the EKI-2705.
Part No. 2049270501 2nd Edition
July 2024
User Manual
Specications
2 EKI-2705 Startup Manual
Warning
1. Do not block air ventilation holes.
Ne bloquez pas les ou es de ventilation.
2. Use dry cloth for cleaning.
Utilisez un chion sec pour le nettoyage.
3. This is open type equipment and
should be installed in a
suitable enclosure .
Ceci est un appareil de type ouvert et doit être.
LEDDenition
LED Color Description
Status
LEDs
P1 Green
On
PWR1 is being supplied
to power input.
O󰀨
PWR1 is not being sup-
plied to power input.
P2 Green
On
PWR2 is being supplied
to power input.
O󰀨
PWR2 is not being sup-
plied to power input.
P-fail Red
On
When PWR1 or PWR2
is disconnected, the
LED lights
O󰀨
When PWR1 or PWR2
is connected, the LED
iso󰀨
Port
LEDs
PoE
(1~4)
Green
On PoE activated
O󰀨 PoE non-working
Copper
Ports
(1~5)
Green
(top)
On
Ethernet port link has
been established
Blinking Ethernet port active
O󰀨 No link
Green/
Amber
(bottom)
Green
On
When the port’s data is
being transmitted at
Amber
On
When the port’s data
is being transmitted at
100Mbps
O󰀨
When the port’s data
is being transmitted at
10Mbps

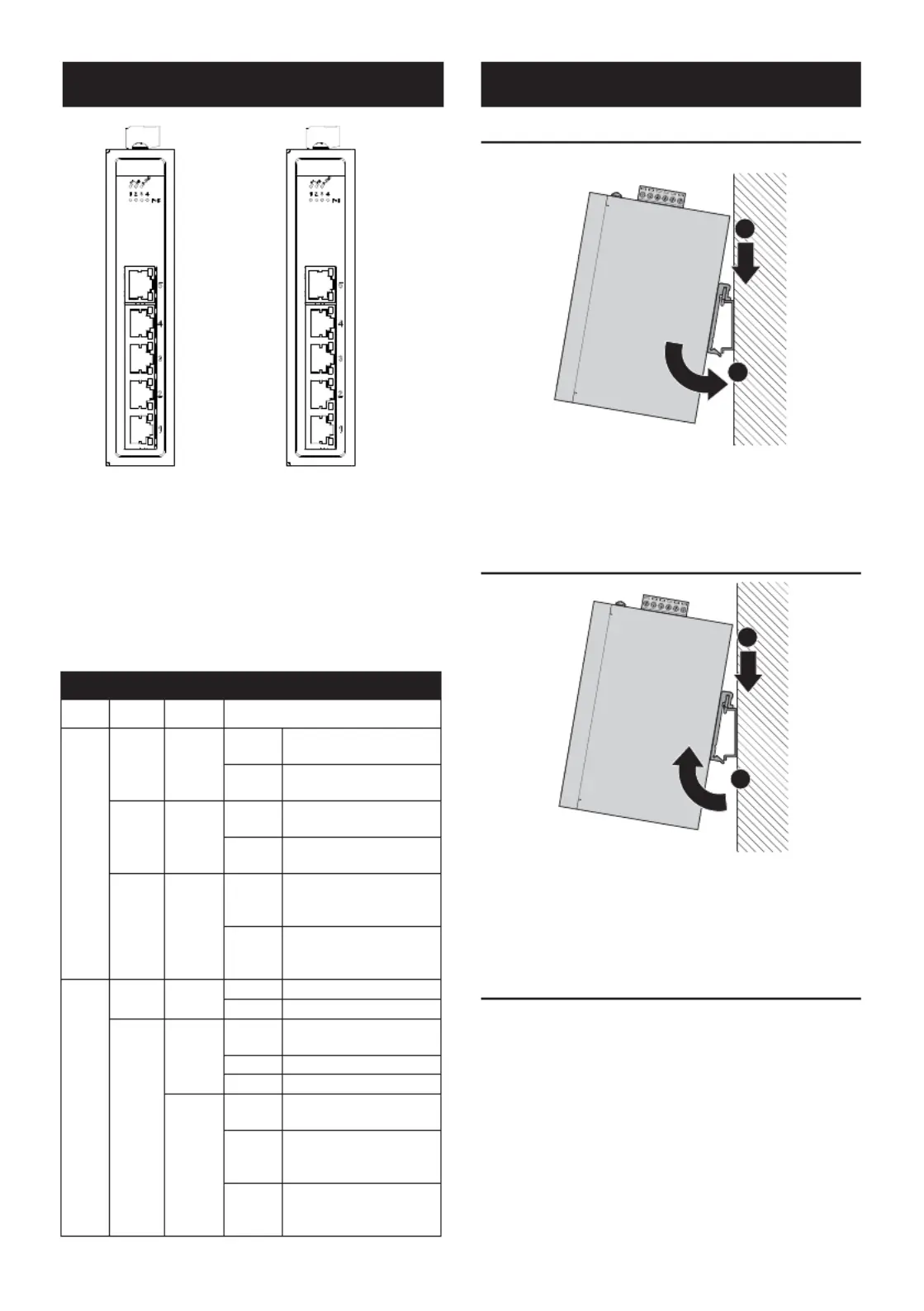

EKI-2705G
EKI-2705E
Overview
DIN-rail Mounting
Installing the DIN-Rail Mounting Kit.
1. Insert the top back of the mounting bracket over the
DIN rail.
2. Push the bottom of the switch towards the DIN rail until
it snaps into place.
Removing the DIN-Rail
1. Insert the top back of the mounting bracket over the
DIN rail.
2. Push the bottom of the switch towards the DIN rail until
it snaps into place.
Minimum safe height: Up 10 cm/Down 10 cm
Wall Mounting
1. Remove the Din Rail.
2. Attach the brackets included to the switch with screws.
3. With the brackets attached, hang the switch to the nails
on the wall.
4. Secure the wall mounting plates to the wall in the
industrial panel.
Minimum safe height: Up 10 cm/Down 10cm
M3X10L (Depth: 10mm)
2
1
DIN Rai l
2
1
DIN Rai l
Mounting
