1 Startup Manual

EKI-2706E-1GFP/I&EKI-2706G-1GFP/I

Industrial Unmanaged PoE Switch

Overview

The EKI-2706 series supports 48VDC redundant

power input and is secured with a double protec-

tion mechanism: Power Polarity Reverse Protect

and an Overload Current Resetable Fuse. The

EKI-2706 series supports up to 4 IEEE 802.3 af/

at PoE ports, and is more convenient for users to

power up their devices. Each port of the EKI-2706

has two LED’s to show the link status transmis-

sion speed and collision status. It also provides

a relay output for an event alarm. In the event of

a power failure, the built-in LED will activate the

alarm to notify administrators. Engineers can

verify the hardware status by checking the LED,

and make troubleshooting quick and easy. The

compact EKI-2706 comes with IP30 rated metal

housing to help against ingress from dusty indus-

trial environments.

Speciﬁcations

General

• Compatibility: IEEE 802.3, 802.3u, 802.3x,

802.1ab, 802.1z

• LAN:

– : EKI-2706E-1GFP/I

4 x 10/100Mbps PoE ports (RJ-45),

1 x 100/1000Mbps(RJ45),1x100/1000Mbps

(SFP)

– : EKI-2706G-1GFP/I

4 x 10/100/1000Mbps PoE ports(RJ-45),

1 x 100/1000Mbps(RJ45),1x100/1000Mbps

(SFP)

• Ethernet RJ-45: Up to 100 m

• SFP: Up to 110 Km (depends on SFP)

• Connectors: 5 x RJ-45, 1 x SFP

• Switch Architecture: Store and Forward

• Power Requirement: 48V

, redundant Power

Input with reverse polarity protection.

• Power Consumption: Max. 2W

• Power Budget: 90W

• Dimensions (W x H x D): 30 x 140 x 95 mm

• Enclosure: IP30

• Operating Temperature:

- EKI-2706E-1GFP & EKI-2706G-1GFP:

-10 ~ 60°C (-40 ~ 140°F)

- EKI-2706E-1GFPI & EKI-2706G-1GFPI:

-40 ~ 75°C (-40 ~ 167°F)

• Storage Temperature: -40 ~ 85°C (-40°F ~

185°F)

• Operating Humidity: 10 ~ 95% (non-condens-

ing)

• Storage Humidity: 10 ~ 95% (non-condensing)

• Safety: UL 61010

• EMC: FCC Class A, CE

• Warranty: 5 years

Packing List

Before installation, please make sure that you

have received the following:

• 1 x EKI-2706 Ethernet Switch

• 2 x Wall mounting brackets with screws

• 1 x DIN-rail Mounting Bracket and Screws

• 1 x EKI-2706 Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Notes

For more information on this and other Advan-

tech

products, please visit our websites at:

http://www.advantech.com/products/

For technical support and service:

http://www.advantech.com/support/

This startup manual is for EKI-2706.

Part No: 2009270601 2nd Edition

August 2016

STARTUP MANUAL

User Manual

For more detailed information, please refer to the

full manual which can be found on the Advan-

tech’s website.

Startup Manual 2

Overview

Mounting

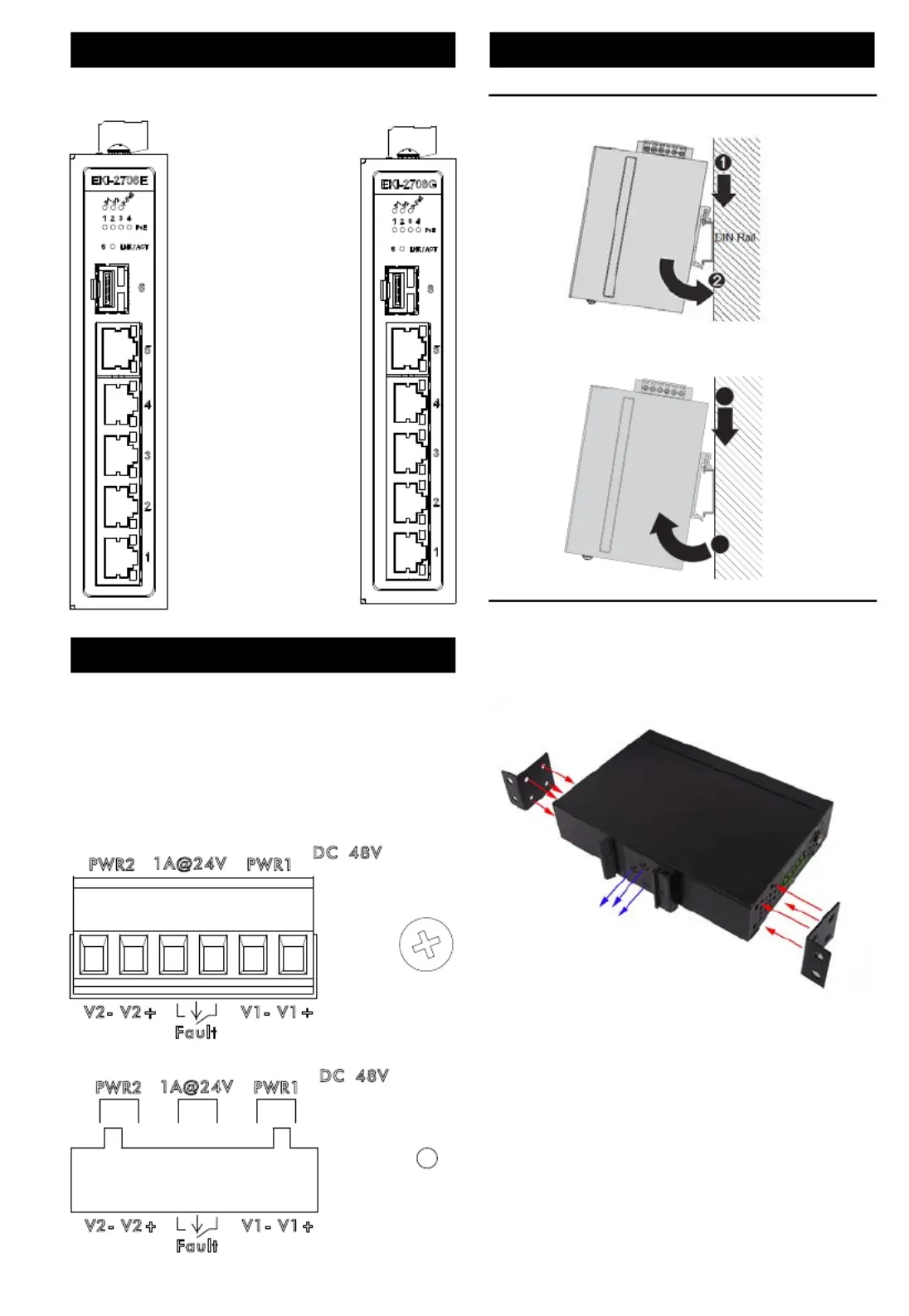

DIN-rail Mounting

1. Installing the DIN-Rail Mounting Kit.

2. Removing the DIN-Rail.

Wall Mounting

1. Attach the brackets included to the switch with

screws.

2. With the brackets attached, hang the switch to

nails on the wall.

Power Connection

The EKI-2706 series switch supports dual

48 V

power inputs and changes relay status

when power failure occurs.

1. Insert the positive and negative wires into the

V+ and V- contacts on the terminal block

connector.

2. Tighten the wire-clamps screws to prevent the

DC wires coming loose.

EKI-2706G

EKI-2706E
