EKI-2706G Series Startup Manual 1
EKI-2706G-2FPI&EKI-2706G-2GPI
Industrial Unmanaged PoE Switch
Startup Manual
Specications
Overview
For more information on this and other Advantech
products, please visit our website at:
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the EKI-2706G Series.
Part No. 2049270610
Printed in Taiwan
1st Edition
January 2024
General
• Compatibility: IEEE 802.3, 802.3u, 802.3z, 802.3ab,
802.3x, 802.3at/af
• LAN:
EKI-2706G-2FPI:
- 4 x 10/100/1000BASE-T/TX RJ-45 PoE Ports
- 2 x SFP (mini-GBIC) 100/1000Mbps port
EKI-2706G-2GPI:
- 4 x 10/100/1000BASE-T/TX RJ-45 PoE Ports
- 2 x 10/100/1000BASE-T/TX RJ-45 Ports
• Ethernet RJ-45: Up to 100 m
• SFP: Up to 110 Km (depends on SFP)
• Connectors:
- EKI-2706G-2FPI: 4 x RJ-45, 2 x SFP
- EKI-2706G-2GPI: 6 xRJ45
• Switch Architecture: Store and Forward
• Power Input: 12~48VDC, redundant power
• Power Consumption: Max 4.32W (system)
• Power Budget:
- 120W@24/48VDC
- 70W@12VDC
• Dimensions (W x H x D): 46 x 140 x 130 mm
• Enclosure: IP30
• Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)
• Operating Humidity: 5 ~ 95% (non-condensing)
• Storage Humidity: 5 ~ 95% (non-condensing)
• Safety: LVD EN62368
• EMC: FCC Class A, CE
• Warranty: 5 year
The EKI-2706G PoE switch is unmanaged Ethernet
switches supporting 4 ports PoE+ (Power over Ethernet)
and compliant with IEEE 802.3at/af standards. It provides
up to 30 watts of power per port and fulll the power budget
of max.120 watts on system. The switch provides a relay
output for an event alarm which activates the alarm to notify
administrators. Robust design for harsh environment, din
rail mounting and fast startup with plug and work
The EKI-2706G supports IEEE 802.3/802.3u/802.3z/
802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex,
auto-negotiation and MDI/MDI-X auto-sensing to provide an
economical solution for your industrial Ethernet network.
Packing List
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2706G Ethernet Switch
• 1 x DlN-rail mounting brackets with screws
• 1 x EKI-2706G Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
User Manual
For more detailed information, please refer to the full
manual which can be found on the Advantech’s website.
2 EKI-2706G Series Startup Manual
EKI-2706G-2FPI EKI-2706G-2GPI
EKI-2525/I

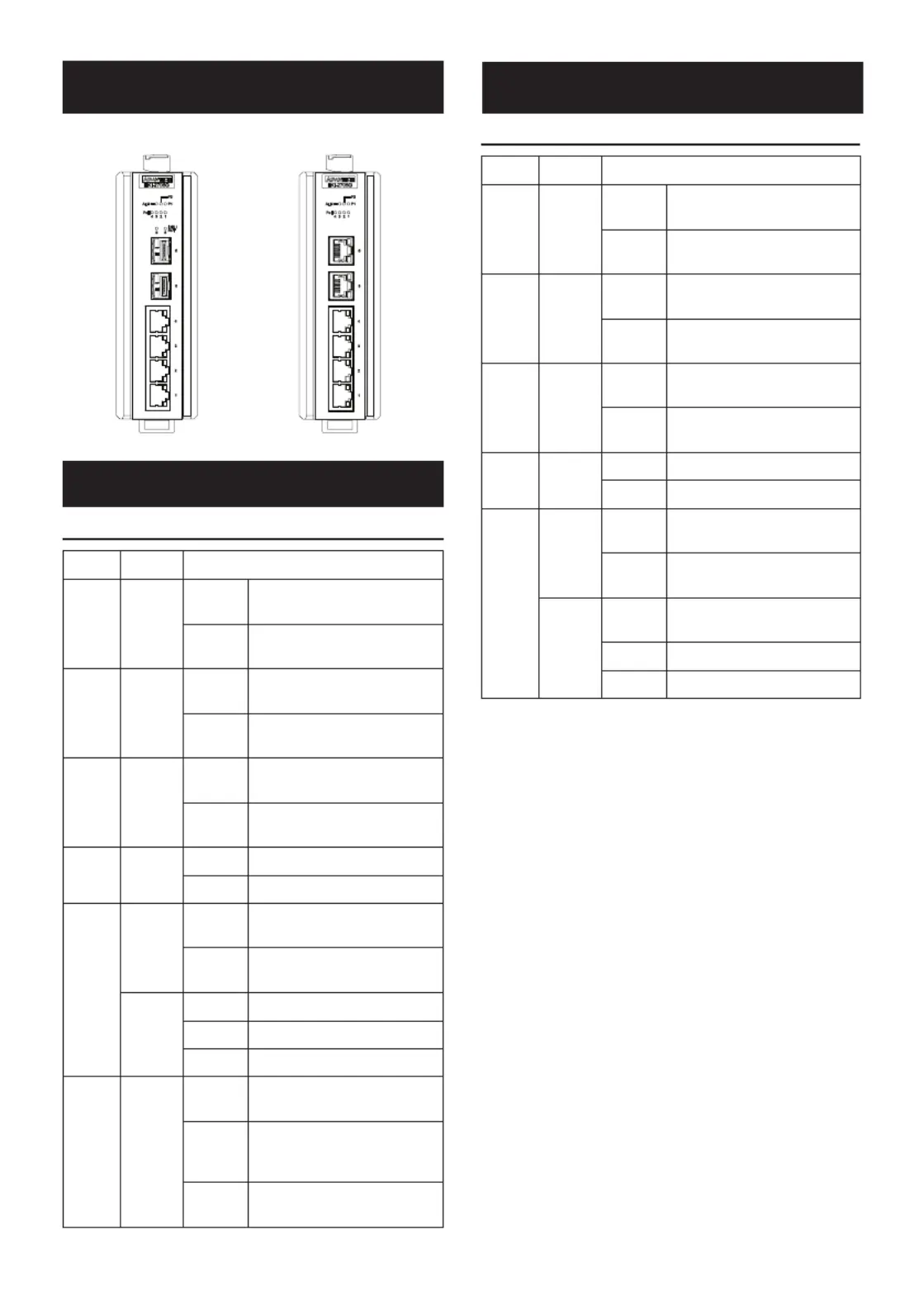

LED Denition
EKI-2706G-2FPI
LED Color Description
P1 Green
On
PWR1 is being supplied to
power input.
O󰀨
PWR1 is not being supplied
to power input.
P2 Green
On
PWR2 is being supplied to
power input.
O󰀨
PWR2 is not being supplied
to power input.
ALM Green
On
When PWR1 or PWR2 is
O󰀨
When PWR1 or PWR2 is
connected, the LED is o󰀨
PoE
(1~4)
Green
On PoE activated
O󰀨 PoE non-working
Copper
Ports
(1~4)
Green
(top)
On
When the port’s data is being
transmitted at 1000Mbps
O󰀨
When the port’s data is being
transmitted at 10/100Mbps
Green
(bottom)
On Ethernet port link
Blinking Ethernet port active
O󰀨 No link
SFP
Port
(5~6)
Green
On
The port has established
a link
Blinking
When Fiber port’s data
is being transmitted at
100M/1000Mbps.
O󰀨
When Fiber port linked
down/inactive
EKI-2706G-2GPI
LED Color Description
P1 Green
On
PWR1 is being supplied to
power input.
O󰀨
PWR1 is not being supplied
to power input.
P2 Green
On
PWR2 is being supplied to
power input.
O󰀨
PWR2 is not being supplied
to power input.
ALM Green
On
When PWR1 or PWR2 is
O󰀨
When PWR1 or PWR2 is
connected, the LED is o󰀨
PoE
(1~4)
Green
On PoE activated
O󰀨 PoE non-working
Copper
Ports
(1~6)
Green
(top)
On
When the port’s data is being
transmitted at 1000Mbps
O󰀨
When the port’s data is being
transmitted at 10/100Mbps
Green
(bottom)
On
Ethernet port link has been
established
Blinking Ethernet port active
O󰀨 No link
Overview
LED Denition (Cont.)
