MIC-75G30 Startup Manual 1

Before you begin installing your Expansion Module, please

make sure that the following items have been shipped:

• 1 x MIC-75G30 i-Module P/N: MIC-75G30-00C1

• 2 x 4-pin Phoenix connectors P/N: 1652003234

• 1 x SATA cable (30 cm / 11.8 in) P/N: 1700017838

• 1 x SATA cable (40 cm / 15.7 in) P/N: 1700020978-01

• 1 x mounting bracket (L) P/N: 1960005359T003

• 1 x mounting bracket (R) P/N: 1960094392N001

• 6 x screws for mounting brackets P/N: 1930007259-01

• 2 x GPU brackets P/N: 1960094390N000

• 10 x screws for GPU brackets P/N: 1930005673-11

• 5 x shockproof rubber pads P/N: 1990000505T000

• 1 x MIC-75G30 Startup Manual P/N: 20415G3002

Note:

* MIC-7 series H SKU does not support MIC-75G30. Please

refer to the i-Module datasheet for the compatibility matrix.

* If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

MIC-75G30

Dual GPU Expansion Module for Video AI Edge

Computing with the MIC-7 Series

Startup Manual

• Slots1&3: Blank

• Slots2&4: PCIe x16 (signal PCIe x8) for GPU card

• Slot5: PCIe x4

Environment

• OperatingTemp.: 0~35°C / 32~95°F (35W CPU w/

industrial SSD)

• Vibration:With SSD: 1 Grms @ 5~500 Hz, random, 1

hr/axis

• Shock: With SSD: 10G, IEC-68-2-27, half-sine wave,

11ms duration

MechanicalInformation

• MIC-75G30N.W.: 5 kg / 11 lb; G.W.: 7 kg / 15.4 lb

• Dimensions(W×H×D): 280 × 192 × 385 mm (11 x 7.55 x

15.1 in) (The dimensions provided are the dimensions of

the i-Module assembled in the MIC-77xx Series)

Connectors

No. Item Function

1 DCIN1 24V

2 PPCIE1 PCIe x16 slot

3 PPCIE2 PCIe x16 slot

4 PPCIE3 PCIe p1-x4 slot

5 SATAPWR1 4-pin SATA power connector (5V)

6 SATA signal connectorSATA1

7 SYSFAN1 4-pin fan connector

8 SYSFAN2 4-pin fan connector

9 GPUPWR1

6-pin power connector for GPU card

(12V, 17A)

10 GPUPWR2

6-pin power connector for GPU card

(12V, 17A)

11 GPUPWR3

6-pin power connector for GPU card

(12V, 17A)

12 GPUPWR4

6-pin power connector for GPU card

(12V, 17A)

13 DC12VOUT1 4-pin power connector (12V, 5A)

SpecicationsPackingList

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our sup-

port website for MIC-770 at:

http://advt.ch/MIC75G30

months extra warranty for free at:

http://www.register.advantech.com

This manual is for MIC-75G30 Rev. C1.

Part No. 20415G3003 4th Edition

Printed in China January 2025

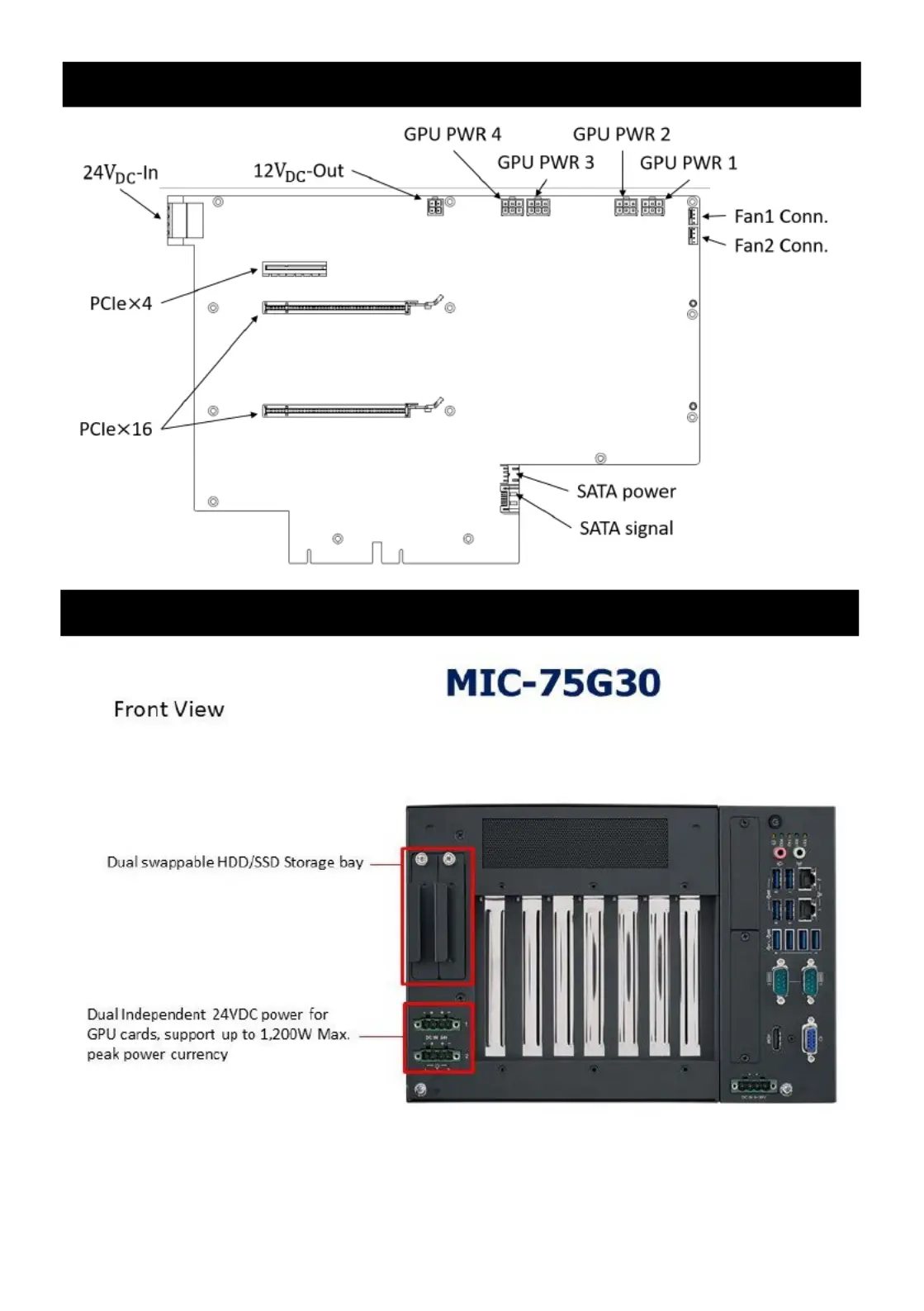

I/OConnectors

2 MIC-75G30 Startup Manual

I/OConnectors(Cont.)

FrontView
