Side 1/6

MIO-2263 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. 1 MIO-2263 SBC

2. 1 Startup Manual

3. 1 SATA cable p/n: 1700006291

4. 1 Audio cable p/n: 1700022444-01

5. 1 COM cable p/n: 1701200220

6. 1 SATA Power cable p/n: 1700019656

7. 1 USB cable p/n: 1700002172

8. AT power cable p/n : 1700019705

9. 1 Heatsink p/n: 1960063455T001

10. Screw and stud pack (2 screws

for Mini PCIe, 4 M3 studs and

screws for heatsink) p/n: 9666226300E

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: For detailed contents of MIO-2263, please refer

to Advantech website for detailed information.

Note 2: Acrobat Reader is required to view any PDF

ﬁle. Acrobat Reader can be downloaded at:

http://get.adobe.com/reader/ (Acrobat is a trade-

mark of Adobe)

Note 3: Default BIOS is supported for 64 bit OS installa-

tion, BIOS for 32 bit OS is supported by project,

please contact with sales representative for

details.

MIO-2263 Intel

Atom

SoC J1900/ E3825 Pico-ITX

SBC, DDR3L, 18/24-bit LVDS, VGA or HDMI, 1 GbE,

Half-size Mini PCIe, 4 USB, 2 COM, SMBus,

mSATA & MIOe

Startup Manual

General

• CPU: Intel

Atom™ SoC Quad core J1900 2.0 GHz/ Dual

core E3825 1.33 GHz

• System Memory: 1 x 204-pin SODIMM socket DDR3L

1333 MHz (J1900) / 1066 MHz (E3825), up to 8 GB

• L2 Cache: 2 MB (J1900) / 1 MB (E3825)

• BIOS: AMI EFI 64 Mbit Flash ROM

• Watchdog Timer: 255 level interval timer

Battery: Lithium 3 V/210 mAH

Note: How to clear CMOS (Must follow steps below):

1. Turn off system power.

2. Unplug CR2032 battery cable on BH1.

3. Waiting for 15 sec or short BH1 pin1-2.

4. Connect battery cable on BH1.

5. Turn on system power.

• Serial ATA: Two SATA II interface, one supports 2.5” HDD

and another for mSATA devices, up to 300 MB/s

• USB: One USB 3.0 and three USB 2.0 ports

• Audio: High deﬁnition audio (HD), line-in, line-out

• GPIO: 8-bit general purpose input/output

• Expansion Interface: Half size Mini PCIe

MIOe Expansion Slot

• Interface: 2 x USB 2.0, 2 x PCIe x1, LPC, HD Audio

line-out, SMBus, DP or HDMI supported by request, 5

Vsb/12 Vsb

• Total peripheral power supply output: 5 V @ 3 A for

CPU board and MI/O Extension module totally, 12 V @ 2

A for MI/O Extension module

VGA/HDMI Interface

• Controller: Intel

SoC J1900 / E3825, DirectX 11 and

OpenGL3.0 support for VGA and HDMI display output

Chrontel CH7511 for 18/24 bit LVDS display output

• Output Interfaces:

- VGA: Up to 1920 x 1200

- HDMI: 1920 x 1080

- LVDS: Single channel 18/24-bit LVDS,

up to 1440 x 900

- Dual Display: VGA + LVDS or HDMI + LVDS

Ethernet Interface

• Supports single 10/100/1000 Mbps Ethernet interface

• Controller: Intel® i210

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://service.advantech.com.tw/support/

This manual is for the MIO-2263 Series Rev. A1

Part No. 2006226301

Printed in China

2nd Edition

August 2014

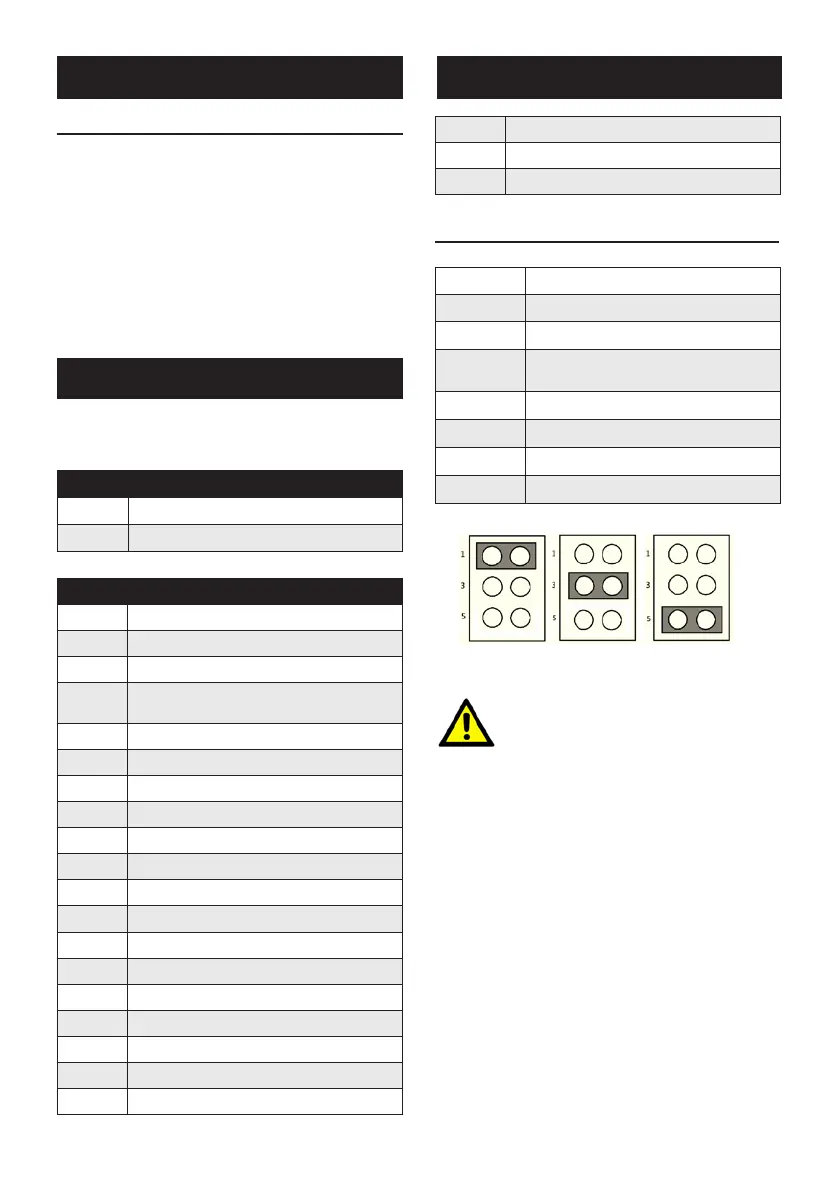

2 MIO-2263 Startup Manual

Mechanical and Environmental

• Dimensions: 100 x 72 mm (3.9” x 2.8”)

Mechanical Drawings are on page 4 - 6.

• Power Requirement: Single 12 V DC power input

• Power Consumption (with 8 GB memory):

- Typical in Window 8:

J1900: 0.86 A @ 12 V (10.59 W)

E3825: 0.59 A @12 V (7.08 W)

- Max in HCT:

J1900: 1.04 A @ 12 V (12.48 W)

E3825: 0.76 A @12 V (9.12 W)

• Operating Temperature: 0 ~ 60° C (32 ~ 140° F)

• Weight: 0.42 kg (0.93 lb) (reference total weight)

The board has a number of jumpers that allow you to con-

ﬁgure your system to suit your application. The table below

lists the function of each of the jumpers and connectors.

Jumpers

Label Function

LCD Power / Auto Power on

Connectors

Label Function

CN1 12V Power Input

CN2 DC JACK (support by request)

CN3

12 V Power Input (2 x 3 pin support by

request)

CN6 DDR3L SO-DIMM

CN9 GPIO

CN11 VGA

CN12 HDMI

CN13 Front Panel

CN14 S ATA

CN15 m SATA

CN16 Mini PCIe

CN18 Internal USB

CN19 External USB3.0 + USB2.0

CN20 COM1/ COM2

CN24 Gigabit Ethernet

CN27 HD Audio

CN29 MIOe

CN30 Inverter Power/Internal SATA Power

Jumpers and Connectors

Specications Cont.

CN31 18/24 bits LVDS Panel

CN33 SMBus

BH1 Battery

Jumper Settings

LCD Power / Auto Power On

Part Number 1653003260

Footprint

HD_3x2P_79

Description

PIN HEADER 3*2P 180D(M) 2.0 mm

SMD 21N22050

Setting

Function

(1-2) +5 V

(3-4)* +3.3 V

(5-6)* Auto Power On

* default

Caution! The computer is provided with a battery-powered

real-time clock circuit. There is a danger of explo

sion if battery is incorrectly replaced. Replace

only with same or equivalent type recommended

by the manufacturer. Discard used batteries ac-

cording to manufacturer’s instructions.
