MIO-4370 Startup Manual 1

Before you begin installing your system, please make sure

that the following items have been shipped:

1. 1 x MIO-4370 SBC

2. 1 x USB 2.0 Cable 20cm (P/N: 1700030406-01)

3. 1 x Audio Cable 20cm (P/N: 1700019584-01)

4. 2 x COM Cable 20cm (P/N: 1700030404-01)

5. 1 x Startup Manual (P/N: 2046437000)

6. 1 x Screw Kit (3 x M3x5L screws for the M.2 module, 4

sets of screws and stand-o󰀨)

7. 1 x Jumper Kit (10 x Jumpers)

8. 1 x WISE-DeviceOn Package

9. 1 x McAfee/Acronis Package

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

Note 1: For detailed contents regarding MIO-4370,

please refer to information on the support web-

site: https://www.advantech.com/en/support.

Note 2: Adobe Reader is required to view any PDF le.

Adobe Reader can be downloaded at: https://get.

adobe.com/reader/otherversions/ (Adobe is the

trademark of Adobe Systems Incorporated.)

MIO-4370

12th/13th Gen. Intel

Core™ Processor (LGA1700

Socket Type), 4" EPIC SBC, DDR5, Dual HDMI,

eDP, 2 x 2.5GbE with TSN, 4 x USB 3.2, CAN Bus,

TPM

General

• CPU:

- Intel

Core™ i9-12900TE (16 Cores / 24 Threads, up to

4.8 GHz)

- Intel

Core™ i7-12700TE (12 Cores / 20 Threads, up to

4.6 GHz)

- Intel

Core™ i5-12500TE (6 Cores / 12 Threads, up to

4.3 GHz)

- Intel

Core™ i3-12100TE (4 Cores / 8 Threads, up to

4.0 GHz)

• Chipset: R680E/H610E

• System memory: DDR5-4800 up to 32GB, SODIMM,

Single Channel

• BIOS: AMI UEFI 256Mbit

• Watchdog timer: 65536 level, 0~65535 sec (Multi-level

WDT)

• TPM: Support

• Battery: Lithium 3V/220mAH

• Audio: Supports High Denition Audio (HD), Line-in, Line-

out, and Mic-in.

Expansion Interface

• 2 x M.2 M-Key (Chipset: R680E ) or 1 x M.2 M-Key (Chip-

set: H610E) for 2280 module (PCIe Gen 4 x4)

• 1 x M.2 E-Key for 2230 module (PCIe x1, USB 2.0)

• 1 x M.2 B-Key (Chipset: H610E only) with SIM slot for

3042 module (USB 2.0 only)

Display

• Controller:

- Intel

UHD Graphics 770 with 32 Execution Units

- Intel

UHD Graphics 730 with 24 EUs (i3-12100TE only)

• Maximum resolution:

- LCD: 1 x eDP 1.4b, up to 5120 x 3200 @ 60Hz, 24bpp

- HDMI: 2 x HDMI 1.2, up to 1920 x 1200 @ 60Hz, 24bpp

• Multiple displays: eDP + HDMI + HDMI

Ethernet Interface

• Controller: LAN1/LAN2: Intel® i225

• Speed: LAN1/LAN2: up to 2.5GbE with TSN support

I/O

• External I/O: 2 x RJ-45, 2 x HDMI, 4 x USB 3.2

• Internal I/O: 2 x USB 2.0, 2 x RS-232/422/485, CANBus,

C, Audio, GPIO, Front Panel

• Power connector type: ATX 2x2 pin 180D (Optional ATX

2x2 pin 90D)

Specications Packing List

For more information about this and other Advantech

products, visit our website at:

https://www.advantech.com/en

For technical support and customer service, visit our

support website at:

https://www.advantech.com/en/support

This manual is for the the MIO-4370 series.

Part No. 2046437000

Printed in China

Edition 1

March 2023

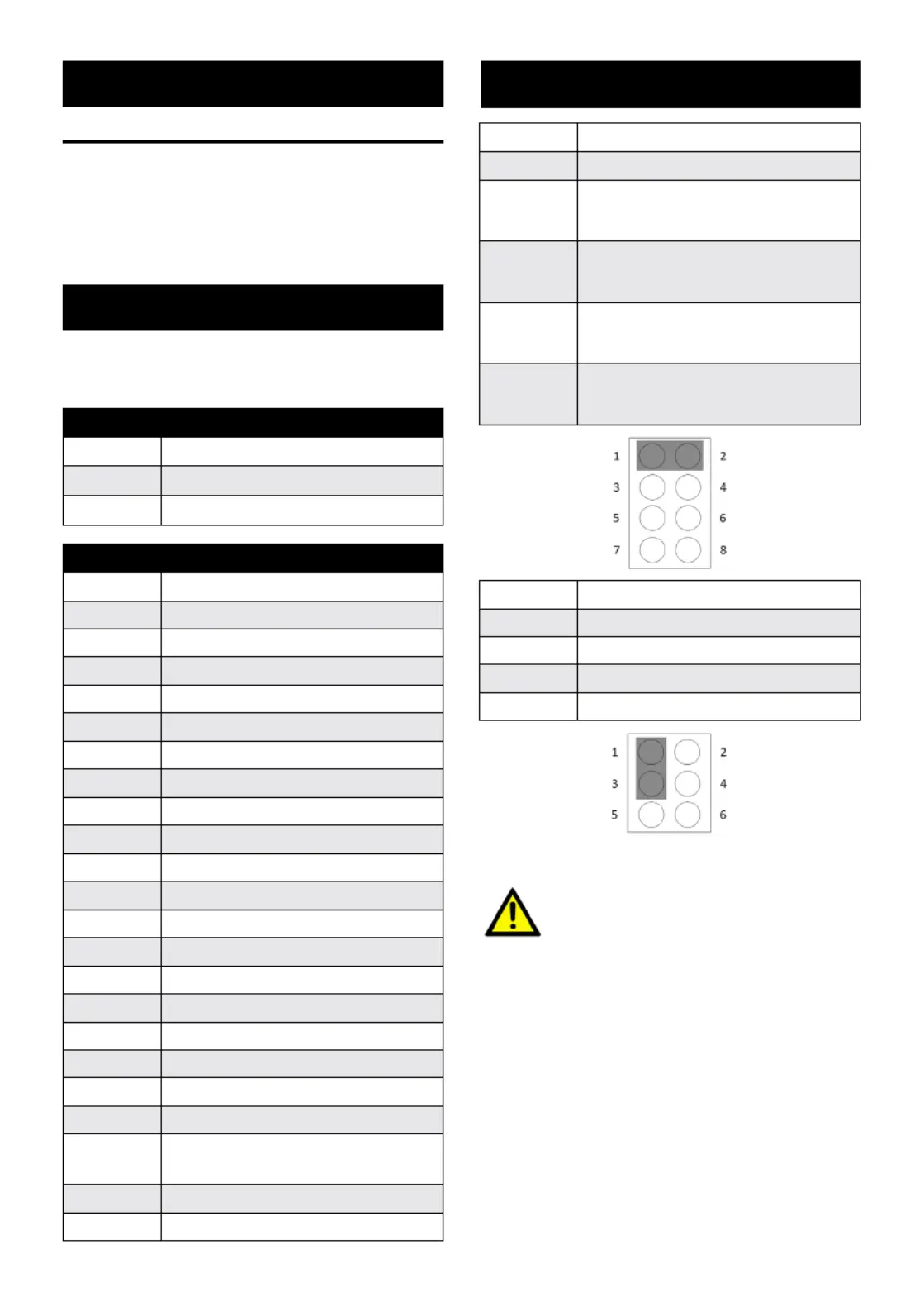

2 MIO-4370 Startup Manual

Mechanical and Environmental

• Dimensions (L x W): 165 x 114 mm (6.5" x 4.5")

• Power supply type: Supports ACPI

• Power requirement: Vin: DC 12V ± 10%

• Operating temperature: Standard: 0 ~ 60°C (32 ~

140°F)

• Net Weight: 320 g (w/o CPU & Cooler)

The board has a number of jumpers that allow you to congure

your system to suit your application. The table below lists the

function of each of the jumpers and connectors.

Jumpers

Location

Functions

J1 AT Mode/Load BIOS Default

VDD1 Panel Voltage Selection Jumper

Connectors

Location Functions

DCIN1 DC Power Input Connector (180D)

AUDIO1 AUDIO CABLE Connector

eDP1 eDP Connector

COM1 COM Port Internal Connector 1

COM2 COM Port Internal Connector 2

CN1 Front Panel Internal Connector

CN4 GPIO Connector

CANBUS1 CANBus Connector

USB3 USB 2.0 Internal Connector

LAN1 LAN Connector 1

LAN2 LAN Connector 2

USB1 USB 3.2 Connector 1

USB2 USB 3.2 Connector 2

HDMI1 Dual HDMI Connector

FAN1 Smart FAN Connector

DIMMA1 DDR5 SODIMM

I2C_1 I2C_SMB_Connector

BAT1 RTC Battery Connector

M2_M2 M.2 M-Key Connector

M2_M1

(M2_B1)

M.2 M-Key Connector (Co-layout & BOM

Option: M.2 B-Key Connector)

SIM1 NANO SIM (Co-layout & BOM option)

M2_E1 M.2 E-Key Connector

Jumper Settings

AT Mode/Load BIOS Default

Setting Function

(1-2)*

AT_DET#

Open: ATX mode

Short: AT mode (*Default)

(3-4)

NORMAL_BIOS

Open: Normal (Default)

Short: (reserved)

(5-6)

LOAD BIOS Default setting:

Open: Normal (Default)

Short: Load BIOS Default

(7-8)

Top Swap:

Open: Normal (Default)

Short: Top Swap function

VDD1 Panel Voltage Selection

Setting Panel Voltage

(1-3)* Short +3.3V (*Default)

(3-5) Short +5V

(3-4) Short +12V

Caution! The computer is provided with a battery-powered

real-time clock circuit. There is a danger of

explosion if the battery is incorrectly replaced.

Replace only with the same or equivalent type

recommended by the manufacturer. Discard

used batteries according to the manufacturer’s

instructions

Jumpers and Connectors

Specications(Cont.)
