MIOe-210 Startup Manual 1

Before you begin installing your board, please make sure

that the following items have been shipped:

• 1 x MIOe-210 module

• 2 x COM RS-422/485 Cable (P/N 1703040157)

• Startup Manual

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note1: Acrobat Reader is required to view any PDF ﬁle.

Acrobat Reader can be downloaded at: www.

adobe.com/Products/acrobat/readstep2.html

(Acrobat is a trademark of Adobe)

MIOe-210 MI/O Extension Module, 4 x RS232/422/485, 2 x RS422/485,

8-bit GPIO

Startup Manual

General

• Bus Interface: MI/O Extension

• Chipset:

SMSC SCH3114

• Ports: 4 x RS232/422/485, 2 x RS422/485

• GPIO: 8-bit with +3.3V level

Communications

• Data Bits: 5, 6, 7, 8

• Data Signals:

-- RS-422: TxD+, TxD-, RxD+, RxD-

-- RS-485: DATA+, DATA-

-- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI,

GND

• IRQ: Share single IRQ, Depends on MI/O CPU Board

• Parity: even, odd, sticky or no

• Speed: 50 to 460k, 921k1 and 1.5M1 Baud

• Stop Bits: 1, 1.5, 2

Mechanical and Environmental

• Dimensions (L x W): 146 x 102 mm (5.7 x 4 inches)

• Power Supply Voltage: By MI/O Extension only

• EFT Protection: Air gap ±15kV, Contact ±8kV

• Power Requirement: +12 V ± 10%

• Operating Temperature: 0~60°C (32~140°F)

• Operating Humidity: 0 ~ 90 % relative humidity, non-

condensing

• Storage Temperature: -40° C ~ 85° C and 60° C @ 95%

RH Non-Condensing

• Weight: 0.186 kg (0.41 lb)

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://service.advantech.com.tw/support/

This manual is for the MIOe-210.

Part No. 2006E21000

Printed in China

1st Edition

April 2012

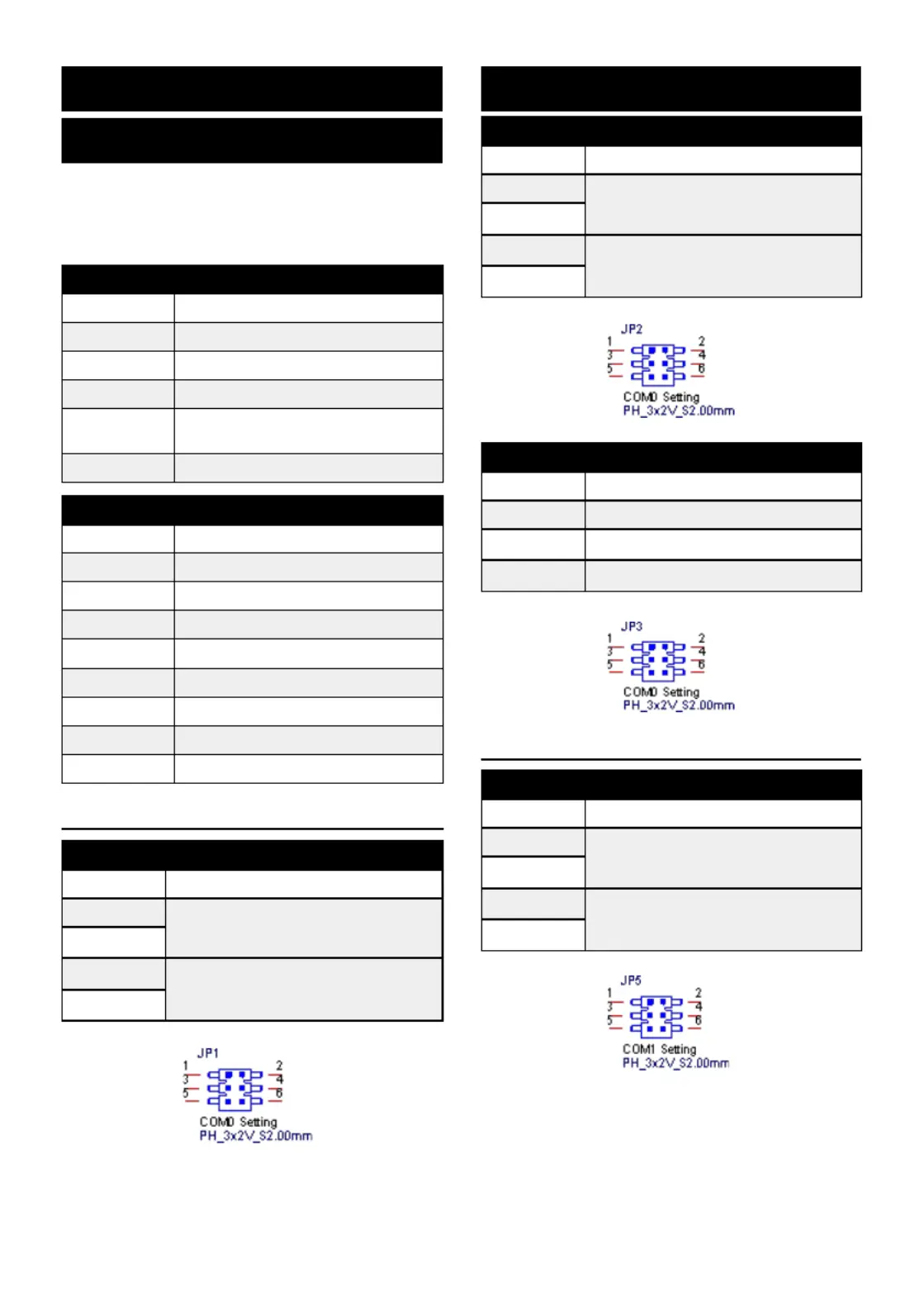

2 MIOe-210 Startup Manual

Jumpers and Connectors

The board has a number of connectors and jumpers that

allow you to conﬁgure your system to suit your application.

The table below lists the function of each of the jumpers and

connectors.

Jumpers

Label Function

JP1, JP2, JP3 COM0 RS-232/422/485 setting

JP4, JP5, JP6 COM1 RS-232/422/485 setting

JP7, JP8, JP9 COM2 RS-232/422/485 setting

JP10, JP11,

JP12

COM3 RS-232/422/485 setting

JP13 COM4/5 RS-422/485 setting

Connectors

Lable Function

CN1 MIOe

CN2 GPIO

CN4 COM4

CN6 COM5

CN9 COM0

CN10 COM1

CN11 COM2

CN12 COM3

COM0 setting

JP1: COM0

Setting Function

1-3*

RS-232

2-4*

3-5

RS-422/485

4-6

*: default

JP2: COM0

Setting Function

1-3*

RS-232

2-4*

3-5

RS-422/485

4-6

*: default

JP3: COM0

Setting Function

1-2 RS-485

3-4 RS-422

5-6* RS-232

*: default

COM1 setting

JP5: COM1

Setting Function

1-3*

RS-232

2-4*

3-5

RS-422/485

4-6

*: default
