PCE-5B18-88B1E (PCE-7B19-88B1E) Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• One 2 Ports USB Cable p/n: 1700002204

• PCE-5B18-88B1E (PCE-7B19-88B1E)

Startup Manual

• M4*6*0.7 Round Screws (15pcs) p/n: 1939000410

• 2 Year Quality Warranty Card p/n: 2190000902

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

PCE-5B18-88B1E (PCE-7B19-88B1E) Backplane: 19

(18)-slot BP for 20-slot Chassis, 1 x PICMIG 1.3, 2 x (1)

PCIe, 8 x 64-bit PCI-X, 8 x 32-bit PCI

Startup Manual

Standard Functions

• PICMIG 1.3 slots:

PCE-7B19-88 supports PCE-7xxx CPU boards

PCE-5B18-88 supports PCE-5xxx CPU boards

• PCIe slots:

PCE-7B19-88 supports two PCIe p1-x8 slots

PCE-5B18-88 supports one PCIe x16 slot

• 64-bit PCI-X slots:

Eight 64 Bit / 66 MHz PCI-X slots

• 32-bit PCI slots:

Eight 32 Bit / 33 MHz PCI slots

Bridge Chip: Pericom PI7C8150BMAE

• USB (2.0) ports:

Four Universal Serial Bus ports as pin headers

Mechanical and Environmental

• Dimensions: 327.66 x 417 mm

• Power supply voltage: +12 V, +5 V, -12 V, -5 V,

+3.3 V, +5 VSBY

• Power requirements: Refer to the CPU board, add-

on card & peripherals

• Operating temperature: 0 ~ 60 °C

• Weight: 1.7 kg (weight of board)

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com/

This manual is for the PCE-5B18-88B1E (PCE-7B19-

88B1E) series.

Part No. 20027B1902

Printed in China

3rd Edition

October 2014

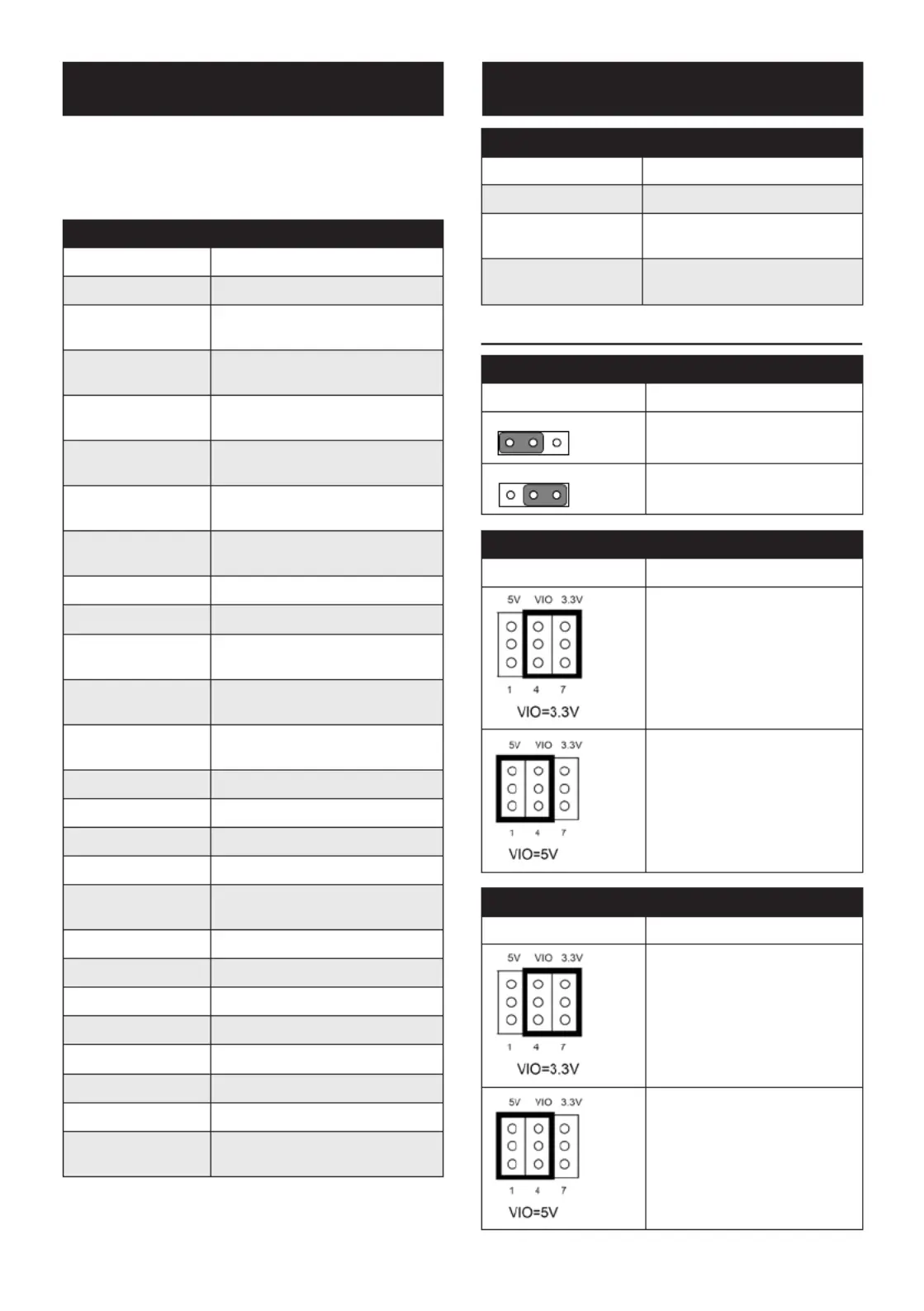

2 PCE-5B18-88B1E (PCE-7B19-88B1E) Startup Manual

The backplane has a number of connectors and jumpers

that allow you to conﬁgure your system to suit your

application. The table below lists the function of each of

the jumpers and connectors:

Connectors

Part Reference Function

SHBA1 ~ SHBD1 PICMG 1.3 CPU board slot

PPCIE1

PCE-7B19-88: PCIe p2-x8 slot

PCE-5B18-88: Not available

PPCIE2

PCE-7B19-88: PCIe p2-x8 slot

PCE-5B18-88: PCIe x16 slot

P1PCIX1 ~ P1PCIX4

64 Bit / 66 MHz PCI-X bus slot

(primary 1)

P2PCIX1 ~ P2PCIX4

64 Bit / 66 MHz PCI-X bus slot

(primary 2)

PPCI1 ~ PPCI3

32 Bit / 33 MHz PCI-(X) bus slot

(primary 3)

SPCI1 ~ SPCI5

32 Bit / 33 MHz PCI-(X) bus slot

(secondary)

EATXPWR1 ATX 2.0 power connector

EATPWR1 AT 12-pin power connector

ATX12V1

ATX 12 V auxiliary 4-pin power

connector

ATX12V2

ATX 12 V auxiliary 4-pin power

connector

EATX12V1

ATX 12 V auxiliary 8-pin power

connector

PWR3V1 3.3 V auxiliary power connector

PWR3V2 3.3 V auxiliary power connector

PWR5V1 5 V auxiliary power connector

PWR5V2 5 V auxiliary power connector

VOLT1

Alarm board / CMM power con-

nector

FAN1 ~ FAN7 Fan connectors

FANDEC1 Fan speed detector connector

SMBUS1 ~ SMBUS3 Chassis sensor board connectors

JFP1 Power and reset button connector

IPMB1 IPMB connector

USB12 Two USB port pin header

USB34 Two USB port pin header

PSON2

5VSB and PSON connector for AT

power supply

Jumpers

Part Reference Function

PSON1 ATX / AT mode selection

JP1VIO1

Primary 1 PCI-X bus VIO voltage

selection

JP2VIO1

Primary 2 PCI-X bus VIO voltage

selection

Jumper Settings

PSON1: ATX / AT Mode Selection

Jumper Setting Function

AT Mode

ATX Mode (Default)

JP1VIO1: Primary 1 PCI-X Bus VIO Voltage Selection

Jumper Setting VIO

3.3 V (Default)

5 V

JP2VIO1: Primary 2 PCI-X Bus VIO Voltage Selection

Jumper Setting VIO

3.3 V (Default)

5 V

123

Connectors and Jumpers Connectors and Jumpers (Cont.)
