1 Startup Manual
Packing List
Before installation, please make sure that you have
received the following:
PCI-1733 card
Driver CD
Quick Start User Manual
If anything is missing or damaged, contact your
User Manual
For more detailed information on this product, please
refer to the PCI-1730_1733_1734 User Manual on the
CD-ROM (PDF format).
CD:\Documents\Hardware Manuals\PCI\PCI-1730
Specications
Isolated Digital Input
Number of Channels 32 (bi-directional)
Optical Isolation 2,500 VDC
Opto-isolator response time 100 μs
Over-voltage Protection 70 VDC
Input Voltage
VIH (max.) 30 VDC
VIH (min.) 5 VDC
VIL (max.) 2 VDC
Input Current
5 VDC 1.4 mA (typical)
12 VDC 3.9 mA (typical)
24 VDC 8.2 mA (typical)
30 VDC 10.3 mA
(typical)
General
I/O Connector Type 37-pin D-Sub female
Dimensions 175 mm x 100 mm ( 6.9" x 3.9" )
Power Consump-
tion
Typical +5 V @ 200 mA
+12 V @ 50 mA
Max. +5 V @ 350 mA
Temperature
Operation 0 ~ +60°C (32~ 140°F )
(refer to IEC 68 -2 - 1 ,2)
Storage -20 ~ +70°C (-4 ~158°F)
Relative Humidity
5 ~ 95% RH non-condensing
(refer to IEC 60068-2-3)
Certication CE/FCC
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
interference in which case the user is required to correct
interference at his own expense.
CE
This product has passed the CE test for environmental
specications when shielded cables are used for external
wiring. We recommend the use of shielded cables. This
kind of cable is available from Advantech. Please contact
your local supplier for ordering information.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCI-1733.
Part No: 2003173301 2nd Edition
June 2015
STARTUP MANUAL
Overview
PCI-1733
32-channel Isolated Digital Input Card
The Advantech PCI-1733 is a 32-channel isolated digital
input card for the PCI bus. For easy monitoring, each
isolated digital input channel is equipped with one red
LED, and each isolated digital output channel is equipped
with one green LED to show its ON/OFF status. The PCI-
1733’s isolated digital input channels are ideal for digital
input in noisy environments or with oating potentials.
The PCI- 1733 provides specic functions for different
user requirements.
Startup Manual 2
Hardware Installation
1. Turn off your computer and unplug the power
cord and cables. TURN OFF your computer
before installing or removing any components
on the computer.
2. Remove the cover of your computer.
3. Remove the slot cover on the back panel of your
computer.
4. Touch the metal surface of your computer to
neutralize any static electricity that may be on
your body.
5. Insert the PCI-1733 card into a PCI slot. Hold
the card only by its edges and carefully align
it with the slot. Insert the card rmly into
place. Use of excessive force must be avoided,
otherwise the card might be damaged.
6. Fasten the bracket of the PCI card on the back
panel rail of the computer with screws.
7. Connect appropriate accessories (37-pin cable,
wiring terminals, etc. if necessary) to the PCI
card.
8. Replace the cover of your computer chassis.
Reconnect the cables you removed in step 2.
9. Plug in the power cord and turn on the computer.

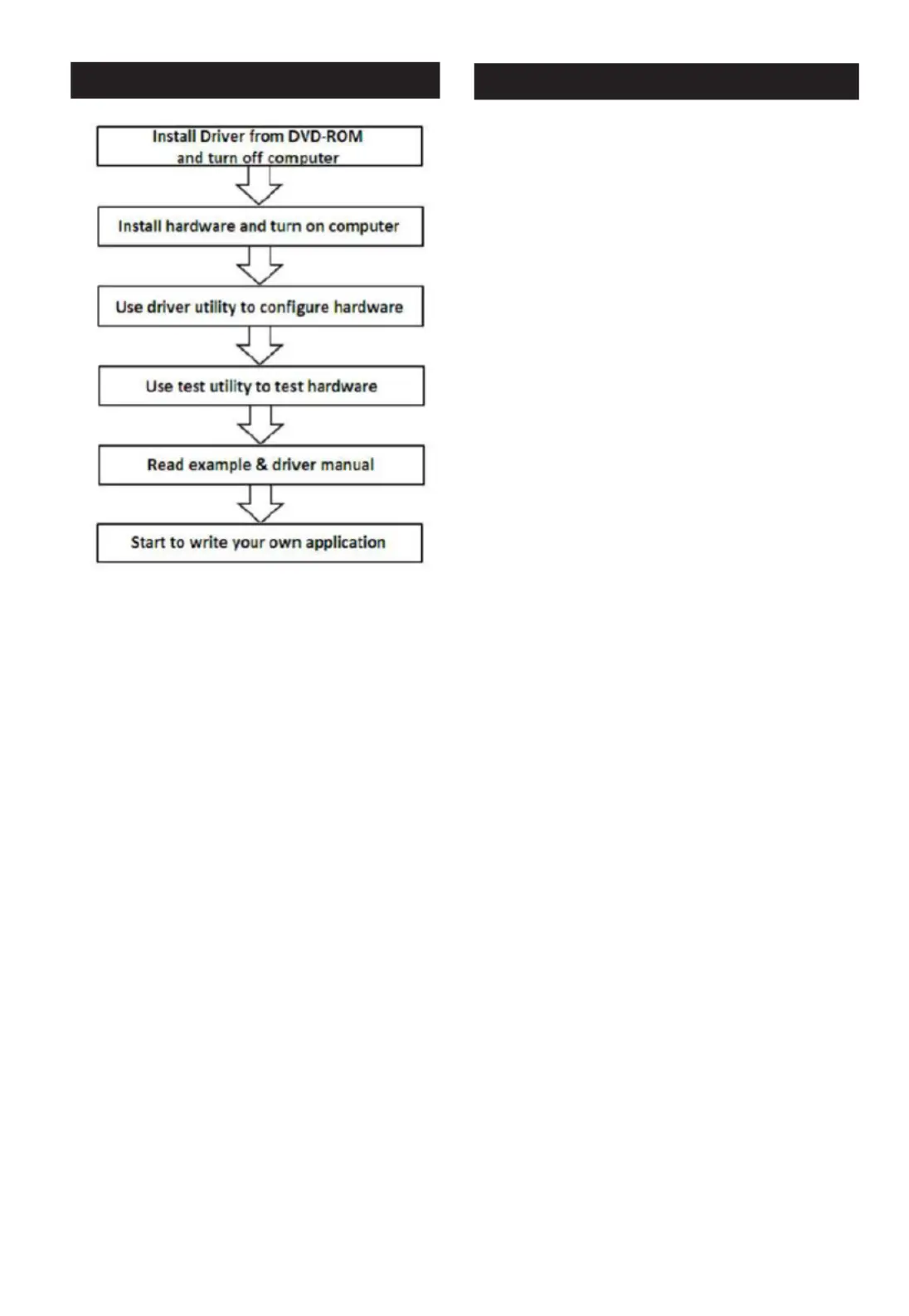

Software Installation
