1 Startup Manual
Packing List
Before installation, please make sure that you have received
the following:
• PCI-1737U card
• Driver CD
• Quick Start User Manual
If anything is missing or damaged, contact your distributor or
User Manual
For more detailed information on this product, please refer to
the 1737U User Manual on the CD-ROM (PDF format).
Specifications
Digital Input
Number of Input Channels
24 (Shared with output)
Compatibility
5V/TTL
Interrupt Inputs
1 (PC00)
Input Voltage
Logic 0 : 0.8 V (max.)
Logic 1 : 2 V (min.)
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause interference in which case the user is
required to correct interference at his own expense.
CE
This product has passed the CE test for environmental
specifications when shielded cables are used for external
wiring. We recommend the use of shielded cables. This kind
of cable is available from Advantech. Please contact your
local supplier for ordering information.
Notes
For more information on this and other Advantech products,
please visit our websites at:
http://www.advantech.com
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCI-1737U.
Part No: 2003173720 1st Edition
July 2015
STARTUP MANUAL
Overview
PCI-1737U
24 channel Digital I/O Universal PCI Card
The PCI-1737U is a 24-bit DI/O card with PCI bus . It pro-
vides you with 24 bits of parallel digital input /output. It emu-
lates mode 0 of the 8255 PPI chip , but the buffered circuits
offer a higher driving capability than the 8255.The I/O bits
are divided into three 8-bit I/O ports: A0, B0, and C0.You can
configure each port as either input or output via software.
General
I/O Connector Type
50-pin box header
Dimensions
170 mm x 100 mm (6.9” x 3.9”)
Power Consumption
+5V @ 300 mA (max.)
Temperature
Operation 0 ~ +60°C (32~ 140°F )
(refer to IEC 68 -2 - 1 ,2)
Storage -20 ~ +70°C (-4 ~158°F)
Relative Humidity
5 ~ 95% RH non-condensing
(refer to IEC 60068-2-3)
Certification
CE/FCC
Digital Output
Number of Output Channels
24 (Shared with input)
Compatibility
5V/TTL
Input Voltage
Logic 0 : 0.8 V max. @+24
mA (sink)
Logic 1 : 2 V min. @-15 mA
(source)

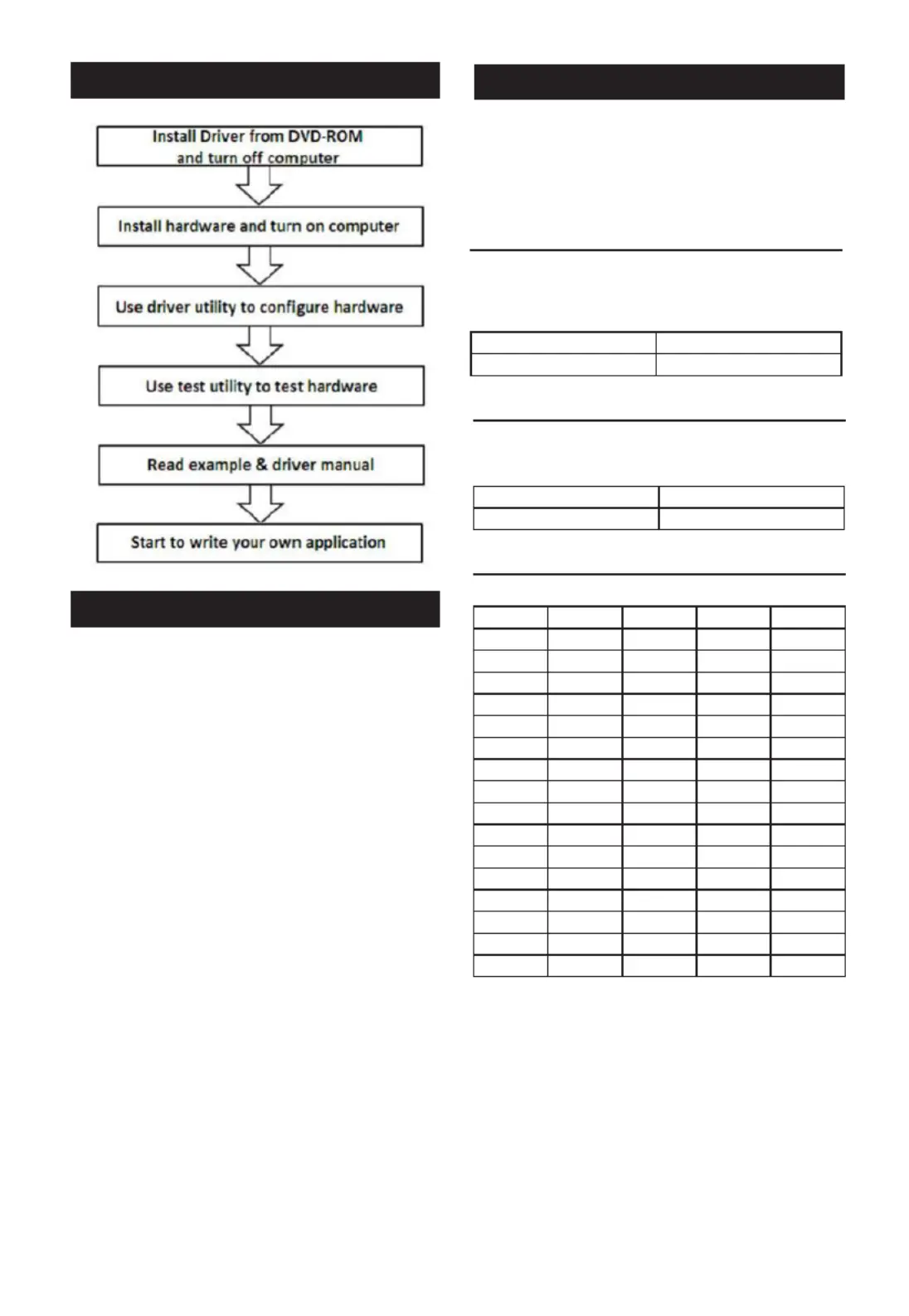

Startup Manual 2
Hardware Installation
1. Turn off your computer and unplug the power cord
and cables. TURN OFF your computer before install-
ing or removing any components on the computer.
2. Remove the cover of your computer.
3. Remove the slot cover on the back panel of your
computer.
4. Touch the metal surface of your computer to neutral-
ize any static electricity that may be on your body.
5. Insert the PCI-1737U card into a PCI slot. Hold the
card only by its edges and carefully align it with the
slot. Insert the card firmly into place. Use of excessive
force must be avoided, otherwise the card might be
damaged.
6. Fasten the bracket of the PCI card on the back panel
rail of the computer with screws.
7. Connect appropriate accessories (50-pin flat cable,
wiring terminals, etc. if necessary) to the PCI card.
8. Replace the cover of your computer chassis. Recon-
nect the cables you removed in step 2.
9. Plug in the power cord and turn on the computer.
Software Installation
Switch and Jumper Settings
We designed the PCI-1737U with ease-of-use in mind. It
is a “plug and play” card, i.e. the system BIOS assigns the
system resources such as base address and interrupt au-
tomatically. There are only some functions with 3 switches
to be set by the user. The following section describes how
to configure the card. You may want to refer to the figure
below for help in identifying card components.
Port Status Settings
Users can set the onboard I/O ports as input or output
separately. Please be aware that once dials the switch
to “ON” (Set port as output); the software setting will be
ignored.
ON Set port as output
OFF Set port I/O by software
Output Status Settings
Users can determine the output status of each port after
the system powering up or resetting. The function will be
effective only when the “Port Status Setting” switch is on.
ON Output LOW after reset
OFF Output HIGH after reset
Board ID Settings
ID3 ID2 ID1 ID0 Board ID
11110
11101
11012
11003
10114
10105
10016
10007
01118
01109
0 1 0 1 10
0 1 0 0 11
0 0 1 1 12
0 0 1 0 13
0 0 0 1 14
0 0 0 0 15
Note: On: 1, Off: 0
