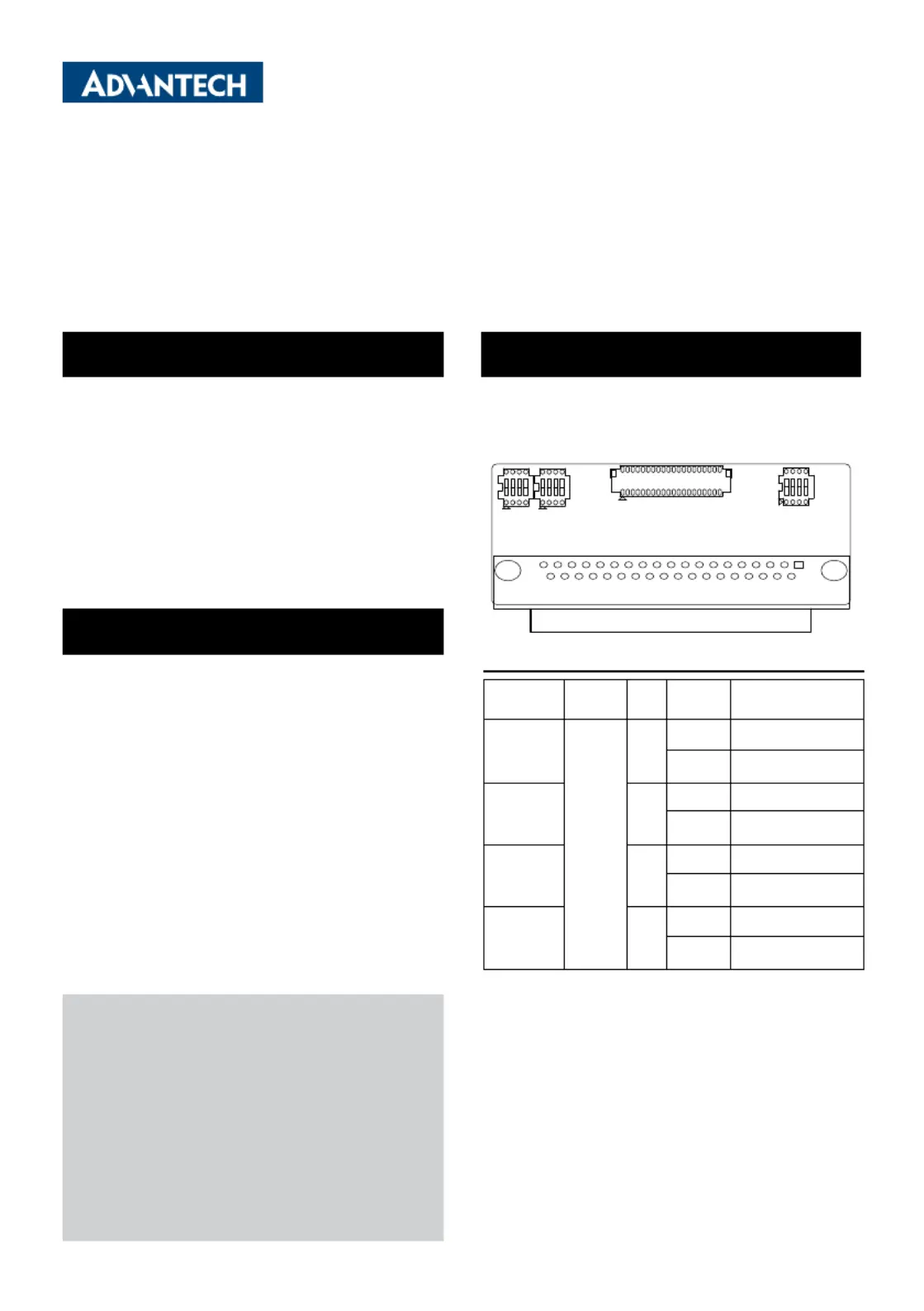

PCM-261X Startup Manual 1

Before installation, please make sure that you have:

1. mPCIe card with controller x 1

2. Wired cable x 1

3. DB37 to DB9(4 ports) cable x 1

4. Startup manual x 1

5. Warranty card x 1

6. DB37 IO plate with bracket x 1

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

The driver can be downloaded from the product website.

* Supports Windows XP/7/8/10, and Linux

PCM-2610B

PCM-2612B

4-Ports Non-Isolated RS-232 mPCIe, DB37

4-Ports Non-Isolated RS-422/485 mPCIe, DB37

Startup Manual

You can set the terminator resistor via jumper setting if

necessary to match impedance.

PCM-2612B Jumper switch setting as below.

Master/Slave Settings

COM

Port

Switch Pin Setting

Description

COM 1

SW1

ON RS-422 Master

OFF

RS-485/RS-422

Slave (Default)

COM 2 2

ON RS-422 Master

OFF

RS-485/RS-422

Slave (Default)

COM 3 3

ON RS-422 Master

OFF

RS-485/RS-422

Slave (Default)

COM 4 4

ON RS-422 Master

OFF

RS-485/RS-422

Slave (Default)

SW1

SW2

SW3

CN1

CN2

Packing List

For more information on this and other Advantech

products, please visit our website at

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com.tw/eservice

This manual is for PCM-2610B-AE/PCM-2612B-AE.

Part No. 2001261000

Printed in China

1st Edition

March 2018

Jumper Settings

Documentation/Software Support Guide

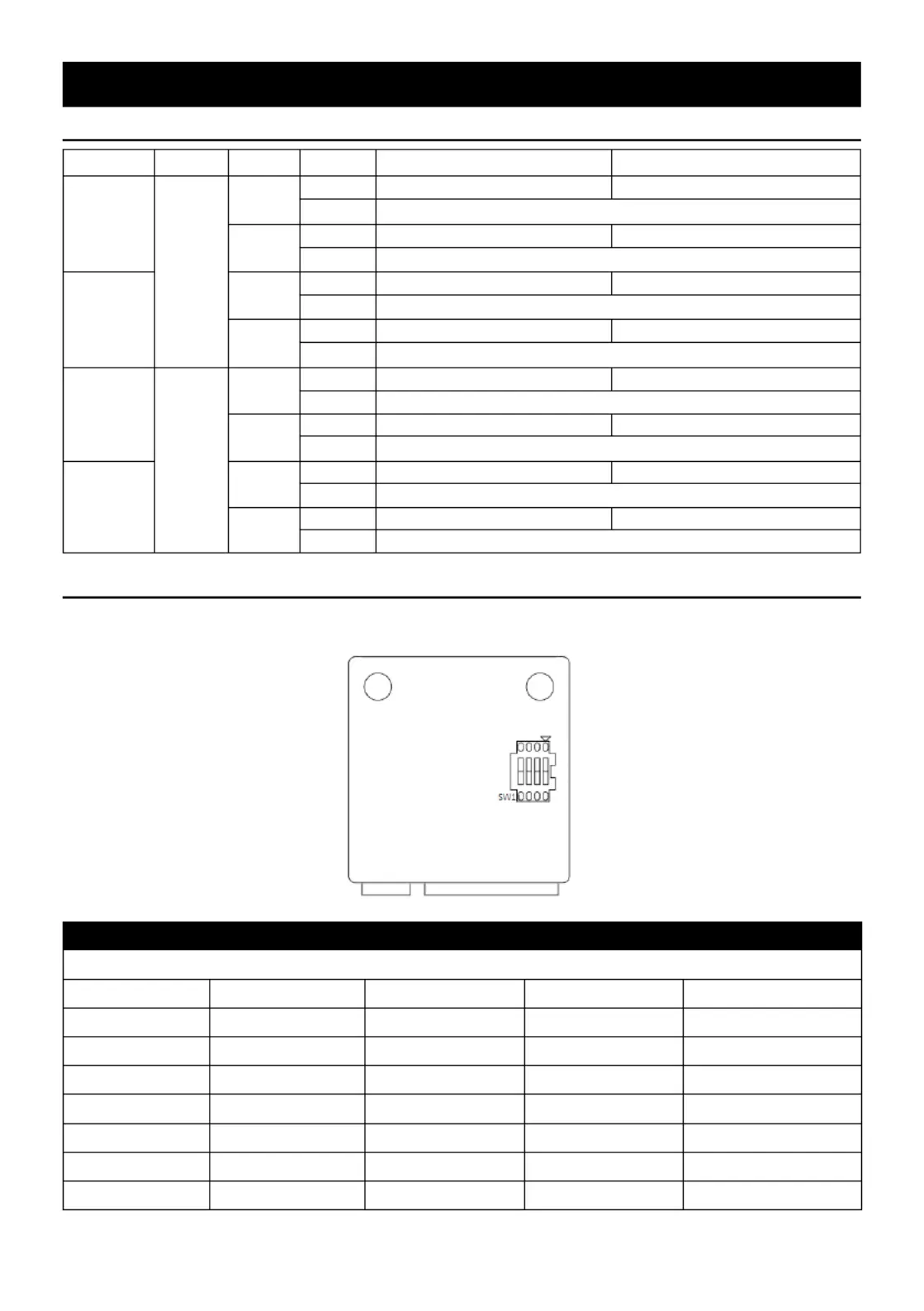

2 PCM-261X Startup Manual

Terminal Resistor Settings

COM Port Switch Pin Setting

RS-422 Des RS-485 Description cription

COM 1

SW2

ON 120 Ohm between Tx+/Tx- 120 Ohm between Data+/Data-

OFF Open (Default)

ON 120 Ohm between Rx+/Rx- Invalid

OFF Open (Default)

COM 2

ON 120 Ohm between Tx+/Tx- 120 Ohm between Data+/Data-

OFF Open (Default)

ON 120 Ohm between Rx+/Rx- Invalid

OFF Open (Default)

COM 3

SW3

ON 120 Ohm between Tx+/Tx- 120 Ohm between Data+/Data-

OFF Open (Default)

ON 120 Ohm between Rx+/Rx- Invalid

OFF Open (Default)

COM 4

ON 120 Ohm between Tx+/Tx- 120 Ohm between Data+/Data-

OFF Open (Default)

ON 120 Ohm between Rx+/Rx- Invalid

OFF Open (Default)

Board ID Setting

The comm. cards feature a built-in DIP switch for deﬁning the card’s board ID. When multiple cards are installed, the board ID

switch is useful for identifying the device number of each card.

Board ID Setting

SW Position 3 Position 2 Position 1 Position 0

BoardID BID3 BID2 BID1 BID0

0 ON ON ON ON

1 ON ON ON OFF

2 ON ON OFF ON

3 ON ON OFF OFF

4 ON OFF ON ON

5 ON OFF ON OFF

6 ON OFF OFF ON

Jumper Settings (Cont.)
