Side 1/2

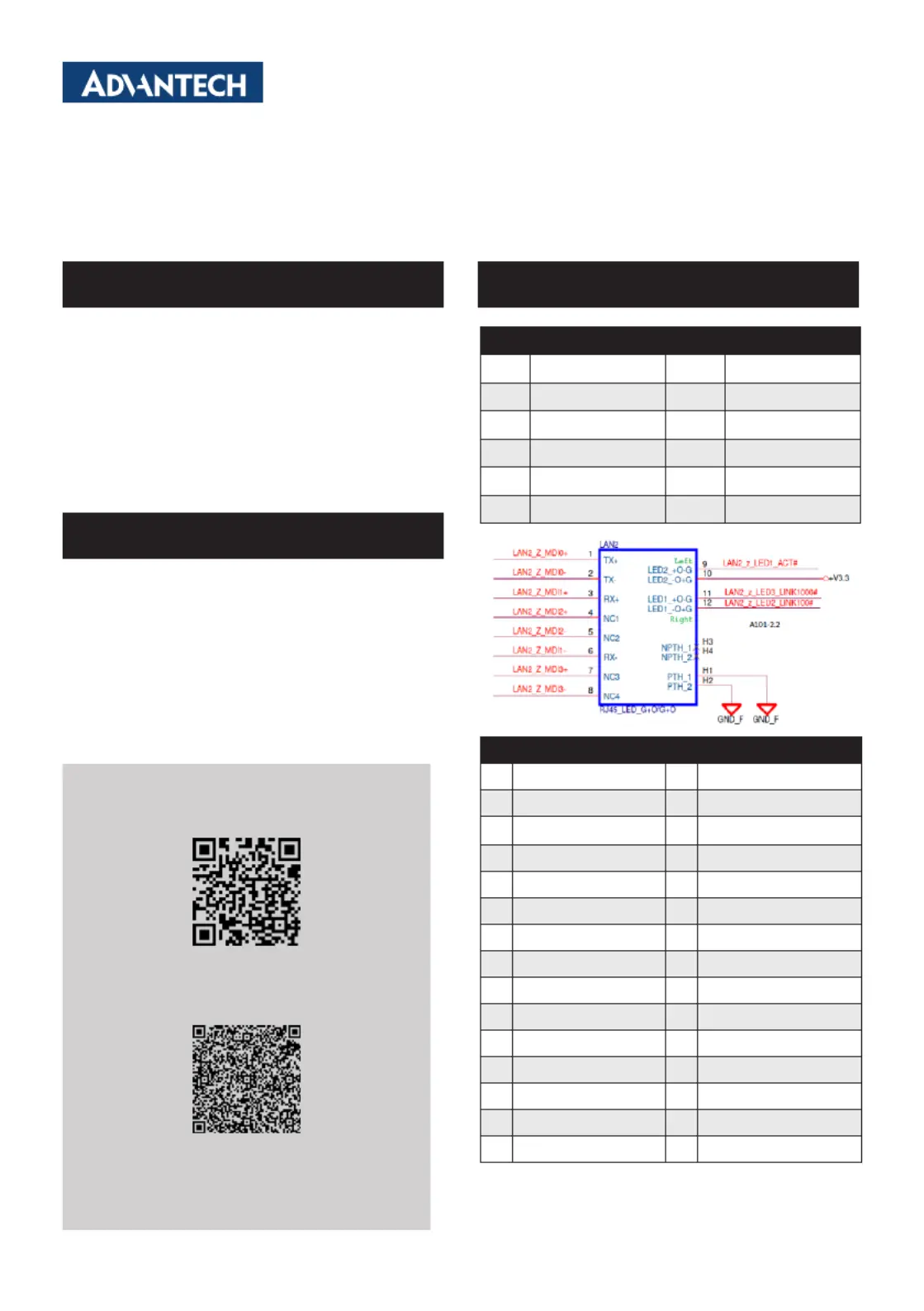

PCM-34R2GL Startup Manual 1

Before installation, please make sure that you have:

1. 1 x M.2 B+M key card with controller

2. 1 x 2-Port RJ45 I/O plate with iDoor bracket

3. 1 x Wired cable

4. 1 x Startup manual

5. 1 x Warranty card

If anything is missing or damaged, contact your distributor

or sales representative immediately.

The support documentation and drivers can be accessed

from Advantech website.

• Documentation

- Datasheet

- StartUp

• Drivers

PCM-34R2GL

Intel

I350, RJ45*2, M.2 B+M Key (2242, PCIe*1)

Startup Manual

PIN Assignment of RJ45 Connector

PIN1 MDI0+ PIN7 MDI3+

PIN2 MDI0- PIN8 MDI3-

PIN3 MDI1+ PIN9 LINK1000#

PIN4 MDI2+ PIN10 LINK100#

PIN5 MDI2- PIN11 +V3.3_LAN

PIN6 MDI1- PIN12 ACT#

CN1 - IO Board to M.2 B+M Key Cabling

1 3.3V 16 LAN2_LED3_LINK1000#

2 X 17 LAN1_LED1_ACT#

3 LAN2_MDI0+ 18 LAN1_LED2_LINK100#

4 LAN2_MDI0- 19 LAN1_LED3_LINK1000#

5 GND 20 LAN1_MDI0+

6 LAN2_MDI1+ 21 LAN1_MDI0-

7 LAN2_MDI1- 22 GND

8 GND 23 LAN1_MDI1+

9 LAN2_MDI2+ 24 LAN1_MDI1-

10 LAN2_MDI2- 25 GND

11 GND 26 LAN1_MDI2+

12 LAN2_MDI3+ 27 LAN1_MDI2-

13 LAN2_MDI3- 28 GND

14 LAN2_LED1_ACT# 29 LAN1_MDI3+

15 LAN2_LED2_LINK100# 30 LAN1_MDI3-

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/

This manual is for the PCM-34R2GL.

Part No. 204334R200

Printed in China

1st Edition

May 2024

Documentation/Software Support

PIN Assignment

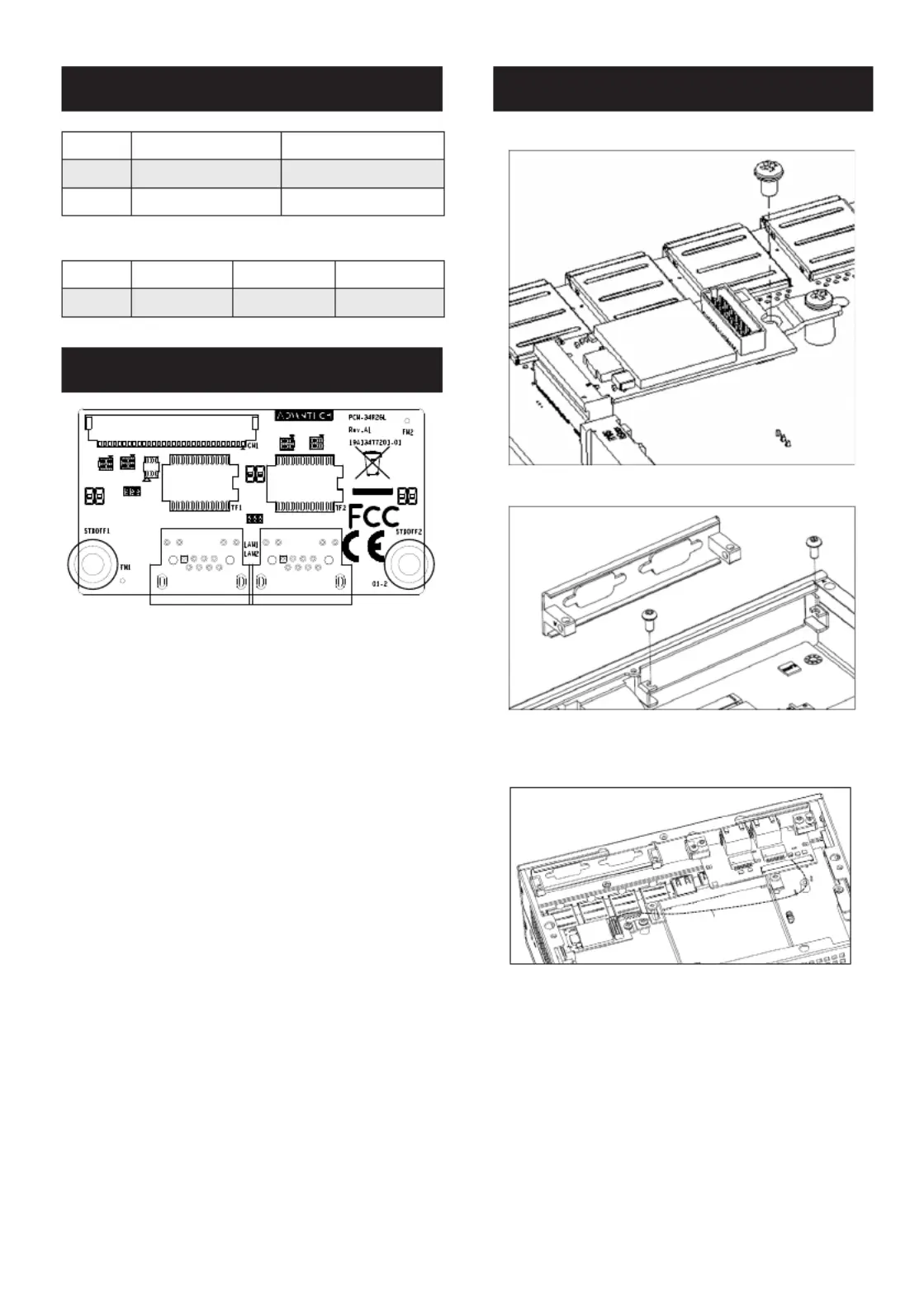

2 PCM-34R2GL Startup Manual

Active/Connecting Speed

Side Right Left

Color Green Green/Orange/Dark

Color indication for speed.

1G 100MB 10MB

Color Green Orange Dark

1. Insert the M.2 card and lock the screws.

2. Unscrew to remove the blank expansion plate.

3. Insert the PCM I/O plate through the blank plate hole

and lock the screws. Connect I/O plate to M.2 card with

the cable.

Embedded Computer Installation

Overview - I/O Board

LED Indication
