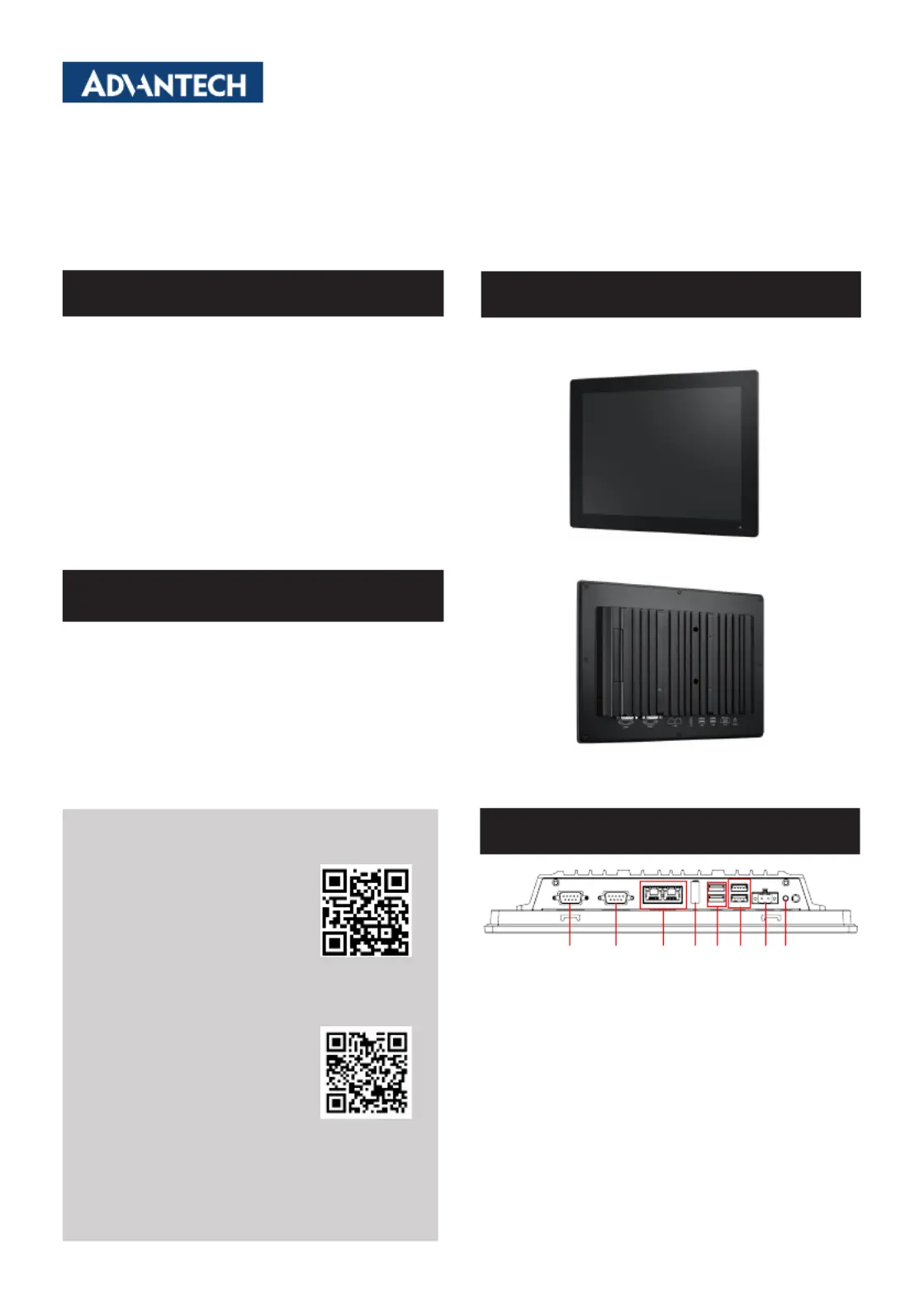

PPC-310S/312S ASL Startup Manual 1
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x PPC-310S/312S ASL startup manual
3. 1 x Phoenix connector
4. 8 x Mount brackets (PPC-310S/312S)
5. 8 x Mount screws (PPC-310S/312S)
your distributor or sales representative immediately.
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-310S/312S
10.4’’/12.1’’ Fanless Panel PC with Intel® X7433RE
Quad-Core Processor
Startup Manual
Note: The examples provided in this manual are of the
PPC-312S ASL model.
Front View
Rear View
A. COM1: RS-232/422/485 E. 3 x USB 3.2
B. COM2: RS-232/422/485 F. 2 x USB 2.0
C. 2 x LAN G. DC-In
D. DP H. Power Button
A B C D E F G H
Packing List
For more information about this product, visit the
Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com/support/new_de-
fault.aspx
This manual is for the PPC-310S/312S ASL series,
Rev.A0, models.
Part No. 2041310S00
Printed in China
Edition 1
May 2025
Appearance
I/O Layout
Software Installation
2 PPC-310S/312S ASL Startup Manual
Specications
System
CPU
X7433RE
Core 4
Frequency 3.4GHz
Cache 6 MB
Memory 1 x SODIMM, DDR5 4800MHz, max. 16GB
Storage
1 x M.2 M key slot (2242/2280, SATA &PCIE x1)
1 x 2.5” SATA bay (optional)
Network (LAN) 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226 LM)
I/O
2 x RS-232/422/485
2 x USB3.2, 2 x USB2.0
1 x DP
Expansion
1 x M.2 B key slot (2242 or 3052) (SATA, PCIe X1 ,USB 3.0 & SIM slot)*
1 x M.2 E key slot (2230) for wireless (PCIE p2-x1 & USB2.0)
1 x iDoor (optional)
1 x PCI or PCIe p2-x1 (optional)
2 x USB + GPIO module (optional)**
Watchdog Timer 255 timer levels; setup by software
Security
1 x TPM2.0 (on board as default)
Speaker 1 x 2W
LCD
Display Type 10.4’’ TFT LCD (LED backlight) 12.1’’ TFT LCD (LED backlight)
Max. Resolution 1024 x 768 1024 x 768
Viewing Angle 88 (left), 88 (right), 88 (up), 88 (down) 89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2) 500 500
Contrast Ratio 1000 1000
Backlight Lifetime 50,000 hrs (min.) 30,000 hrs (min.)
Touchscreen
Touchscreen type
5 wire resistive touch or -touch projected capacitivemulti
Light Transmission 80%±5% (Res) or >86% (P-cap)
Controller USB interface
Physical
Characteristics
Dimensions
257.9 x 205.3 x 49.9 mm (10.2 x 8.1 x
2.0 in)
295.3 x 233.8 x 49.9 mm (11.6 x 9.2 x
2.0 in)
Weight 2.46kg (5.42Ib) 2.79 kg (6.15 lb)
OS Support
OS Support Windows 10 LTSC, Windows 11, Linux
Power
Comsumption
Input Voltage
24V
DC
± 30%
Power Consumption 30W 35W
Environment
Operating
Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature -30 ~ 85 °C ( -22 ~ 185 °F) -40 ~ 80 °C ( -40 ~ 176 °F)
Relative Humidity 95% @ 40°C (non-condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration
Operating Random Vibration Test 5~500Hz, 2Grms @with SSD, Follows IEC 60068-
2-64
EMC CE,FCC Class B, BSMI, EN60601-1-2, UKCA
Safety CB, UL, CCC, UKCA
Front Panel Protection IP66 compliant
* For Storage,choose either the B key or the 2.5” SATA bay.
** iDOOR, additional ports or 2.5” SATA bay can’t be installed in the same time since they share the same space.
