Side 1/6

PPC-MB-620 Startup Manual 1

Before installation, check to ensure that the following items

are included in the shipment:

1. 1 x PPC-MB-620 mini-ITX motherboard

2. 1 x COM cable (1-to-4 DB9)

3. 1 x SATA cable

4. 1 x PPC-MB-620 startup manual

5. 1 x Warranty card

6. 1 x Thermal grease

7. 14 x COM port screws

8. 2 x M.2 packet screws

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

Note 1:

 FordetailedPPC-MB-620specications,refer

to the latest product information provided on the

Advantech website (PPC-600 model).

Note 2:

 AcrobatReaderisrequiredtoviewPDFles.

This software can be downloaded from www.

adobe.com/Products/acrobat/readstep2.html

(Acrobat is a trademark of Adobe).

PPC-MB-620 Mini-ITX Motherboard with Intel® Core™ i9/

i7/i5/i3/Celeron® Processor, DP/HDMI, 5 x COM, 6 x USB,

3 x LAN, PCIe x16, and M.2 (M Key, B key and E Key)

Startup Manual

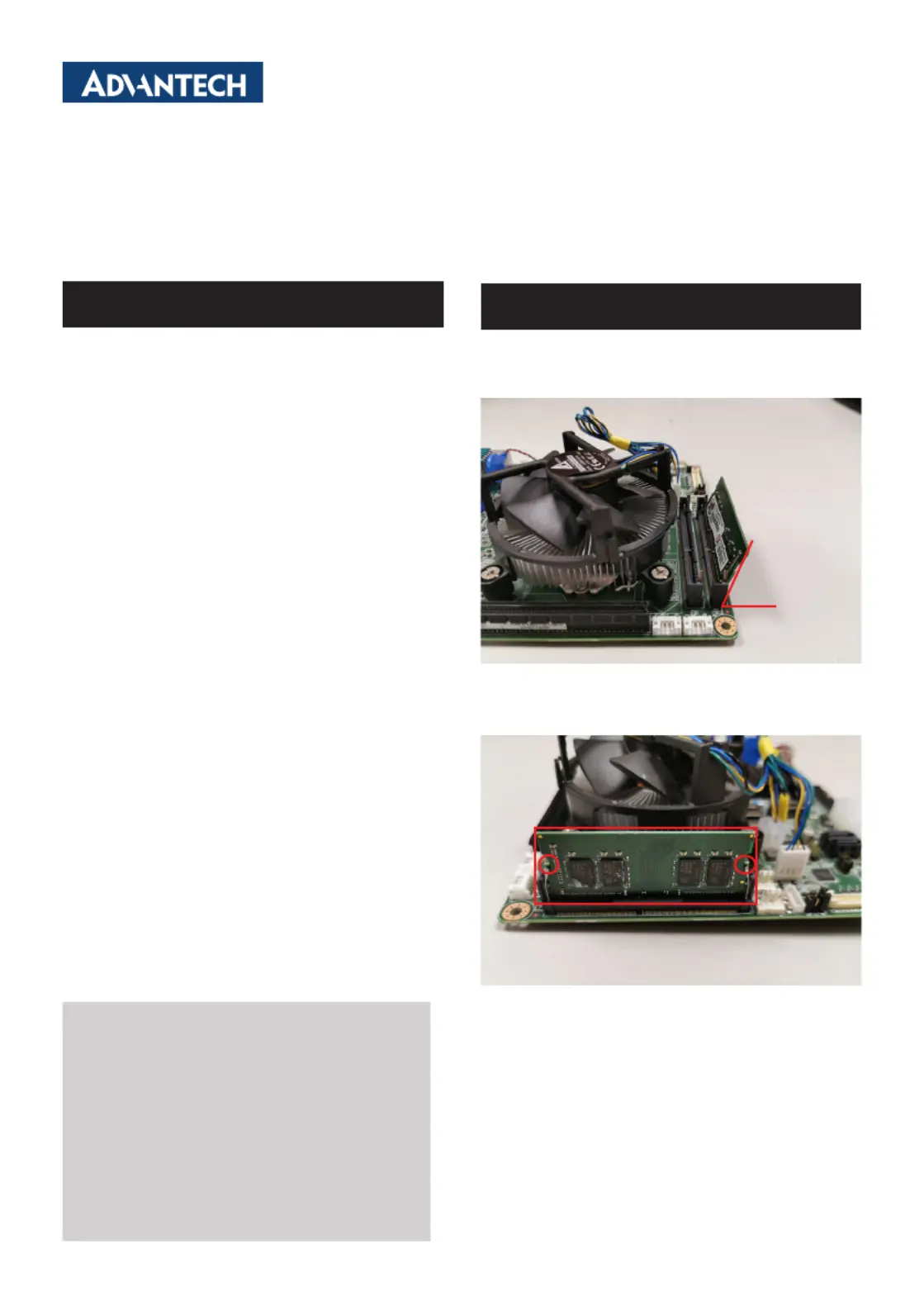

1. Insert the memory module into the memory slot at a 45

degree angle, as shown below. Ensure that the gold

ngersofthemodulearefullyinsertedintotheslot.

2. Once inserted, gently press the memory module into

the slot until the tabs snap into place, securing the

module in position.

45°

Installation Guide

Packing List

For more information about this or other Advantech

products, visit our website at

http://www.advantech.com

For technical support and service, visit our support

website at

http://support.advantech.com

This manual is for PPC-MB-620, Rev. A1.

Part No. 2044062000

Printed in China

Edition 1

March 2023

2 PPC-MB-620 Startup Manual

System

CPU

i9-12900E/

i9-12900TE

i7-12700E/

i7-12700TE

i5-12500E/

i5-12500TE

i3-12100E/

i3-12100TE

G7400E/

G7400TE

G6900E/

G6900TE

Core

Number

16/16 12/12 6/6 4/4 2/2 2/2

Max Speed

2.3GHz (Up to

5.0GHz)/

1.1GHz (Up to

4.8GHz)

2.1GHz (Up to

4.8GHz)/

1.4GHz (Up to

4.6GHz)

2.9GHz (Up to

4.5GHz)/

1.9GHz (Up to

4.3GHz)

3.2GHz (Up to

4.2GHz)/

2.1GHz (Up to

4.0GHz)

3.6GHz/

3.0GHz

3.0GHz/

2.4GHz

SmartCache 30/30MB 25/25MB 18/18MB 12/12MB 6/6MB 4/4MB

TDP 65W/35W 65W/35W 65W/35W 60W/35W 46W/35W 46W/35W

Memory

2 x 262-pin SODIMM DDR5, 4800 MHz , up to 32 GB (non-ECC )

Chipset

Q670E H610E

Ethernet

Controller

LAN1: 1Gb Intel i219LM (support AMT 16.0

only for i7 & i5);

LAN2: 2.5Gb Intel i226-LM

LAN1: 1Gb Intel i219LM (support AMT 16.0 only for i7

& i5);

LAN2: 2.5Gb Intel i226-LM

LAN3: 2.5Gb Intel i226-LM

Connector RJ45 x2 RJ45 x3

Rear I/O

USB 6 (USB 3.2 Gen 2) 6 (2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 2 x USB 2.0)

Ethernet 2 3

Display Port 1

HDMI 1

Audio 2 (Mic-in, Line-out)

Serial 2 (1 x RS-232/422/485, 1 x RS-232)

Internal

Connector

USB 3 x USB 2.0 1 x USB 2.0

SATA 2 x SATA 3.0 ( support RAID 0,1) 2 x SATA 3.0

Serial 3 x RS-232

TPM 1

GPIO 8-bit

Expansion

M.2

1 x slot (2280 M key) for storage (SATA & PCIe*4);

1 x slot (2230 E key) for wireless (PCIE & USB2.0)

1 x slot ( 3042 & 3052 B key) supports PCIE &

USB3.1 & USB2.0

1 x slot (3042 & 3052 B key) supports PCIE & USB2.0

PCIe x16

(Gen5)

1 x slot

Watchdog Timer

255timerintervals,congurableusingsoftware

Dimensions (W x H)

170 mm x 170 mm (6.69" x 6.69")

OS support

Microsoft® Win 10 IOT LTSC(64-bit)/Win 11, Linux

Specications
