USB-5820 Startup Manual 1

Before installation, please ensure that the following items

are included with the product:

1. 1 x USB-5820 module

2. 3 x Terminal blocks

3. 1 x USB-5820 startup manual

4. 1 x USB 3.0 lockable cable (1 m)

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

For more detailed information regarding this product, please

download the USB-5820 user manual from the Advantech

website.

Advantech’s USB-5820 is an industrial-grade isolated ana-

log output USB 3.0 I/O module. To ensure easy installation

in cabinet computers, USB-5820 modules are compact and

equipped with a DIN-rail mount kit. The built-in USB hub can

support a daisy-chain topology, while Euro-type pluggable

terminal blocks and LED indicators can facilitate congura-

tion and maintenance.

USB-5820

4-Channel, 16-Bit, 200 kS/s Isolated Analog

Output USB 3.0 I/O Module

Startup Manual

General

• Connectors:

1 x 10-pin terminal block (3.81 mm, A/O)

2 x 3-pin screw terminal blocks (3.81 mm, power)

1 x USB 3.0 type A (downstream port)

1 x USB 3.0 type B (upstream port)

• Dimensions:

120 x 120 x 40 mm

(4.72 x 4.72 x 1.57 in

)

• OperatingTemperature: 0 ~ 60 °C (32 ~ 140 °F)

• StorageTemperature:-40 ~ 70 °C (-40 ~ 158 °F)

• StorageHumidity:5 ~ 95% RH (non-condensing)

• PowerSupply:10 ~ 30 V

• Interface: USB 3.0

• DataTransferRates: 5 Gbps

• PowerConsumption:

100 mA typ./130 mA max. @24 V external power

450 mA typ./770 mA max. @5 V bus power

• ESDProtection:

Air: ±8 kV

Contact: ±6 kV

• DCSurgeProtection: 2 kV

AnalogOutput

• Channels:4

• Resolution:16 bits

• OutputVoltageRange:0 ~ 5 V, 0 ~ 10 V, ±5 V, ±10 V

• OutputCurrentRange:

0 ~ 20 mA, 4 ~ 20 mA (source type)

• Load:

> 1 kΩ (voltage output) 

< 625 Ω (current output)

• OutputError:< ±0.1% of full-scale range

• IsolationProtection:2,500 V

• UpdatingRate:

200/n kS/s, where n is the number of enabled channels

(n = 1 ~ 4)

• SlewRate:1 V/µs

1. Install the SDK and drivers downloaded from the

Advantech website.

2. Touch the metal case of the computer to discharge any

static electricity that may be in your body.

3. Insert the USB module into the designated USB port.

Use caution when inserting the module to avoid damag-

ing the components due to excessive force.

PackingList

For more information about this or other Advantech

products, visit our website at

http://www.advantech.com

For driver/SDK downloads and technical support

services, visit our support website at

http://support.advantech.com

This manual is for USB-5820.

Part No. 2041582000

Printed in China

Edition 1

April 2019

Specications

Overview

UserManual

InstallationInstructions

2 USB-5820 Startup Manual

Power

State Description

Off Module is not powered on

Green Module is powered on using either USB

bus power or external power

Up/Error

State Description

Green Upstream port is connected. Module is

functioning normally

Red -Upstream port is not connected/discon

nected. Module function is halted

Down

State Description

Off Downstream port is not connected

Blue Downstream port is connected

Analog Output

Signal Name Description

A/O < 0 ~ 3 > Analog output channels 0 through 3

GND Ground

FCCClassA

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15

of the FCC rules. These limits are designed to provide rea-

sonable protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and operated in accordance with

the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a resi-

dential area is likely to cause interference. In such cases,

users are required to correct the interference at their own

expense.

This product has passed the CE test for environmental speci-

cations when shielded cables are used for external wiring.

We recommend the use of shielded cables. Such cables are

available from Advantech. Please contact your local supplier

for ordering information.

USB-5820 modules feature two power input terminals with

an input power range of 10 ~ 30 V

and power redundancy

support. For modules connected to two power input sourc-

es, if one source is inactive or interrupted, the other power

source can immediately assume supply operations. Accord-

ingly, USB-5820 modules can operate with a single power

source. (The modules can also be powered via USB if no

device is connected to the downstream port.)

DeclarationofConformity

Power

LEDIndicators



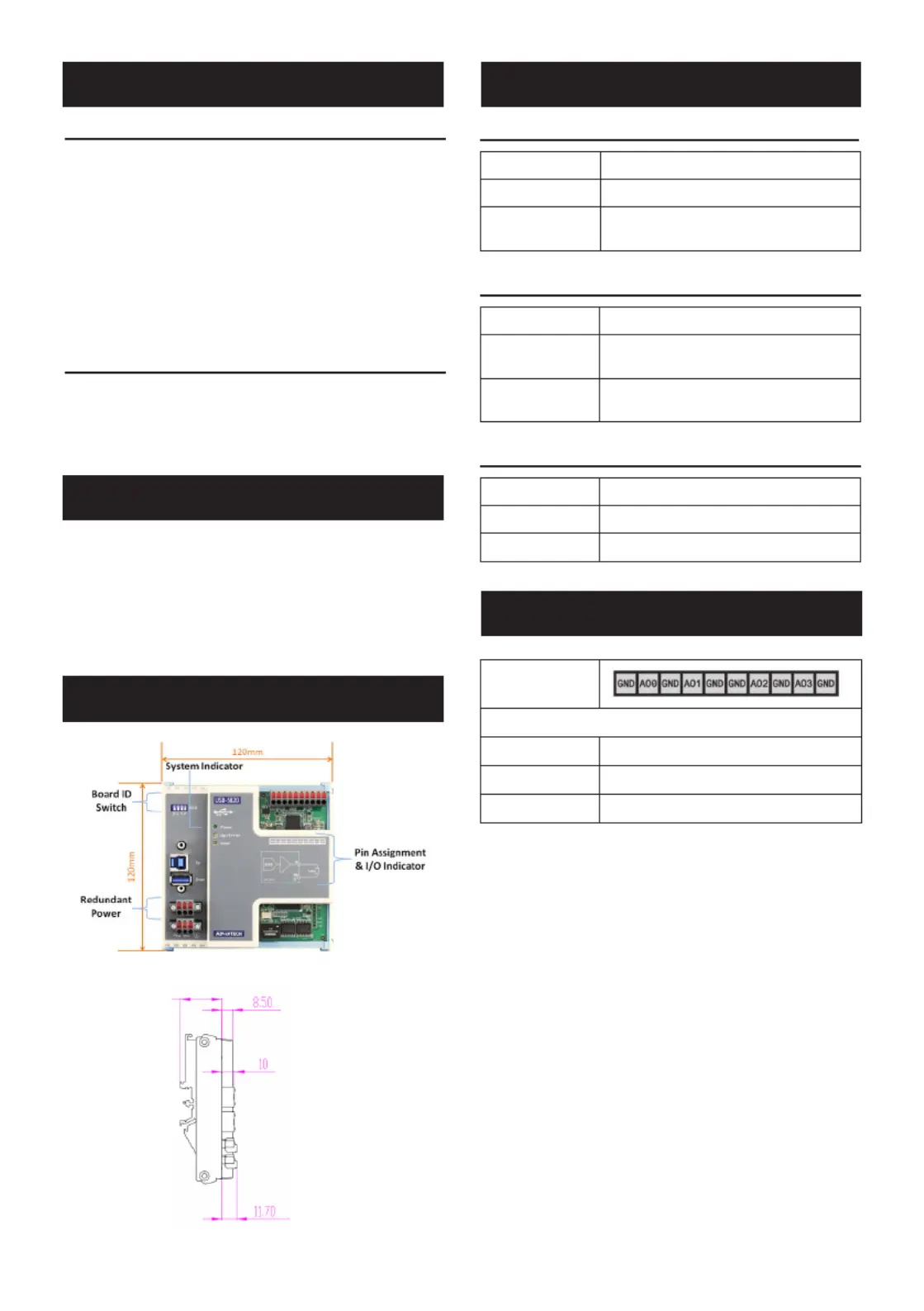

Layout/Dimensions



PinAssignment
