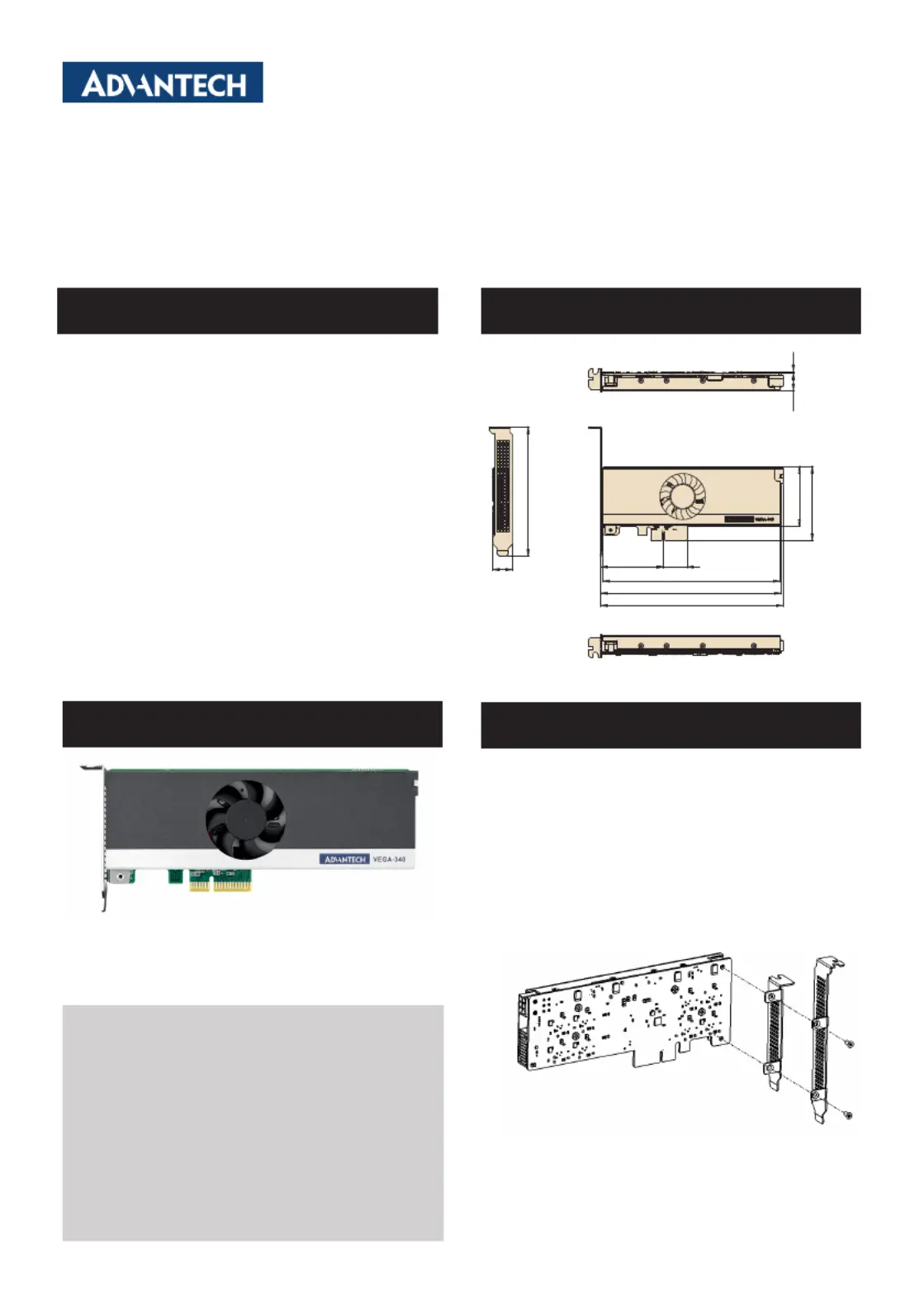

VEGA-340 Startup Manual 1
Before you start installing your card, please make sure that
the following items have been shipped:
• 1 x VEGA-340 card with heat sink and half height PCIe
bracket installed
• 1 x Full height PCIe bracket
• 1 x Startup manual
• 1 x Edge AI suite download card
Note: Regarding OpenVINO, you can go to: https://
software.intel.com/en-us/openvino-toolkit to
download the latest version, or you can down-
load Edge AI Suite through download card in
VEGA-340 packing list. Edge AI Suite supports
the following operating system: Windows 10
Enterprise 64-bit version 1809.
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
VEGA-340
Intel
TM
Movidius
TM
Myriad X Edge AI Module
Startup Manual
1. Identify a suitable PCIe p1-x4 Gen 2 slot on the target
platform.
2. If the slot on the target platform requires full height
PCIe bracket, please follow the below instructions and
guretochangethebracketonVEGA-340:
(2-1) Unscrew the 2 screws on the half height bracket
originally secured to VEGA-340.
(2-2) Replace half height bracket with full height bracket
in the packing, and secure the bracket to VEGA-340
with the 2 screws used in step (2-1).
3. Check PCIe generation of host platform. If it is higher
than Gen 2, please set “PCIe maximum speed setting”
inBIOStobexedat“Gen2”forusingVEGA-340.
Unit: mm
121.02
18.91
169.55
171.07
166.45
56.15
22.1059.05
68.90
1.9016.11
Dimensions Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the VEGA-340.
Part No. 2046034000
Printed in China
1st Edition
Feb 2020
Product Picture
VEGA-340 Installation
2 VEGA-340 Startup Manual

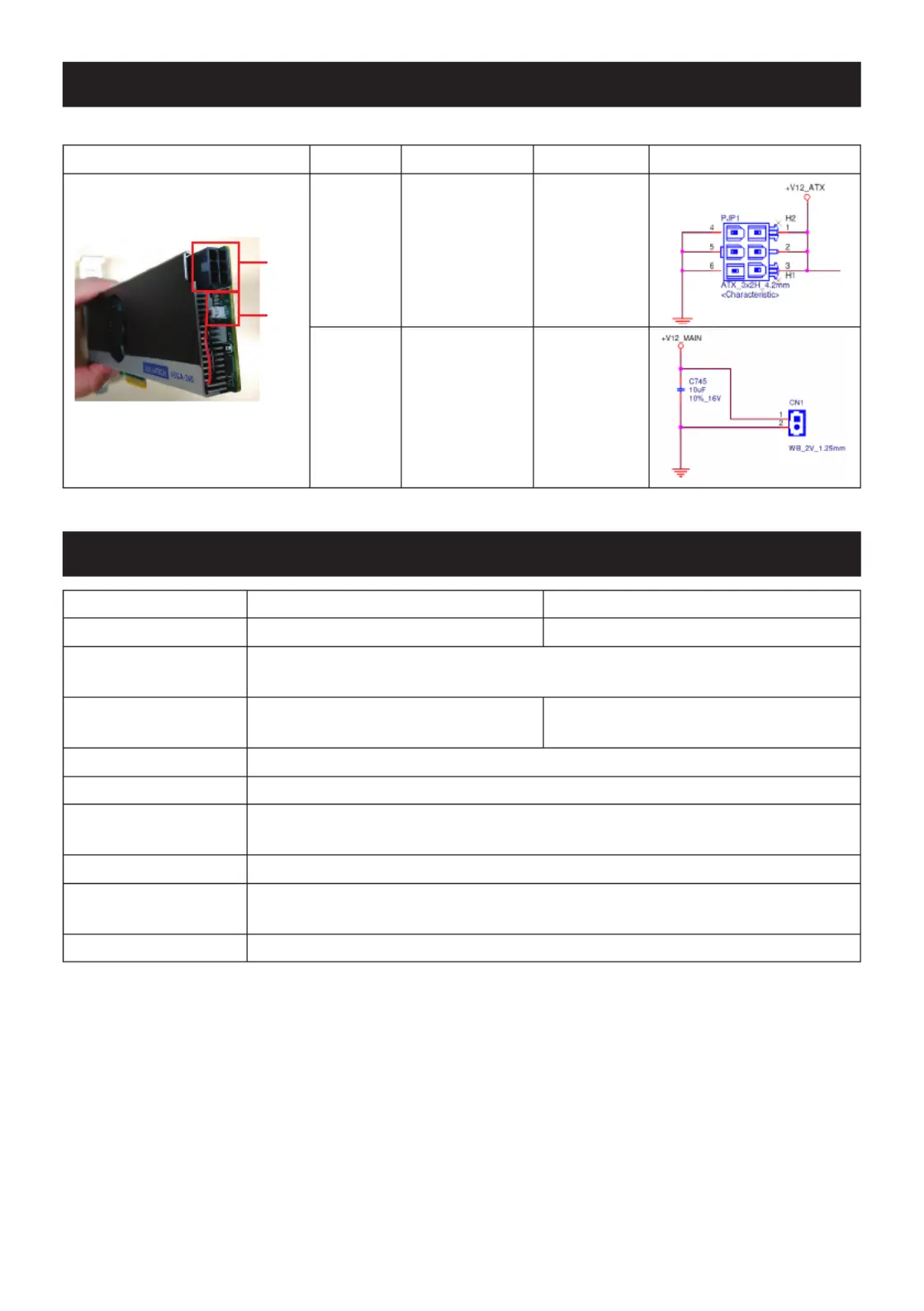

Connectors
Below are the connectors of VEGA-340:
VEGA-340 connector location Connector Description SymbolPin dene
C1
PCIE card power
from ATX power
supply (optional)
PIN1,2,3: +12V
PIN4,5,6: GND
C2
2 pin PH 1.25mm
connector for ac-
tive fan power.
PIN1: +12V
PIN2: GND
VEGA-340-04A1 VEGA-340-08A1
SoC Four Intel® Movidius™ Myriad™ X MA2485 Eight Intel® Movidius™ Myriad™ X MA2485
Signal Interface
PCI Express p2-x4
CompliantwithPCIExpressSpecicationV2.0
Power Consumption
Idle Mode. 6.7W
Heavy Loading. 16.8W
Idle Mode. 9.6W
Heavy Loading. 28W
Cooling Active fan 12V, 2 pin PH 1.25mm connector
Operating Temperature -20 ~ 60 °C
Power Source
DefaultpowersourcefromPCIegoldnger
6-pin connector for 12VDC input by cable
Dimensions 171.07 x 68.9 mm
Operating Systems
Windows 10 Enterprise 64 bit
Ubuntu 18.04. LTS, 64-bit
OpenVINO OpenVINO 2019 R2 or latest
C1
C2
Specications
