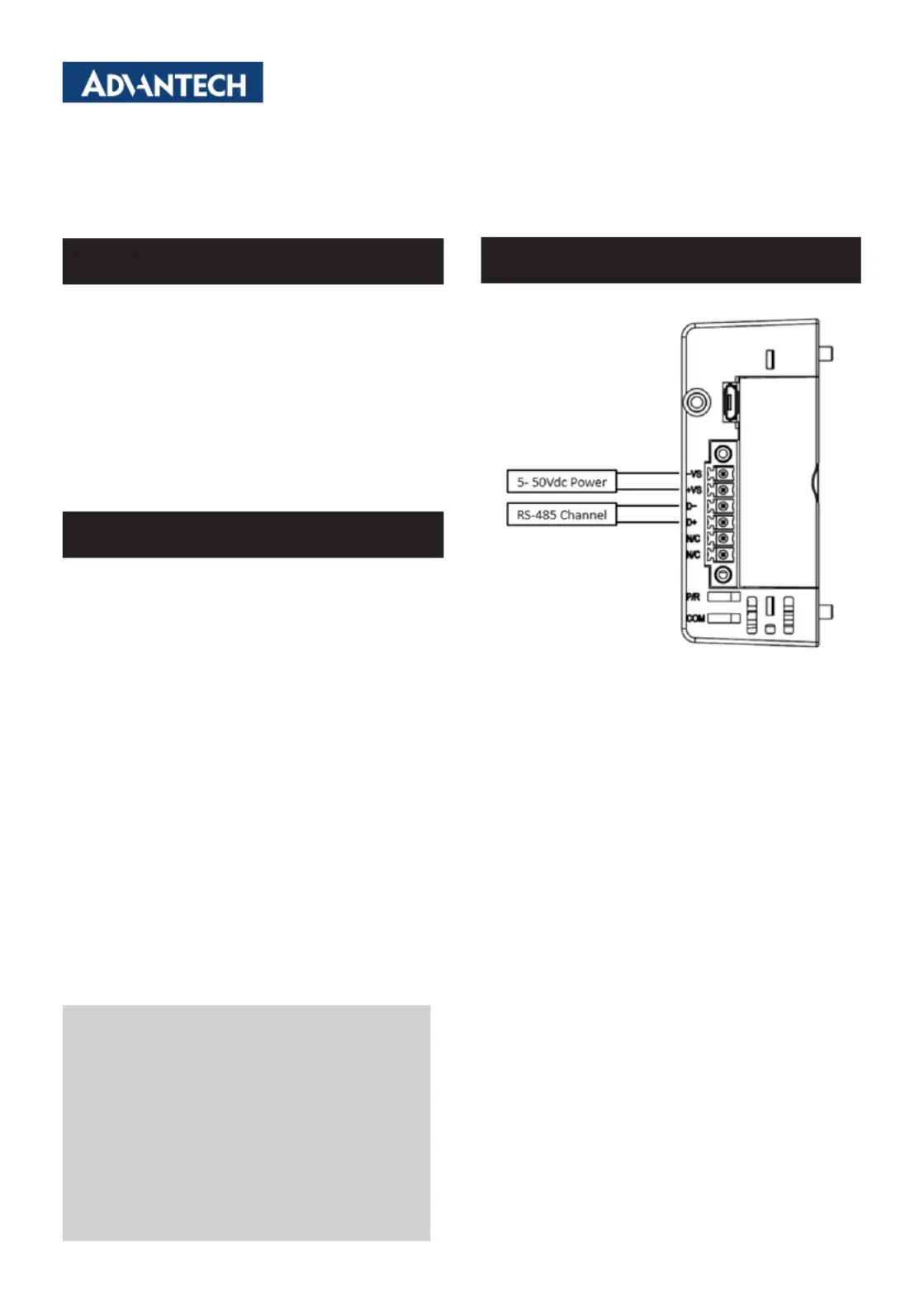

WISE-2200-M Startup Manual 1

WISE-2200-M

LoRaWAN RS-485 Modbus I/O Module

Startup Manual

Before installation, please ensure that the following items

have been included in your shipment:

1. 1 x WISE-2200-M module

2. 1 x Mounting bracket

3. 1 x Quick start manual

4. 1 x China RoHS declaration (WISE-2200-MNA only)

5. 1 x Antenna

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

Thank you for purchasing the WISE-2200-M module.

This quick start guide is intended to help you deploy your

new module. The guide contains basic information on the

power and application wiring. Should you require additional

instructions, please refer to the user manual.

5 – 50 Vdc connect to –VS, +VS channels.

Packing List

For more information on this and other Advantech

products, please visit our website at

http://www.advantech.com

For technical support services, please visit our support

website at

https://www.advantech.com/support

This manual is for the WISE-2200-M.

Part No. 2043220000

Printed in Taiwan

Edition 1

January 2022

Specications

User Manual

2 WISE-2200-M Startup Manual

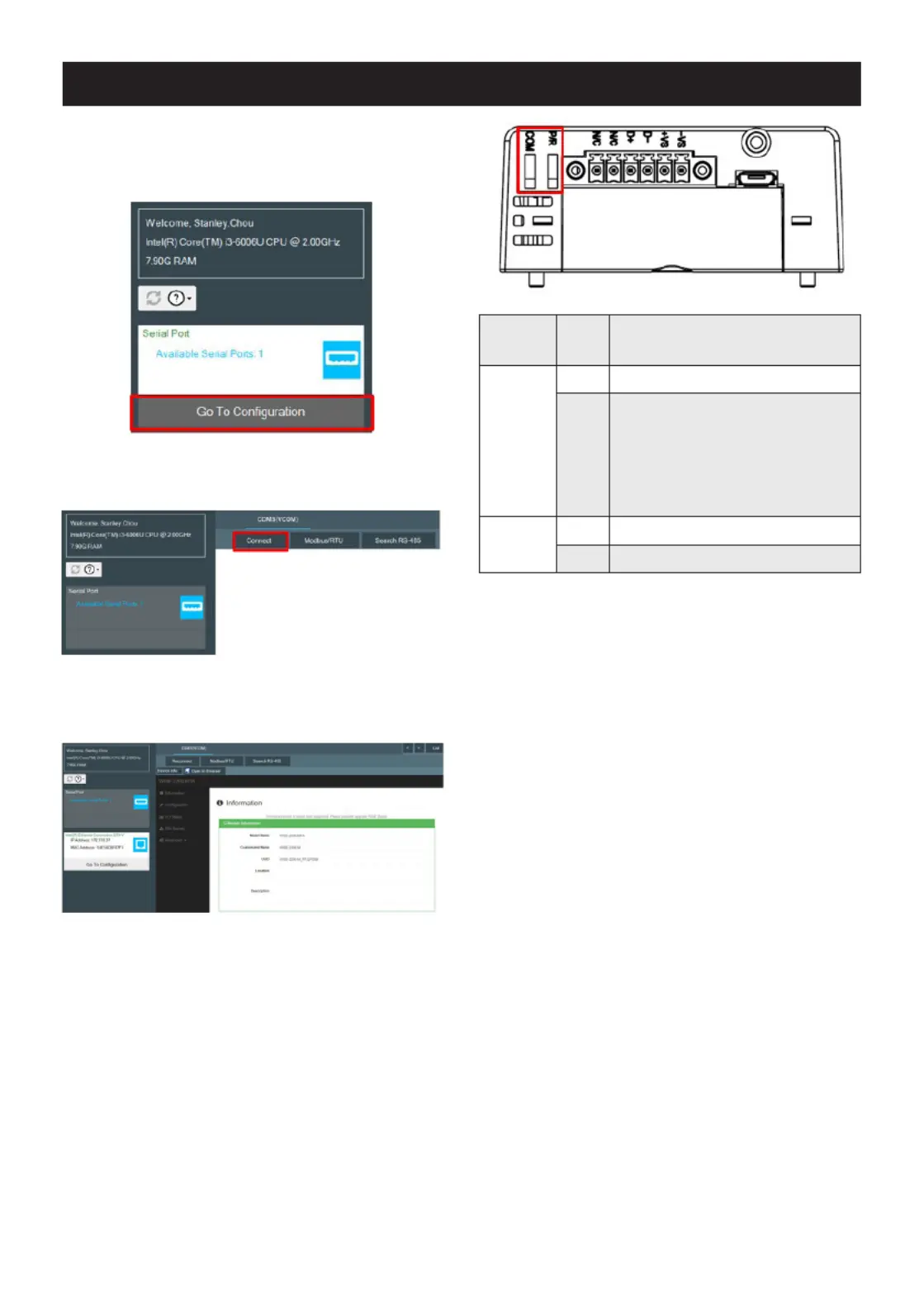

LED

Indication

Color Behavior

P/R Green Machine turns on when power on

Yellow Turns on when OTAA join unsuc-

cessfully

Blinks when sending data to Gateway

(On 0.2 sec)

Blinks when receiving data from

Gateway (On 0.2 sec)

COM Green Blinks when RX on RS-485 channel

Yellow Blinks when TX on RS-485 channel

Note: USB is only for conguration.

1. Connect the module to your computer via the microUSB

port.

2. Open WISE Studio and click Go To Conguration.

3. Click to link the WISE-2200-M and the web Connect

conguration page will appear

4. Use the web conguration tool in WISE Utility or press

Open In Browser to open the web conguration in any

browser (Google Chrome is recommended).

5. Click to check the status of the module.Information

6. Click for setting detail information, RF Conguration

connection, time, etc on the module.

Connections
