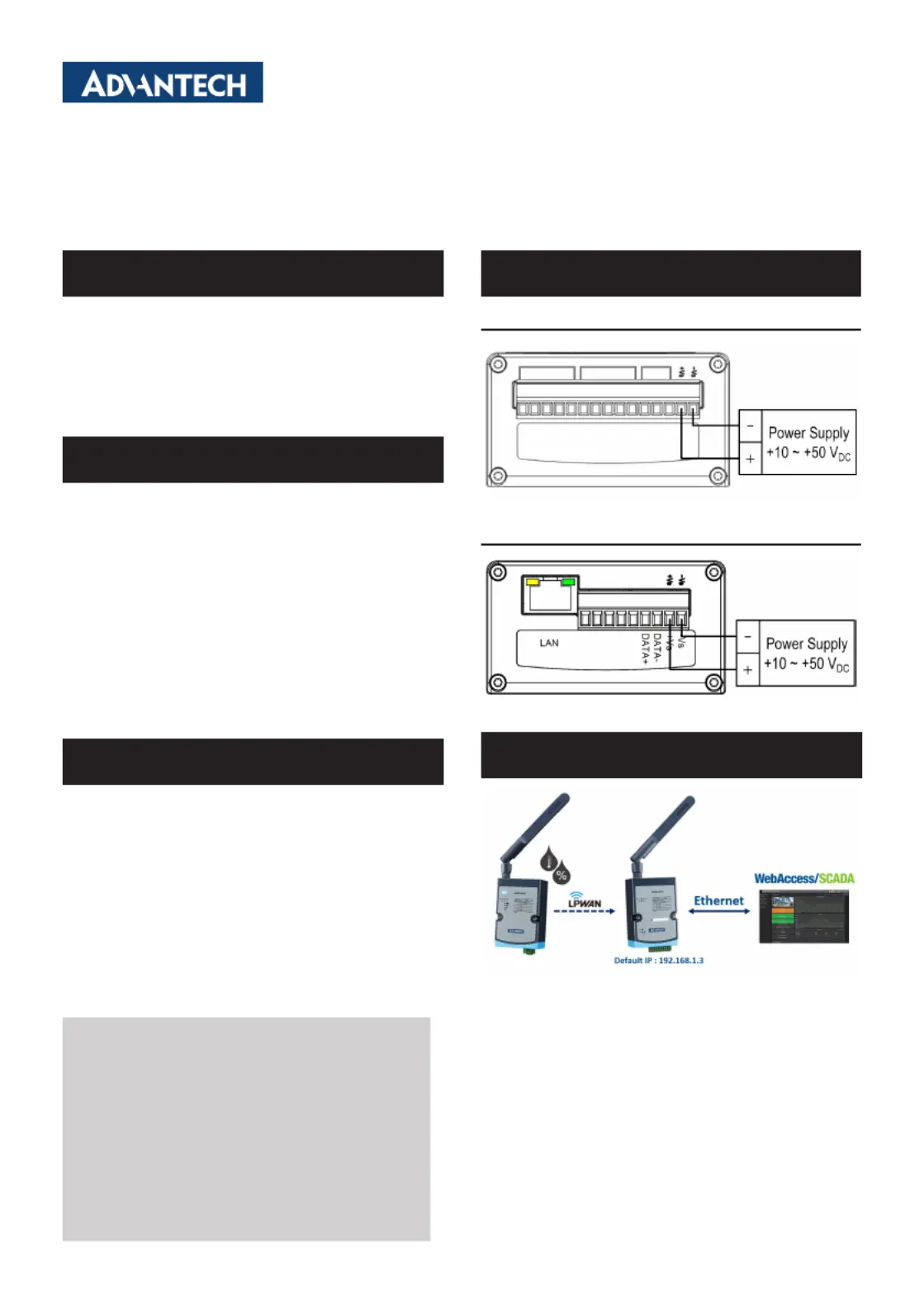

WISE-4210-S231 Startup Manual 1

Thank you for purchasing the WISE-4210-S231 LPWAN

Temperature/Humidity Starter Kit. This quick start guide is

intended to help you deploy your new solution. The guide

contains basic information on the power and application wir-

ing. Should you require additional instructions, please refer

to WISE-4210-S231 and WISE-4210-AP user manual.

• 1 x WISE-4210-S231

• 1 x WISE-4210-AP

• 2 x Antenna

• 1 x WebAccess/SCADA 75 tags license key

• 2 x Mounting bracket

• 1 x Quick start manual

• 1 x China RoHS declaration (NA series only)

• 2 x 60w adapter

• 2 x 183cm power cord

• 1 x 70 cm Ethernet cable

• 1 x Screwdriver

The WISE-4210 is designed for a standard industrial

unregulated 24 VDC power supply. For some applications,

it can also accept +10 to +50 VDC power input with 200 mV

peak-to-peak power ripple. The immediate ripple voltage

should be between +10 and +50 VDC. Batteries may also

be used as an alternative power source.

WISE-4210-AP is the LPWAN AP, power source comes

from adapter.

WISE-4210-S231

LPWAN Temperature/Humidity Starter Kit

Startup Manual

WISE-4210-S231 Power Supply Wiring

WISE-4210-AP Power Supply Wiring

Overview

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service:

http://support.advantech.com/

This startup manual is for WISE-4210-S231 Series.

Part No. 2043421000

Printed in Taiwan

Edition 1

August 2020

Packaging List

Input Power Requirements

Power Supply & Application Wiring

System Architecture

2 WISE-4210-S231 Startup Manual

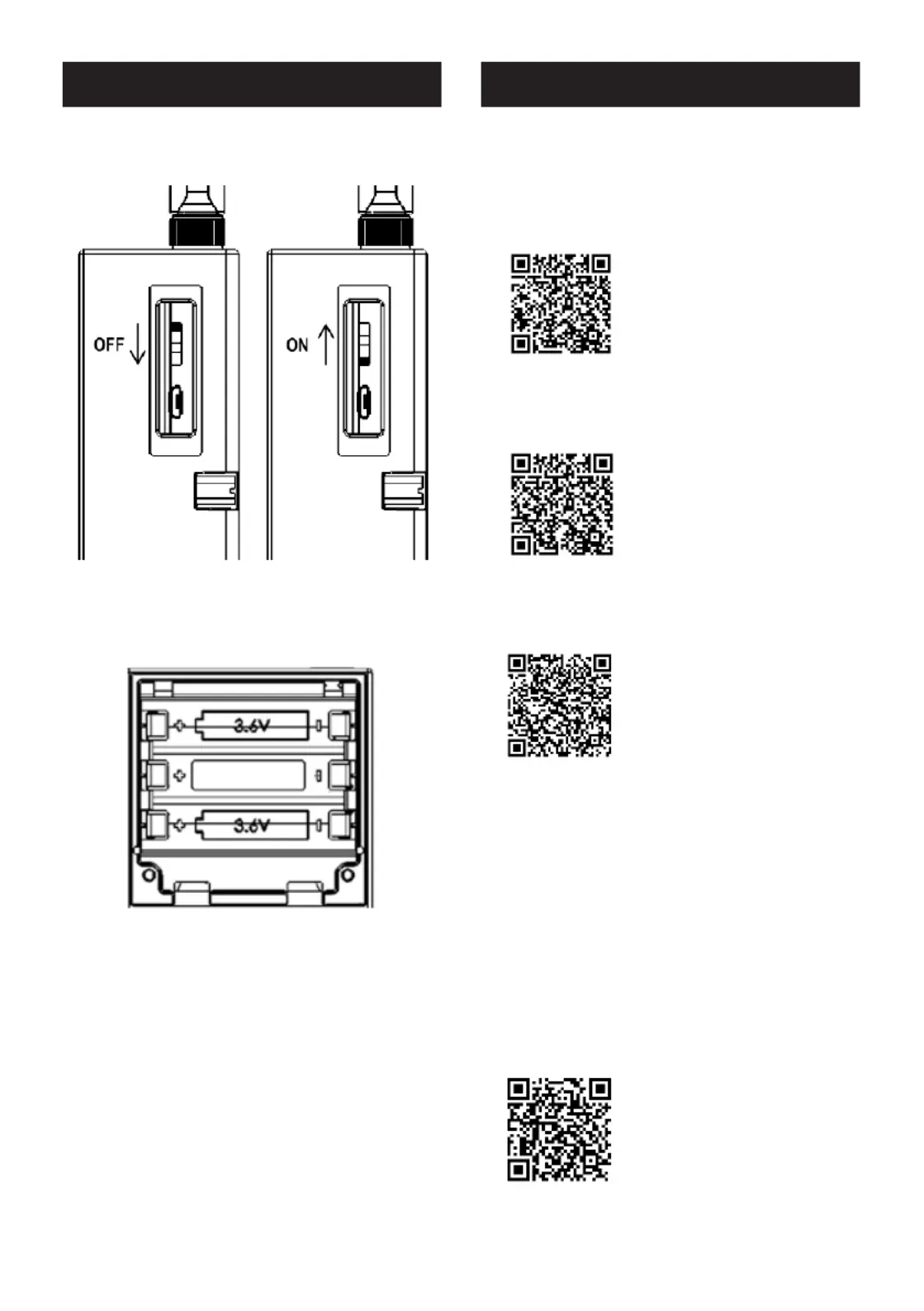

Open the rubber cover on the side of WISE-4210 nodes,

thereisabatteryswitchtoturnonorturno󰀨thebattery

power supply.

The module accepts 3 x AA, 3.6 V lithium battery.

The batteries should be installed facing the same direction.

Installation Procedure Battery

1. Power on WISE-4210-S231 and WISE-4210-AP

2. Install WebAccess/SCADA in your PC.

3. To generate 75 tags use WebAccess/SCADA USB Hard

Key from the following link :

https://support.advantech.com/support/Download-

SRDetail_New.aspx?SR_ID=1-1YCRI3V&Doc_

Source=Download

4. Download WebAccess/SCADA WISE Starter Kit project

as in the following link :

https://support.advantech.com/support/Download-

SRDetail_New.aspx?SR_ID=1-1Y7TAWX&Doc_

Source=Download

5. Import WebAccess/SCADA WISE Starter Kit project into

your PC. Import procedure as following link :

https://support.advantech.com/support/Knowledge-

BaseSRDetail_New.aspx?SR_ID=1-1Y6YZXN&Doc_

Source=Knowledge+Base

6. Open WISE Starter Kit project and copy IoTDemo_

WISE-Project folder to c:\webaccess\node and c:\

webaccess\node\cong

7. Open WISE Starter Kit project and open ModiconDriv-

er__UTCSwapfolder.copy3dllletoc:\webaccess\

node and c:\webaccess\node\deriver and c:\webac-

cess\node\cong\ProjectName\BINandc:\webaccess\

node\ProjectName\BIN

8. Connect your PC with WISE-4210-AP, make sure the

PC IP segment is same with WISE-4210-AP. Default IP

on WISE-4210-AP is 192.168.1.3

9. You can have the data from WISE-4210-S231 directly

on your WebAccess/SCADA WISEPaaS Dashboard,

link as follow : https://localhost:3000/frame/SideBar?lan

guage=en&theme=dark&orgId=3.
